SUNEAST JT Wave soldering titanium fingers and spring clamp accessories
Wave soldering accessories: spring pressure fingers, titanium pressure fingers, new dual-column pressure fingers, heavy-duty duckbill pressure fingers, suitable for SUNEAST and JT wave soldering machines.
Includes a type 54 spring pressure finger, a three-piece chain set, and a size 54 retaining shackle.
High temperature resistant, wear resistant, robust and durable, ideal for PCB transport and securing.
Wave soldering titanium fingers and spring clamp accessories
SUNEAST JT wave soldering chain finger clasp parts
Heavy-duty duckbill finger double-post wave soldering accessories
Type 54 spring finger chain three-piece set (for wave soldering)
Share to:

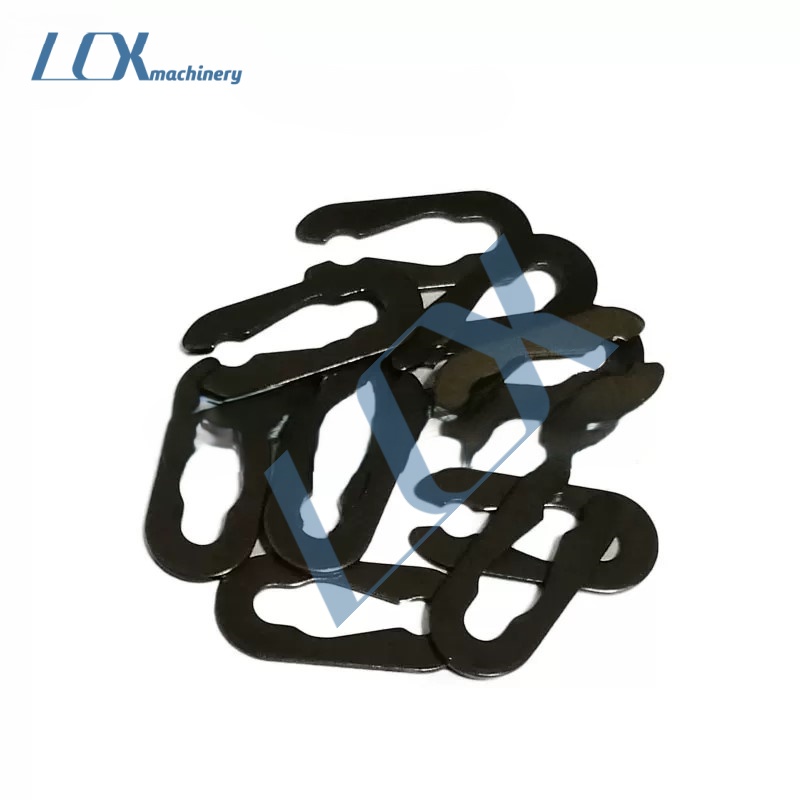

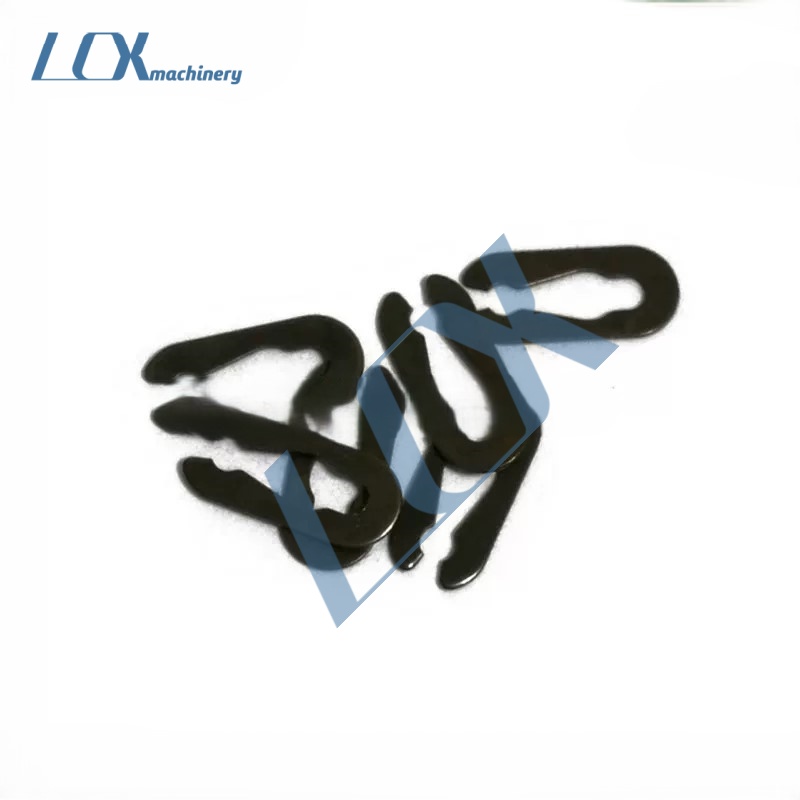

1. Wave Solder Chain Circlip / E-Clip (Images 1/2/3/4)
Function: Secures the pins of the wave solder conveyor chain, preventing the claws from detaching during high-speed operation as a safety lock for chain connections.
Model Compatibility: The “54” you mentioned typically corresponds to 35B/50 series chains. The opening size of the circlip must strictly match the diameter of the chain pin. It is usually made of SK7 spring steel with black oxide coating for rust resistance.
Application: Circlips must be replaced when changing claws during chain maintenance, to avoid detachment caused by long-term loss of elasticity.

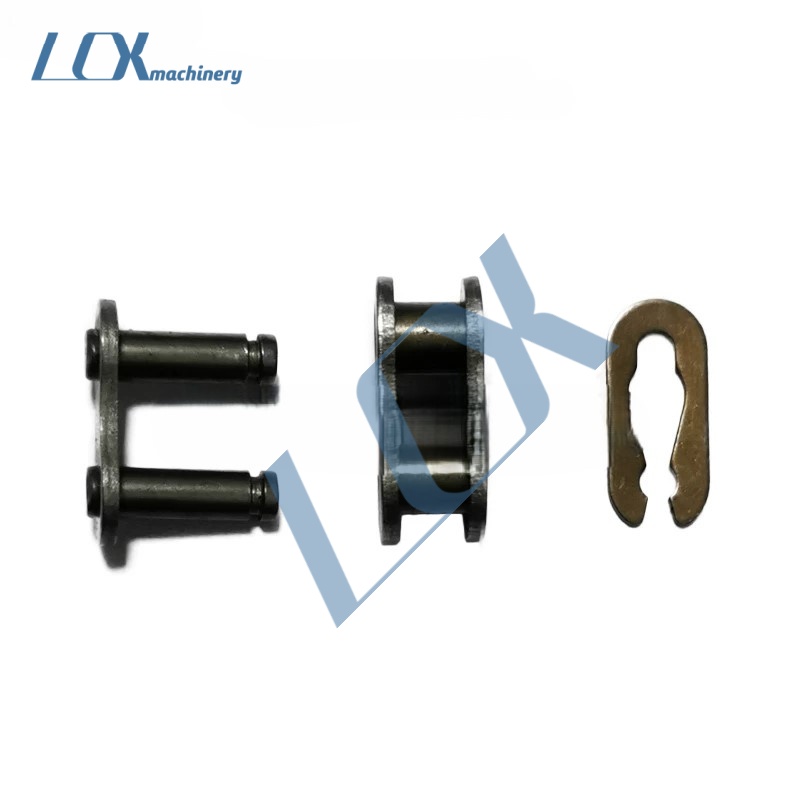

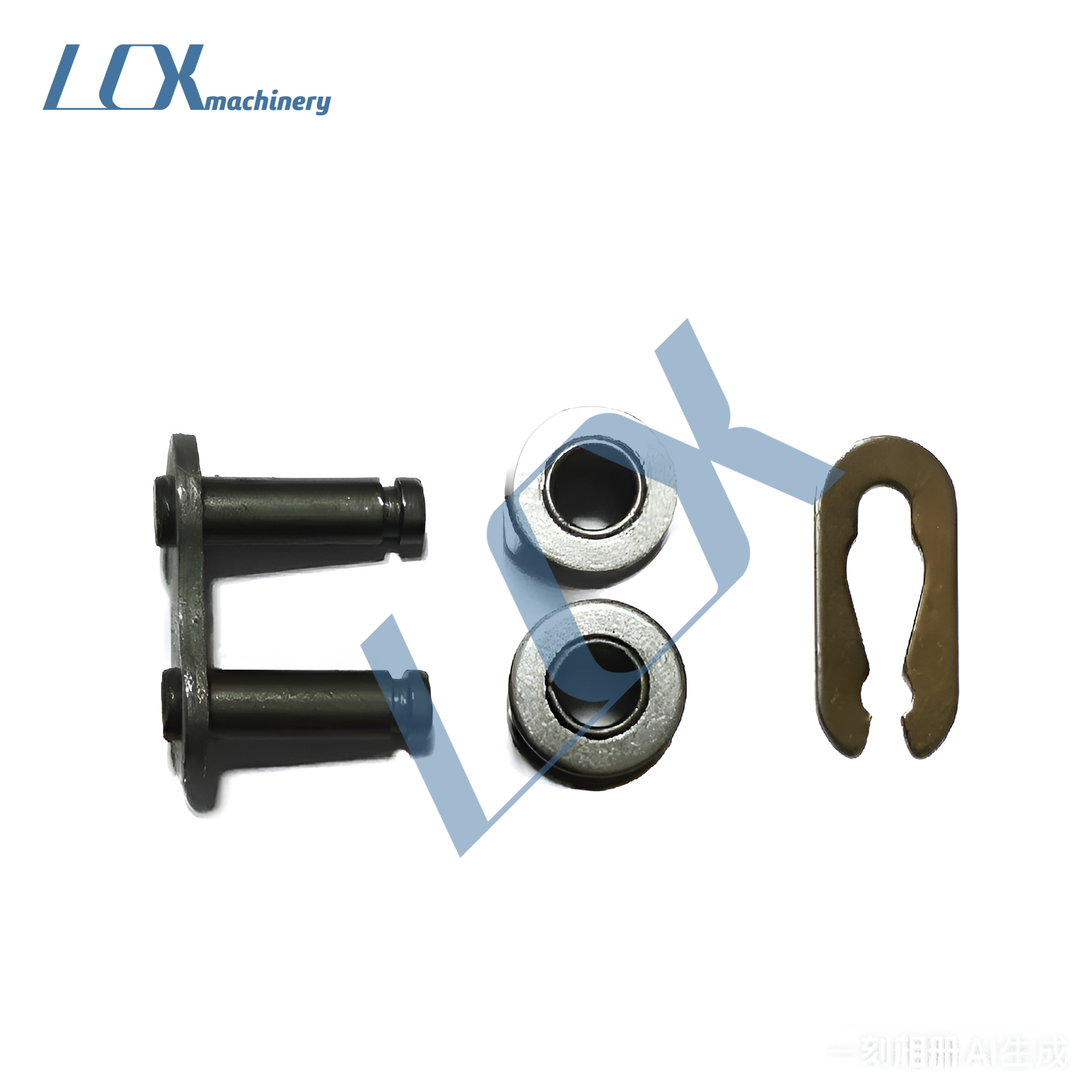

2. 3-Piece Chain Link Kit (Images 3/4)
Components: Chain pin + chain plate + link connector (also known as a “master link”).
Purpose: Used to splice or repair the wave solder conveyor chain, serving as the core component for extending or replacing chains. It works with circlips to secure the claws.
Compatibility Notes: The 35B chain is the most common model for wave soldering. The pin length and plate thickness of the kit must perfectly match the equipment chain to prevent jamming or loose claws.

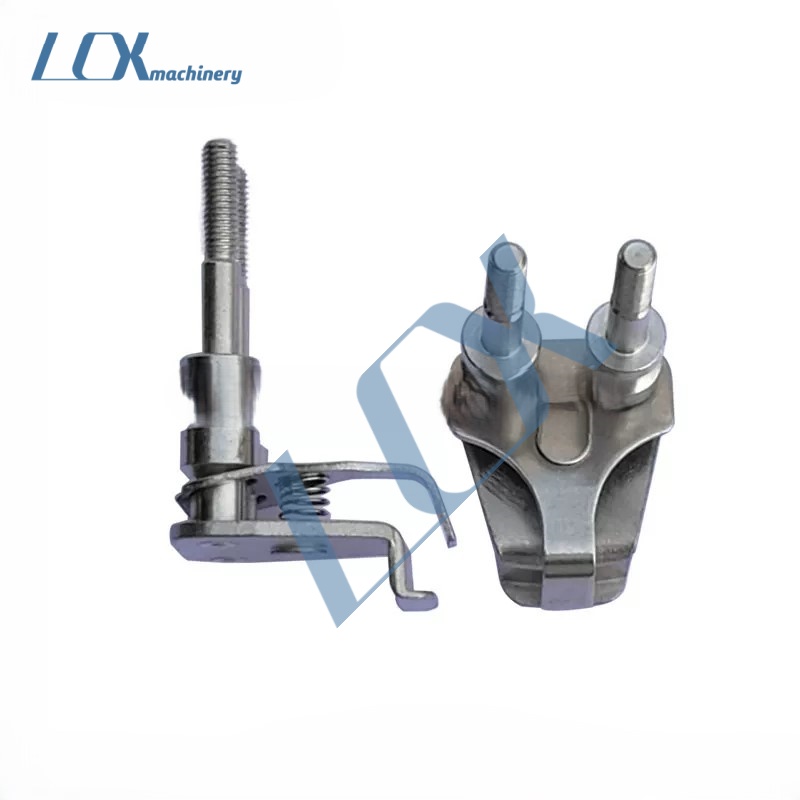

3. Titanium Claws / Conveyor Claws (Images 5/6)
Type Classification:
Spring-Loaded Claws: With spring-loaded jaws that clamp PCBs via elastic pressure, suitable for boards of varying thicknesses with excellent anti-drop performance.
New Double-Post Claws / Heavy-Duty Duckbill Claws: Titanium alloy claws with double-post fixing, high temperature and wear resistant, ideal for heavy PCBs or lead-free processes with minimal deformation.
Material & Process: Mostly made of titanium alloy (TA1/TA2) or stainless steel, resistant to high-temperature solder corrosion. The tips are specially treated to reduce solder dross buildup.
Brand Compatibility: Common specifications include SUNEAST SA-3 type and JT Universal type. The claw length and spacing must match the equipment track width.
💡 Selection & Maintenance Tips
Priority on Compatibility: The claw model (e.g., SUNEAST/JT specific), chain model (35B/50), and circlip specification must all match to avoid installation issues or operational failures.
Regular Replacement Cycle: Circlips and spring-loaded components are recommended to be replaced every 3-6 months. Titanium claws with wear exceeding 1mm should be replaced promptly to prevent PCB drop or damage.
Material Upgrade Recommendation: For lead-free processes, prioritize titanium alloy claws and stainless steel circlips, which offer better high-temperature and corrosion resistance than ordinary carbon steel parts, with a 2-3x longer service life.
