SMT Reflow Oven Temperature Profiler KIC Explorer

I. Core Equipment and Applications

This is the KIC Explorer series oven temperature profiler from the USA, a professional temperature measurement device in the SMT electronics manufacturing field. It is mainly used for:
* Acquiring and analyzing oven temperature profiles for processes such as reflow soldering, wave soldering, and adhesive curing.
* Verifying whether the oven temperature process meets industry standards such as IPC-7530, avoiding defects such as cold solder joints and over-soldering.
* Supporting simultaneous acquisition by 7/9/12 channel thermocouples, fully covering the temperature distribution of key areas on the PCB board.

II. Core Technical Parameters

Parameter Item | Specification Details
* Temperature Range: -50℃ ~ 1050℃
* Resolution: 0.1℃
* Number of Channels: 7/9/12 channels (9-channel model shown in the image)
* Data Storage: Built-in flash memory can store 1000 temperature profile data sets.
* Communication Interface: USB 2.0 (Mini-B interface)
* Power Supply: Powered by 3 AAA batteries
* Dimensions: Approximately… 248×65×18mm

III. Supporting Components

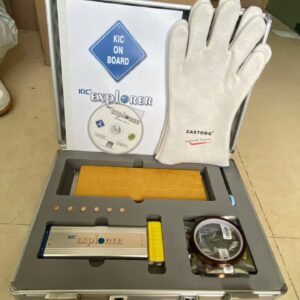

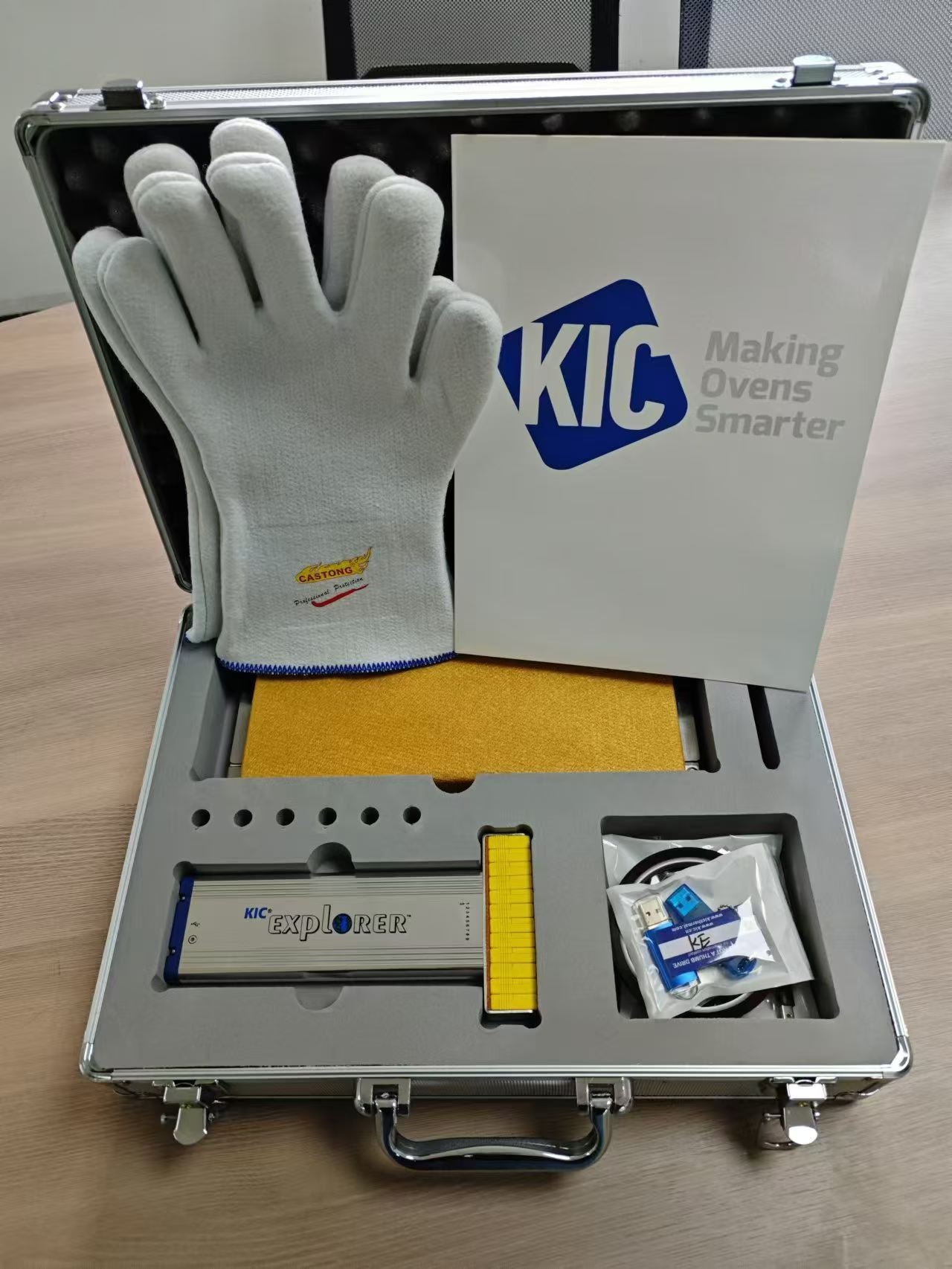

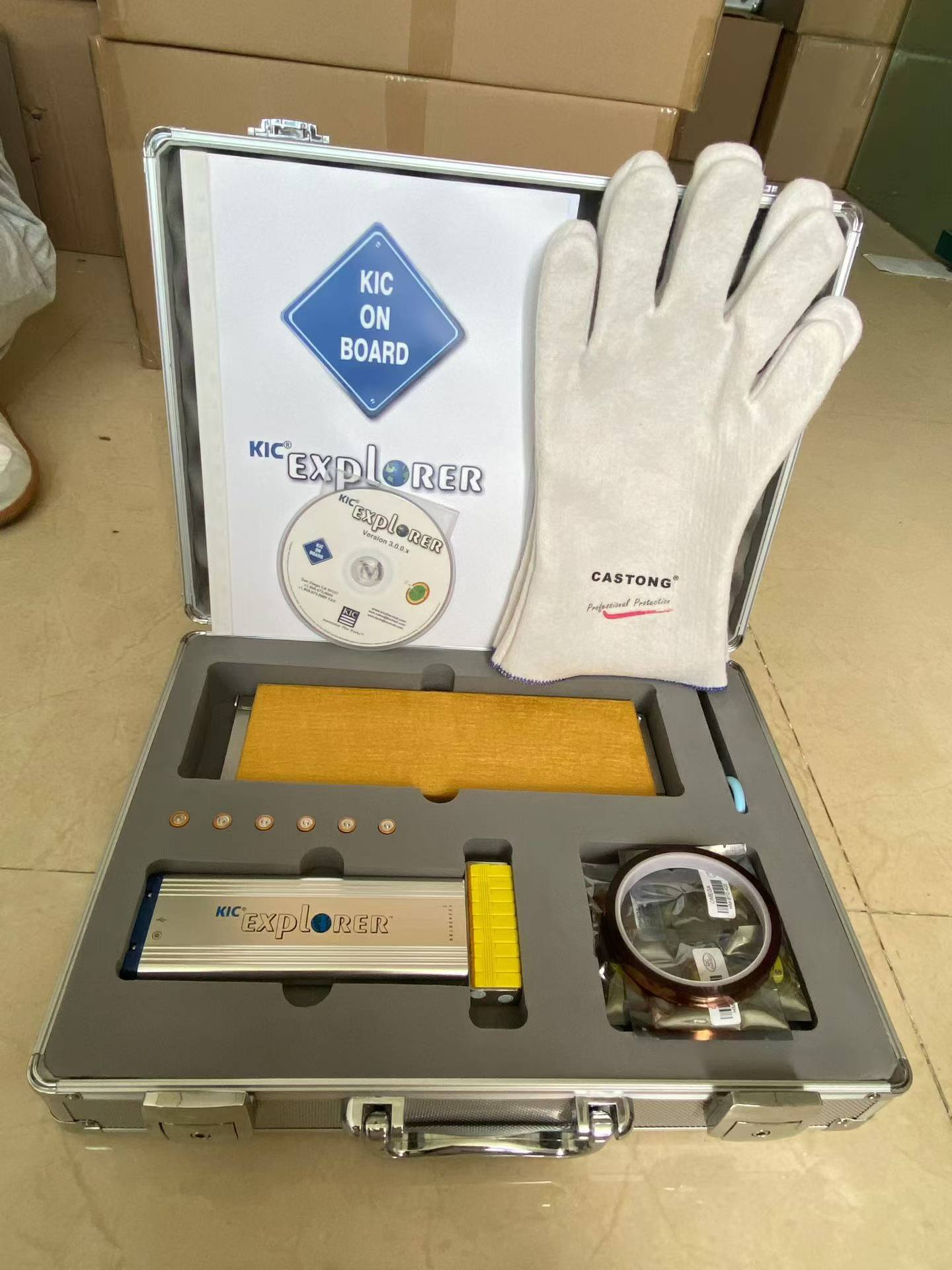

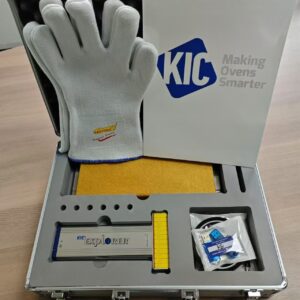

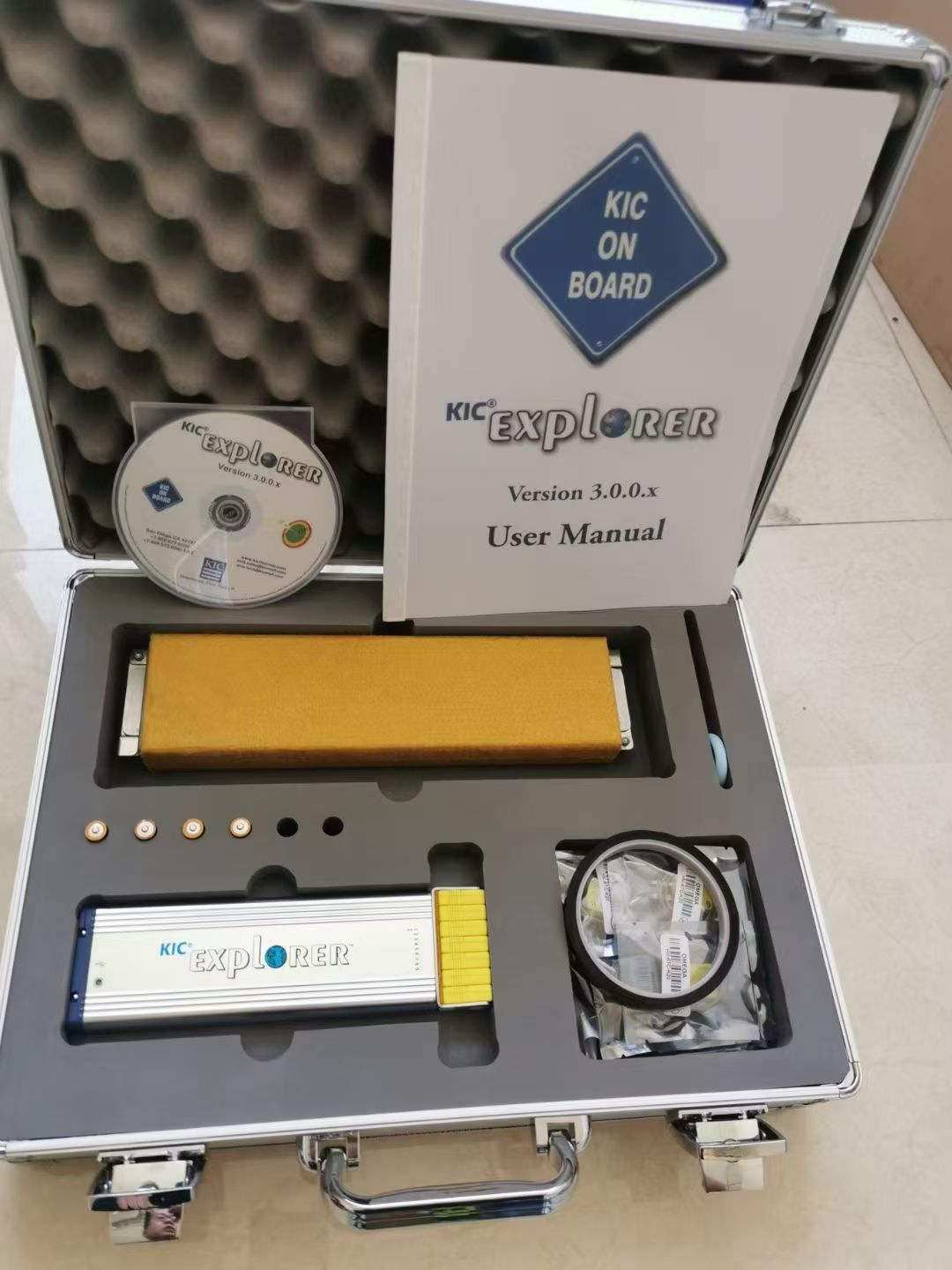

The complete configuration can be seen from the aluminum toolbox in the picture:

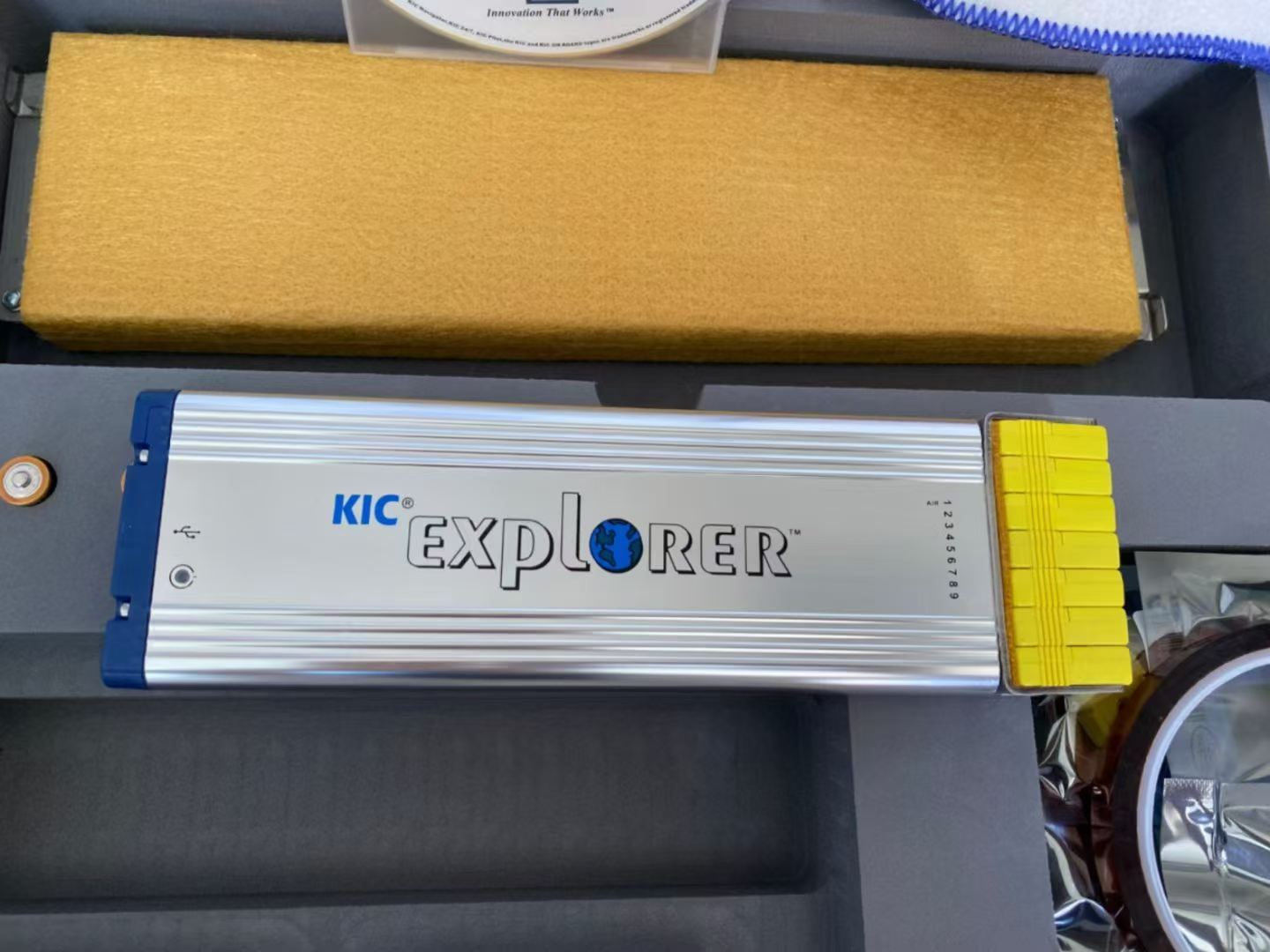

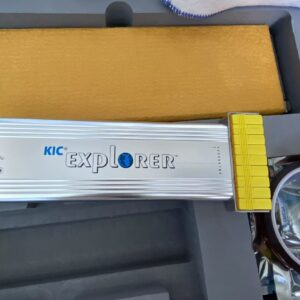

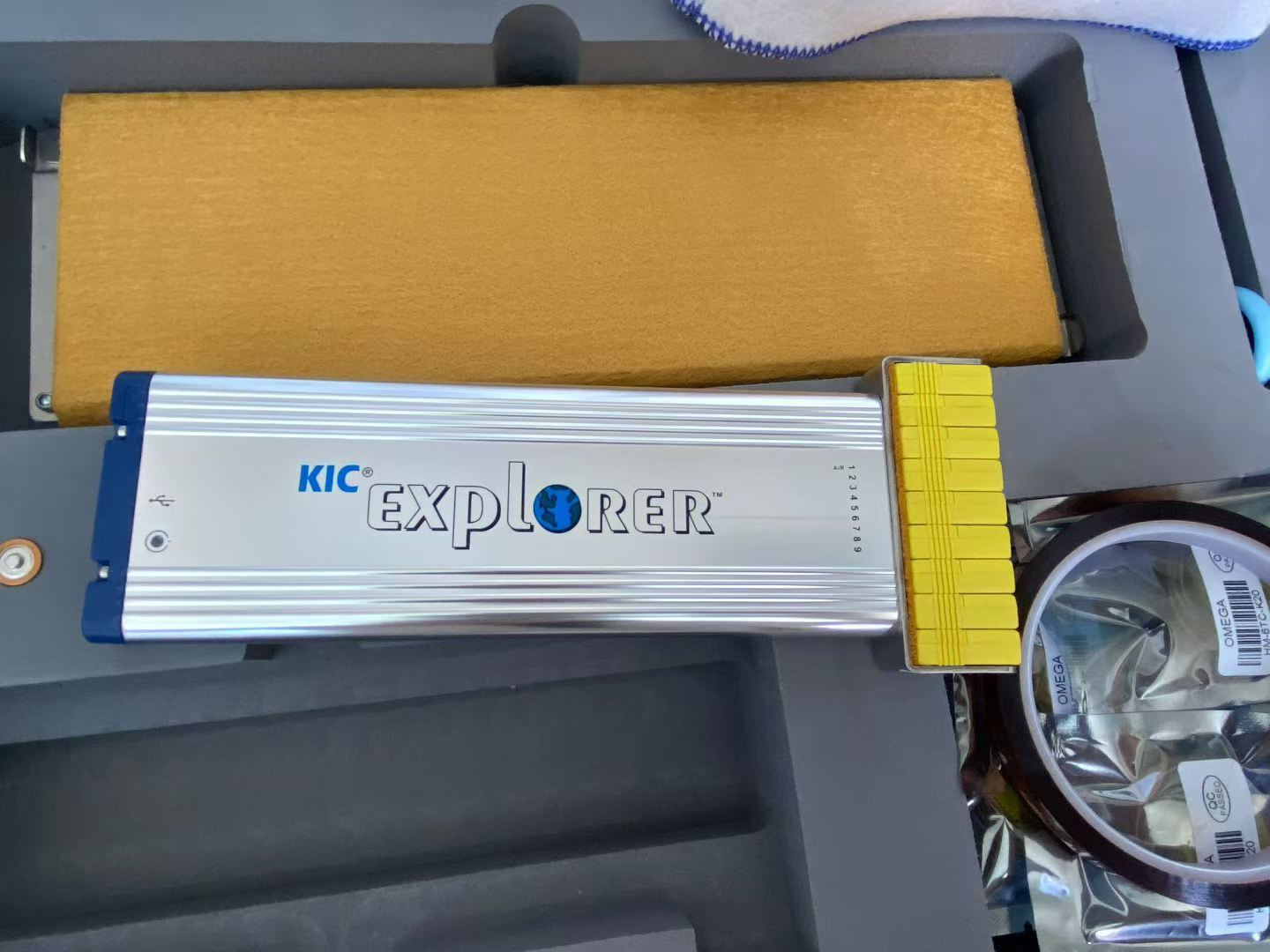

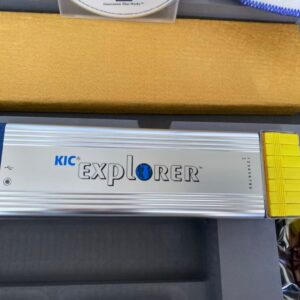

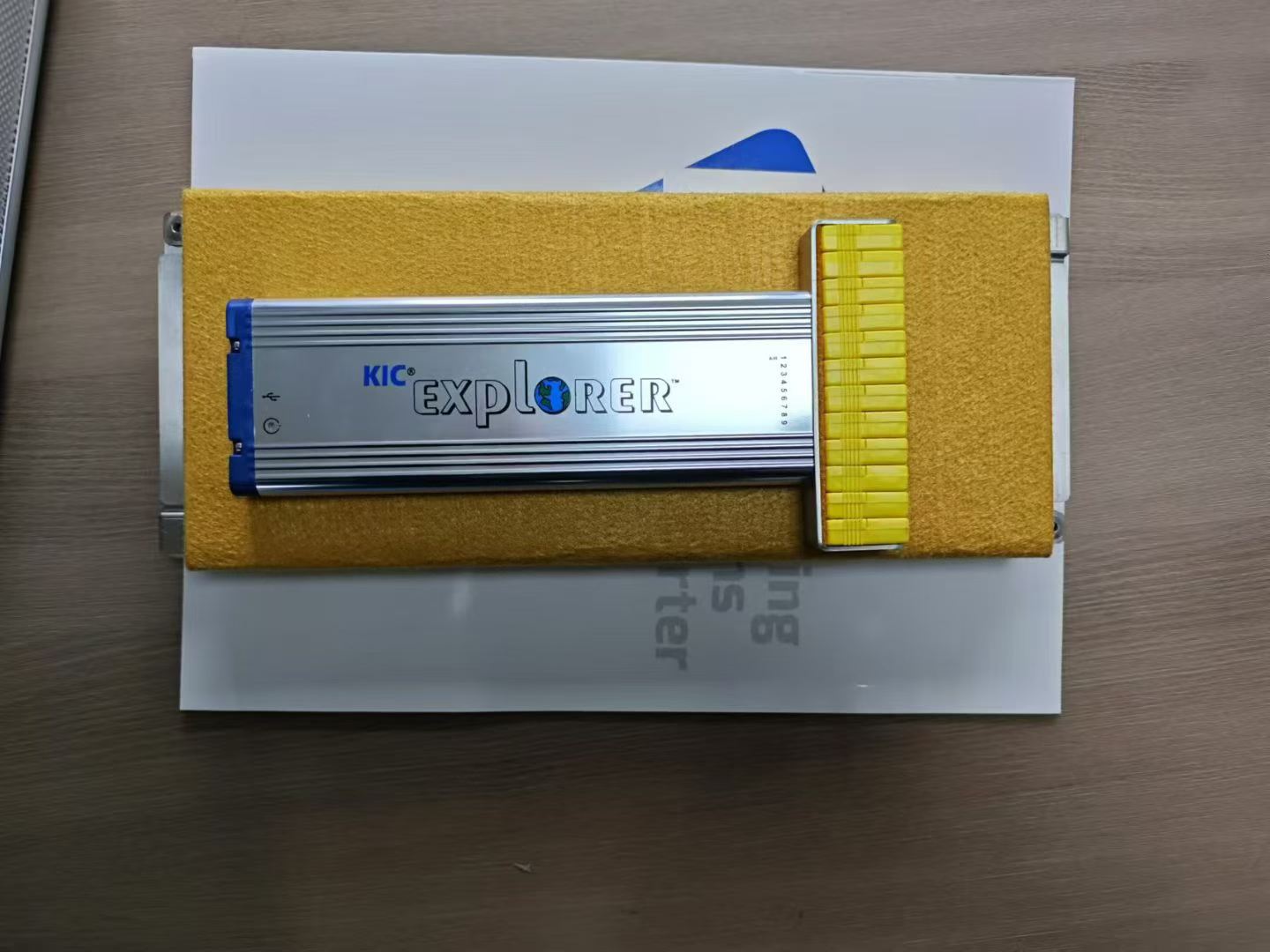

Main Unit: KIC Explorer Oven Temperature Tester body, silver metal shell, with yellow channel interface

Insulation Box: Yellow high-temperature resistant insulation cotton shell to protect the main unit during operation in the high-temperature oven

Anti-scalding Gloves: CASTONG high-temperature resistant gloves for protection during high-temperature operation

Software CD/Manual: Matching temperature profile analysis software and user manual (Version 3.0.0.x)

Accessory Package: Includes thermocouple tape, USB data cable, spare thermocouples, and other consumables

IV. Working Principle and Advantages

Synchronous Acquisition: Multi-channel thermocouples simultaneously record temperature changes at different locations on the PCB, generating a complete oven temperature profile.

Real-time Transmission: Industrial-grade Bluetooth technology enables real-time data transmission, with secondary verification after completion to ensure data integrity.

Intelligent Analysis: Built-in algorithm automatically identifies temperature profile defects, providing process optimization suggestions to improve yield.

Durable Design: Aluminum alloy body + high-temperature resistant insulation box, capable of passing through the high-temperature environment of a reflow oven multiple times.

V. Typical Application Scenarios
SMT Reflow oven process calibration and daily monitoring; temperature verification for wave soldering and rework stations; soldering process control for high-reliability PCBs in automotive electronics, communication products, etc.; temperature profile testing for other industrial furnace processes such as painting and heat treatment.
