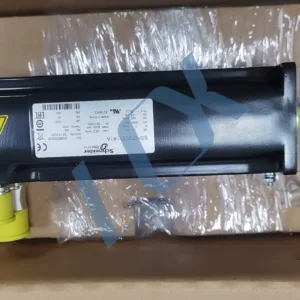

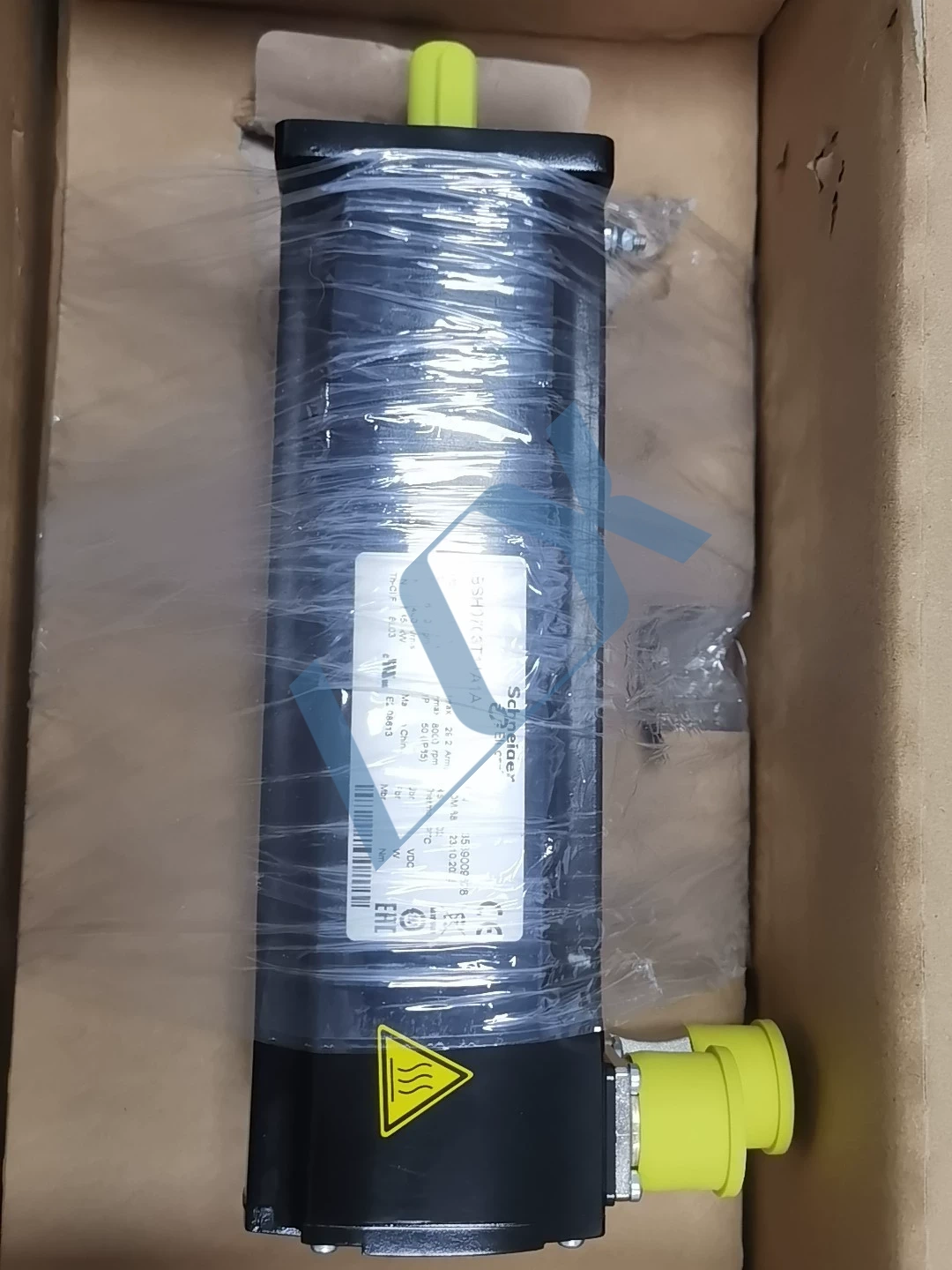

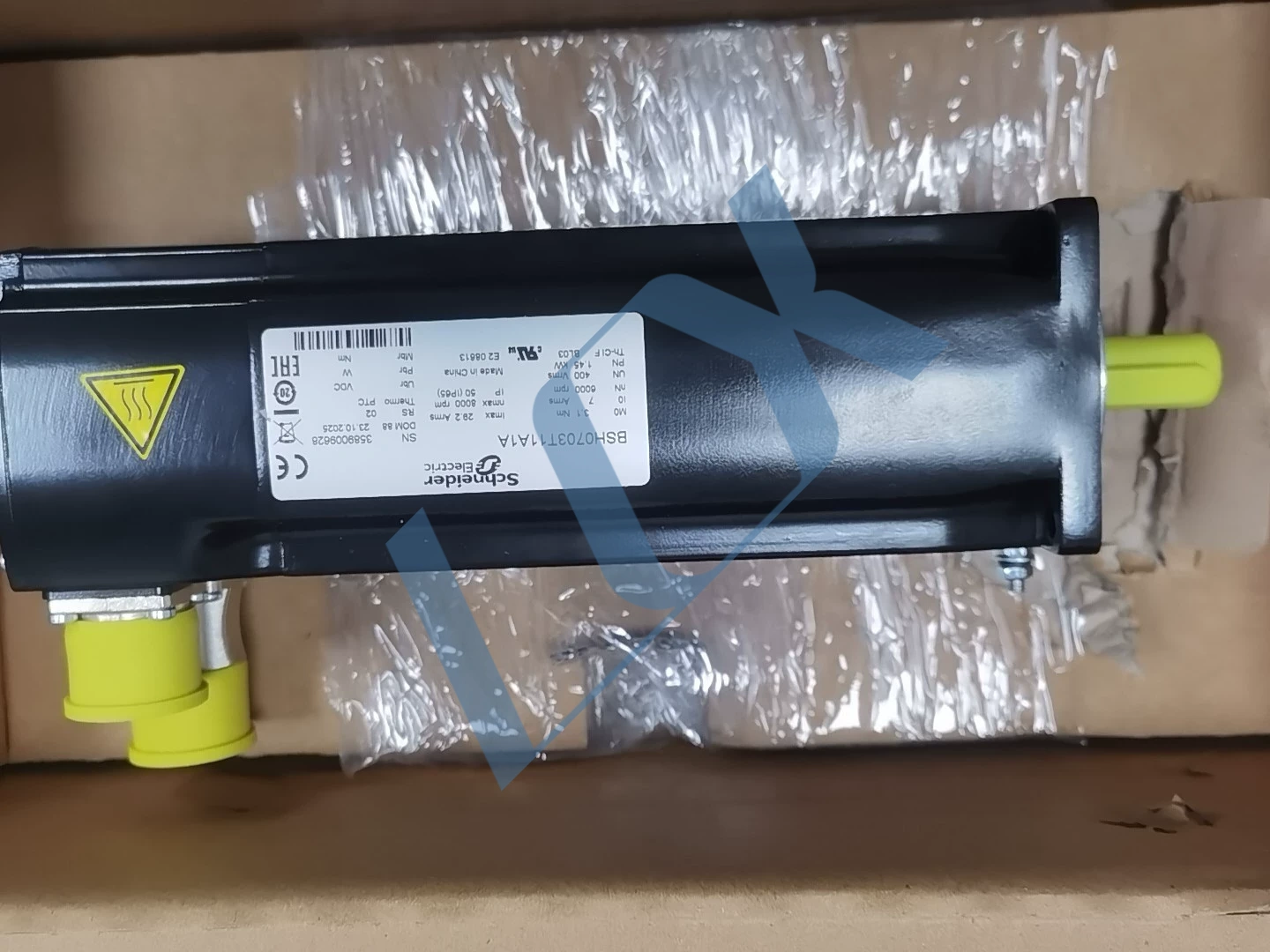

Schneider BSH0703T11A1A servo motor
A high-performance, low-inertia AC synchronous servo motor designed for Universal Instruments (环球) inserter machines.
Power: 1.45kW, Torque: 3.1Nm (rated), Speed: 6000rpm (rated), up to 8000rpm.
Encoder: Single-turn SinCos absolute encoder (Hiperface) for ultra-precise positioning.
Features: 70mm flange, IP50 protection, keyed shaft, no brake, high dynamic response.
Application: Ideal for high-speed, high-precision PCB component insertion in SMT assembly lines.
Compatibility: Works with Lexium 05 / LXM32 series drives.
Schneider BSH0703T11A1A: A 1.45kW low-inertia servo motor with 3.1Nm torque and high-resolution SinCos encoder, optimized for precision motion control in Universal Instruments inserter machines.
Share to:
I. Core Model and Positioning
Model Name: BSH0703T11A1A
Series: Schneider BSH Series Synchronous Servo Motors (Compatible with Lexium 05 Series Servo Drivers)
Typical Applications: Industrial automation equipment, SMT placement machines, packaging machinery, CNC machine tools, and other motion control scenarios requiring high precision and high dynamic response.

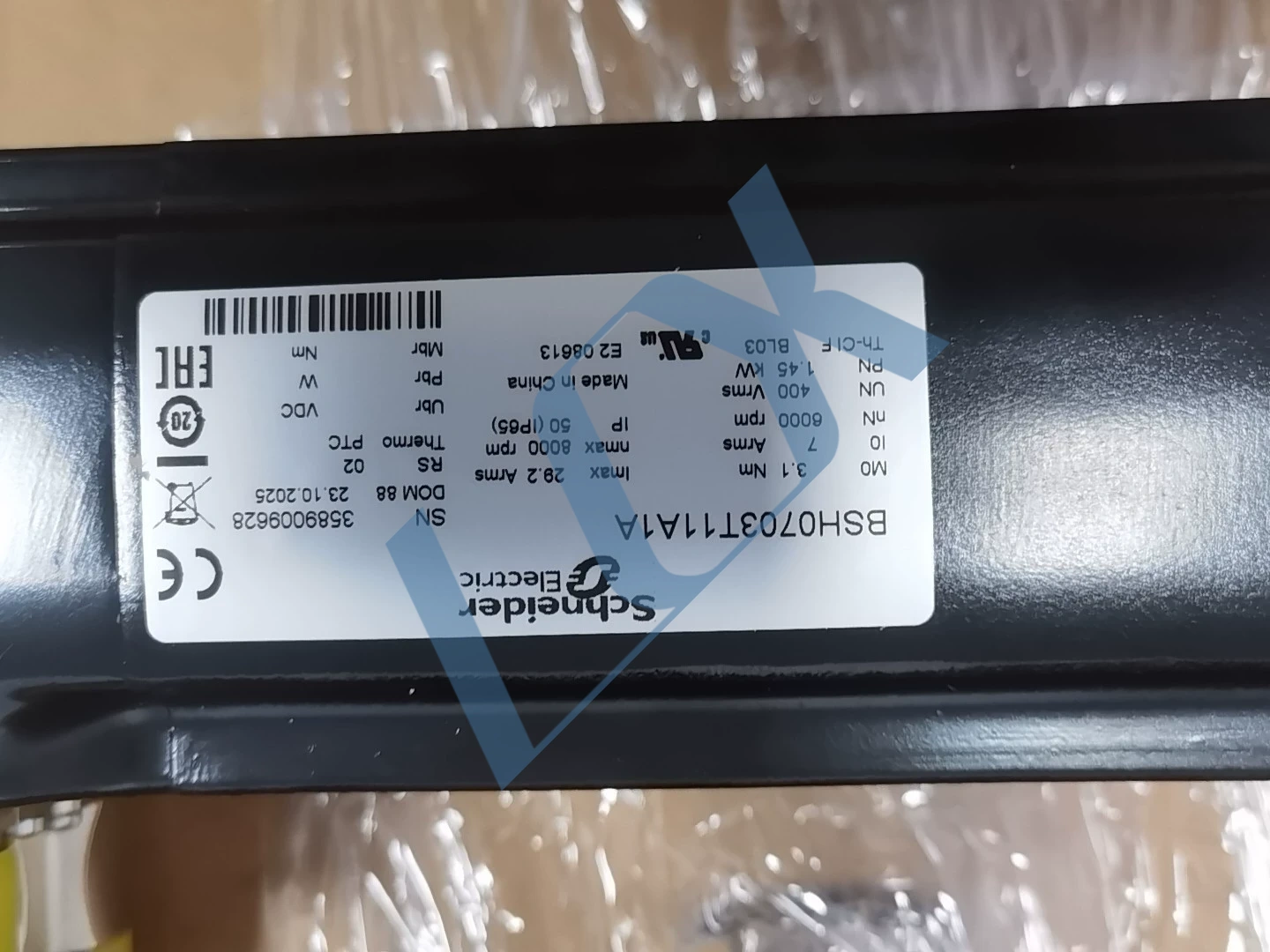

II. Key Technical Parameters (Compiled from Nameplate and Official Documentation)
Table: Item | Parameter Details
Rated Power (PN) | 1.45 kW
Rated Speed (nN) | 6000 rpm
Maximum Speed (nmax) | 8000 rpm
Rated Torque (M0) | 3.1 Nm (Continuous stall torque approx. 2.83 Nm)
Peak Current (Imax) | 29.2 Arms
Rated Current (In) | 7 Arms
Rated Voltage (UN) | 400 Vrms (Compatible with 480V Servo Systems)
Protection Rating (IP) | IP50 (Dustproof, not waterproof)
Shaft End Type Solid shaft with keyway (no brake version)
Encoder type: SinCos single-turn absolute encoder (high-precision position feedback)

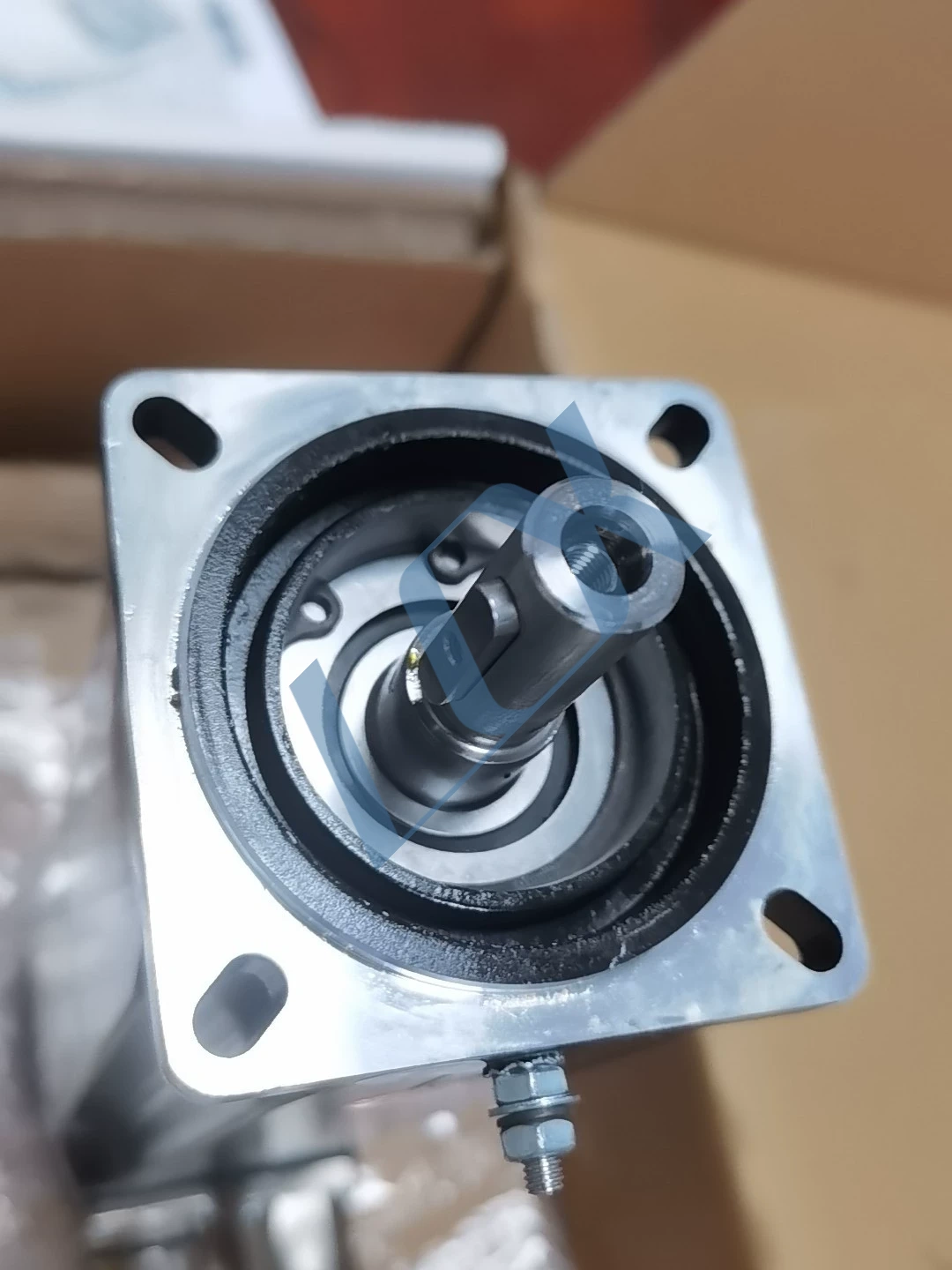

Flange specification: IEC 70mm standard mounting flange
Cooling method: Natural convection cooling
Origin: China
III. Model Code Analysis (BSH Series Naming Rules)
BSH0703T11A1A
BSH: Schneider Standard Synchronous Servo Motor Series
070: Flange size 70mm
3: Power/torque rating (corresponding to 1.45kW)
T: No brake version
1: Standard connector (not direct output)
1: No oil seal/standard protection
A1A: Encoder type (SinCos single-turn), special configuration identifier
IV. Compatibility and Usage Notes
Driver Matching: Must be used with a Schneider Lexium 05 series (such as LXM05) 400V servo driver; cannot be directly connected to mains power.
Installation Notes: IP50 protection rating; avoid dust, oil, and liquid splashes during installation. The flange mounting holes are standard 70mm, compatible with most automation equipment.

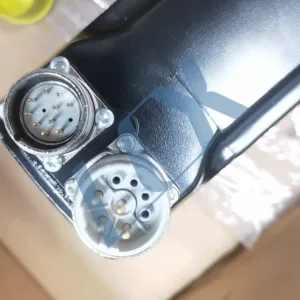

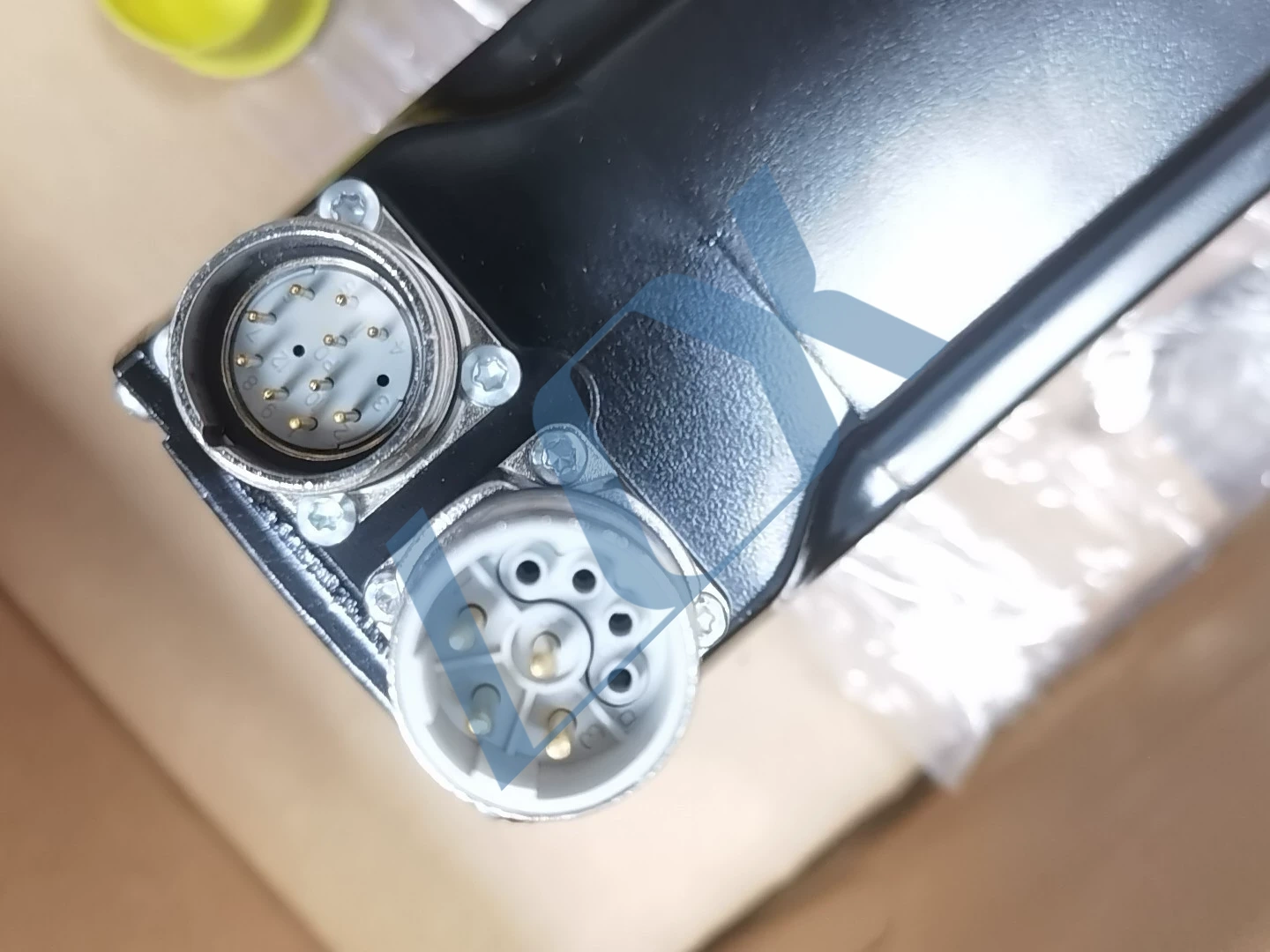

Electrical Connections: Dual connector design; one is for power supply (high current), and the other is for encoder feedback (position signal). Connect according to Schneider Electric’s standard wiring diagram to avoid reverse connection and motor burnout.
Performance Characteristics: High speed (6000rpm rated, 8000rpm maximum), suitable for high-speed motion scenarios; Low inertia design, fast dynamic response, suitable for high-frequency motion machine such as SMT machines and component insertion machines; SinCos encoders support high-precision position control, with positioning accuracy down to the micron level.
