Panasonic NPM Series Machine Control Boards

Our factory supplies original refurbished and brand-new genuine control circuit boards for the Panasonic NPM modular high-speed placement machine series, covering core control, signal input/output, image acquisition and drive signal processing boards for NPM-D3A, NPM-TT2 and NPM-W2 models. All boards are fully tested, with stable performance, perfect compatibility and long service life, widely applied in SMT electronics assembly production lines.

Advanced Solution for Machine Control

Experience unmatched performance with the Panasonic NPM Series Machine Control Boards. Designed to streamline and enhance operational accuracy, these cutting-edge boards integrate seamlessly with your manufacturing systems to deliver optimal results every time.

Reliable and Durable Engineering

Built to last, these machine control boards offer a combination of robust construction and precision engineering, ensuring reliability under diverse operating conditions. Their durable design minimizes downtime and maximizes productivity, making them a trusted choice for modern manufacturing needs.

Effortless Integration for Efficient Workflow

The Panasonic NPM Series Machine Control Boards are equipped with innovative features that simplify installation and integration into your current processes. With their intuitive functionality, operators can easily maintain control of intricate workflows, driving efficiency and growth.

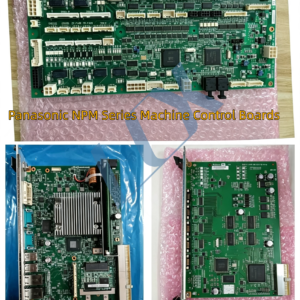

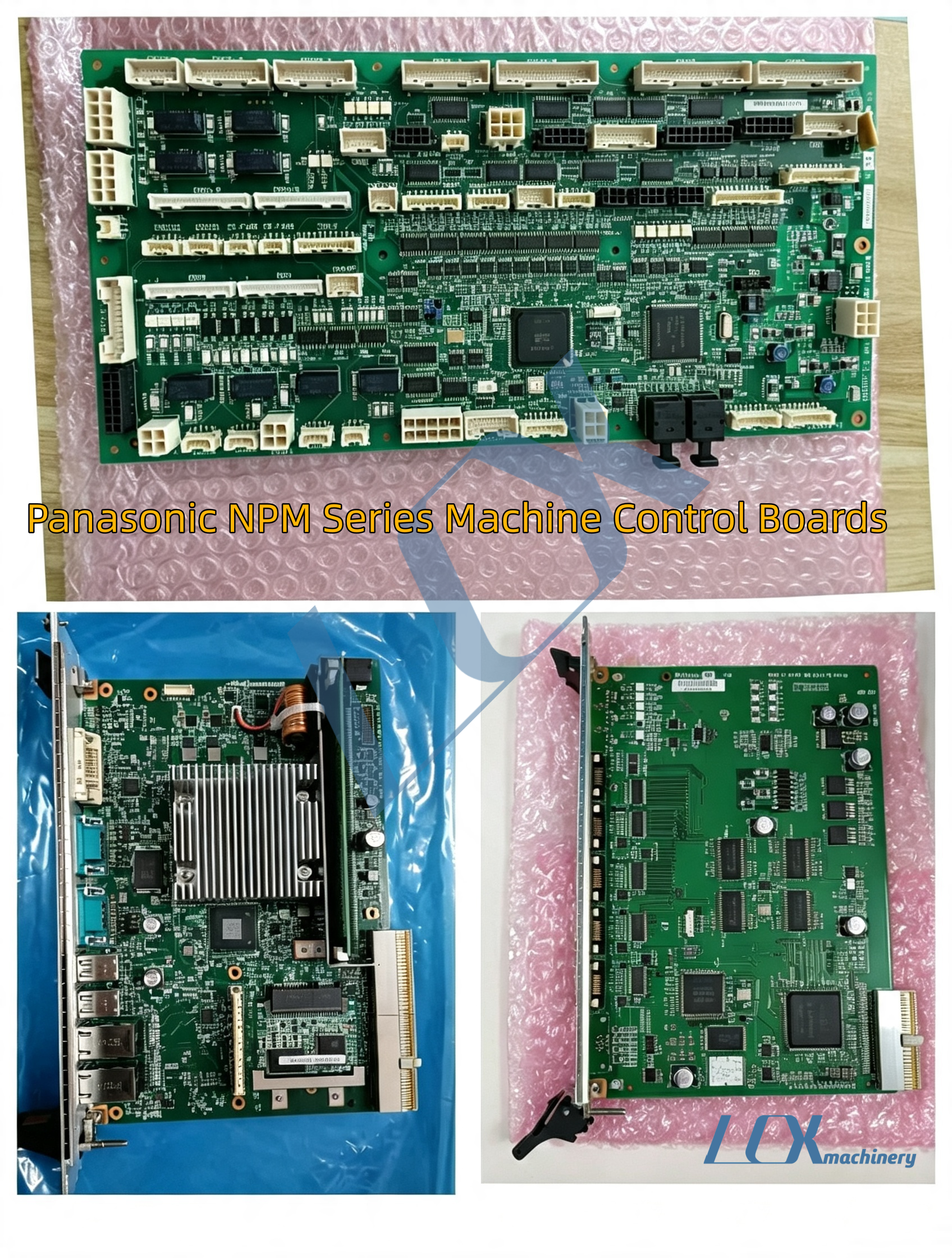

Full Product Line & Function Descriptions

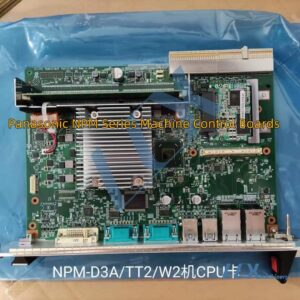

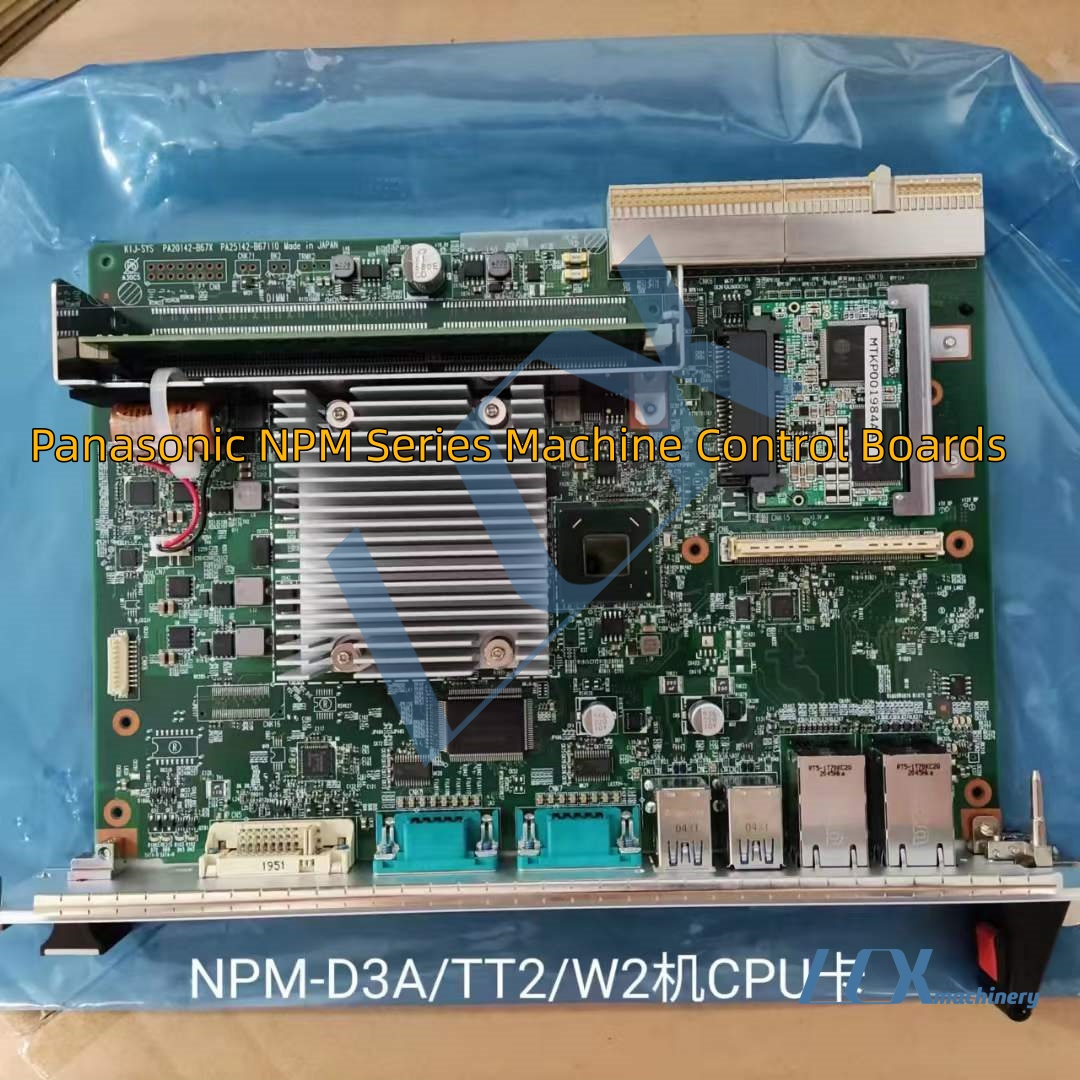

1. NPM CPU Main Control Board
Applicable Models: NPM-D3A / TT2 / W2 placement machines
As the central computing core of the entire equipment, this CPU board carries a high-efficiency heat dissipation module, multi-channel serial communication interfaces and high-speed data processing chips. It undertakes overall equipment operation logic control, motion parameter calculation, program storage and real-time data interaction between each functional unit. It supports rapid loading of placement programs, stable servo drive signal transmission and real-time fault self-diagnosis to guarantee continuous, high-speed operation of the SMT machine.

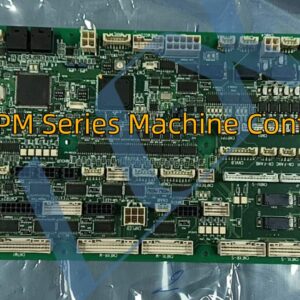

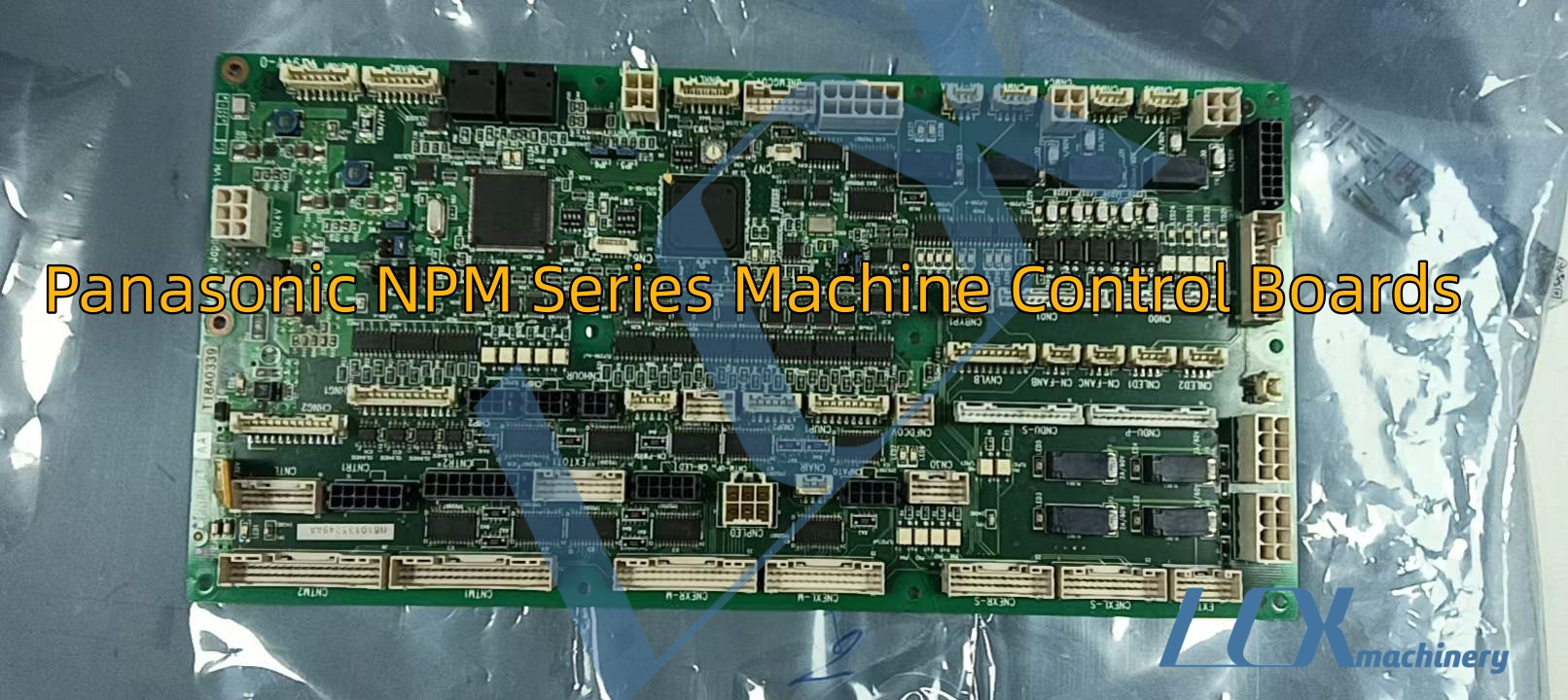

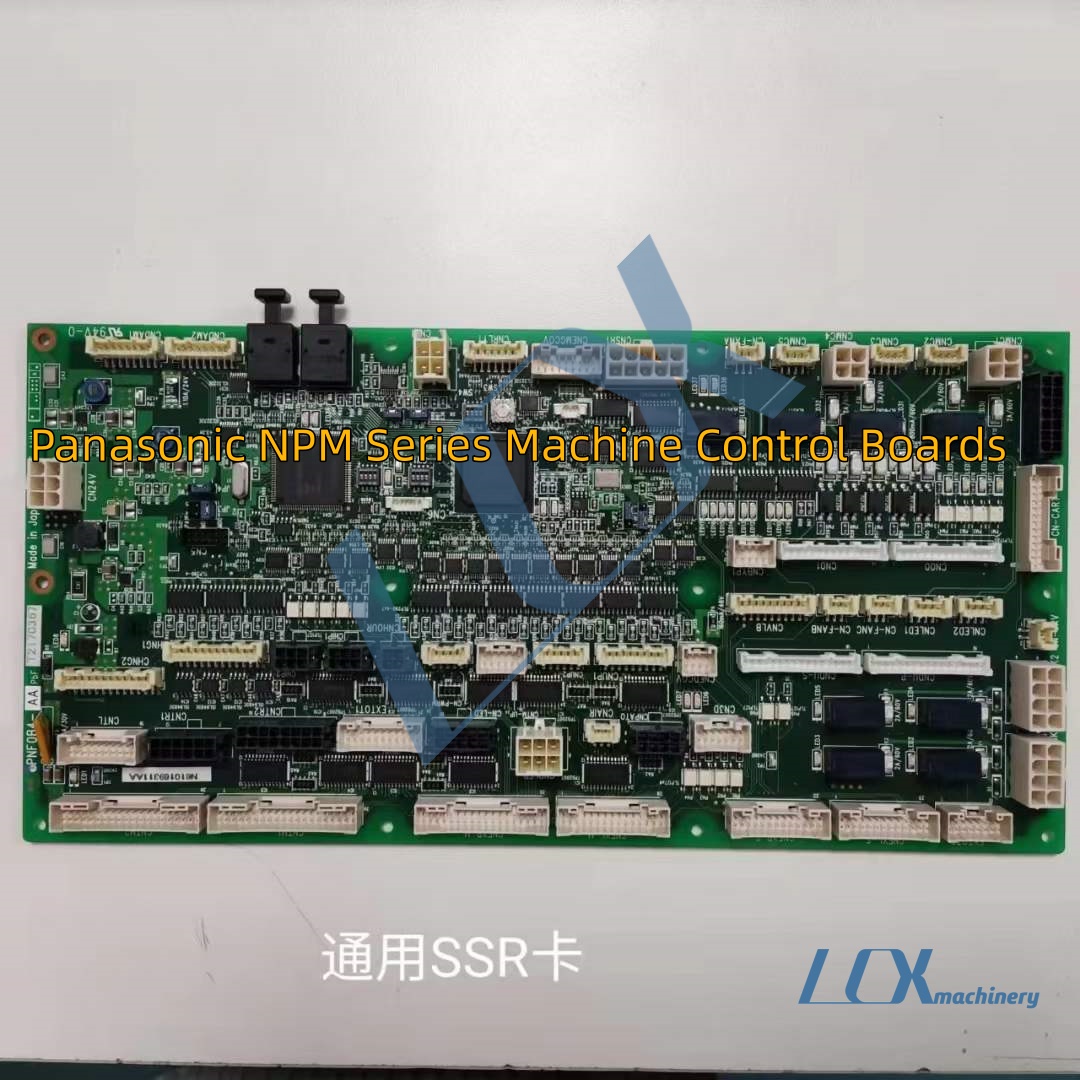

2. NPM General SSR Signal Board
Part No. reference: N610169311AA, N610135492AA
Also named IO signal distribution board, this board serves as the signal relay hub for all machine peripheral components. It integrates dozens of terminal connectors for sensors, solenoid valves, lamps and feeding modules. It is responsible for receiving input signals from feeders, limit sensors and safety switches, as well as outputting control signals to actuators. The reinforced circuit layout features anti-interference design, effectively avoiding signal loss or misjudgment during long-hour mass production. It is universally interchangeable for all mainstream NPM series equipment.

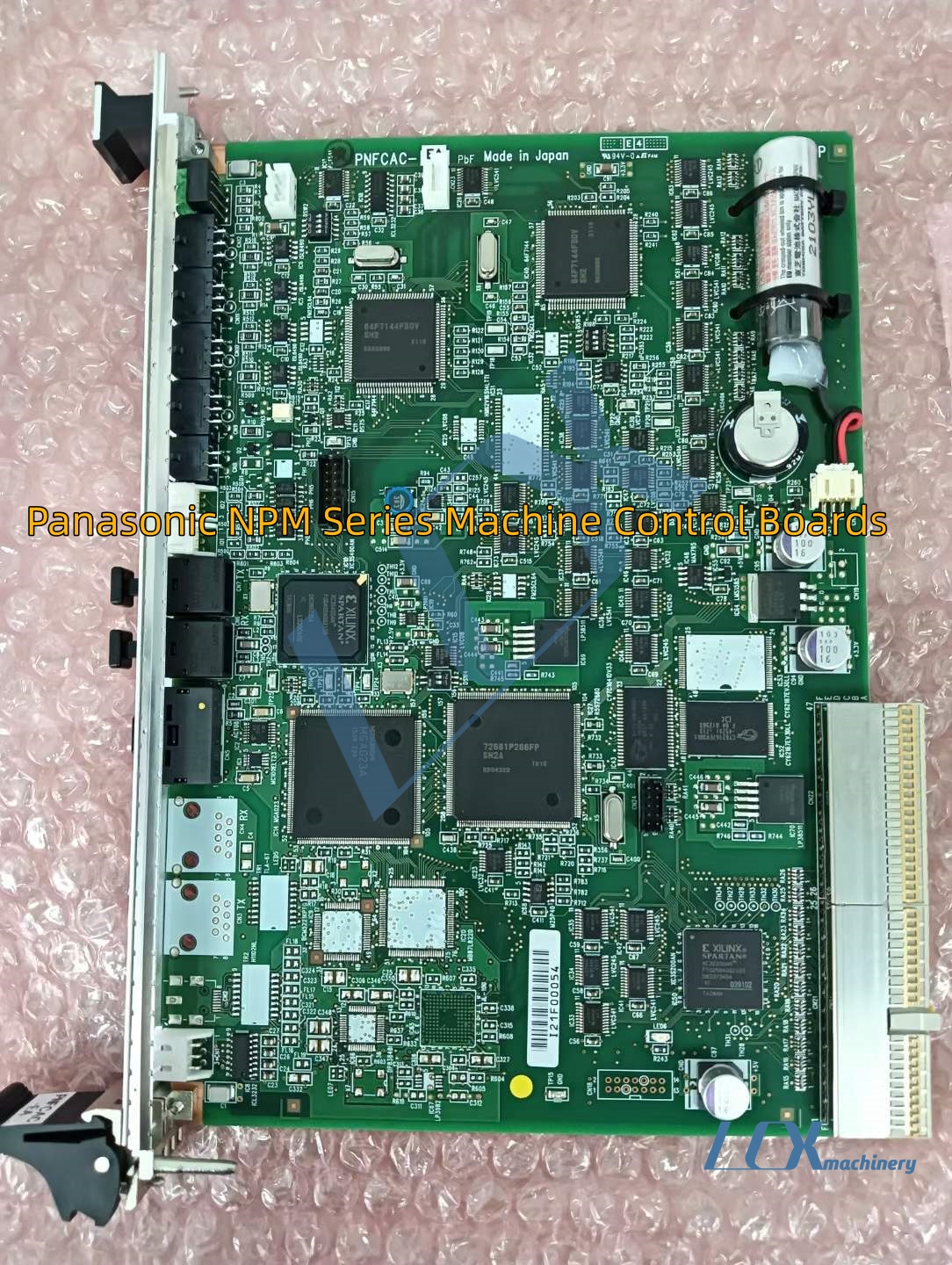

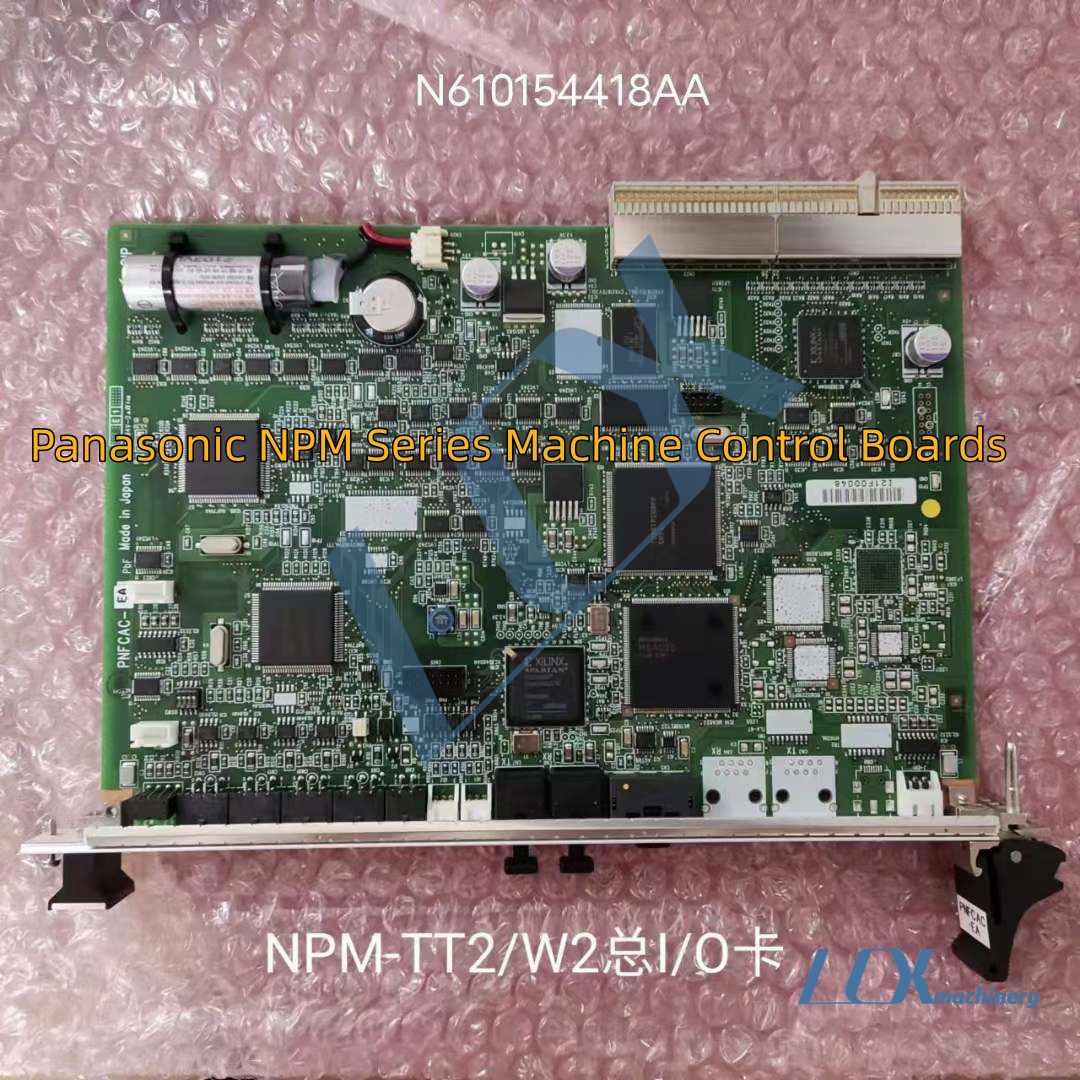

3. NPM Master I/O Control Board (PNFCAC-EA)
Part No. reference: N610154418AA
The master I/O board coordinates data communication between the CPU mainboard and sub-signal boards. Equipped with multi-group high-speed optocoupler isolation circuits and industrial-grade processing chips, it processes massive digital input & output signals synchronously, realizes linkage control of the placement head, conveyor track and safety protection system. Its built-in stable power filter module greatly improves anti-electromagnetic interference ability in complex factory workshop environments.
4. NPM Camera Vision Board
Dedicated to the machine vision positioning system, this image processing board receives real-time graphic data from front & side CCD cameras. It completes component contour identification, offset coordinate calculation and mark point correction at high speed. High-precision image processing chips ensure ultra-fast recognition speed and micron-level placement accuracy, directly supporting the high-yield mounting of tiny 01005, BGA and QFN components.
5. PNFCAC Drive Control Board
This specialized drive control board manages servo motor drive signals for placement heads and linear motors. It integrates multi-channel drive control circuits, precision voltage stabilization capacitors and over-current/over-voltage protection circuits. It delivers smooth, precise motion control for X/Y axis movement, Z-axis lifting and rotation, reducing mechanical vibration and positioning deviation during high-speed placement cycles.
Core Advantages
100% Compatibility
All circuit boards match original Panasonic NPM-D3A, TT2, W2 equipment without modification; plug-and-play replacement is supported to minimize production downtime.
Strict Quality Inspection
Each circuit board undergoes full-function aging testing, signal continuity testing and high-low temperature cycling inspection before delivery. Refurbished versions adopt original imported chips and replace aging capacitors, connectors and circuits.
Stable Industrial Performance
All boards use automotive & industrial-grade electronic components, with strong anti-dust, anti-interference and anti-aging capabilities, adapting to 24-hour uninterrupted SMT workshop production.
Complete Inventory & Fast Delivery
We maintain sufficient spot stock of all NPM series boards, supporting global shipping. Professional packaging with anti-static bubble film and shockproof boxes prevents circuit damage during transit.
Professional After-sales Support
We provide technical guidance for board replacement, equipment debugging and fault troubleshooting. All products come with a standard quality warranty period.
Application Scenarios
These original NPM series control boards are essential spare parts for SMT electronics factories, PCB assembly workshops, electronic component manufacturing plants and equipment maintenance service companies, compatible with all Panasonic NPM modular high-speed chip mounter production lines.
