Nidec K41MYA0-1109 Motor for Heller MK7 Reflow Oven
Heller MK7 Reflow Oven Hot Air Motor (Nidec)

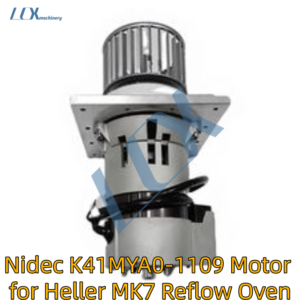

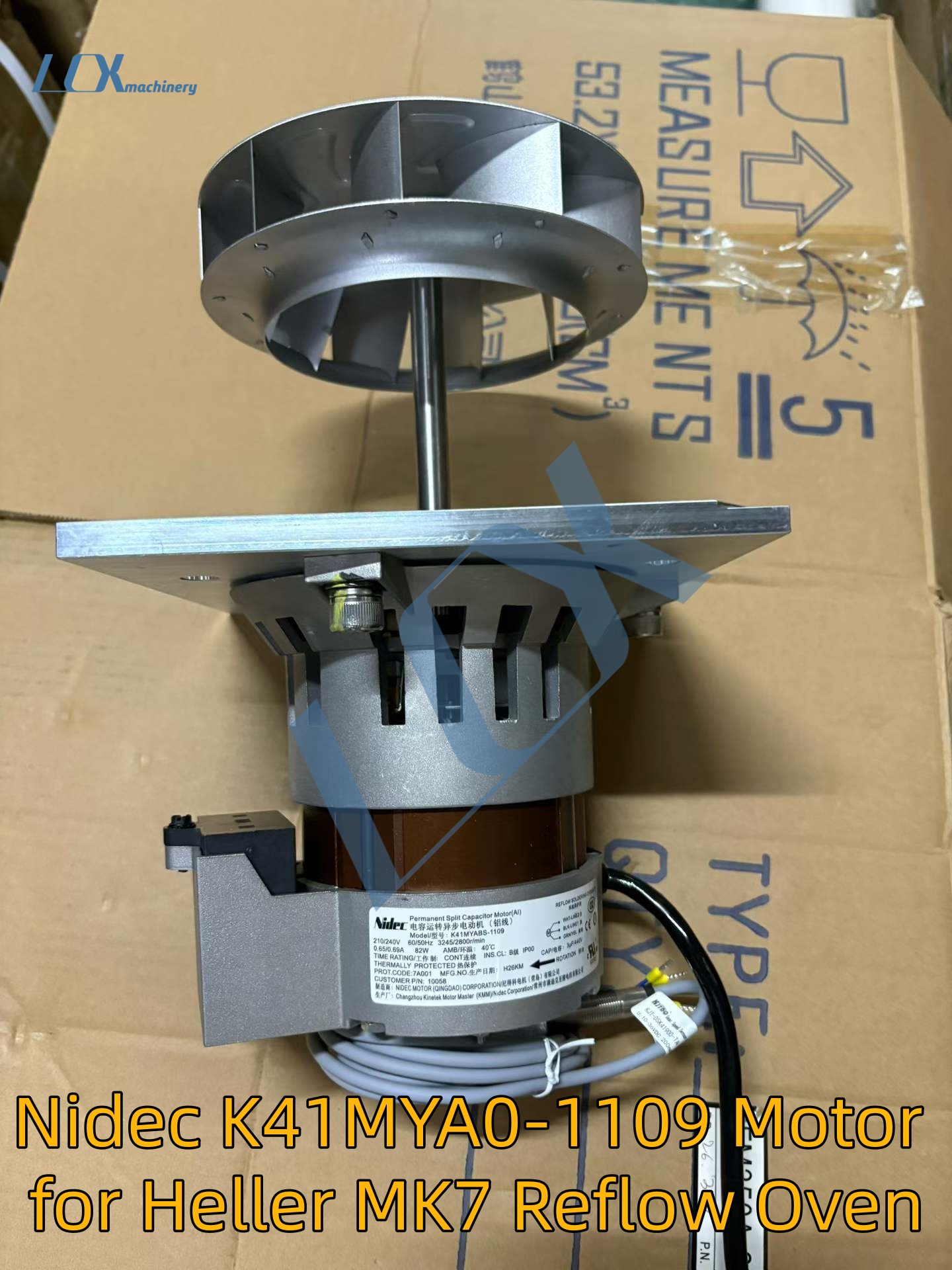

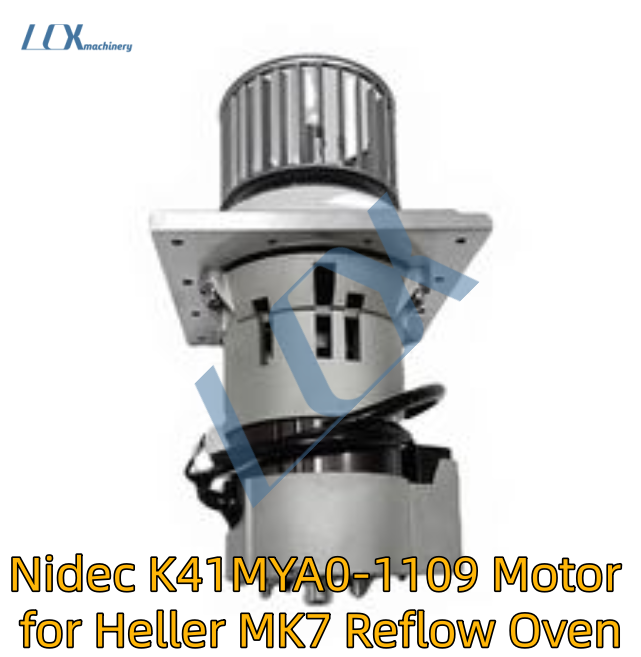

This is the hot air circulation motor for the heating zone of the Heller MK7 series SMT reflow oven. The brand is Nidec (Nidec Corporation), model number: K41MYA0-1109. It is a capacitor-run asynchronous motor with a high-temperature aluminum impeller and flange mounting plate, and is the core hot air component of the MK7 oven.
Share to:
Core Parameters (Label Information)
– Model: K41MYA0-1109
– Type: Capacitor-run asynchronous motor (aluminum wire)
– Voltage: 210–240V, 50/60Hz
– Power: 82W
– Current: 0.65A
– Insulation Class: CL H (High temperature resistant up to 180℃, specifically for high-temperature reflow soldering environments)
– Protection: Thermally protected
– Impeller: Integrated high-temperature aluminum alloy impeller, flange-fixed structure, directly mounted on the furnace heating module
Applicable Models
Heller MK7 Reflow Soldering: 1707MK7 / 1809MK7 / 1913MK7 / 1936MK7 / 2043MK7, etc. MK7 series heating zone hot air motors (MK7 features a larger impeller compared to MK5, increasing air pressure and reducing the temperature difference Delta T on the board) Heller Ind…
Applications and Features
1. Function: Circulates hot air within the reflow oven chamber, forcing hot air convection to ensure uniform PCB surface temperature; a key spare component for reflow oven temperature control.
2. High Temperature Resistance: H-class insulation, capable of continuous operation in the high-temperature environment of the oven; built-in thermal protection, automatically shutting off power in case of overheating.
3. Structure: Integrated flange + extended shaft + aluminum impeller; direct replacement of the entire set for easy assembly and disassembly; original Nidec motors are Heller original parts.
Common Replacement and Spare Parts Information
– Heller Original Part Numbers: 594768 / 595108 (Nidec motors in the same series, but the last two digits differ; check the label)
– Vulnerabilities: High-temperature bearing wear, capacitor degradation, coil aging; Fault symptoms: Abnormal noise, insufficient speed, increased temperature difference in the heating zone, failure to start.
– Distinguishing features: The Heller MK5 motor has a similar appearance, but its power, impeller size, and mounting hole positions are different. The MK7 cannot be directly replaced by the MK5 motor.
