Introduction to NPM/CM SMT Mounter Signal Cables & Power Cables
Compatible with NPM-W/NPM-D/NPM-W2, CM402, CM602 and other SMT equipment, all cables include internal connection cables, trolley cables, TARY spools, and head signal cables.
CM402/602 Trolley Power Cable: N510028646AB / KXFP6ELLA00
CM Head Signal Cable: N510026292AA
Feeder Interface Cable: N510022120AA
Selection Notes:
Differentiate Models: NPM-W and NPM-D trolley cables have different part numbers. While the connectors may look similar, their internal definitions are different and they are not interchangeable.
Cables are available as original/recycled and domestic alternatives. For alternatives, prioritize high-flexibility, bend-resistant drag chain cables suitable for repeated internal movement within the equipment.
TARY spools are divided into motor power cables and communication signal cables. These two cables are used together and should not be mixed up.
Share to:
Facebook
X
LinkedIn
WhatsApp
This document covers all mainstream power cables and signal cables for Panasonic NPM and CM series SMT placement machines, fully compatible with NPM-W, NPM-D, NPM-W2, CM402, CM602 and other classic high-speed mounter models. These cables are core connecting wires for equipment internal operation, trolley connection, tray unit transmission and head signal feedback, featuring high flexibility, anti-interference and bending resistance for long-term stable operation in SMT production environments.Introduction to NPM/CM SMT Mounter Signal Cables & Power Cables
1. Main Signal Cables
Signal cables are mainly used for high-precision signal transmission, including servo encoder feedback, equipment IO communication, head data transmission and trolley signal interaction, which determine the positioning accuracy and running stability of the mounter.
-

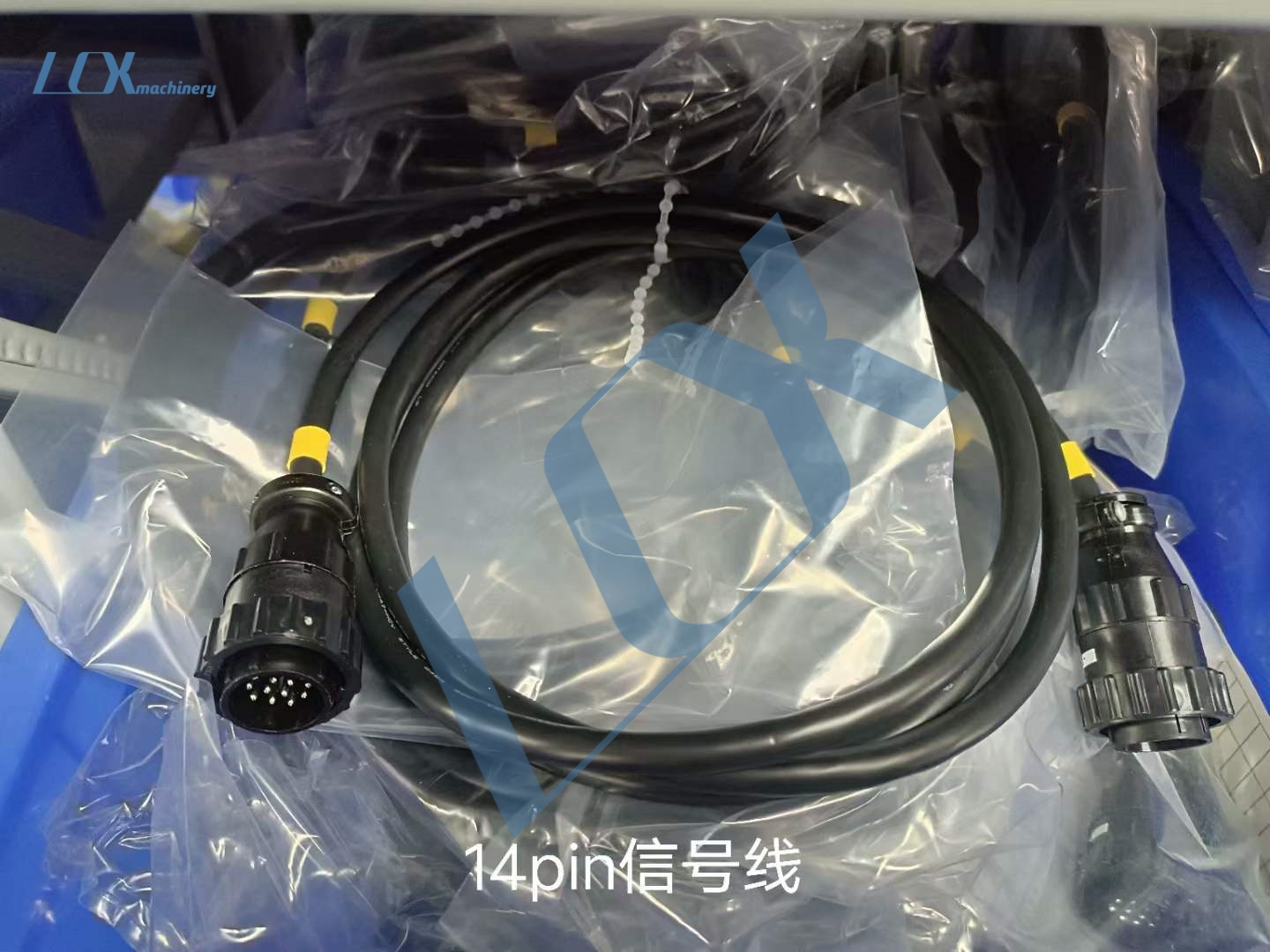

14Pin Signal Cable: Adopts circular aviation connector, specially applied for NPM mounter head servo and encoder signal transmission, ensuring real-time and accurate feedback of head movement data.
-

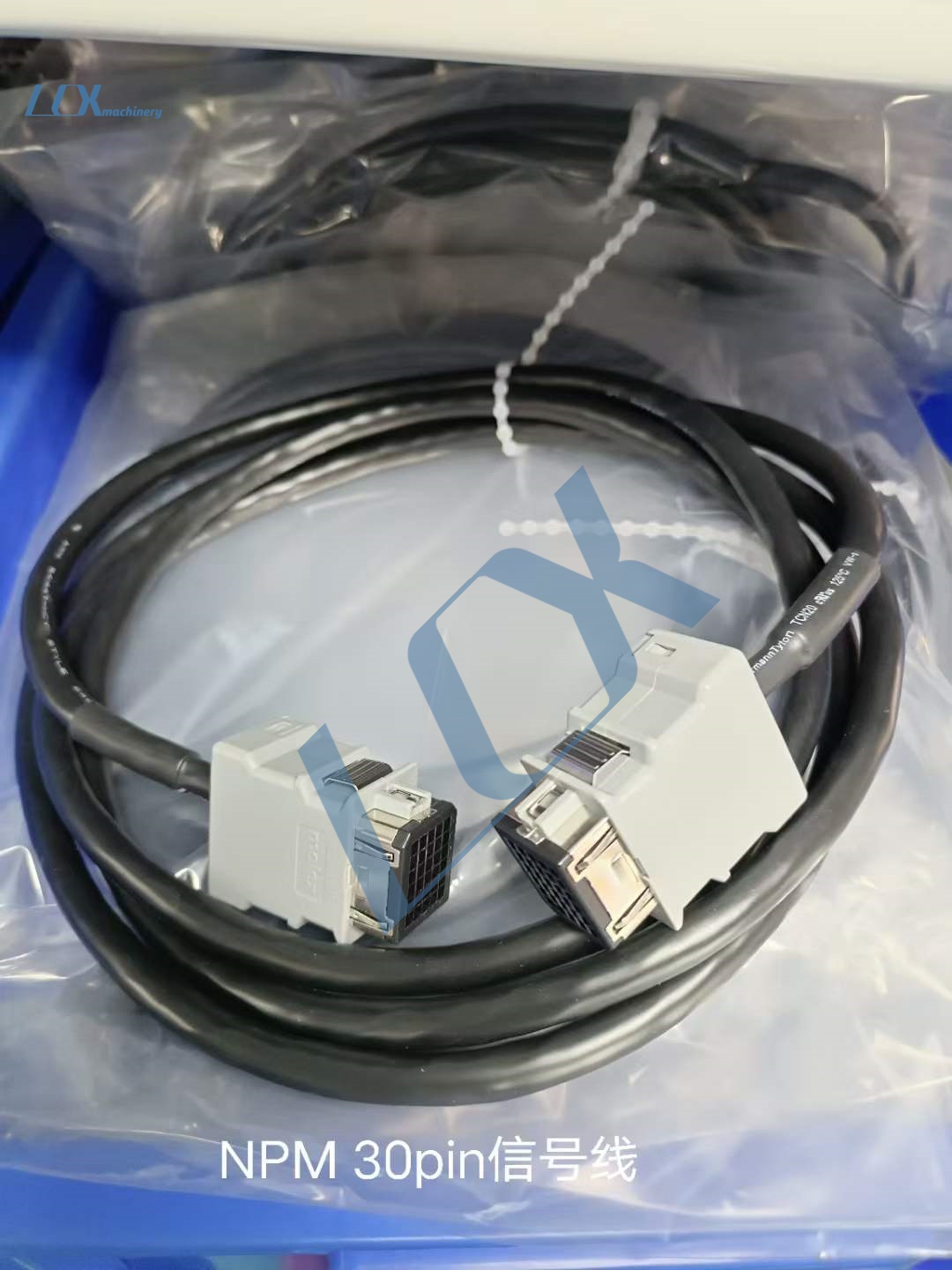

30Pin High-speed Signal Cable: Equipped with HARTING rectangular connector, used for high-speed data communication of NPM machine head, supporting high-frequency and high-precision mounting signal transmission.
-

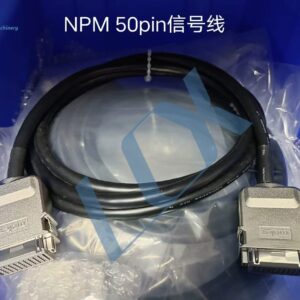

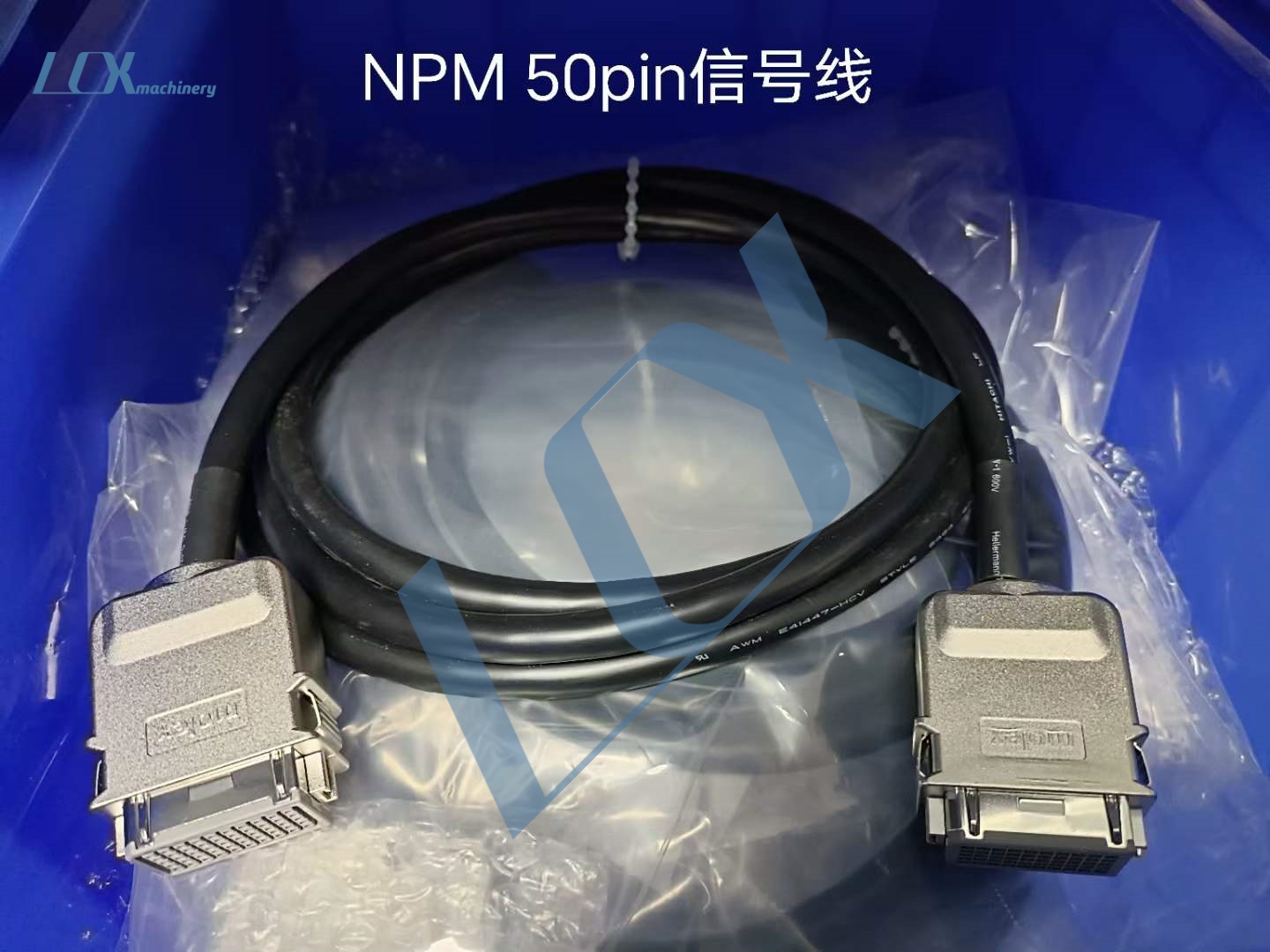

50Pin Heavy-duty Signal Cable: Applied for multi-channel IO signal transmission of mounter head and internal system, compatible with multi-module synchronous signal output and input.
-
Trolley Communication Signal Cable: Special signal connecting wire for NPM-W / NPM-D trolley, with DB15 connector, responsible for data interaction between feeder trolley and main equipment system.
-
Tray Unit Signal Cable: Matched with TARY tray feeding system, realizing signal communication and sensor data transmission of the tray unit.
-
Handheld Controller Cable: Connects the manual operation handle and the main device, for manual debugging, parameter setting and equipment jog control.
2. Main Power Cables
Power cables provide stable power supply for mounter moving parts, trolley system and tray power components, with high voltage resistance, strong conductivity and durable anti-aging performance to adapt to long-term reciprocating bending in drag chains.
-
NPM Series Trolley Power Cable: Dedicated power supply wire for NPM-W and NPM-D feeder trolleys, integrated power supply and partial power signal transmission, with exclusive part numbers for different models and non-interchangeable use.
-
CM402/CM602 Trolley Power Cable: Special power connecting cable for classic CM series mounter trolleys, stable in power supply and suitable for mass production equipment operation.
-

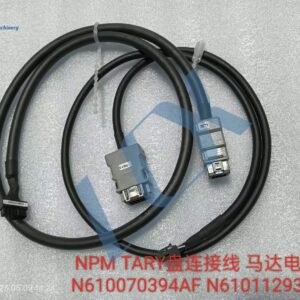

TARY Tray Motor Power Cable: Professional power supply cable for tray unit drive motor, providing stable power output for tray lifting and rotating actions, supporting continuous high-frequency operation.
-

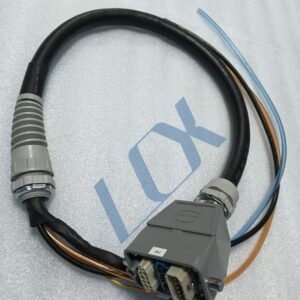

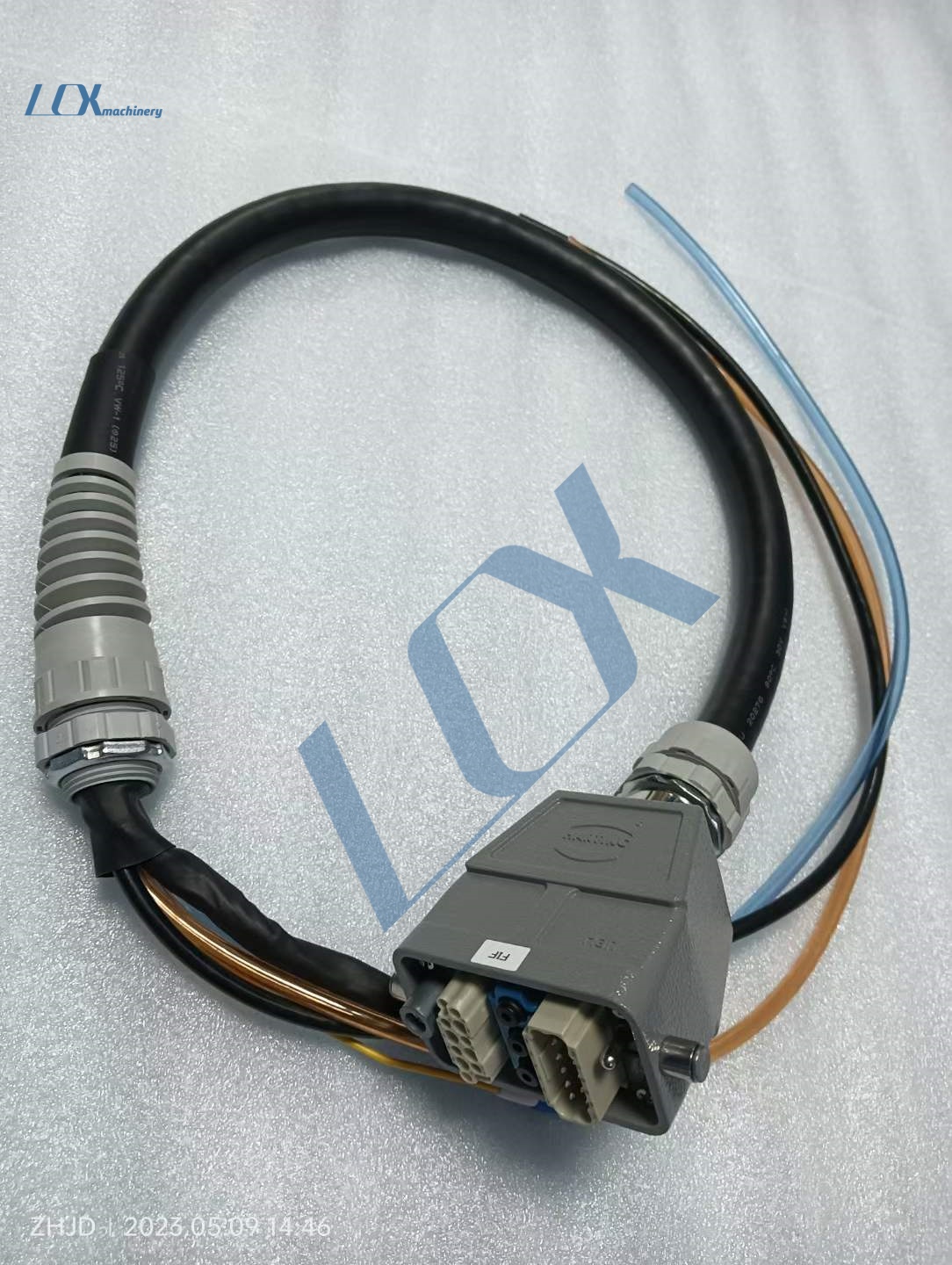

Integrated Pneumatic & Power Cable: Combined heavy-duty cable with air pipe and power wire, applied for integrated connection of tray unit power and pneumatic system, saving installation space and improving integration stability.
3. Product Features & Application Notes
-
High Adaptability: Fully compatible with Panasonic NPM and CM series mainstream mounters, covering all common models of workshop production equipment.
-
Industrial Grade Durability: Adopts high-flex drag chain cable core, resistant to repeated bending, wear and high temperature, suitable for long-term uninterrupted SMT production.
-
Strong Anti-interference: Shielded signal cable design effectively avoids equipment signal interference and ensures mounting precision and equipment operation stability.
-
Model Uniqueness: Trolley cables for NPM-W and NPM-D are different in internal wiring definition and cannot be interchanged; signal cables and power cables need to be matched strictly according to equipment models.
4. Common Original Part Numbers
-

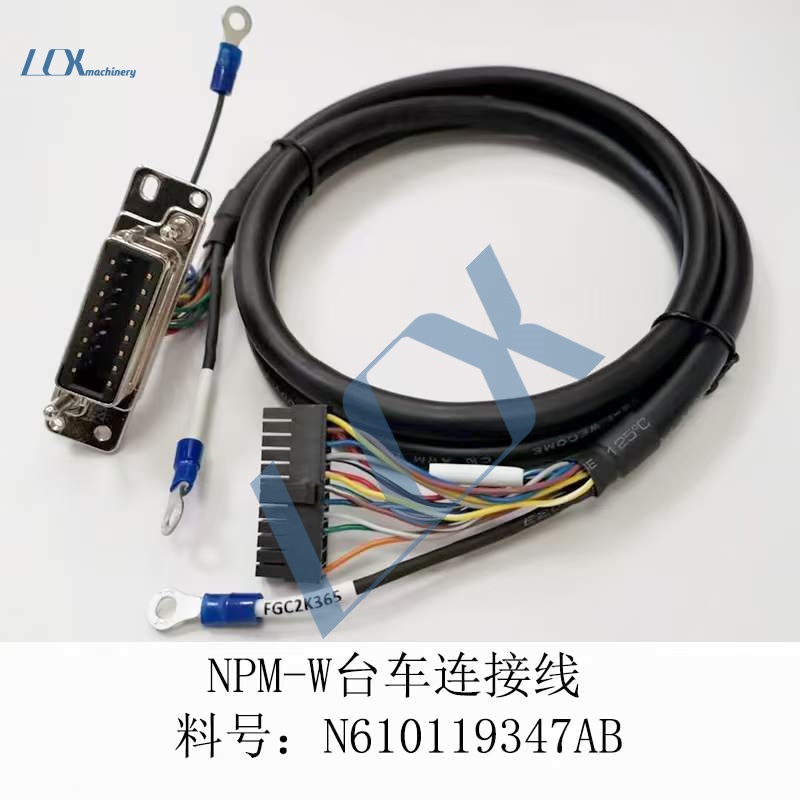

NPM-W Trolley Cable: N610119347AB
-

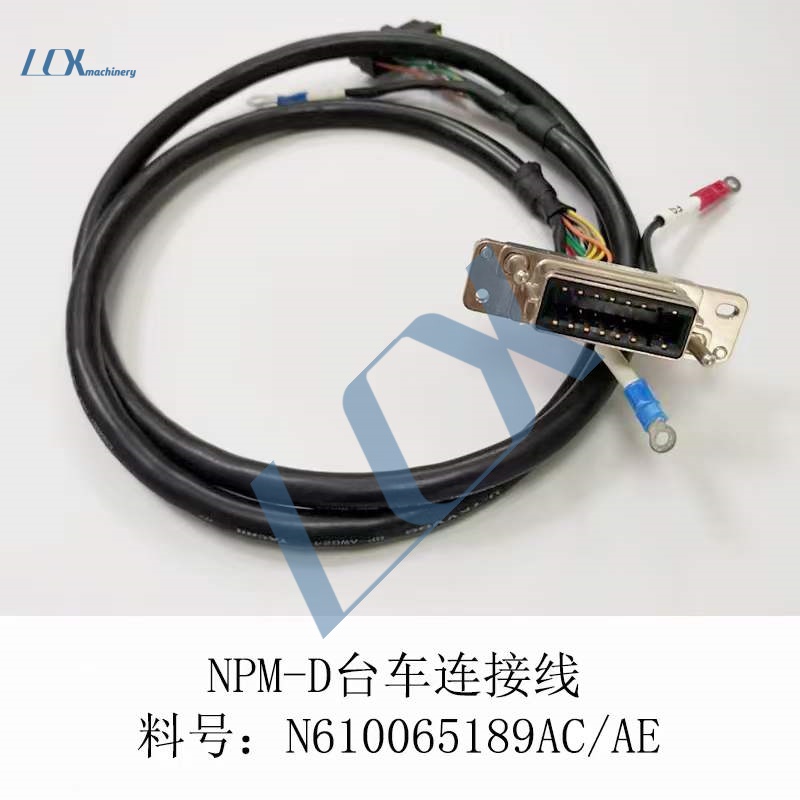

NPM-D Trolley Cable: N610065189AC / N610065189AE
-

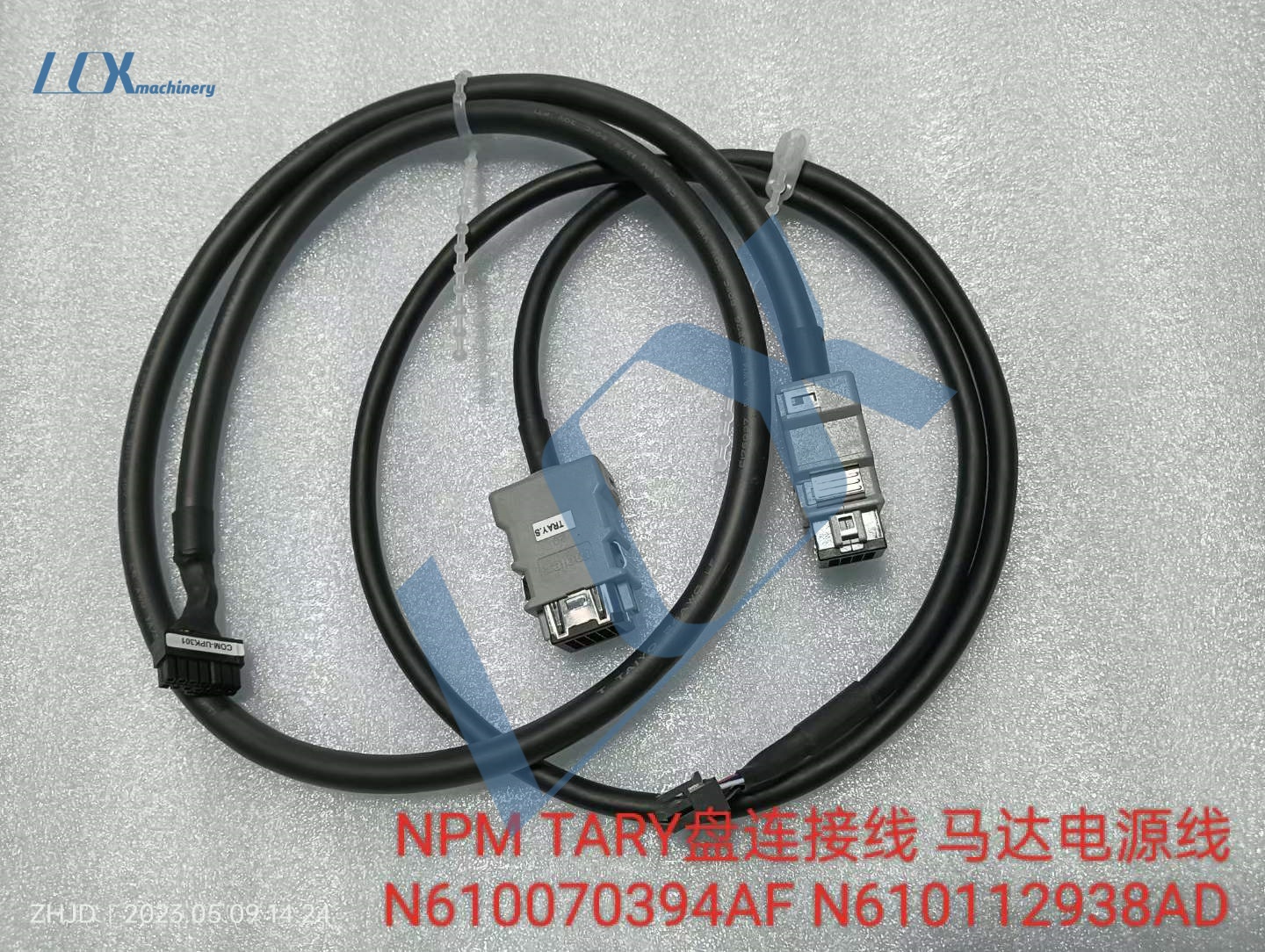

TARY Tray Motor Power Cable: N610070394AF / N610112938AD
-
CM402/CM602 Trolley Power Cable: N510028646AB / KXFP6ELLA00
-
CM Series Head Signal Cable: N510026292AA
-
CM Feeder Interface Cable: N510022120AA
