ASMPT CP20 SMT Spare Parts | Original ASM Drive, Sensor, Valve, Guide Rail

ASMPT (ASM) SMT Equipment & Spare Parts

This is a full set of original genuine spare parts for ASMPT (ASM) DEK/SIPLACE CP20 series SMT placement machines, all sourced from Germany, covering core functional modules of high-precision SMT production lines.
1. Core Product Overview
表格
Part No. Product Name Core Function

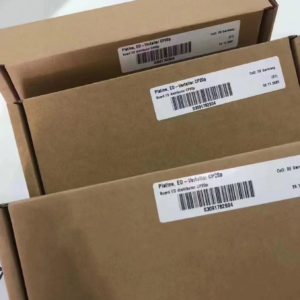

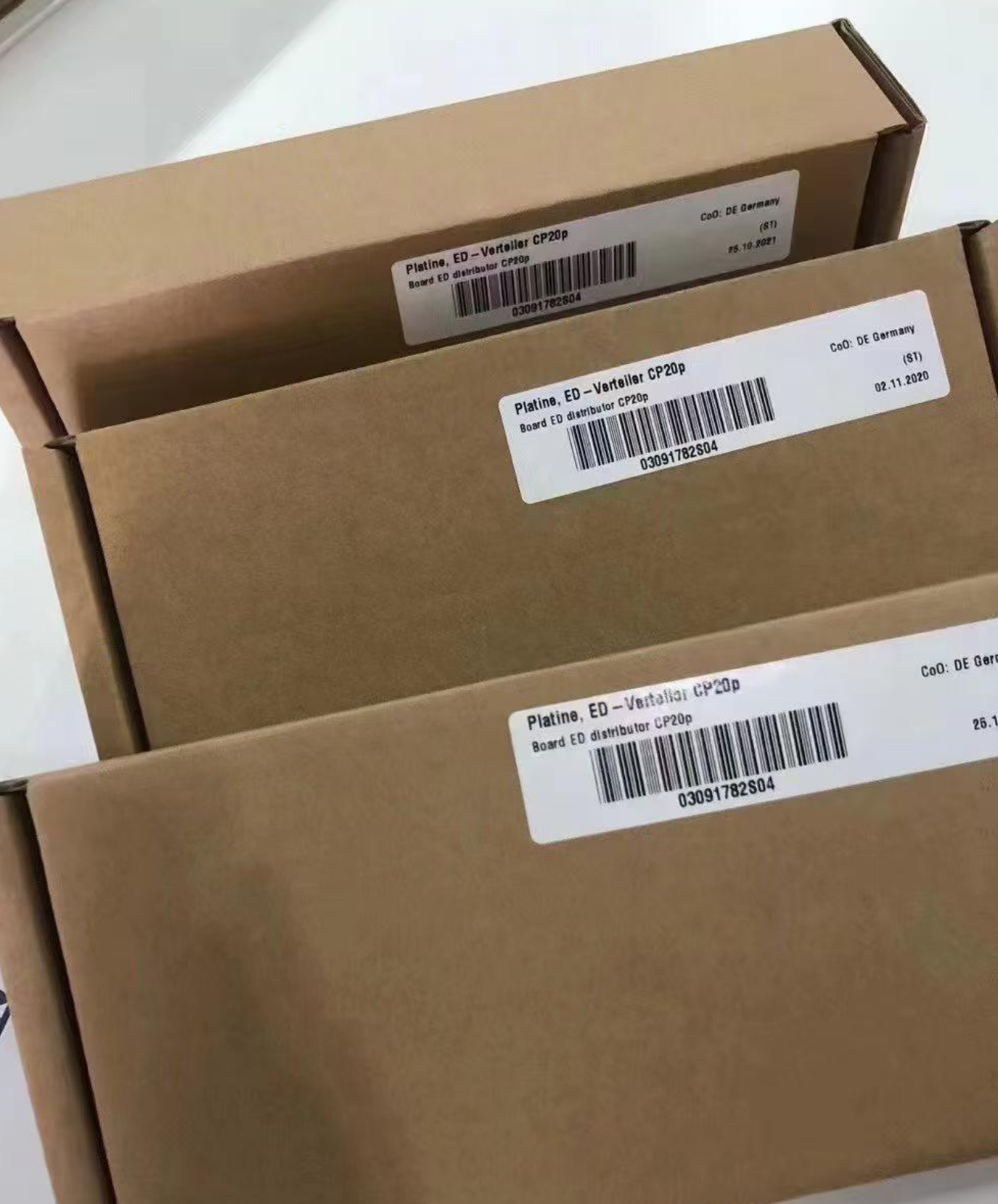

03091782S04 Platine, ED-Verteiler CP20p / Board ED distributor CP20p ED distribution board, core circuit control module for CP20 series mounters, responsible for signal distribution and power management

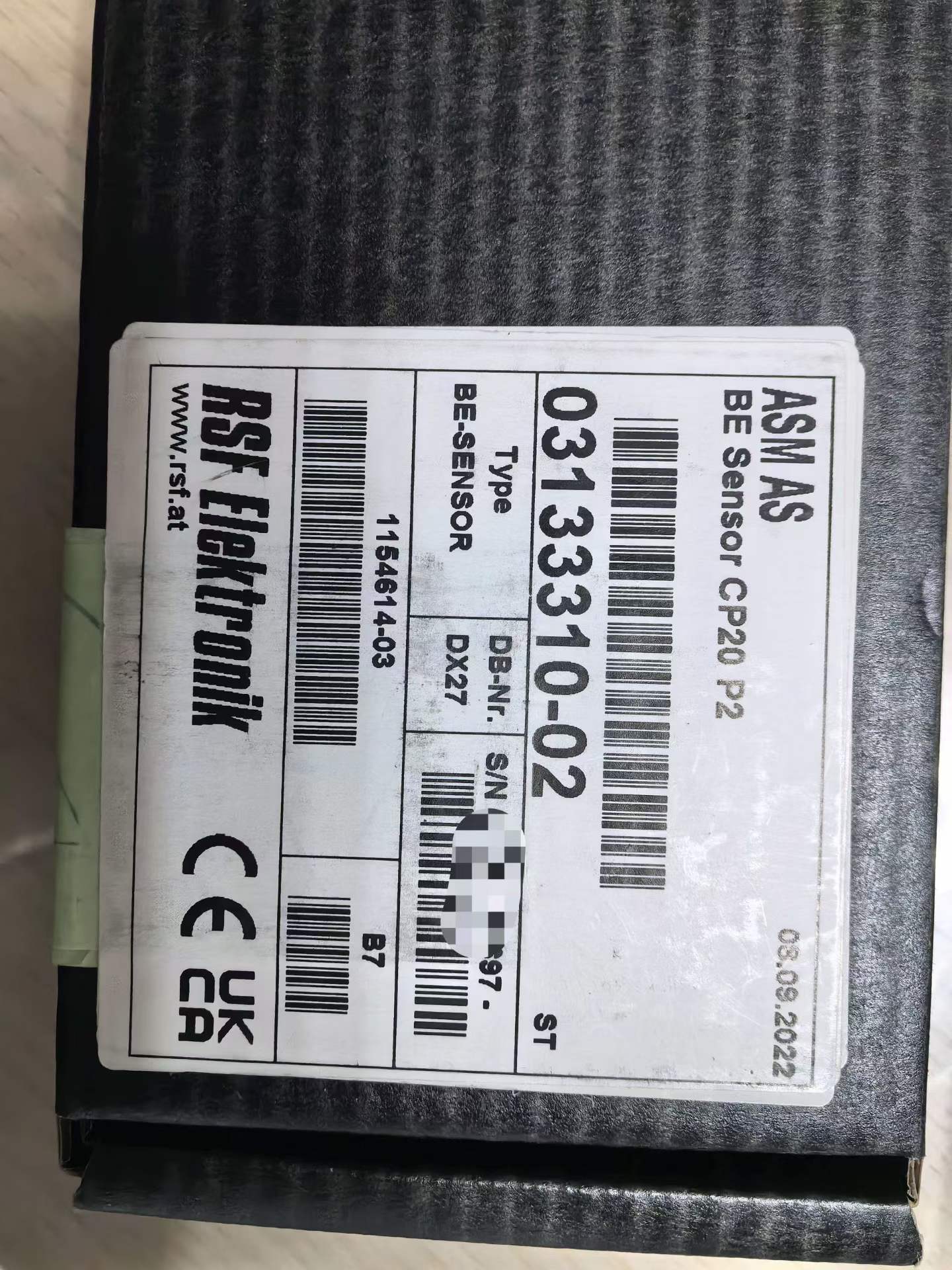

03133310-02 ASM AS BE Sensor CP20 P2 (RSF Elektronik BE-SENSOR) High-precision linear encoder sensor, used for position closed-loop control of the placement head, ensuring ±0.001mm level placement accuracy

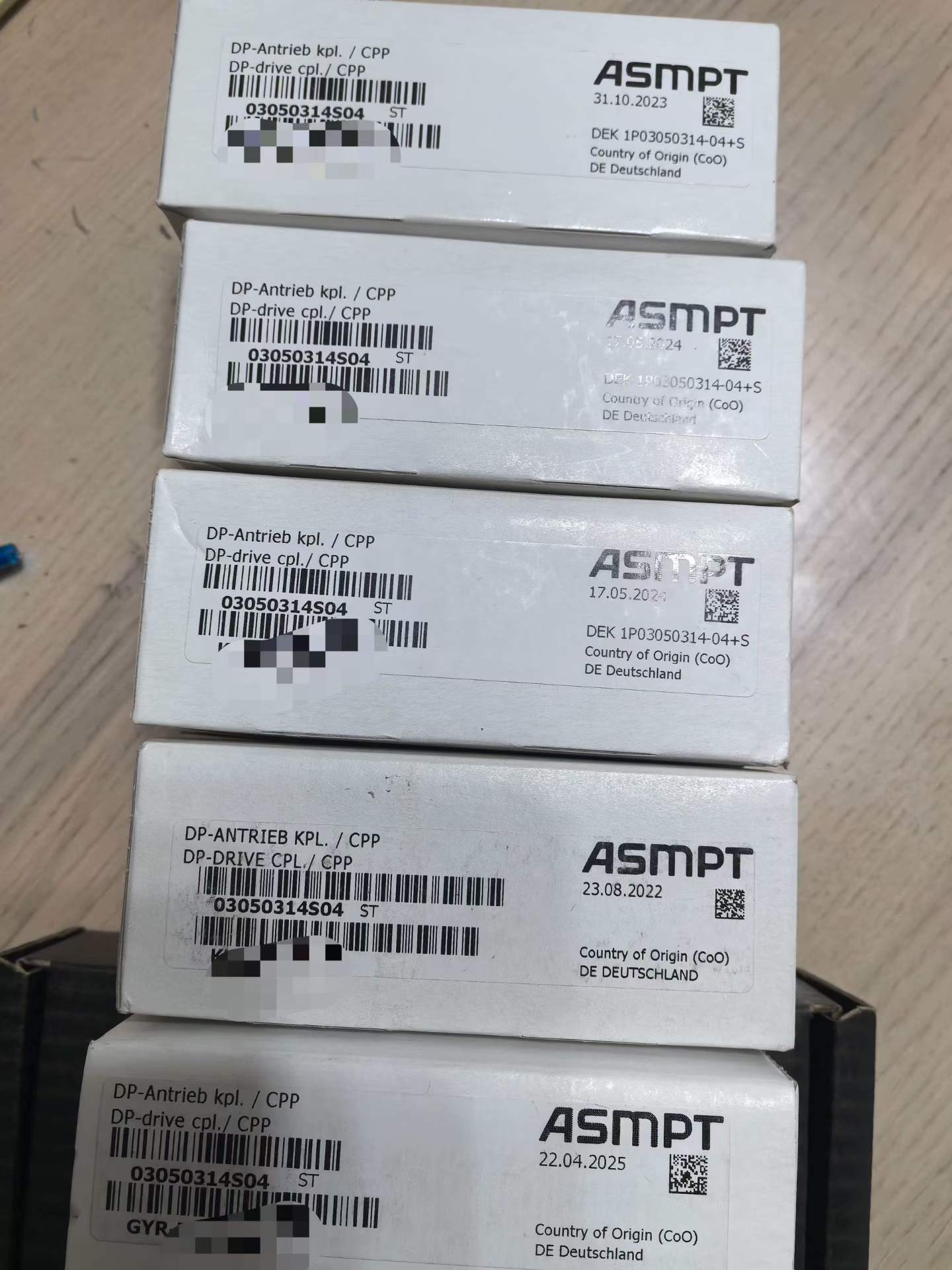

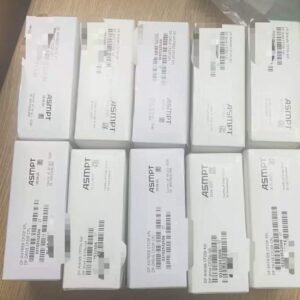

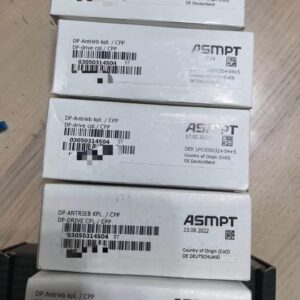

03050314S04 DP-Antrieb kpl. / CPP / DP-drive cpl. / CPP DP drive complete assembly, core power module for the placement head, driving Z-axis/rotary axis motion

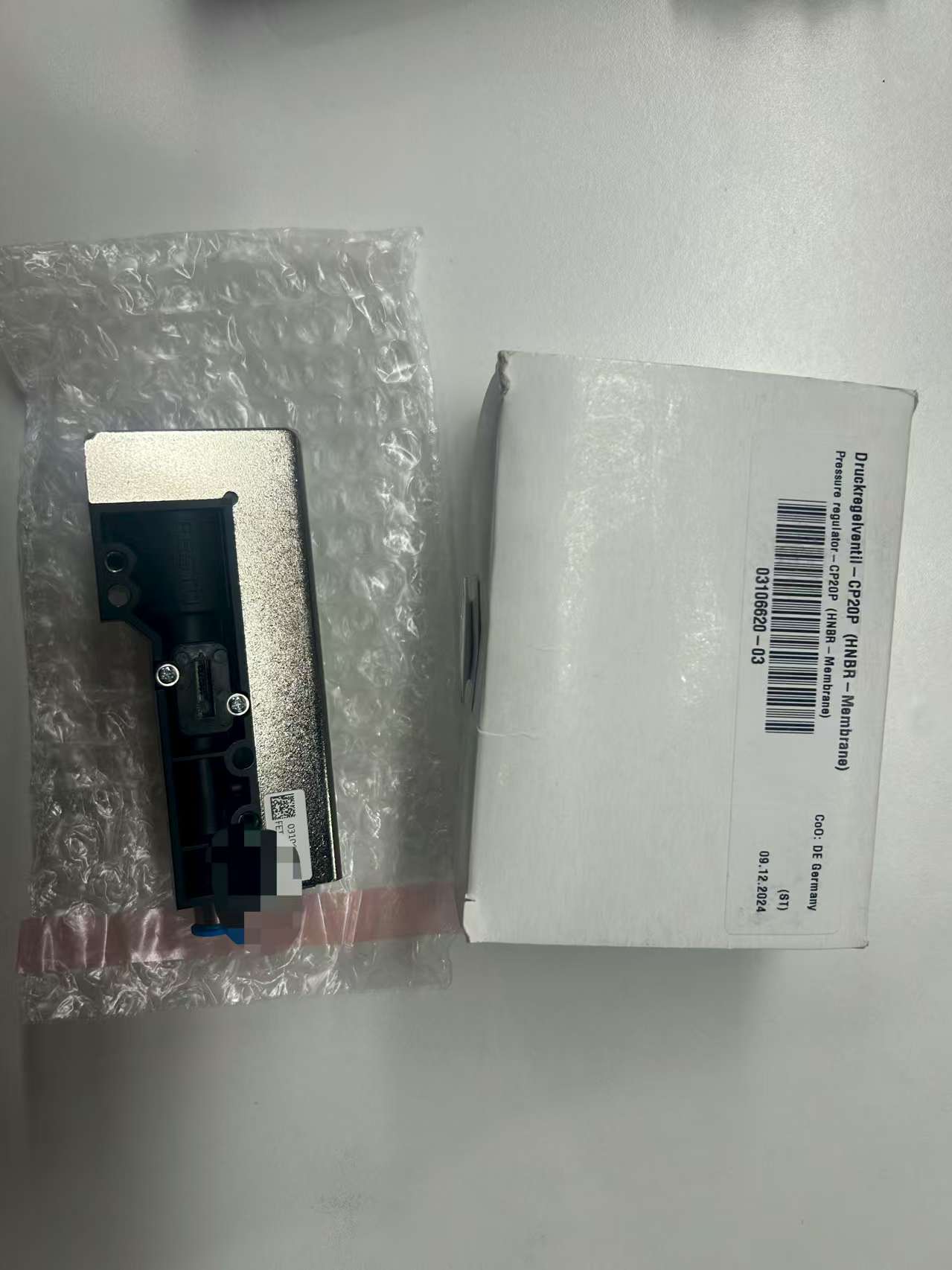

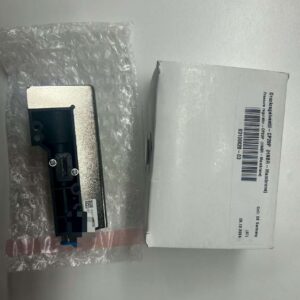

03106620-03 Druckregelventil-CP20P (HNBR-Membrane) / Pressure regulator-CP20P (HNBR-Membrane) Membrane pressure regulator, stable air pressure control for nozzle vacuum system, ensuring reliable component pickup

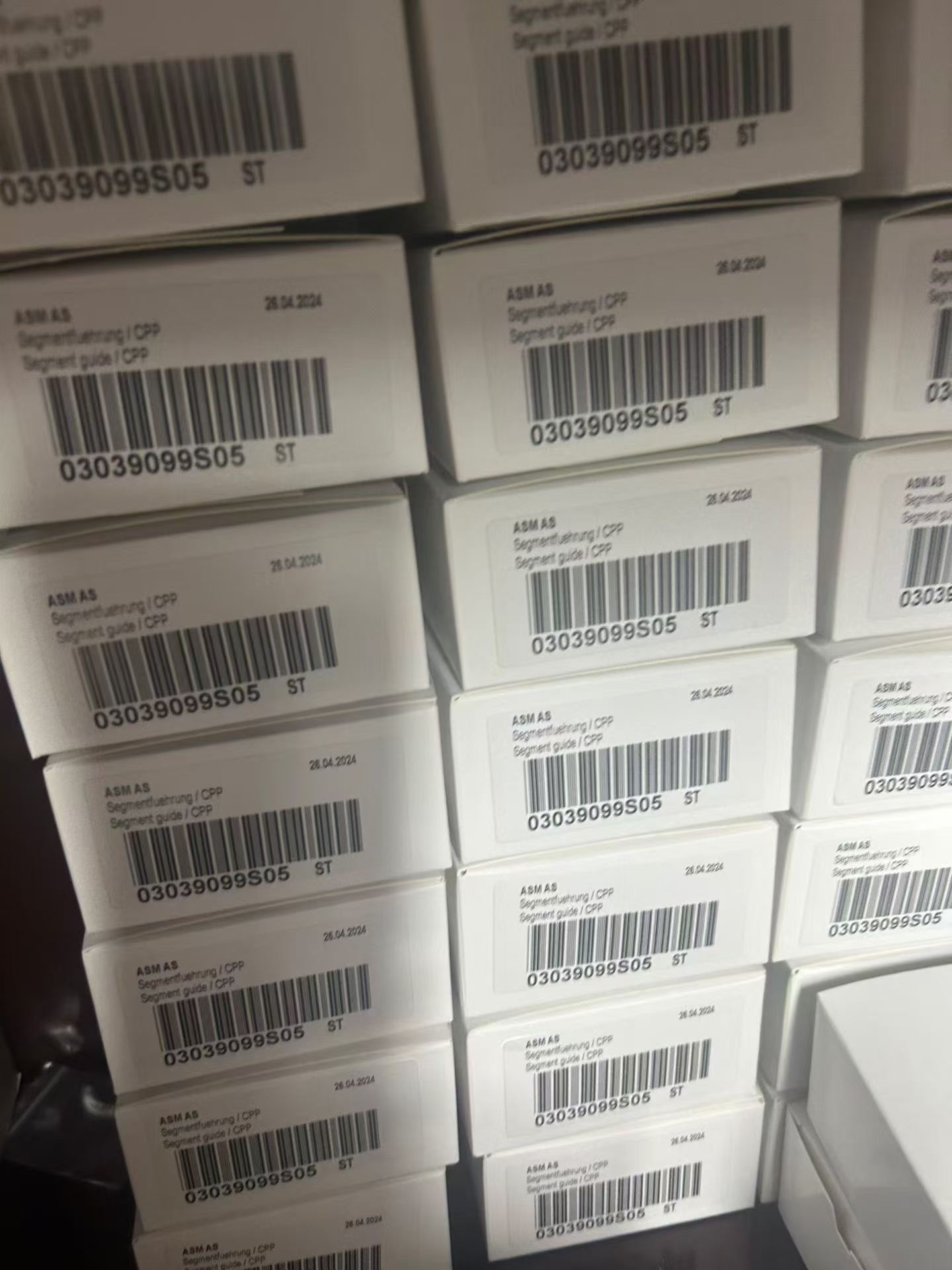

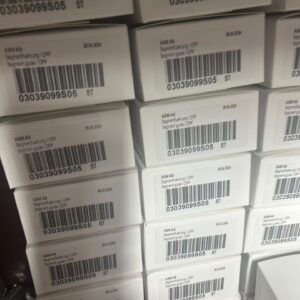

03039099S05 Segmentfuehrung / CPP / Segment guide / CPP Segment guide rail, linear motion guide component for the placement head, ensuring smooth and stable movement

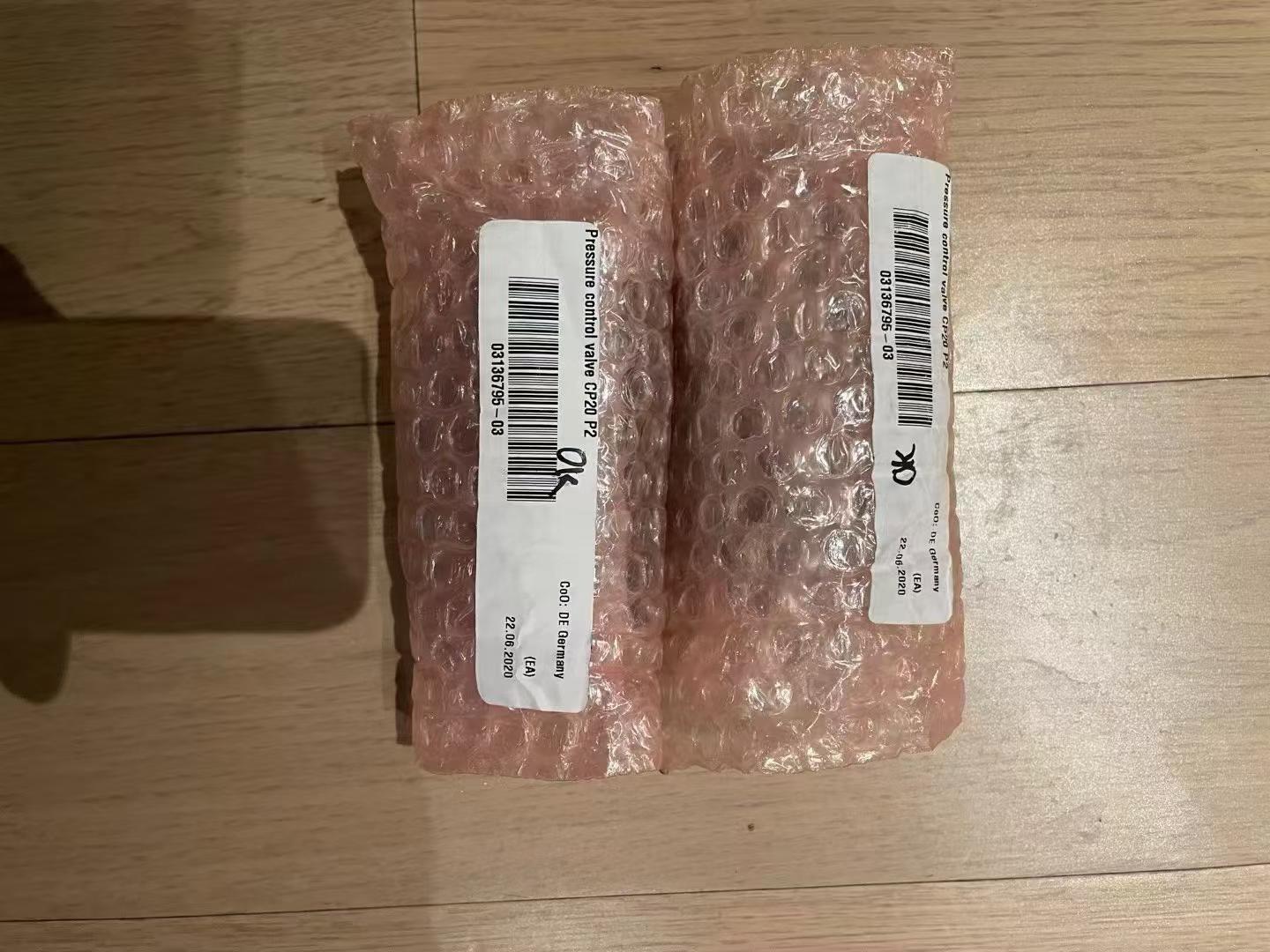

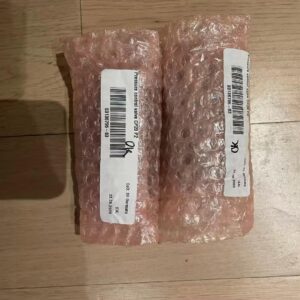

03136795-03 Pressure control valve CP20 P2 Pressure control valve, auxiliary air pressure regulation for the pneumatic system
03153682S04 DP ANTRIEB CP20M2 / DP DRIVE CP20M2 DP drive module for CP20M2 series, upgraded power drive unit for high-speed mounters

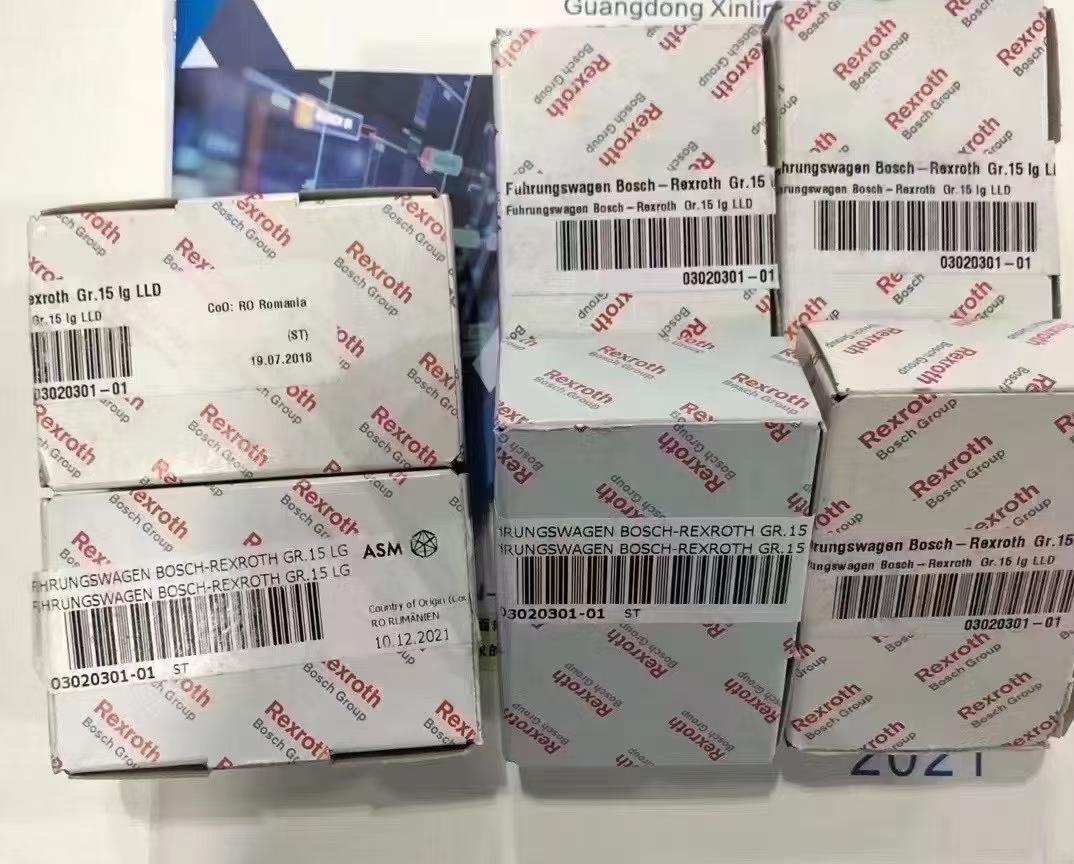

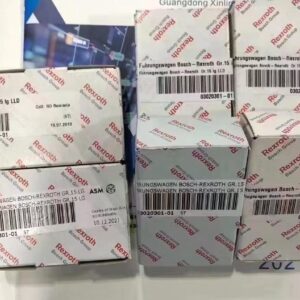

03020301-01 Fhrungswagen Bosch-Rexroth Gr.15 LG / LLD Bosch Rexroth linear guide carriage, high-precision linear motion component for the mounter gantry
2. Product Features & Advantages
✅ 100% Original Genuine: All parts are ASMPT (ASM) factory original, with complete traceability, fully compatible with DEK/SIPLACE CP20 series SMT mounters.✅ German Origin: Core components are manufactured in Germany, with strict quality control, meeting the highest precision requirements of SMT production.✅ Full Compatibility: Covers all core modules of CP20 series mounters, including drive, control, sensing, pneumatic, and guide systems, suitable for equipment maintenance, spare parts replacement, and production line expansion.✅ High Stability: Each component is calibrated at the factory, ensuring long-term stable operation in high-speed, high-precision SMT production lines, effectively reducing equipment downtime and improving production efficiency.
3. Application Scenarios
SMT Production Line Maintenance: For routine maintenance and fault repair of ASMPT CP20 series placement machines, quickly replace worn parts to restore equipment performance.
High-Precision Component Placement: Suitable for placement of 0201, BGA, QFP and other precision electronic components, ensuring placement accuracy and yield.
SMT Equipment Upgrade: Compatible with CP20 series high-speed mounters, supporting production line capacity expansion and process upgrade.
