Wave Soldering Spare Parts

Wave Soldering Spare Parts
These are critical components for maintaining wave soldering machines (common in SMT assembly lines):

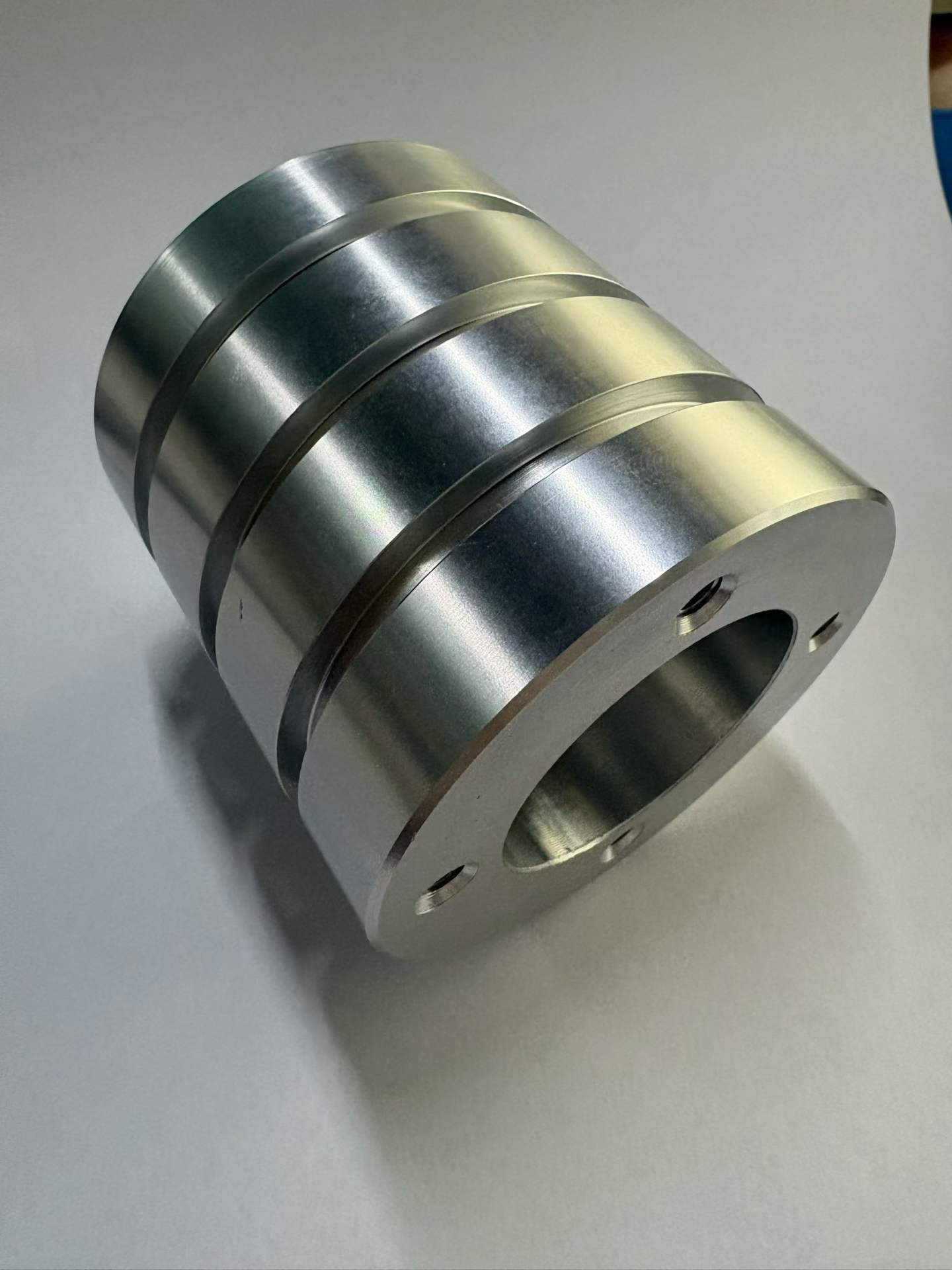

1. Impeller Shaft Bearing Housing / Anti-Oxidation Sleeve
Part in Image 1: Precision-machined aluminum alloy component.
Function: Serves as the main bearing seat for the solder pot impeller shaft. Its multi-groove design helps prevent tin-splash oxidation and provides stable support for the rotating shaft.
Common Usage: Found in the pump assembly of lead-free wave soldering systems (e.g., JT, SunEast, Vitronics Soltec).

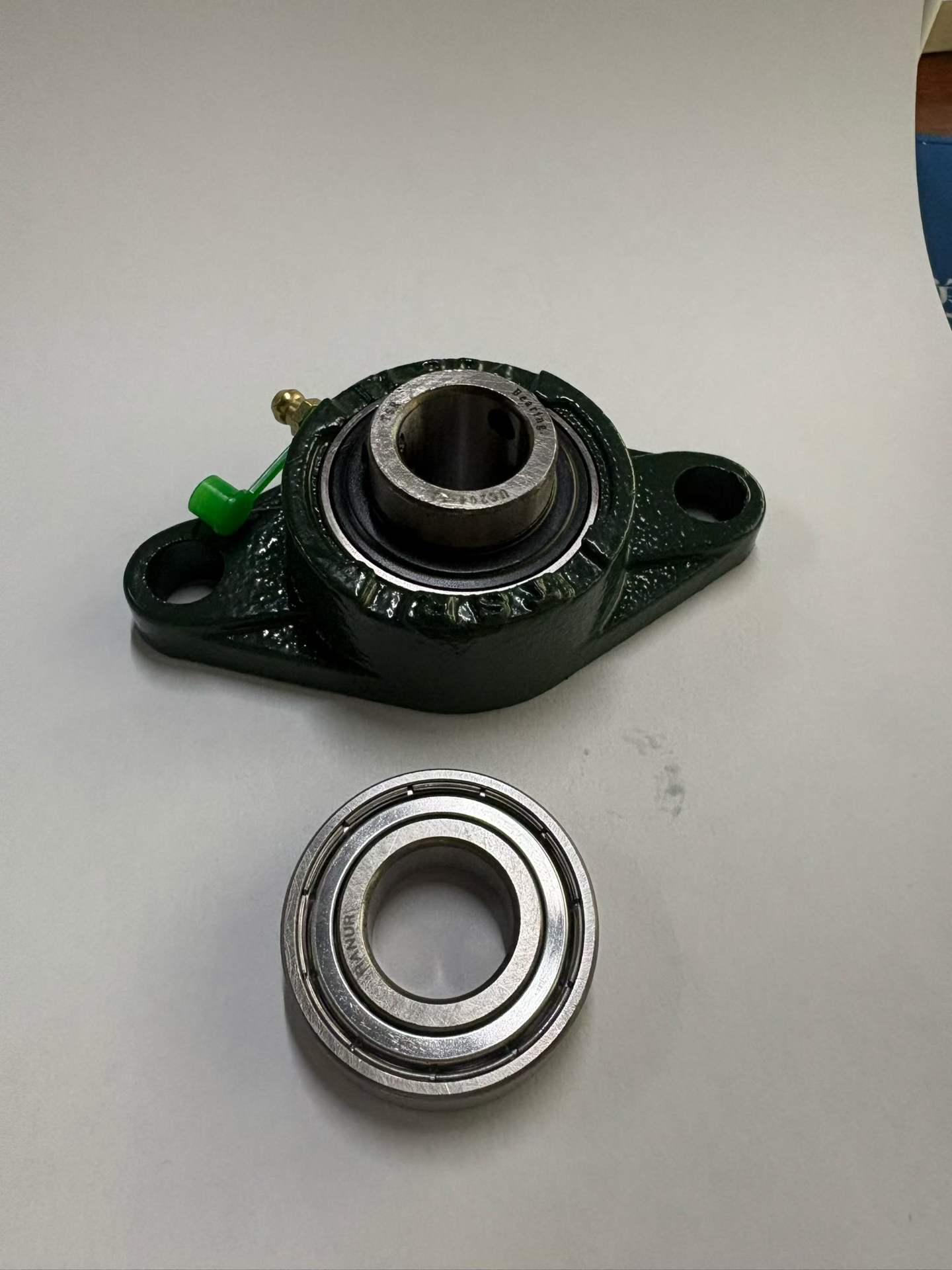

2. Flange Mounted Bearings & Deep Groove Ball Bearings
Parts in Image 2:
UCFL200-series 2-bolt flange bearing (with housing, for direct mounting).
Open-type deep groove ball bearing (spare insert for replacement).
Function: Support the rotating shafts of the conveyor, pump, or preheating fans. The flange design allows easy bolt-on installation in tight spaces.
Key Feature: The grease fitting on the flange housing allows for easy maintenance lubrication in high-temperature environments.
3. SunEast / 劲拓 JT High-Temperature Motors
Parts in Images 3 & 4: These are specialized high-temperature three-phase motors for wave/reflow soldering machines.

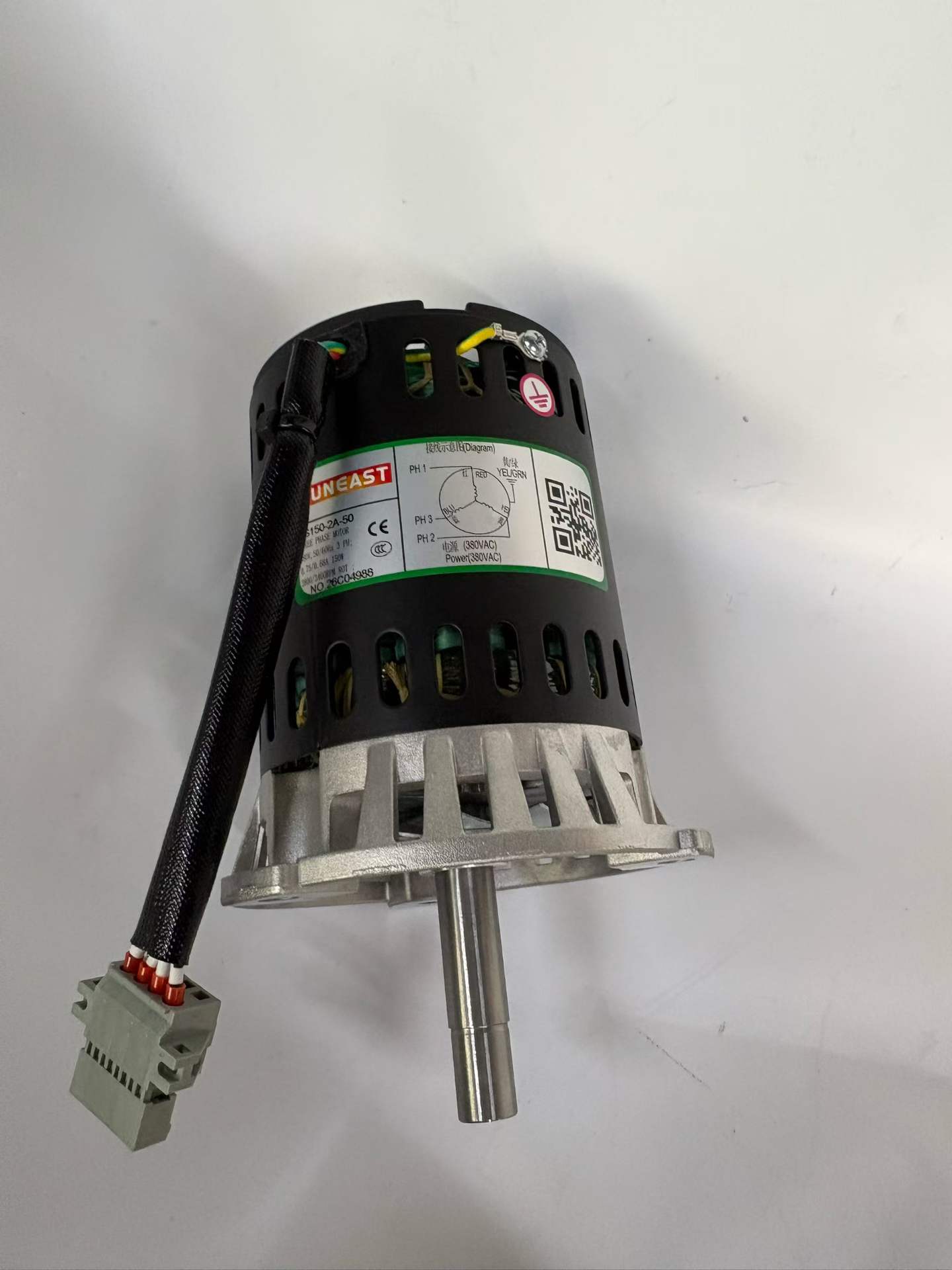

SUNEAST FM150-2A-50: 380VAC, 150W preheating/fan motor.

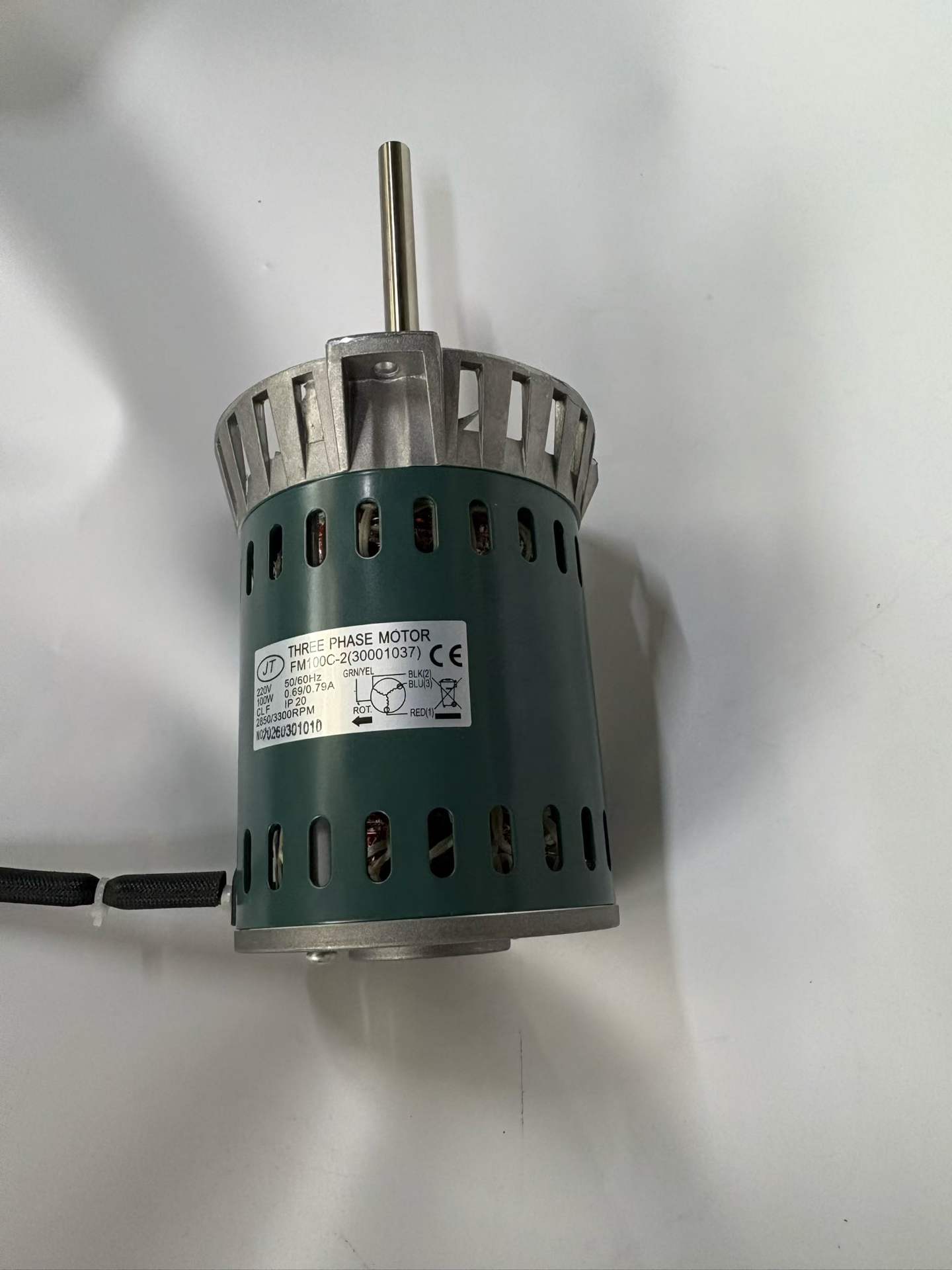

JT FM100C-2 (30001037): 220V/380V, 100W motor, commonly used in JT Automation wave soldering systems for hot air circulation or conveyor drive.
Function: Designed to withstand high oven temperatures (up to 250-300°C) while maintaining stable RPM for critical processes like preheating, flux drying, or solder wave agitation.

💡 These parts are essential for reducing downtime in wave soldering operations. Do you need help identifying compatible replacements or cross-referencing OEM part numbers?
