V-Type Titanium Wave Soldering Fingers and Three-Section Chain Kit JT
This high-performance V-type titanium alloy feed claw (chain finger) and matching three-section chain kit are core spare parts for SUNEAST and JT wave soldering machines. Designed for long-term use in high-temperature, corrosive wave soldering environments, it ensures stable PCB transport and consistent soldering quality.
Share to:
🔧 1. V-Type Titanium Wave Soldering Fingers
Key Features
Premium Titanium Material: Made of industrial-grade titanium alloy (TA1/TA2), it boasts excellent high-temperature resistance (up to 300℃), resistance to molten solder corrosion, and oxidation resistance. Its service life is 3-5 times that of ordinary stainless steel claws, reducing replacement frequency.
Precision V-Shaped Design: Single/double hook V-shaped ends securely hold the PCB, preventing jamming, falling, or deformation during transport. Reinforced rib structure enhances strength and minimizes deformation during continuous production.

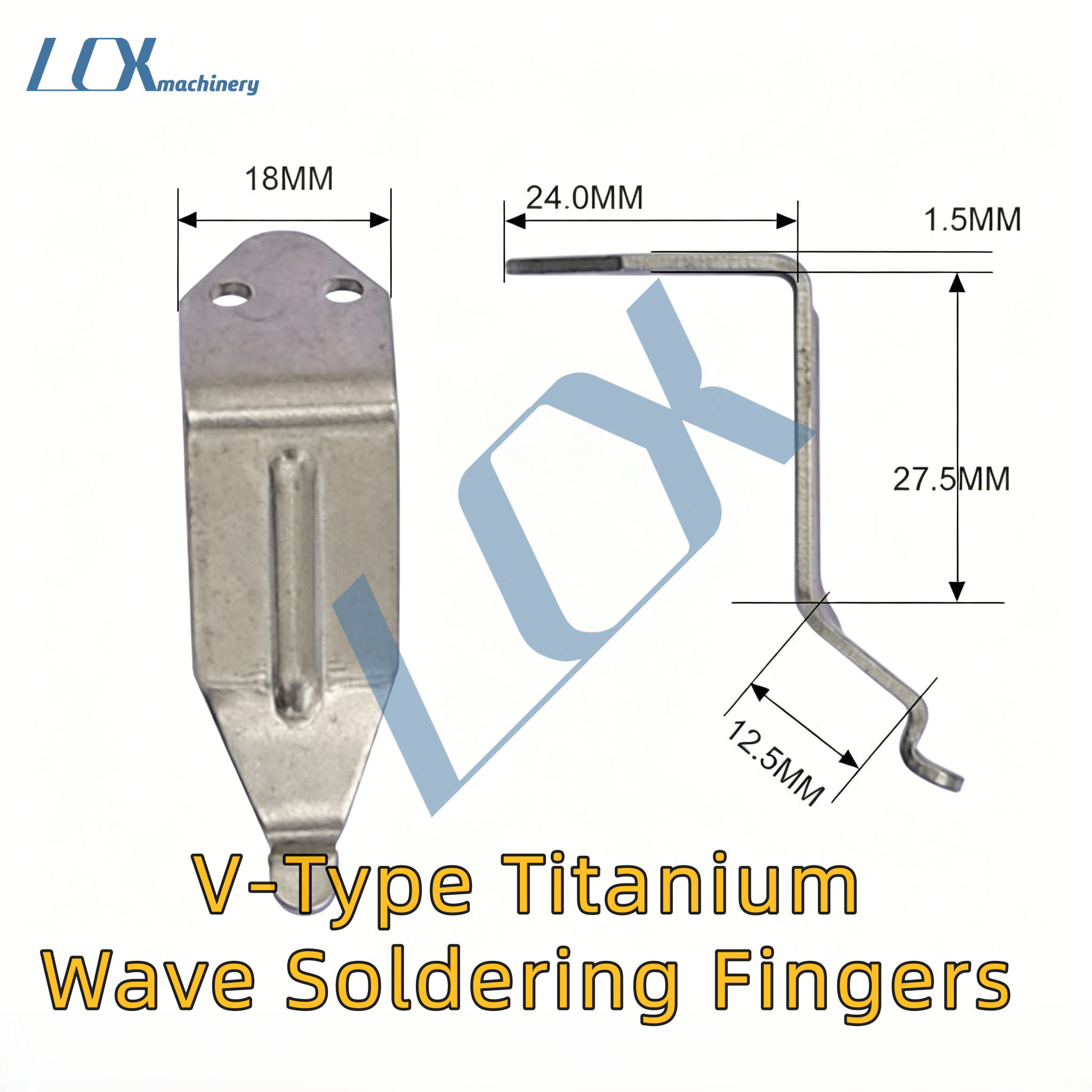

Standard Dimensions:
Installation Width: 18mm
Thickness: 1.5mm
Arm Length: 27.5mm
Working Section Length: 12.5mm
Mounting Hole Spacing: Perfectly compatible with NITTO/JT wave soldering equipment
Smooth Round Head: Polished round head design avoids scratching the PCB surface, ensuring smooth solder passage through the preheating and soldering zones.
⛓️ 2. Three-Piece Link Kit and Titanium Alloy Claw Clamp

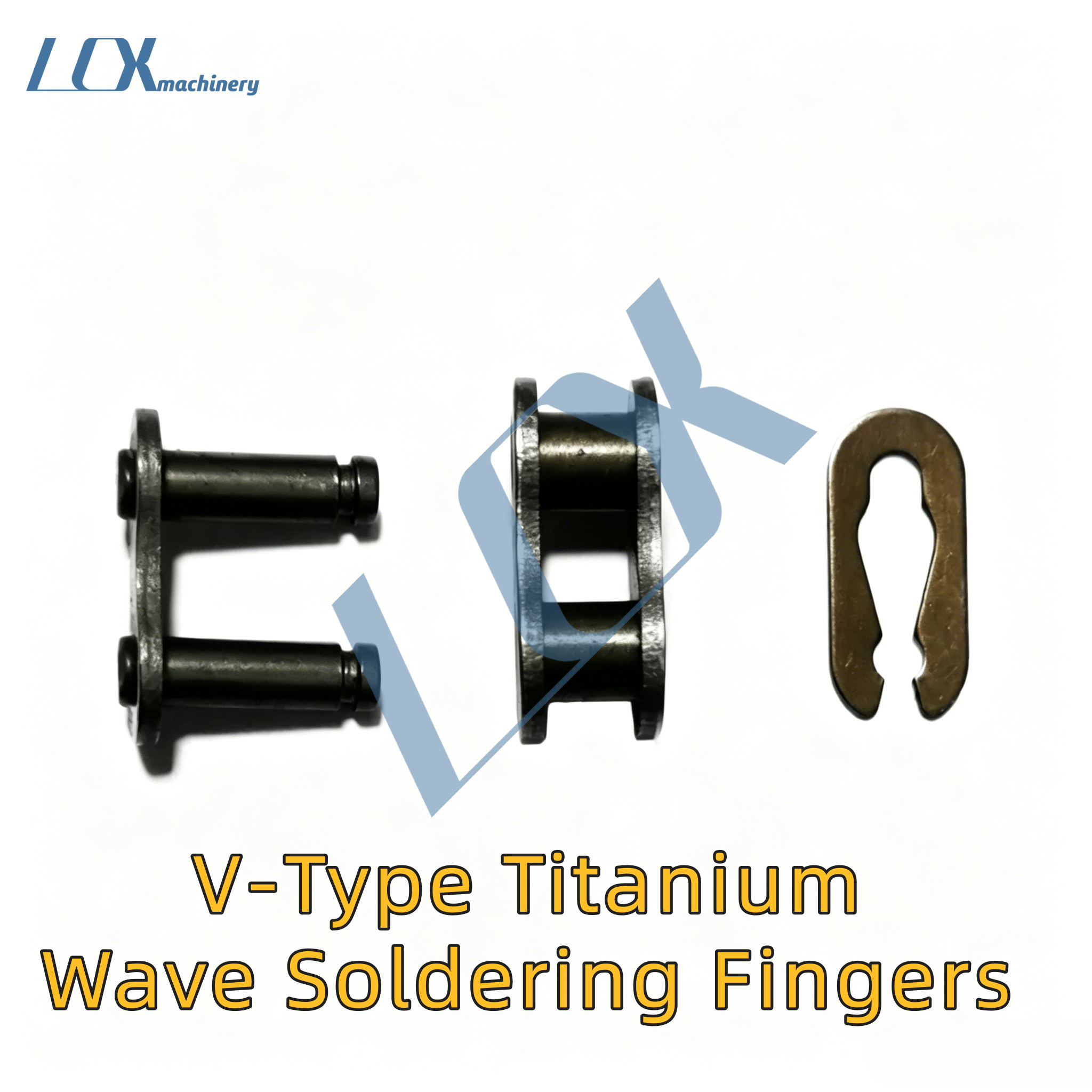

Three-Piece Link Kit
Components: Connecting pin link, inner chain plate, and spring clamp (main link)
Application: Used for quick assembly, disassembly, and maintenance of wave soldering conveyor chains, ensuring stable chain tension and smooth operation.
Compatibility: Matches standard conveyor chains of NITTO/JT wave soldering machines.
Titanium Claw Clamp
Function: Securely locks the titanium claws onto the conveyor chain, preventing the claws from loosening or falling off during high-speed operation.
Durability: Constructed from high-strength steel and rust-resistant, providing reliable clamping force and a long service life.
🎯 Applications and Compatibility
These components are designed for SMT assembly lines, electronics manufacturing plants, and PCB assembly workshops, and can directly replace the following equipment:
SUNEAST wave soldering machine
JT wave soldering machine
Other mainstream wave soldering equipment and matching chain systems
💡 Why Choose This Kit?
Fully Compatible: Titanium claws, chain links, and retaining clips fit perfectly for easy installation.
Cost-Effective: Titanium claws reduce maintenance costs, while the chain kit and retaining clips ensure long-term stability of the chain system.
High Precision: CNC-machined parts guarantee perfect fit and stable performance.
