V-Type Titanium Fingers JT10273 | JT/Suneast Wave Soldering Single-Rib Double-Hook Conveyor Fingers
The JT10273 V-type titanium finger is a high-precision, heavy-duty replacement part designed for Jt (Jiantuo) and Suneast wave soldering machines. Engineered with a single-rib reinforcement and double-hook structure, this titanium finger ensures stable PCB transmission, exceptional high-temperature resistance, and long service life in demanding SMT production environments.
Share to:

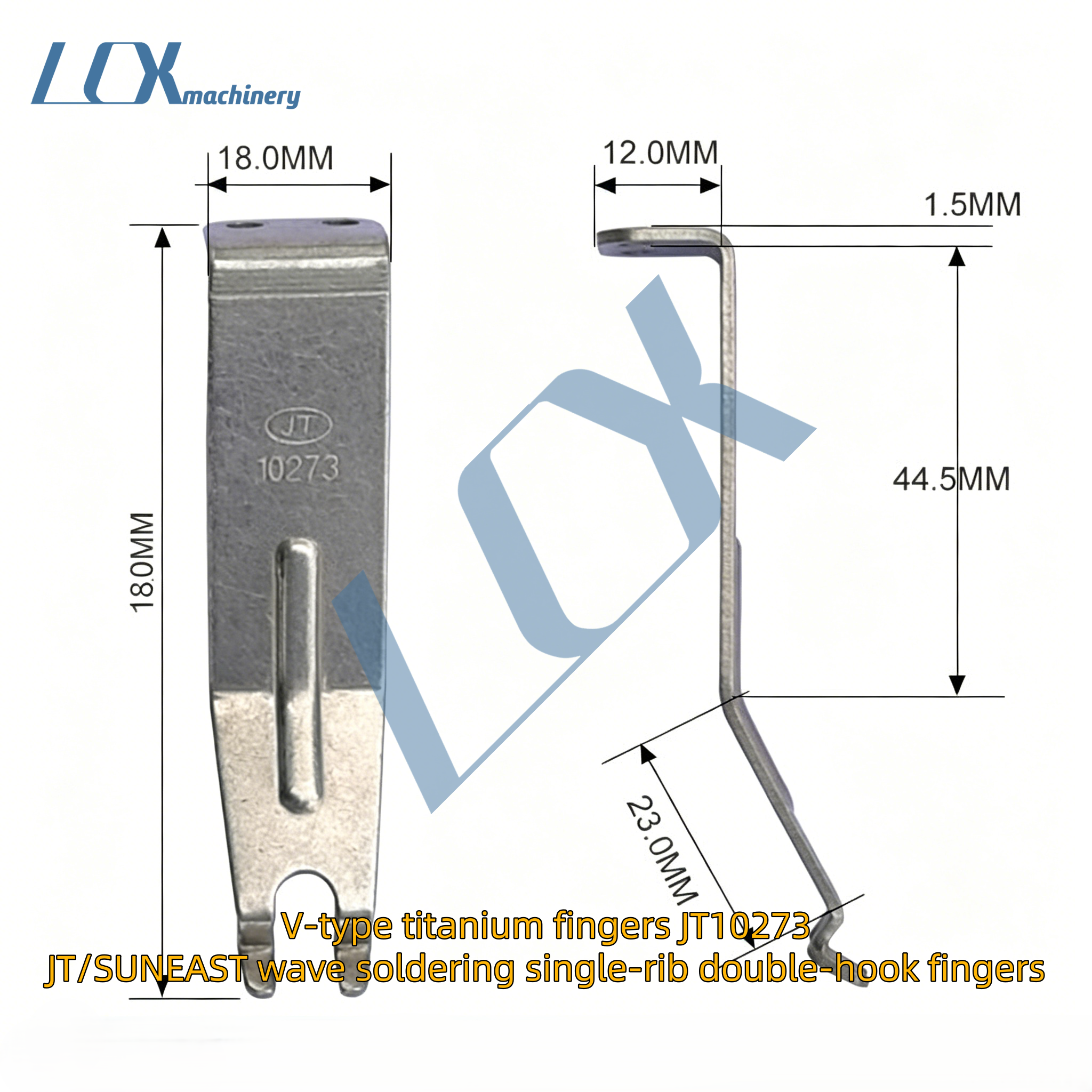

Parameter Specification
Part Number JT10273
Type V-type (angled) Titanium Finger
Structure Single-rib Reinforced, Double-hook Design
Material Pure Titanium (TA1/TA2)
Thickness 1.5mm
Mounting Width 18.0mm
Horizontal Arm Length 12.0mm
Total Vertical Height 44.5mm
Hook Segment Length 23.0mm
Core Features & Advantages
High-Temperature & Corrosion Resistance
Made of premium pure titanium, the finger withstands the harsh conditions of wave soldering, withstanding temperatures up to 316°C without deformation, oxidation, or tin adhesion. It resists corrosion from molten solder and flux fumes, eliminating frequent cleaning and maintenance.
Reinforced Single-Rib Structure
The integrated single-rib design enhances structural rigidity, preventing bending or warping under continuous load. This ensures consistent PCB alignment and prevents product jams or drops during high-speed production.
Stable Double-Hook Support
The double-hook end provides secure, balanced support for PCBs of varying sizes, reducing the risk of slippage, warping, or misalignment during the soldering process.
Precision Fit & Compatibility
Engineered to match the original dimensions of Jt and Suneast wave soldering equipment, this finger offers a perfect fit with no modifications required, making it a direct replacement for OEM parts.
Long Service Life & Cost Efficiency
Titanium’s superior wear resistance gives this finger a service life 3–5 times longer than standard steel fingers, reducing replacement frequency and downtime for improved production efficiency.
Compatibility
JT: WS-350PC, WS-450PC, and other mainstream JT wave soldering models
Suneast : NSI-350, NSI-450, PerfectFlow series wave soldering machines
Applications
Ideal for use in SMT wave soldering lines, electronic assembly production, and other high-volume PCB manufacturing processes requiring reliable, high-performance conveyor fingers.
Supply & Customization
Stock Availability: Standard JT10273 fingers are in stock for immediate delivery
Custom Services: Custom dimensions, hook types, and reinforced designs are available based on drawings or samples
