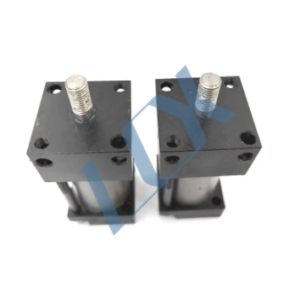

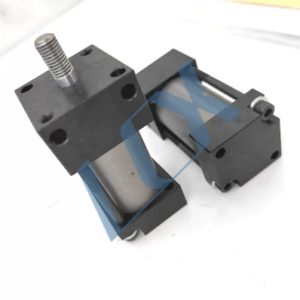

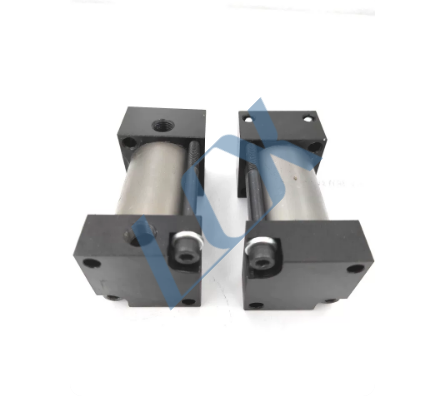

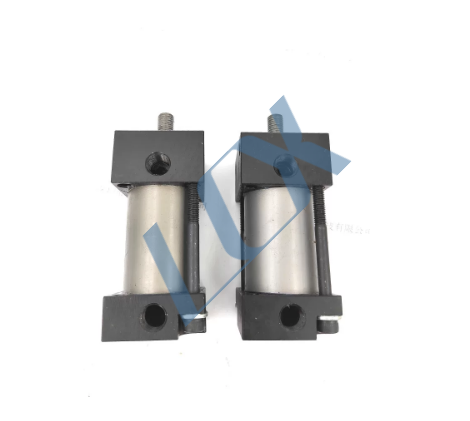

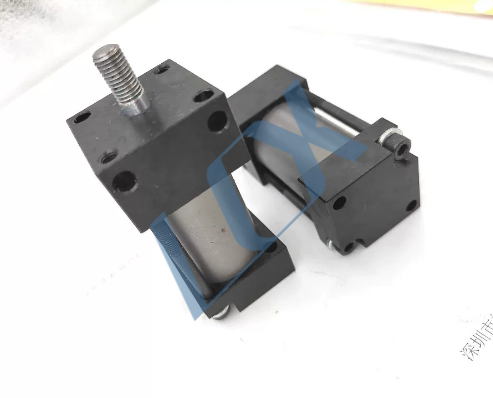

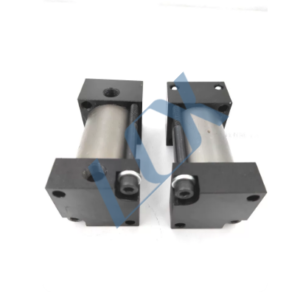

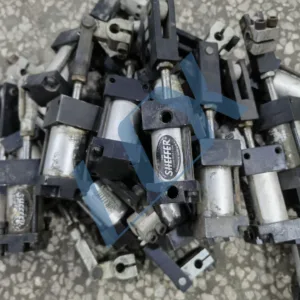

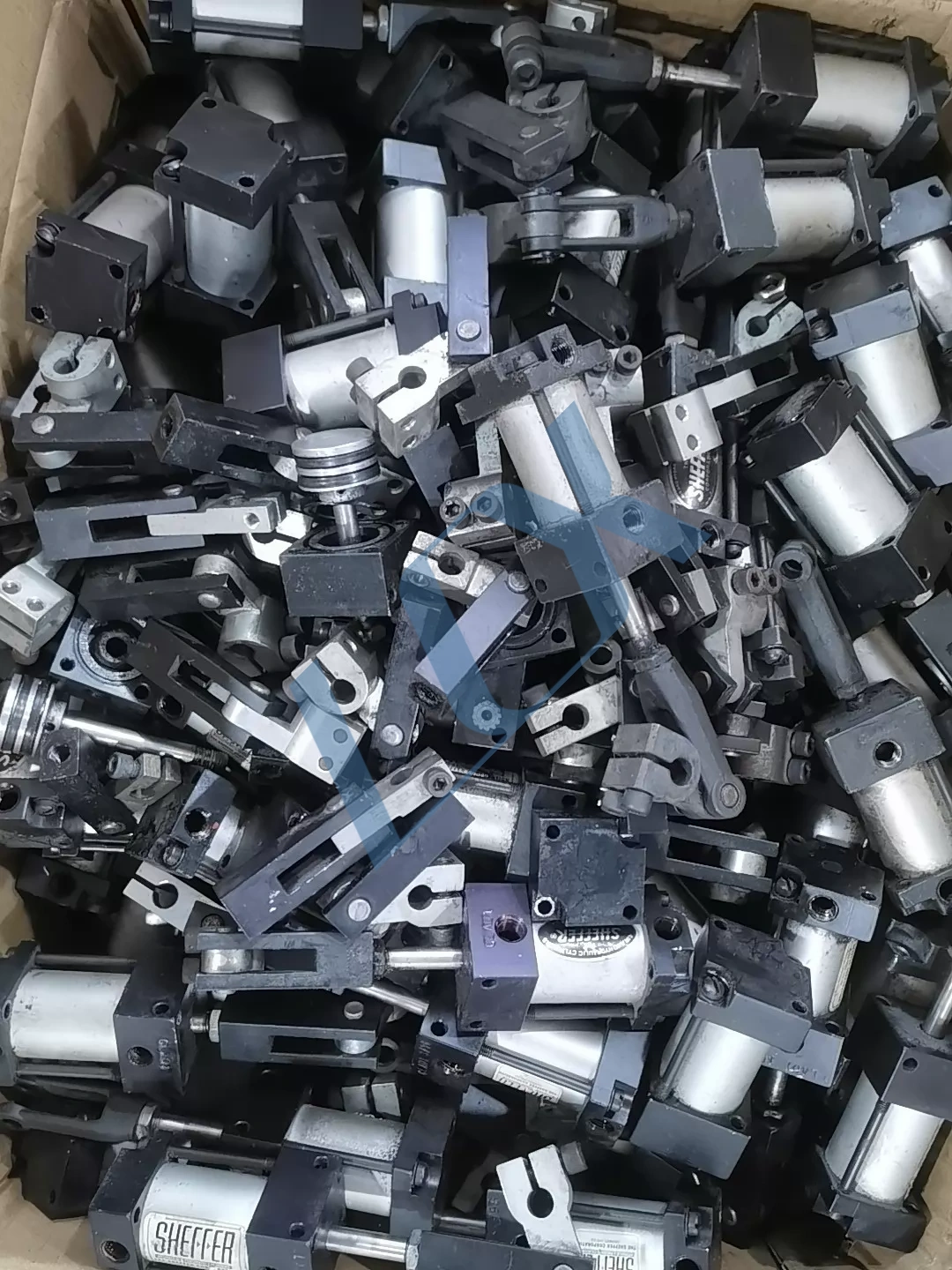

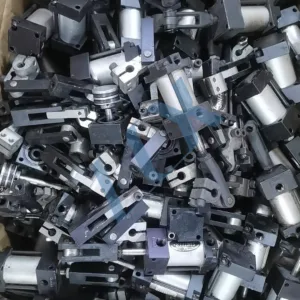

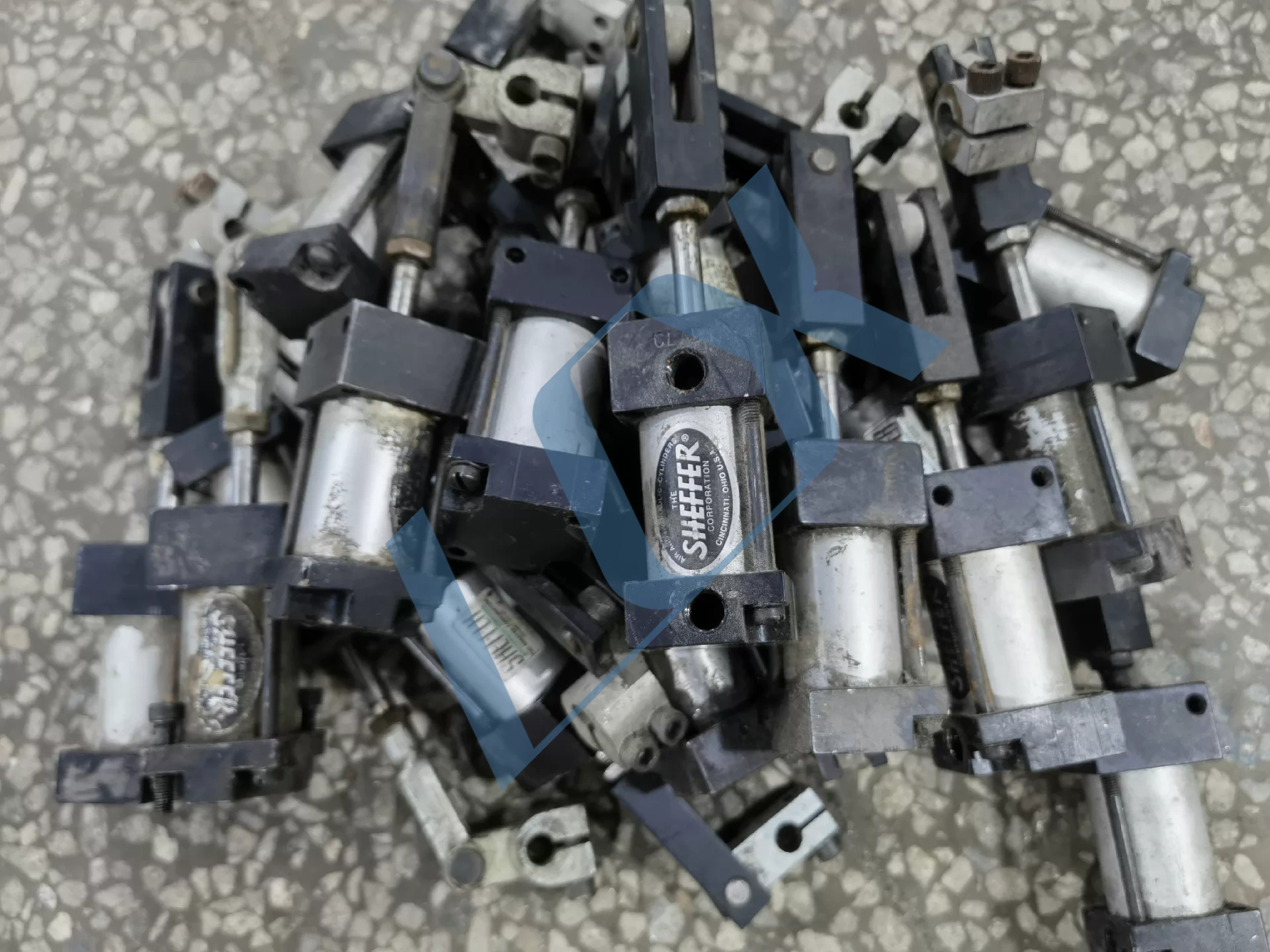

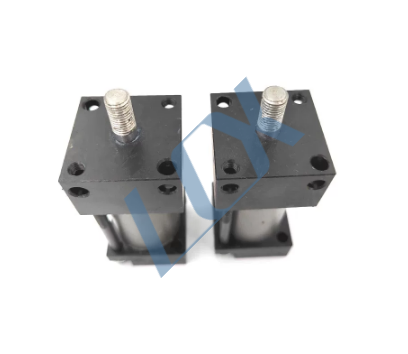

Universal Instruments 12813000 Sheffer Pneumatic Cylinder for Horizontal Axial Lead Feeders
The cylinder body is manufactured by Sheffer Corporation, a long-established manufacturer of industrial-grade cylinders/hydraulic cylinders, renowned for their high reliability, wear resistance, and long lifespan.
They are widely used in automated production lines, especially in SMT/AI insertion machine.
Share to:
It is compatible with the horizontal feeding module of the Universal Insertion Machine, undertaking the critical reciprocating motions of component pushing, positioning, and clamping.
It is a core pneumatic component for the stable operation of the machine.
Structure and Key Parameters (Original Design)
Item Specifications
Brand: Sheffer Corporation (USA)
Part Number: 12813000 (Universal Original Part Number)
Type: Double-acting Pneumatic Cylinder
Cylinder Body Material: Anodized Aluminum Alloy
Compatible Equipment: Universal Horizontal Material Feeder and Insertion Machine
Rated Air Pressure: 150 PSI (approx. 1.03 MPa, Sheffer CLA Series Standard)
Structural Features: With customized mounting base and linkage mechanism, 100% matching with equipment mounting position and motion trajectory
Sheffer cylinders offer high durability, exhibiting superior service life and stability under the high-frequency operation (hundreds of reciprocations per minute) of insertion machines, making them a popular spare part for equipment maintenance.
Basic Inspection
Visual Inspection: No deformation of the cylinder body, no scratches/bending of the piston rod, no cracks in the mounting base.
Air Tightness Test: After air supply, check for air leaks in the cylinder body, end caps, and interfaces; check for smooth and unobstructed reciprocating movement of the piston rod.
Maintenance (Recommended and Essential): Clean the piston rod and apply specialized grease to reduce friction and wear.
Replace worn seals and buffer gaskets (Sheffer offers corresponding repair kits) to prevent air leaks and cross-contamination after reassembly.
Inspect the joint bearings of the linkage mechanism, clean and lubricate them to ensure synchronized operation.
