Universal 47668103 47668203 VCD Housing L/R for 6241F Radial Insertion Machine

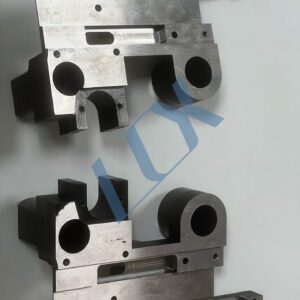

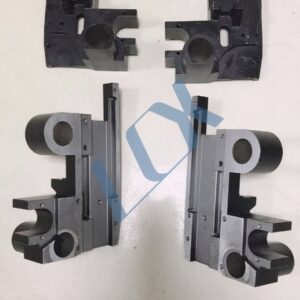

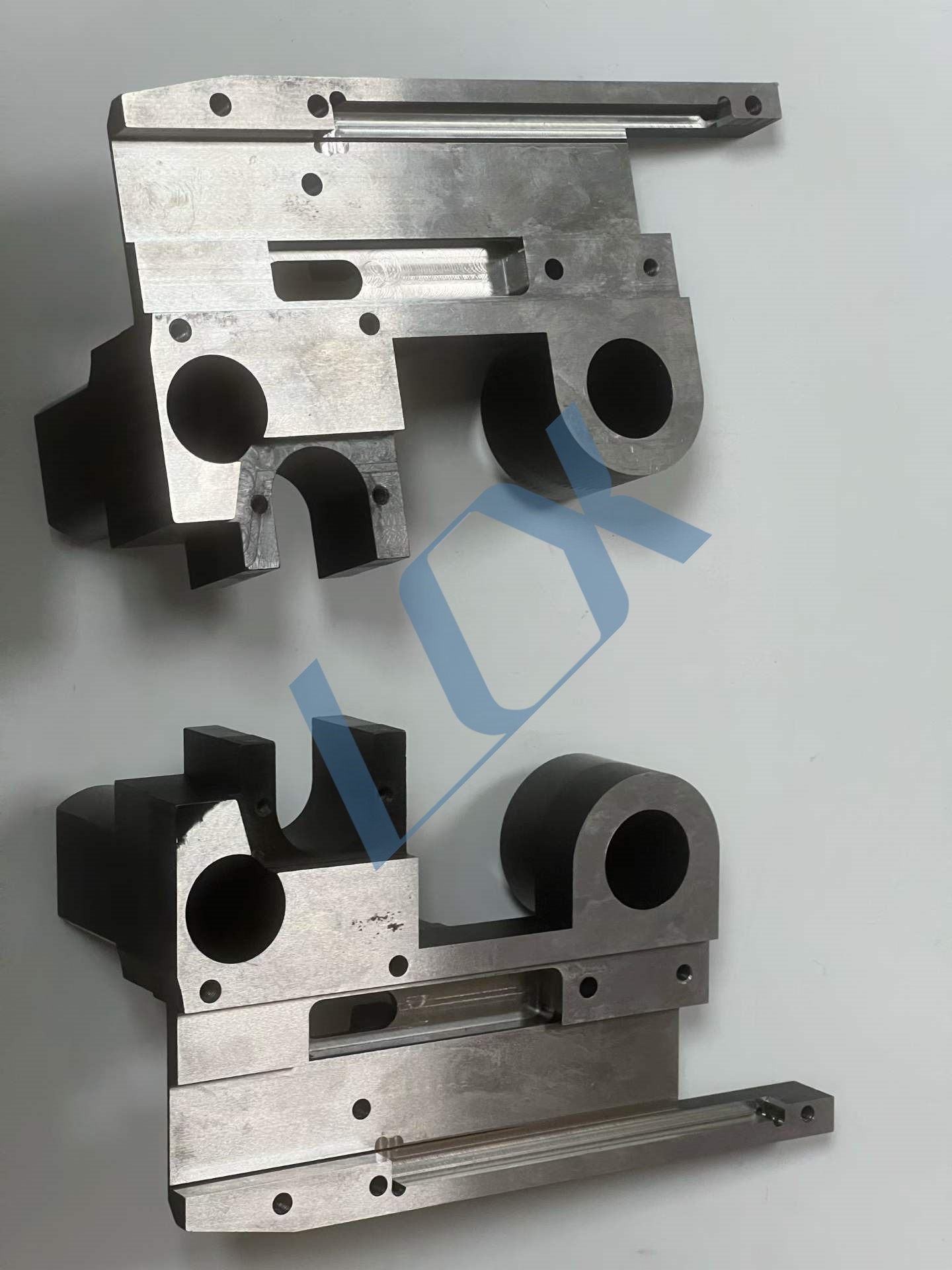

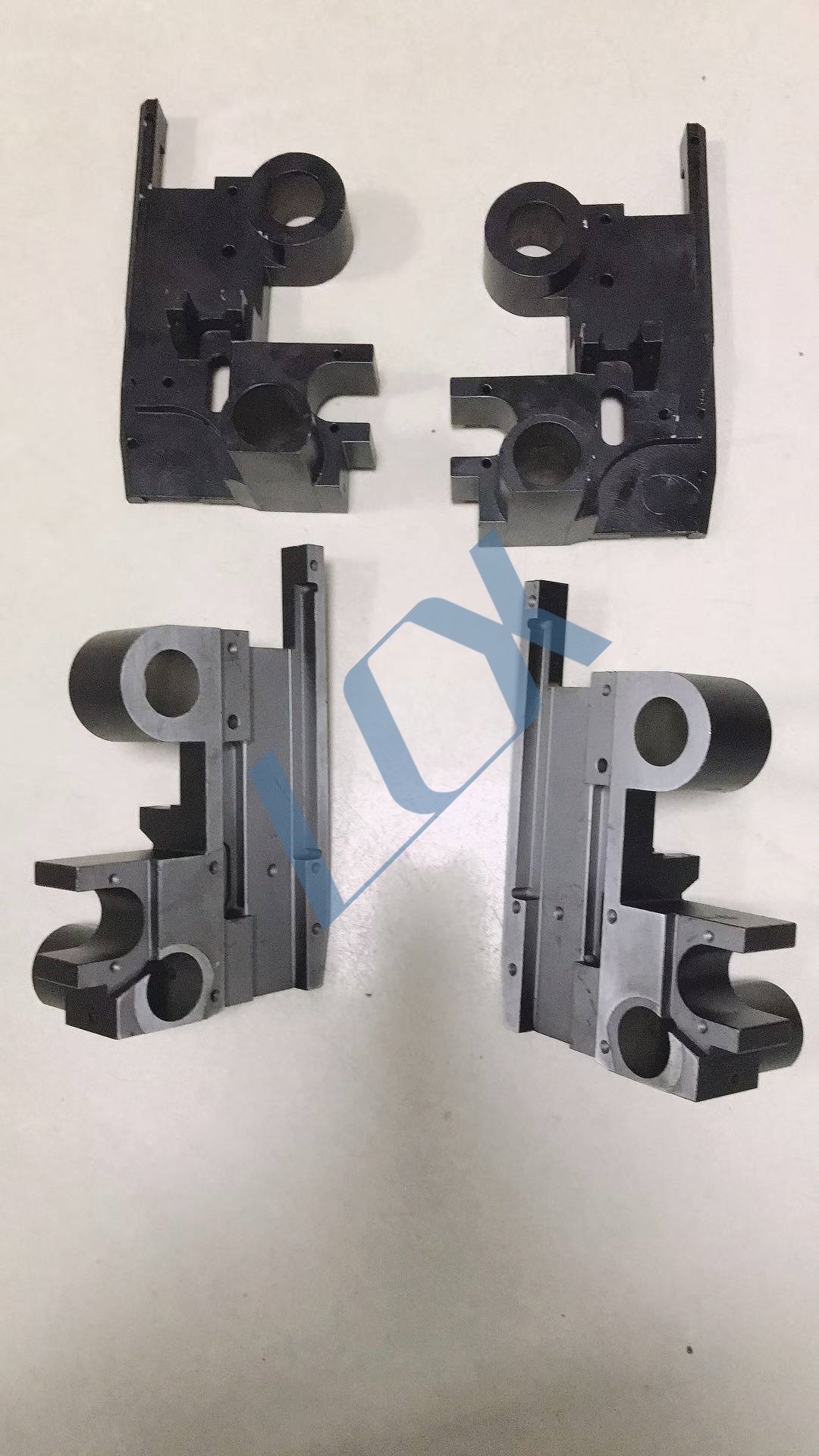

Universal 6241F Insertion Machine Head Housing (47668103 / 47668203)These are the core structural parts for the Universal 6241F radial component inserter, serving as the base housing for the left (47668103) and right (47668203) VCD (Vertical Component Drive) insertion heads. Machined from hardened alloy steel with black oxide finish, they provide precise mounting references for the spindle, cylinder, and guide rail assemblies, ensuring high-precision and stable insertion performance. The left and right housings are paired components, which must be purchased and installed as a matched set for the 6241F model.
Share to:

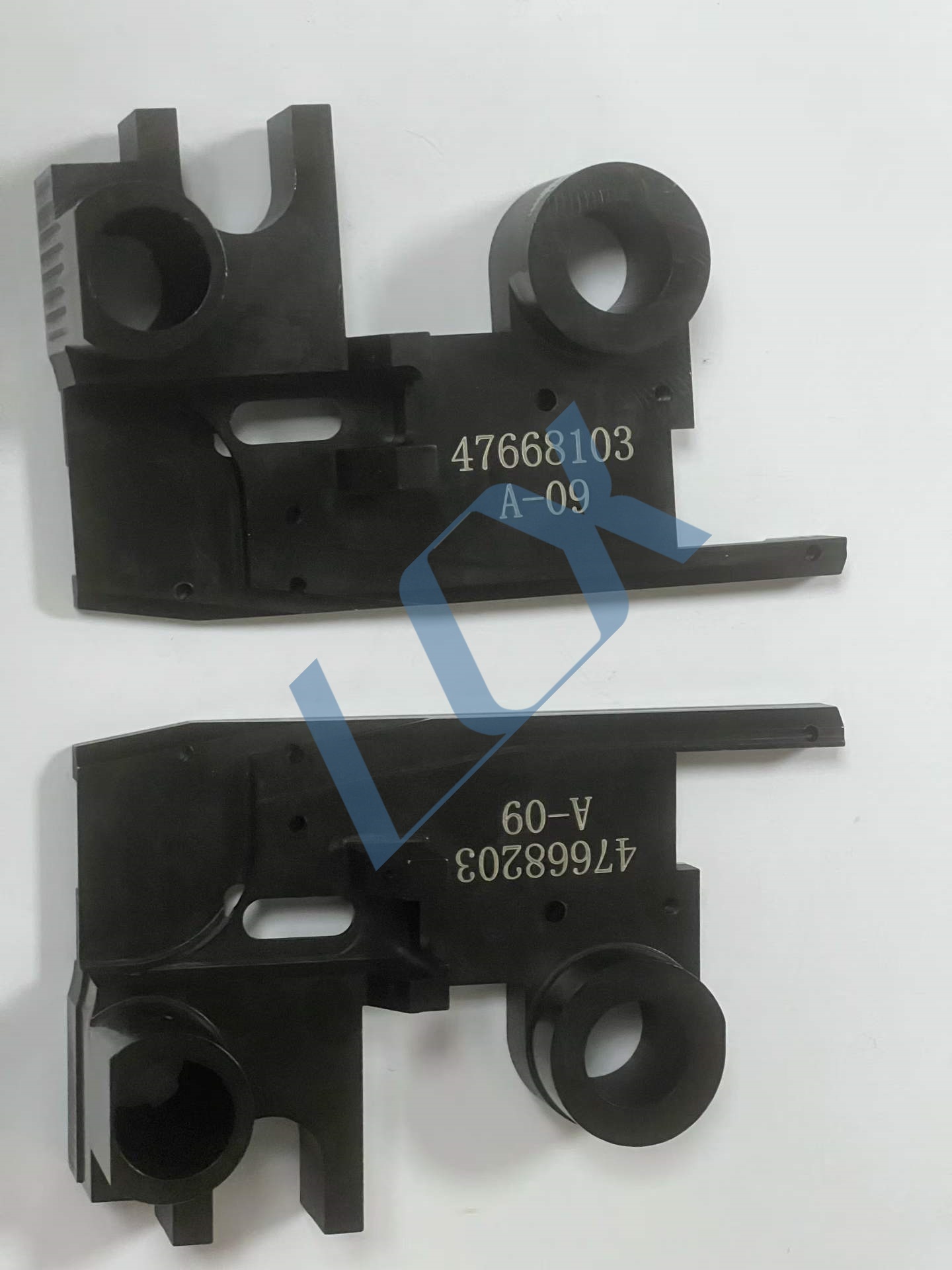

This is the core structural component of the Universal 6241F radial component insertion machine, consisting of two parts: left (47668103) and right (47668203). It serves as the mounting base for the insertion head (VCD, Vertical Component Drive), and is also commonly referred to as the “insertion head body/slider seat.”
🛠️ Functions and Roles
**Core Support Mechanism:** Provides the mounting reference for the insertion head’s spindle, cylinder, guide rail, and transmission components, acting as the “skeleton support” for the insertion motion.
Ensuring Motion Accuracy: High-precision machined holes and guide rail grooves ensure the coaxiality and stability of the insertion head’s vertical/forward/backward movement, directly affecting insertion accuracy.
Wear and Impact Resistance: Made of alloy steel with blackening/surface hardening treatment, it is adapted to the impact and wear of high-frequency insertion operations, making it a key vulnerable structural component of the equipment.
