Universal 2596B Sequencer Distribution Head
The Universal 2596B Distribution Head is a critical mechanical assembly for the Universal 2596B / 2596C Axial Component Sequencing Machines, designed to precisely orient, feed, and stage axial leaded components (resistors, diodes, capacitors, etc.) prior to insertion.
Featuring dual-channel feeding, precision-guided alignment, and integrated sensor feedback, this unit ensures consistent component polarity and pin alignment, directly supporting the high-speed, high-yield operation of downstream Universal AI insertion machines (e.g., 6241, 6380 series). It is built with hardened mechanical components and modular construction for durability and easy maintenance in industrial production environments.
Ideal as a replacement spare part, this assembly is fully tested and verified for compatibility with specified sequencer models, ensuring reliable performance to minimize production downtime.
Share to:

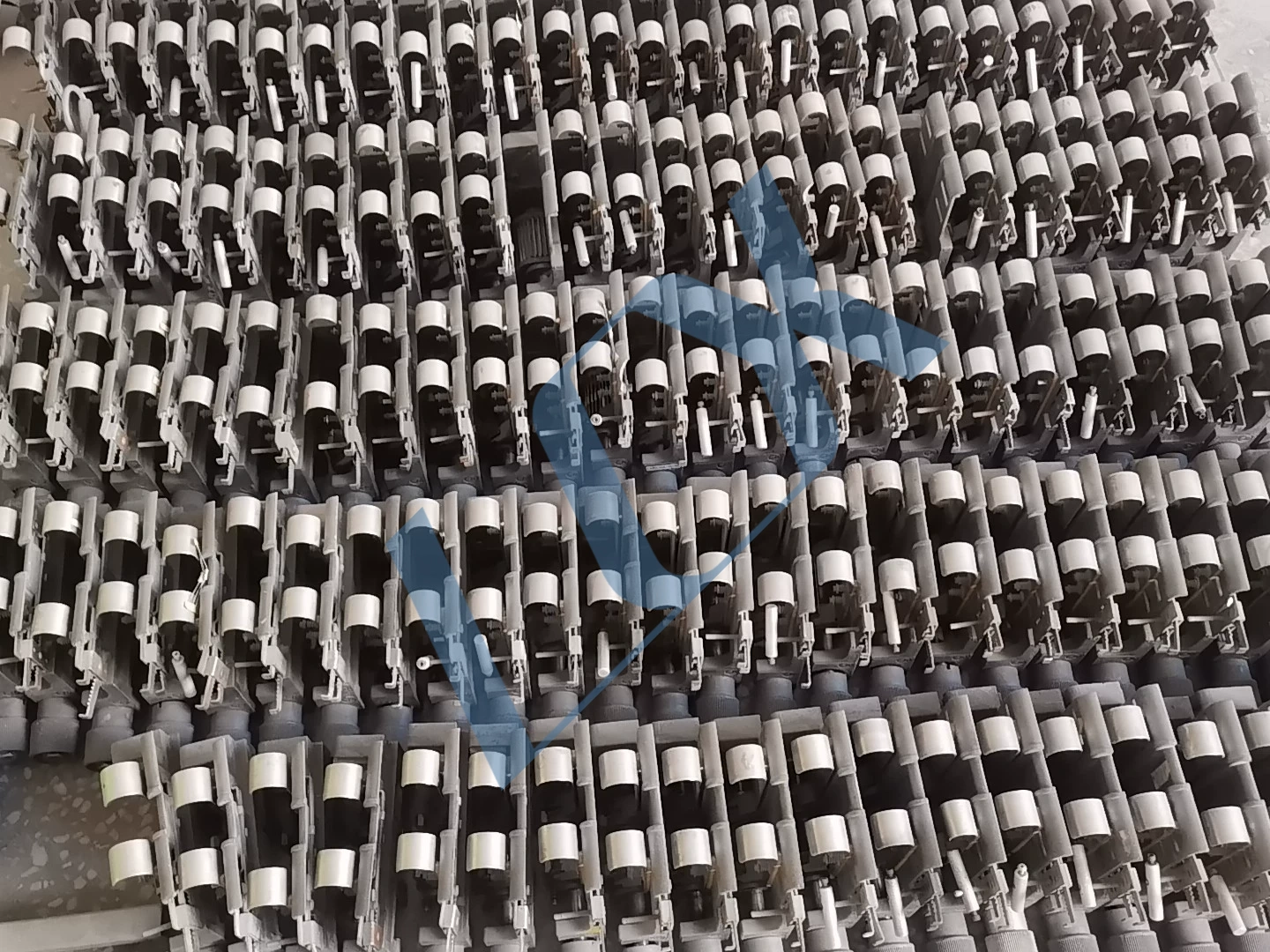

Universal 2596B Sequencer Distribution Head
🎯 Product Core Information
Model: 2596B Distribution Head
Applicable Machines: Universal 2596B / 2596C Axial Component Sequencer/Sequencing Machine
Core Function: Orientation, distribution, and tape feeding of axial components (resistors, diodes, capacitors, etc.). A key mechanical component for automatic component sorting and feeding.
⚙️ Structure and Function Analysis
1. Mechanical Structure and Working Principle
Dual-channel distribution: Supports simultaneous distribution at two stations, improving tape feeding efficiency and adapting to the 2596B sequencer’s processing speed of 25,000 pieces/hour.
Precision guiding and positioning mechanism: Ensures consistent pin orientation for axial components through mechanical positioning pins, spring pressure plates, and guide grooves, preventing skewing and reverse feeding.

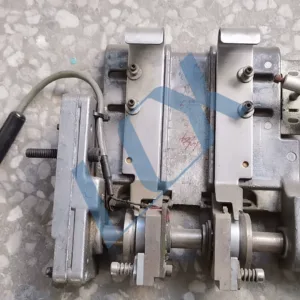

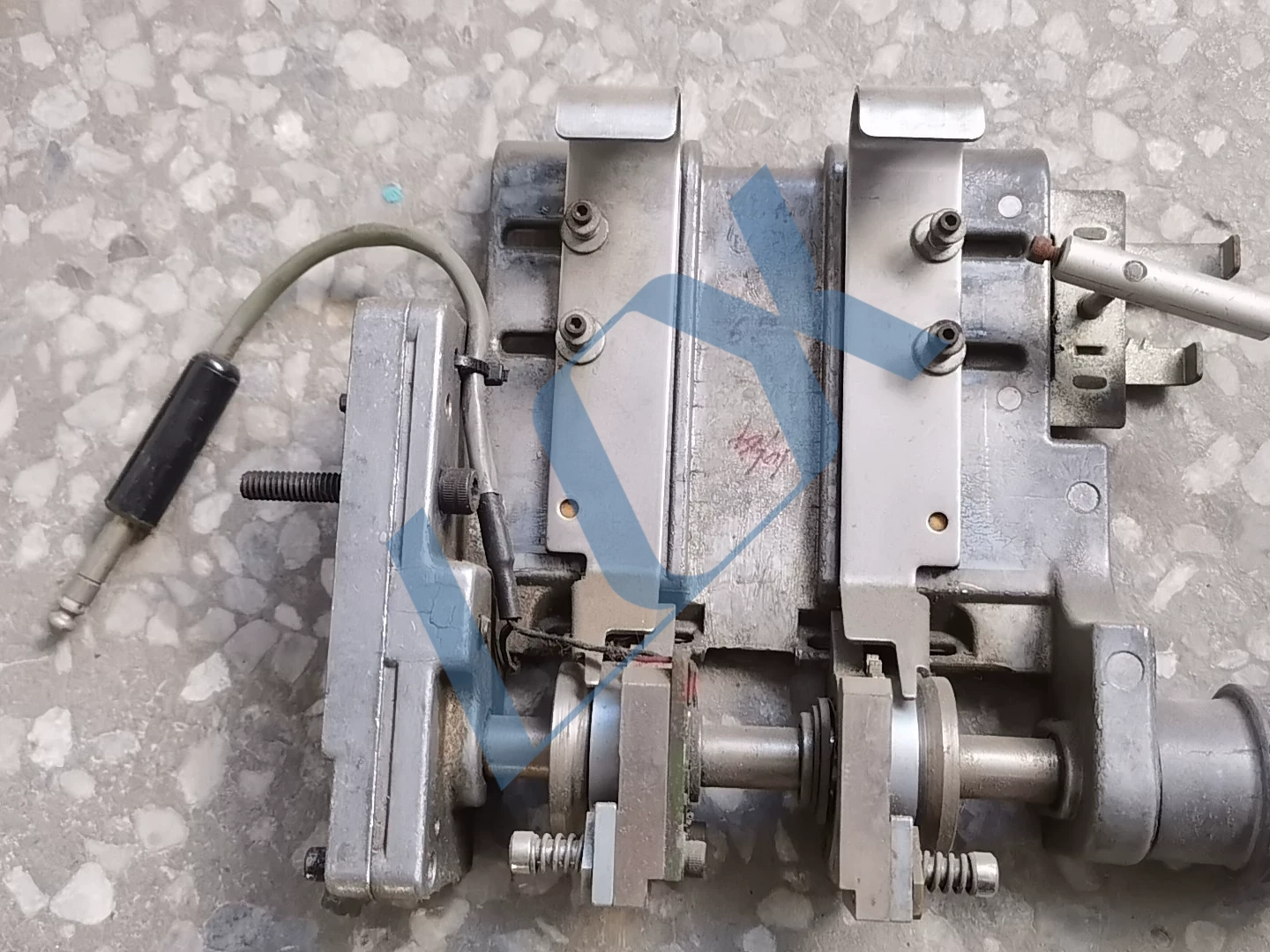

Sensing and Control Components: Equipped with a sensor interface (the black cable in the diagram is the sensing signal line), it can provide feedback on the feeding status and automatically detect material shortages and jams.
Modular Design: Allows for quick replacement or maintenance, adapting to the feeding needs of different axial component specifications.
2. Key Functions: Provides pre-taped axial components for Universal AI insertion machines (such as the 6241 and 6380 series), directly determining the feeding stability and insertion yield of the insertion machine.
Replaces manual feeding, significantly improving feeding efficiency and reducing the risk of component pin damage.
🛠️ Application and Maintenance Points
Suitable Scenarios: Designed specifically for Universal 2596B/2596C axial feeders, providing pre-taped components for Universal single-head/multi-head axial insertion machines.
Compatible with the same 2596C model, requiring only minor adjustments to the mechanical positioning parameters.
Common Faults and Troubleshooting
Fault Phenomenon | Common Cause | Maintenance Suggestions
Component Backflow/Misalignment | Guide groove wear, insufficient spring pressure | Replace worn guide plates, adjust spring pressure, ensure component fits snugly in positioning groove
Material Jam/Poor Feeding | Dust accumulation in dispensing channel, deformed pins causing component blockage | Regularly clean the channel, wipe with alcohol, screen for deformed components to prevent them from entering the equipment
Inaccurate Dispensing Count | Dirty sensor head, poor wiring contact | Clean sensor head, check for damaged or loose signal wires
Decreased Dispensing Efficiency | Insufficient lubrication of mechanical mechanism, worn parts | Regularly add high-temperature lubricating oil, check for wear on bearings and pins, replace spare parts promptly
📌 Procurement and Replacement Instructions
This dispensing head is a core consumable part of the feeding machine. Most parts circulating in the market are refurbished. When purchasing, verify the model and machine dimensions to ensure compatibility with the original equipment’s mounting holes and signal interface.
Refurbished parts require prior testing of dispensing accuracy, channel smoothness, and sensor function to avoid production interruptions due to component wear after installation.
