SMT Vacuum Pick & Place Nozzle 501A 8004H3 8006H0 | High Precision Chip Mounter Suction Nozzles
These are high-precision SMT vacuum placement nozzles, core consumable spare parts for surface mount placement machines.
Product Details
Model Specifications

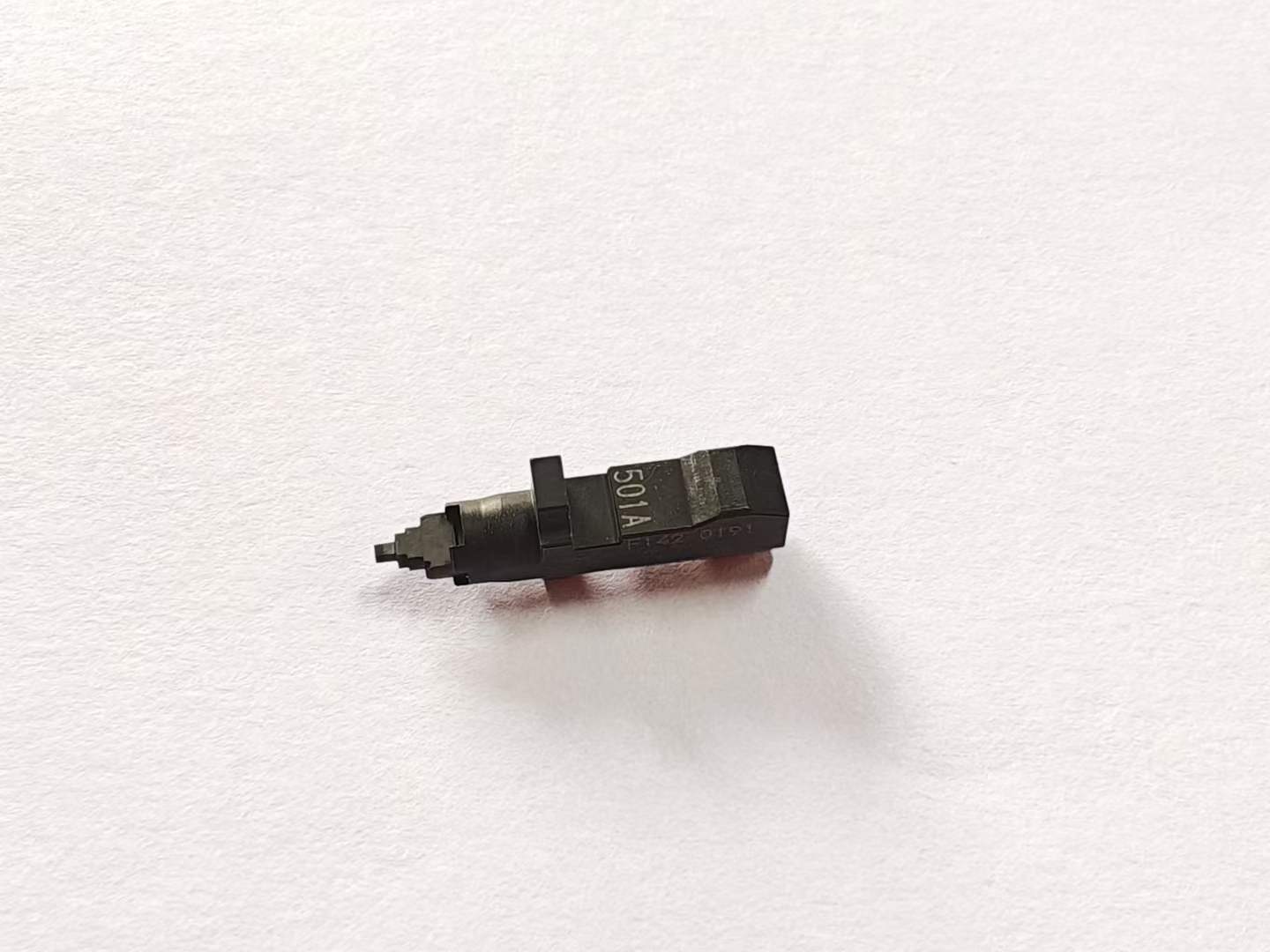

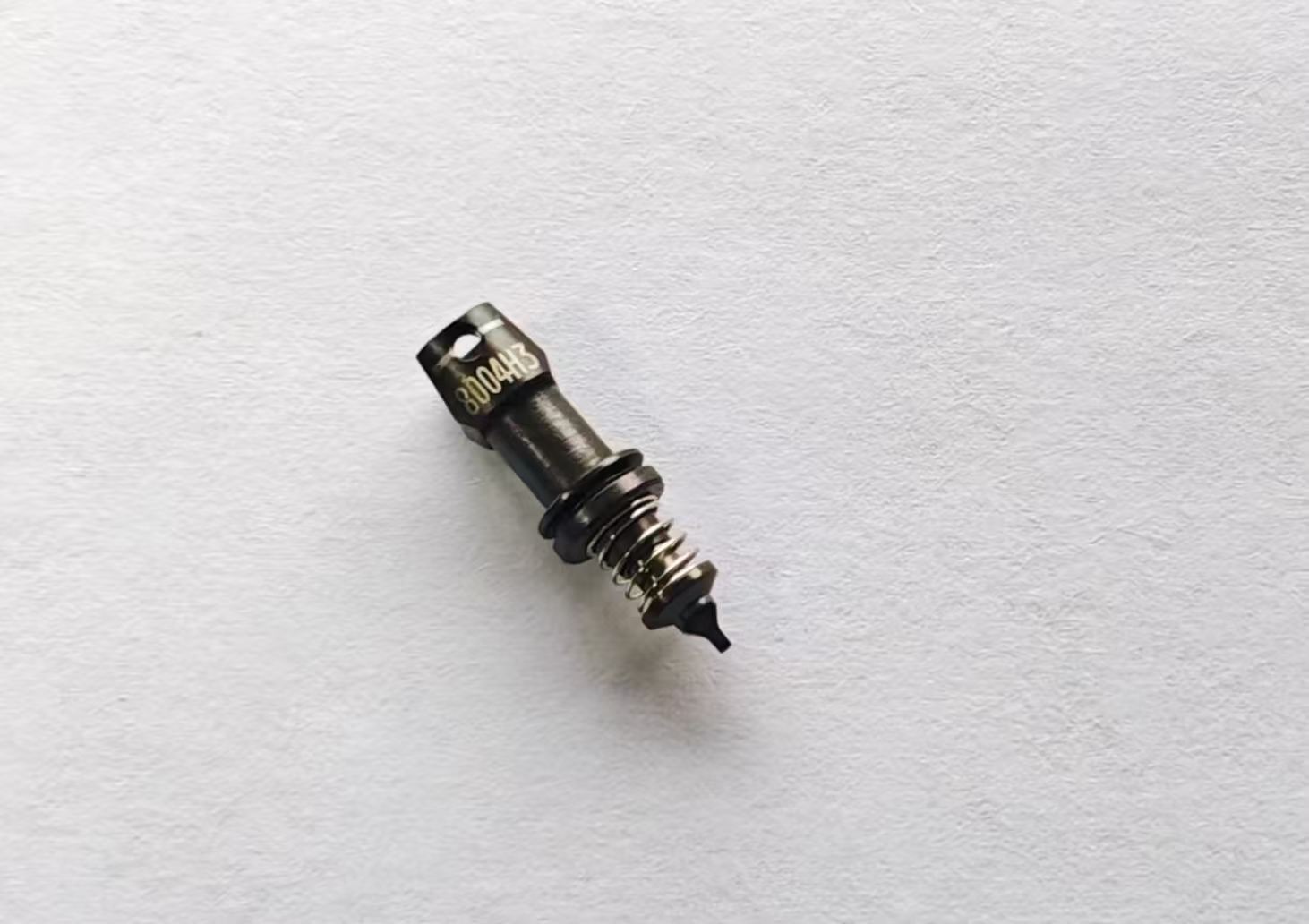

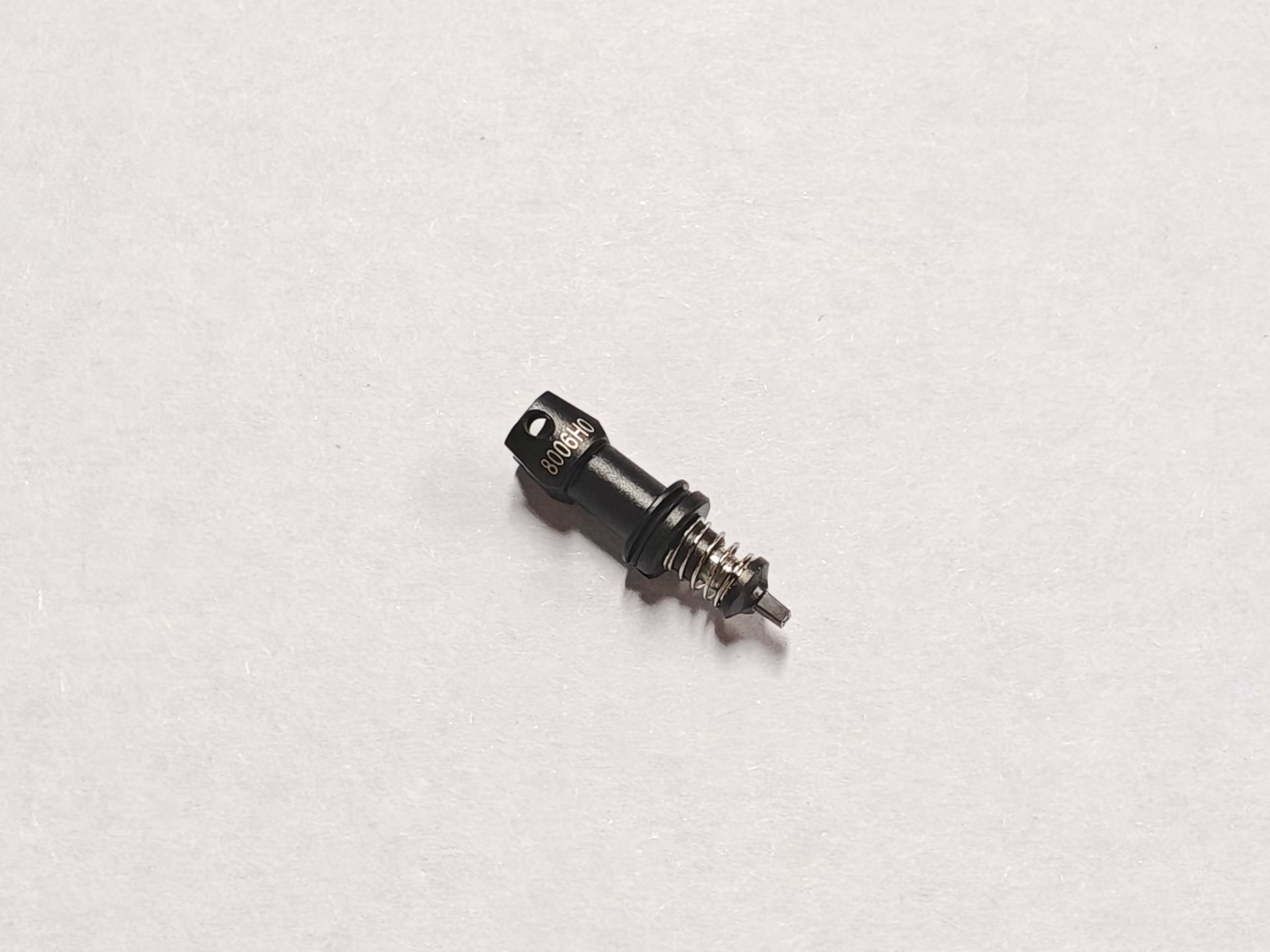

Model marked: 501A, 8004H3, 8006H0
Available for different component sizes and packaging types
Share to:
SMT Vacuum Pick & Place Nozzle 501A 8004H3 8006H0 | High Precision Chip Mounter Suction Nozzles
Brief Introduction of SMT Pick Up Nozzles
Core Features
Adopts high-strength wear-resistant material, with excellent durability and long service life
Precision machined suction tip, to ensure stable and accurate vacuum pickup and release
Built-in buffer spring structure, effectively cushion placement pressure, avoid component damage
Strict dimensional tolerance, ensure perfect compatibility with matching machine spindles
Application & Function
Specially used for SMT chip mounter machines
Responsible for picking up, transporting and accurately placing SMD components (chips, resistors, connectors, ICs etc.) on PCB boards
Widely applied in high-speed, high-precision electronic PCB assembly production lines
Advantages
Stable vacuum holding performance, greatly reduce component missing and offset rate
High replacement convenience, ideal for daily equipment maintenance and mass production demand
Excellent anti-static performance, protect sensitive electronic components
Optional English Titles
SMT Precision Vacuum Pick and Place Nozzle 501A / 8004H3 / 8006H0
Original SMT Machine Suction Nozzles for Chip Mounter
High Accuracy SMT Placement Nozzle Spare Parts
