SMT Reflow Oven & Wave Solder Spare Parts: High-Temperature Motors & Blower Assemblies

1️⃣ Figure 1: Reflow Oven Fan Assembly (with Impeller)

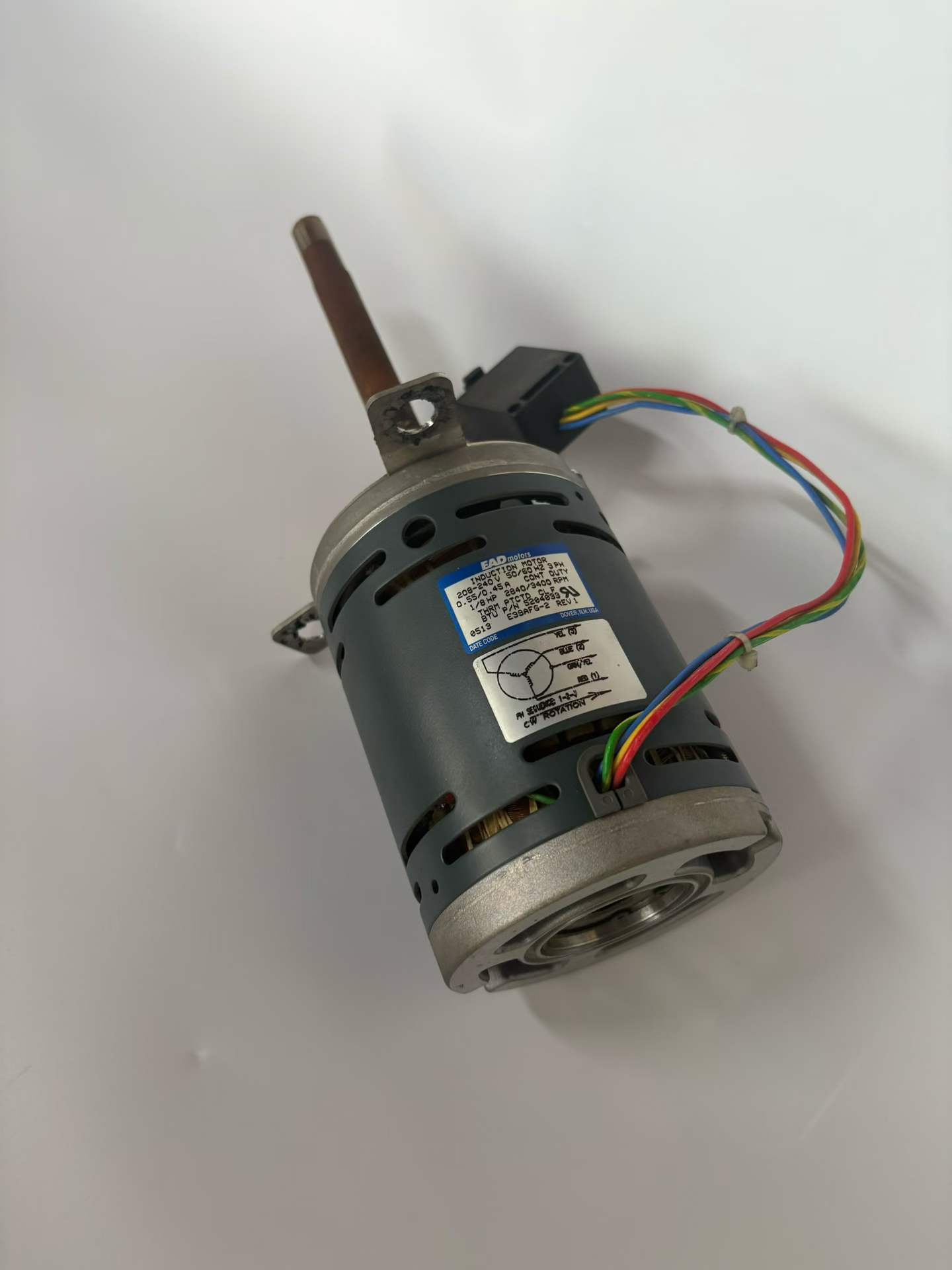

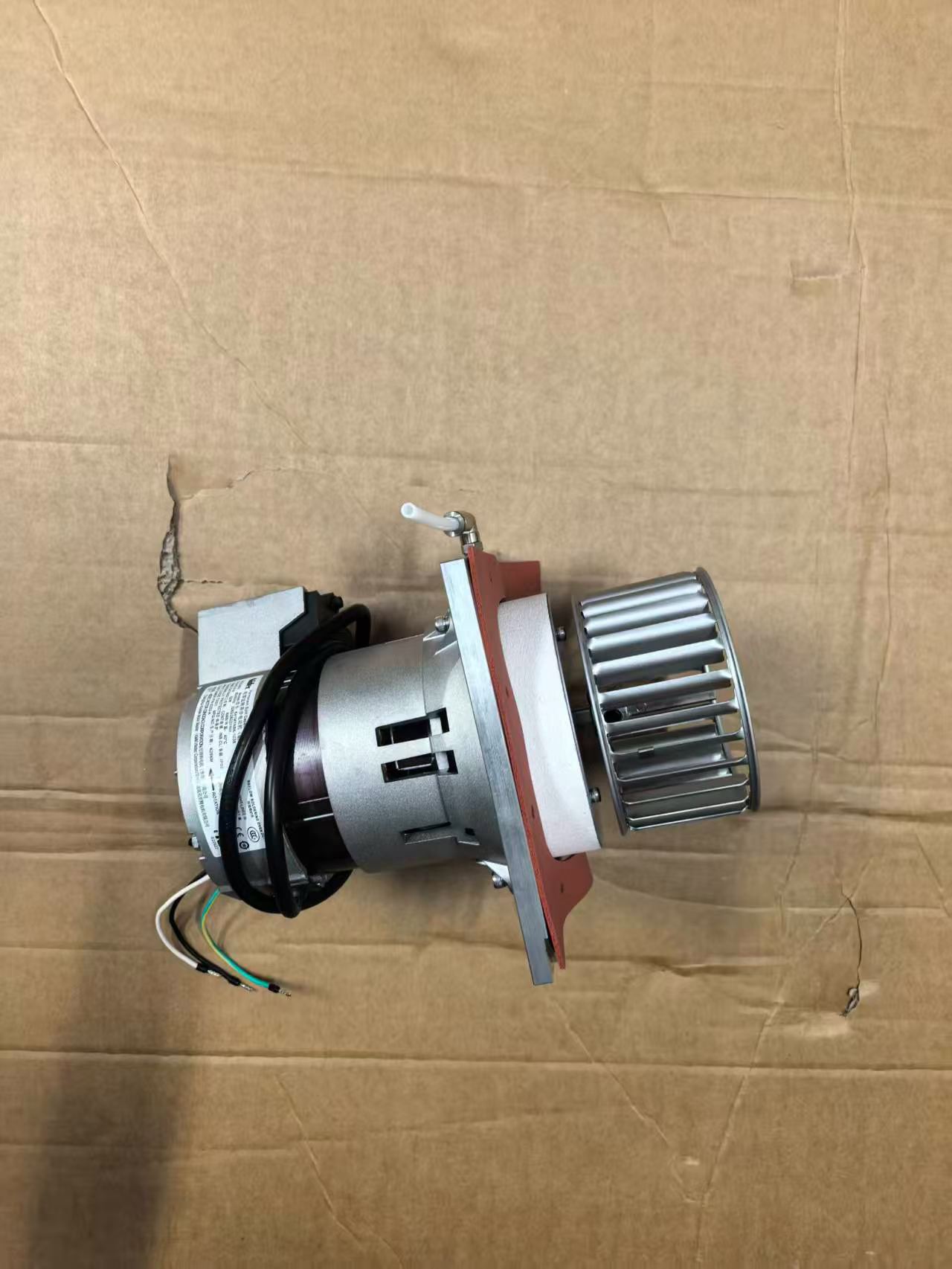

Structure: Motor + Flange + Centrifugal Impeller, a pre-assembled fan used for hot air circulation within the reflow oven.

Features: High temperature resistance, high speed (typically 2800-3400 RPM), directly installed at the top of the furnace to drive hot air flow and ensure uniform temperature within the furnace.

Applications: Reflow ovens from brands such as Nitto, Kintop, and HELLER.

2️⃣ Figures 2/3: ElectroCraft Three-Phase Induction Motor (Flextronics / Dedicated to Some Reflow Oven Models)

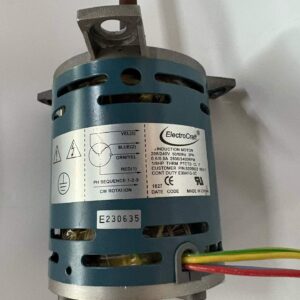

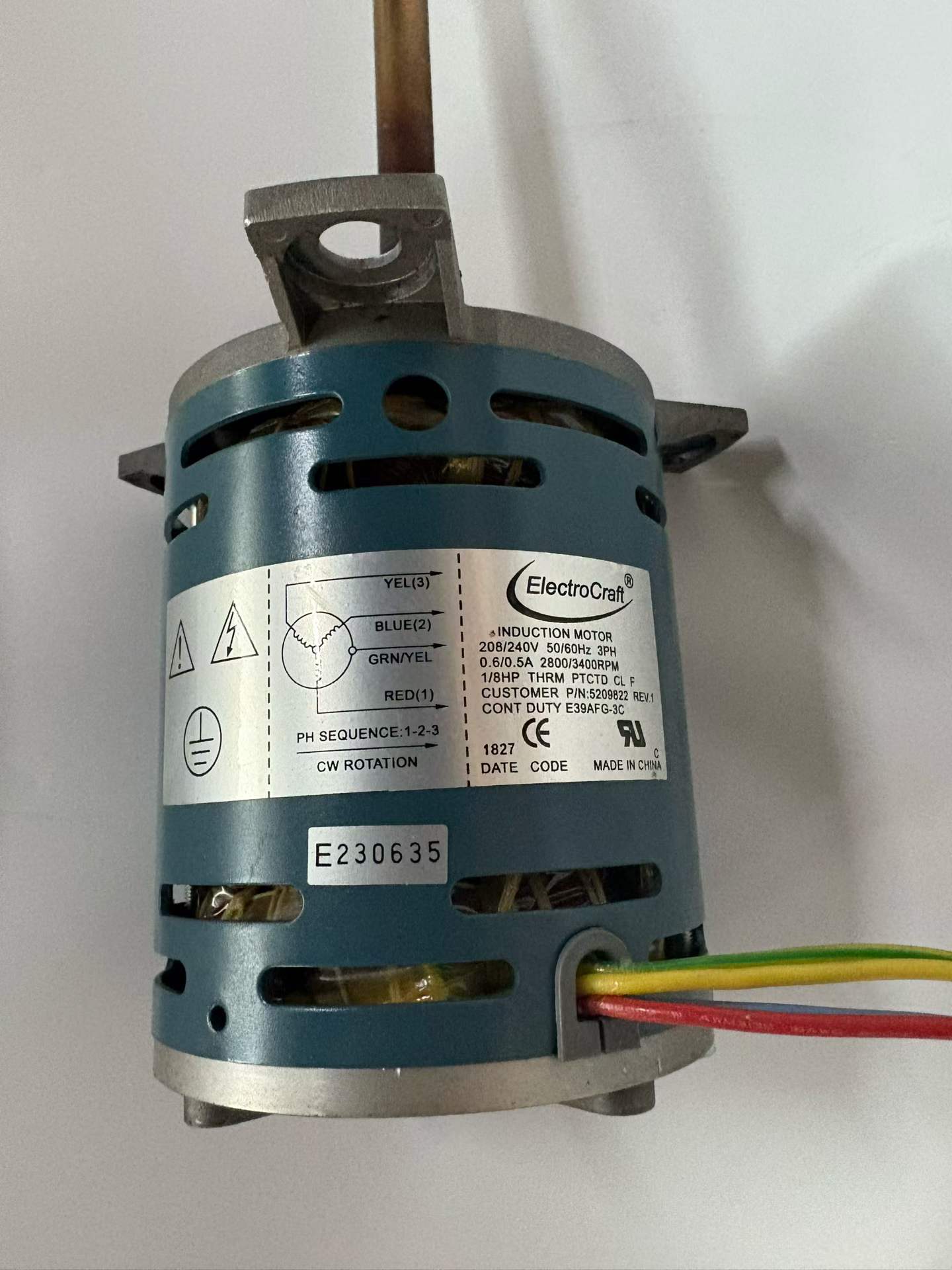

Model: E39AFG-3C (label clearly visible), 1/8HP, 208/240V, 2800/3400 RPM, three-phase motor.

Applications: Hot air motor for Flextronics reflow ovens, also compatible with replacement parts for some imported equipment.

Features: High-temperature resistant windings, thermal protection design, suitable for the continuous high-temperature working environment of reflow ovens.

3️⃣ Figure 4: A.O. Smith Single-Phase High-Temperature Motor

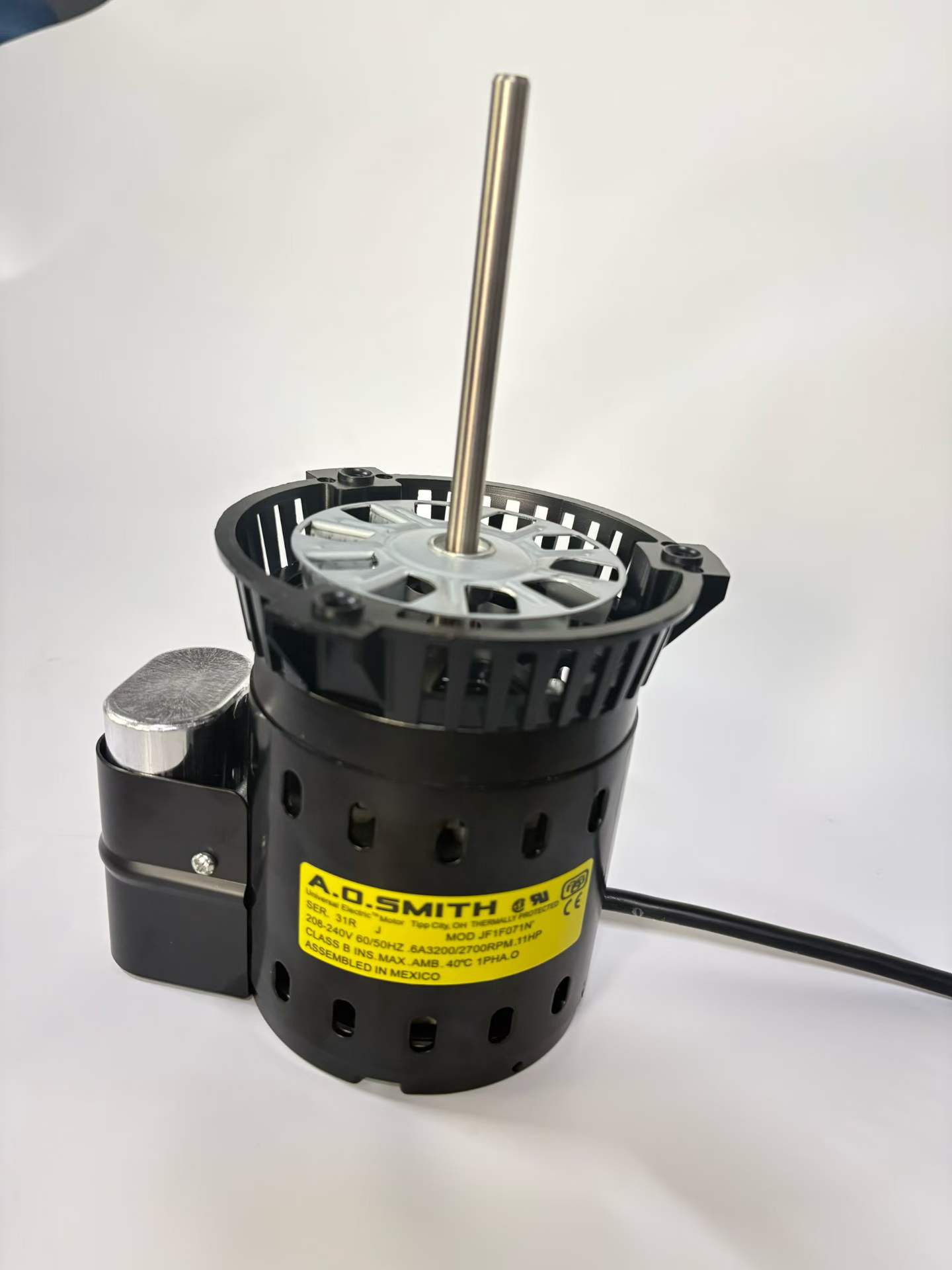

Model: JF1F0T1N, 11HP, 208-240V, 2700/3200RPM, Single-phase motor.

Applications: Commonly used in small reflow soldering or oven equipment, with integrated starting capacitor, compact structure, suitable for single-temperature zone or cooling zone fans.

4️⃣ Figure 5: SPG Geared Motor (Dedicated for Wave Soldering/Drive Systems)

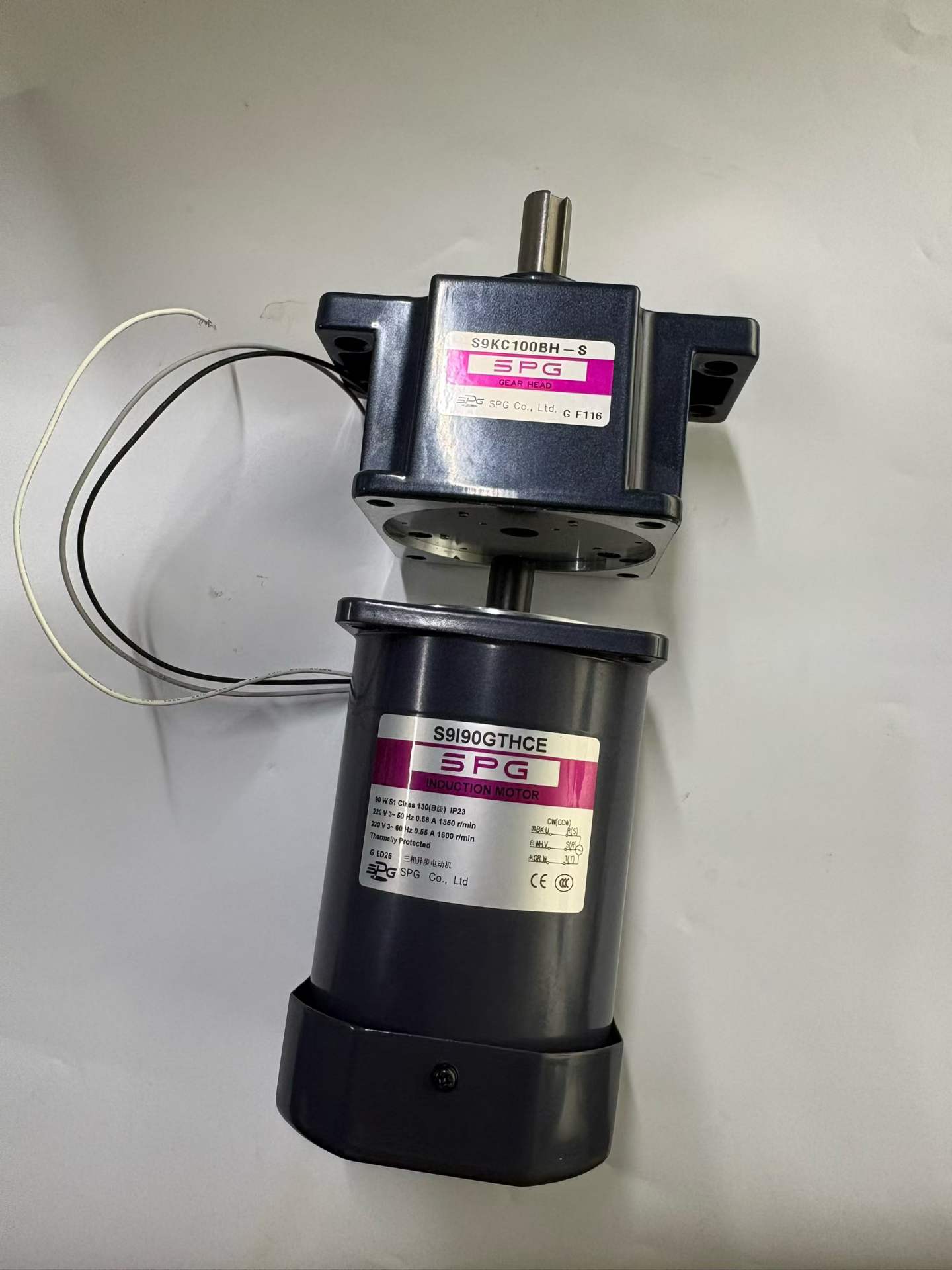

Model: S9I90GTHCE + S9KC100BH-S, Korean SPG brand induction motor + gearbox combination.

Applications: Conveyor chain drive for wave soldering equipment, solder wave lifting/stirring systems, providing stable low-speed, high-torque output.

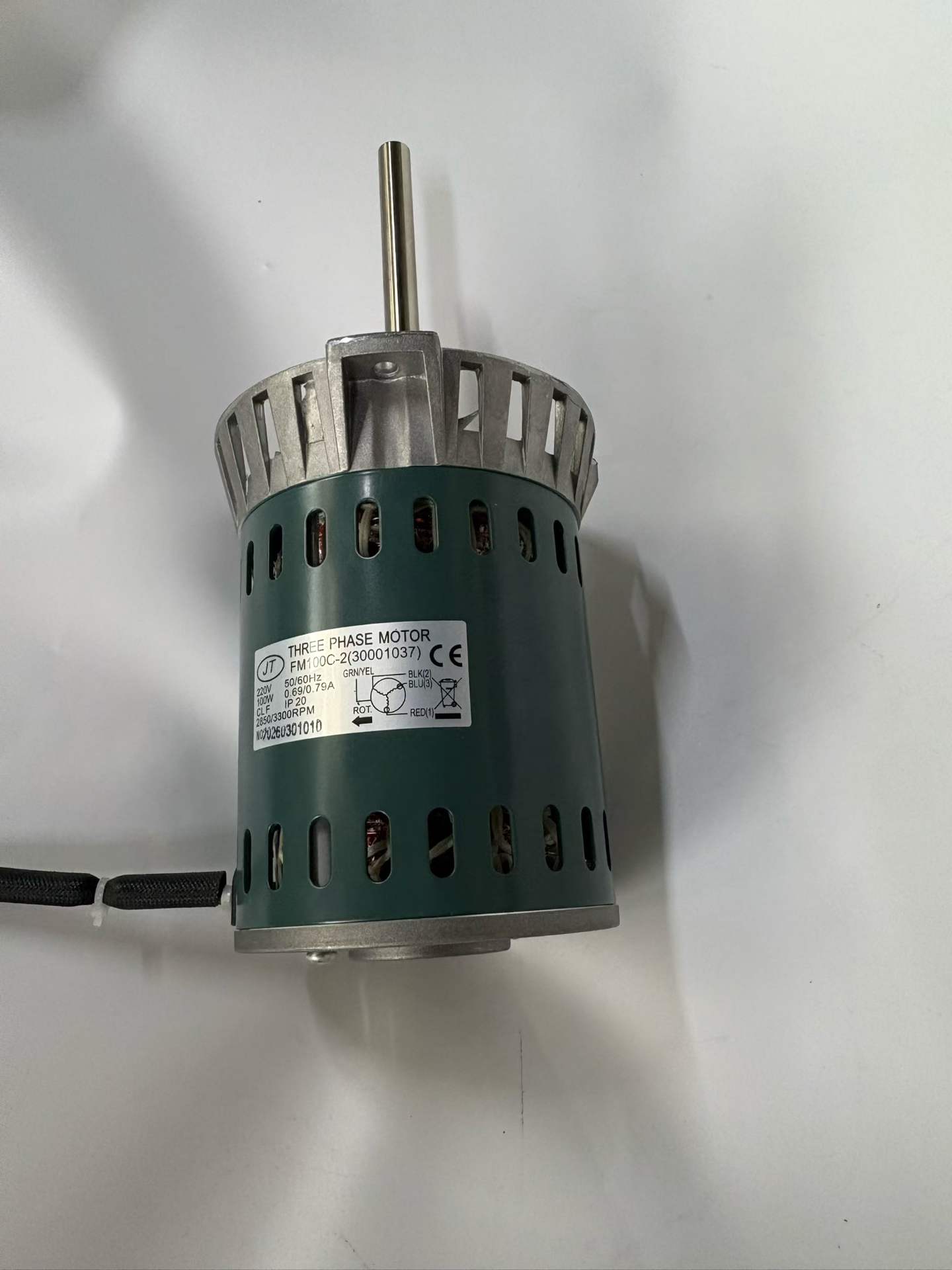

Features: Integrated gearbox and motor design, oil-resistant, high-temperature resistant, suitable for wave soldering drive conditions. 5️⃣ Figure 6/7: Domestic Long-Shaft High-Temperature Motor (Universal Reflow Soldering Model)

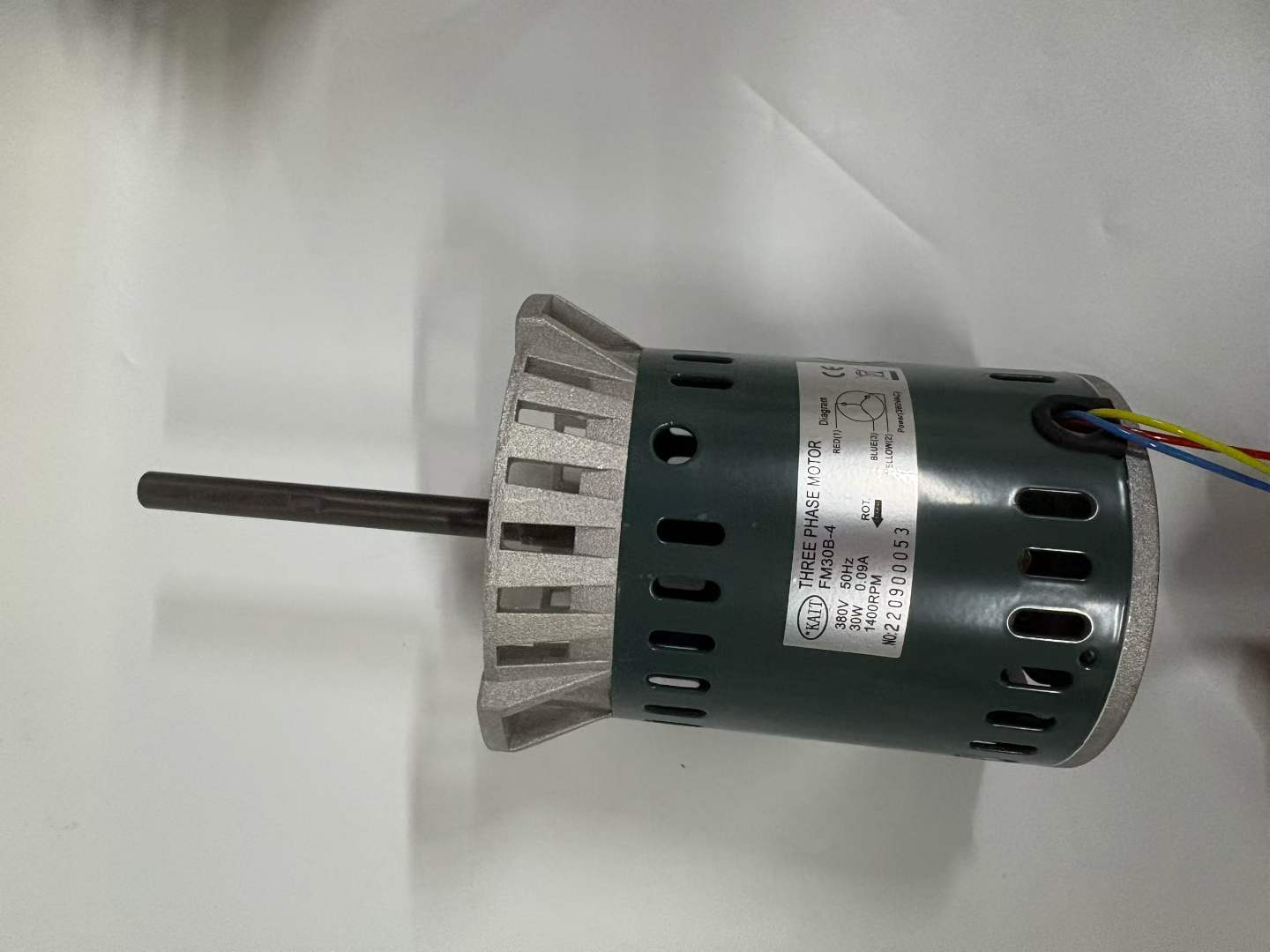

Model: FM30B-4 (30W), FM100C-2 (100W), three-phase motor, long-shaft design.

Application: Hot air motor for domestic reflow soldering machines such as Nitto and Jintuo; the shaft end can be directly mounted with a fan, suitable for the high-temperature environment inside the furnace.

Features: Long shaft, high temperature resistance, rust-proof shaft end treatment, speed 1400-3000RPM, power range 30W-150W.

6️⃣ Figure 8: SUNEAST Reflow Soldering Dedicated Motor

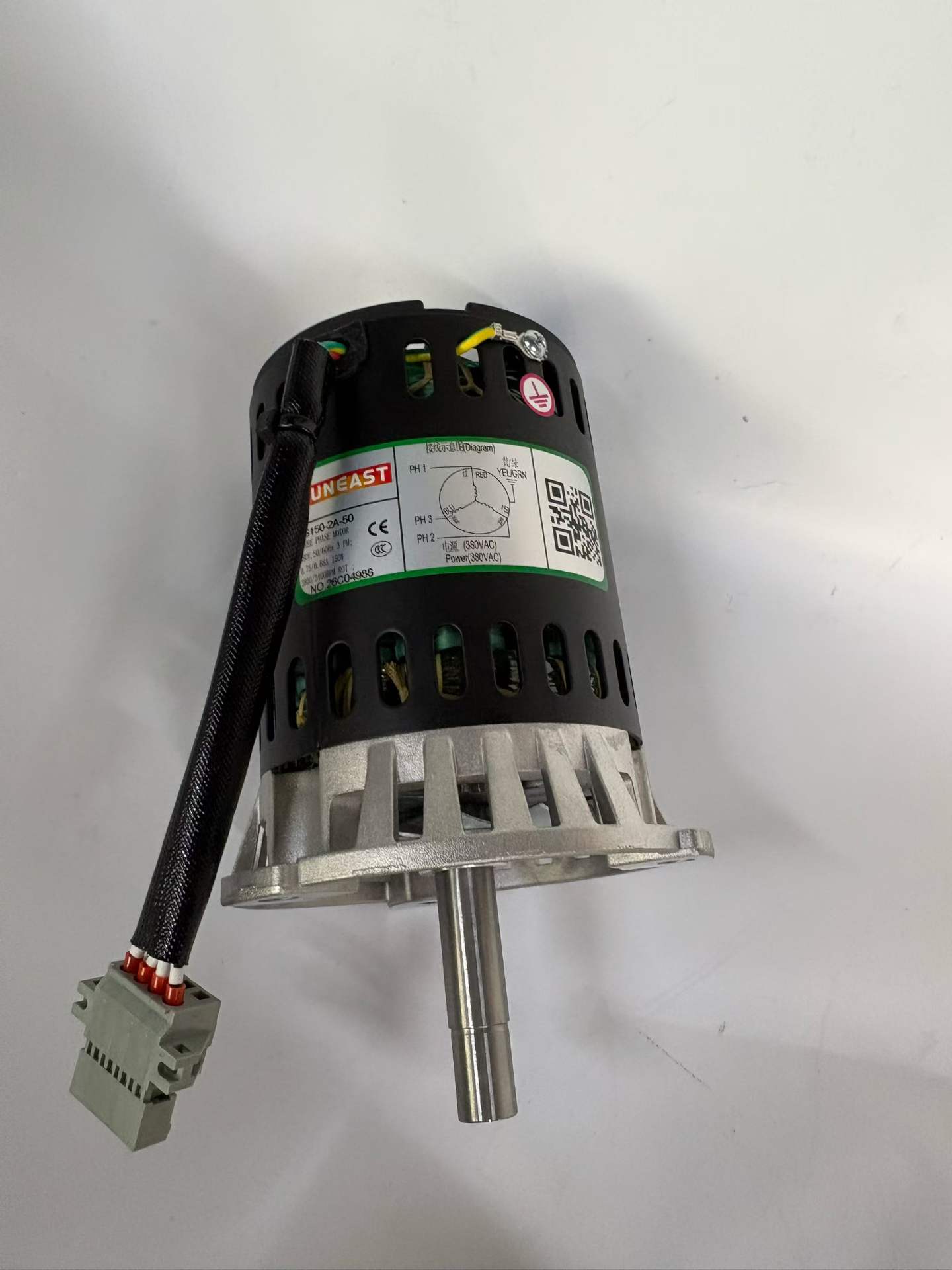

Model: Y2-GW series (label visible), original hot air motor for Nitto reflow soldering equipment, 380V three-phase, with connector.

Application: Hot air circulation system for various temperature zones of Nitto brand reflow ovens; compatible with various models of Nitto equipment.

💡 Industry Background Supplement

These motors are core, easily damaged components in SMT equipment, operating continuously at high temperatures of 150-300℃. The main failure modes include:

Bearing jamming/abnormal noise (due to high-temperature grease failure)

Winding burnout (overheating/voltage instability)

Rosin/flux residue causing impeller imbalance

Shaft wear/breakage (due to prolonged high temperatures and high speeds)
