Refurbished Universal Radial Insertion Machine 6380B/G/H/L 20 Stations Multi-Span 2.5-10.0mm

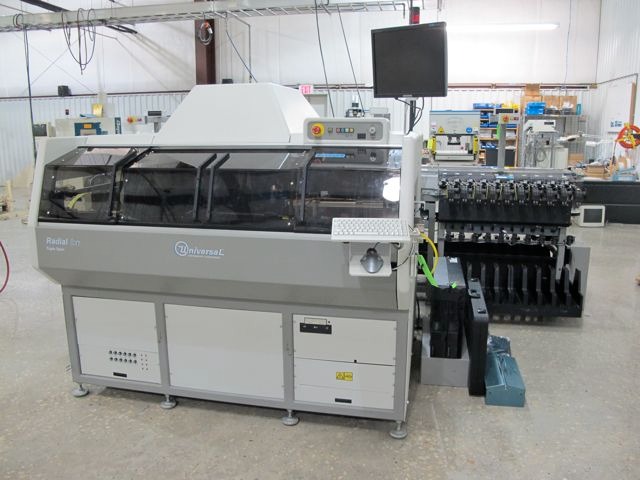

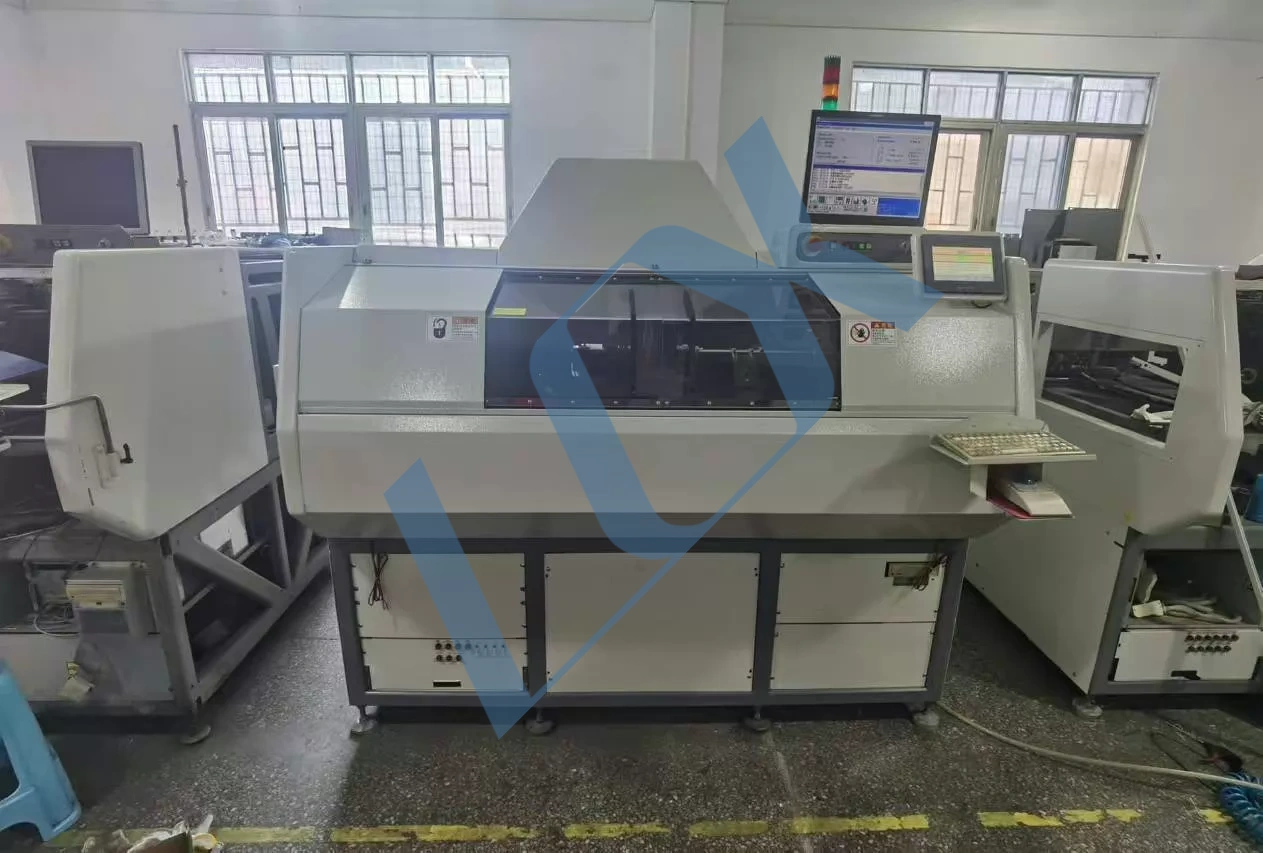

Universal Radial Insertion Machine 6380B / 6380G / 6380H / 6380L
Available span: 2.5mm / 5.0mm / 7.5mm / 10.0mm
Equipped with 20 working stations and automatic PCB conveyor track.All machines have been completely refurbished and fully maintained, with excellent working condition and stable performance. Ready for mass production directly after installation.
Universal Radial Insert Machine 6380B/6380G/6380H/6380L, 20 Stations, 2.5/5.0/7.5/10.0mm Span, with Automatic PCB Conveyor, Refurbished & Good Condition
- Universal Radial Insertion Machine 6380B/G/H/L | 20 Stations | 2.5/5.0/7.5/10.0mm Span
- Refurbished Universal 6380B 6380G 6380H 6380L Radial Insertor with Automatic PCB Conveyor
- Universal Radial Insertion Machine 6380B/6380G/6380H/6380L
- Universal 6380 Series Radial Component Insert Machine
Share to:
Universal Radial 8XT 6380 Series Radial Insertion Machine (6380B/G/H/L)
Universal core parameters, compatible with B/G/H/L models (your configuration is a 20-station, four-span customized configuration)
https://youtube.com/shorts/bkRz37Tjd0E?feature=share
I. Basic Information
Model: Universal Radial 8XT 6380B / 6380G / 6380H / 6380L
Equipment Type: Fully Automatic Radial Component Insertion Machine
Applicable Components: Electrolytic capacitors, ceramic capacitors, transistors, diodes, resistors, connectors, LEDs, fuses, and other radial components
Equipment Condition: Fully refurbished and deeply maintained, in excellent operating condition
II. Core Insertion Performance
Maximum Insertion Speed: 21,000 points/hour (cph), approximately 0.17 seconds/point
Insertion Angle: 360°, precisely adjustable in 1° increments
Lead Span: 2.5mm / 5.0mm / 7.5mm / 10.0mm (Four-span configuration)
Component size: Maximum 13.0 × 13.0 × 23.0mm (Length × Width × Height)
Component tape pitch: 12.7mm (0.5″) / 15.0mm (0.6″)
Lead type: N-type clinch (standard K-pin)
Equipment accuracy: ±0.1mm repeatability
Reliability: 300-400 PPM (defect rate)
Overall availability: ≥ 95%
III. Material feeding and PCB specifications

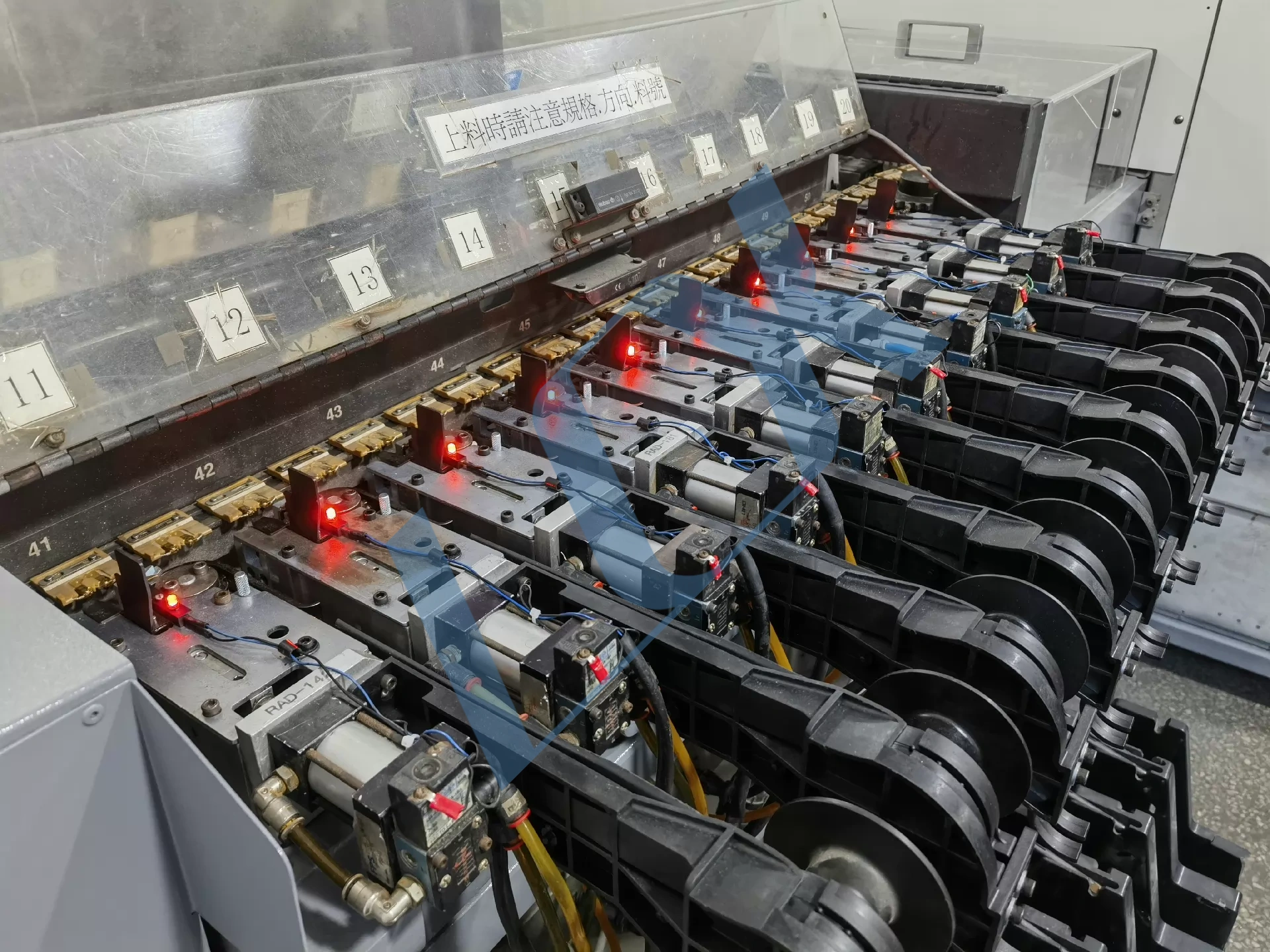

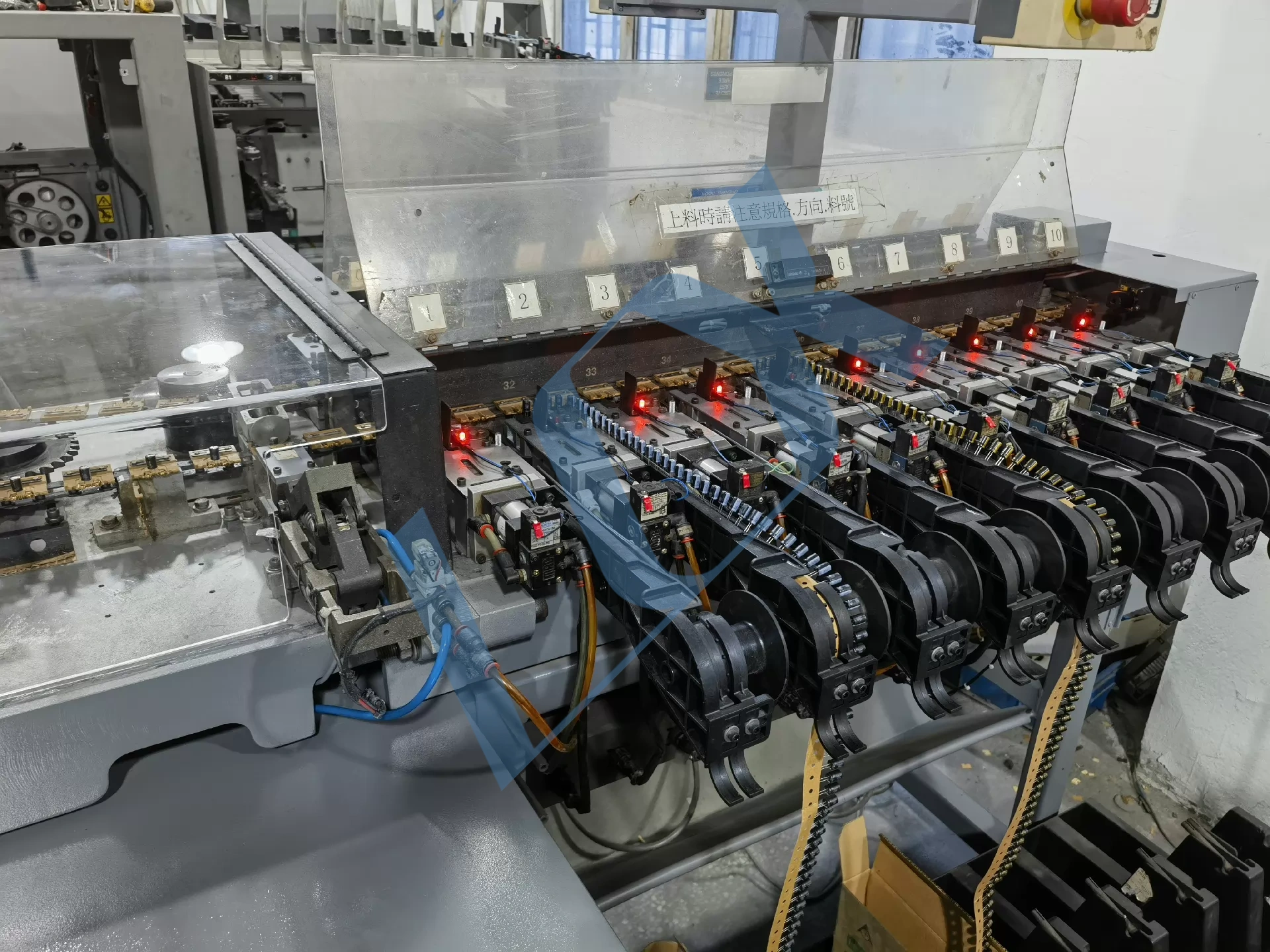

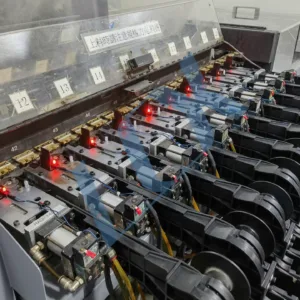

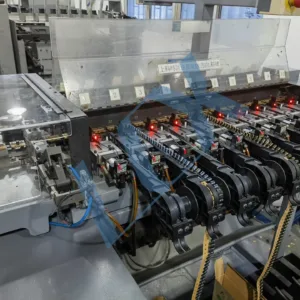

Material feeding stations: 20 stations (Sequencer), capable of online non-stop material replenishment
Material feeding methods: Tape, Ammo Pack
PCB size (automatic transfer):
Minimum: 102 × 80mm
Maximum: 483 × 406mm

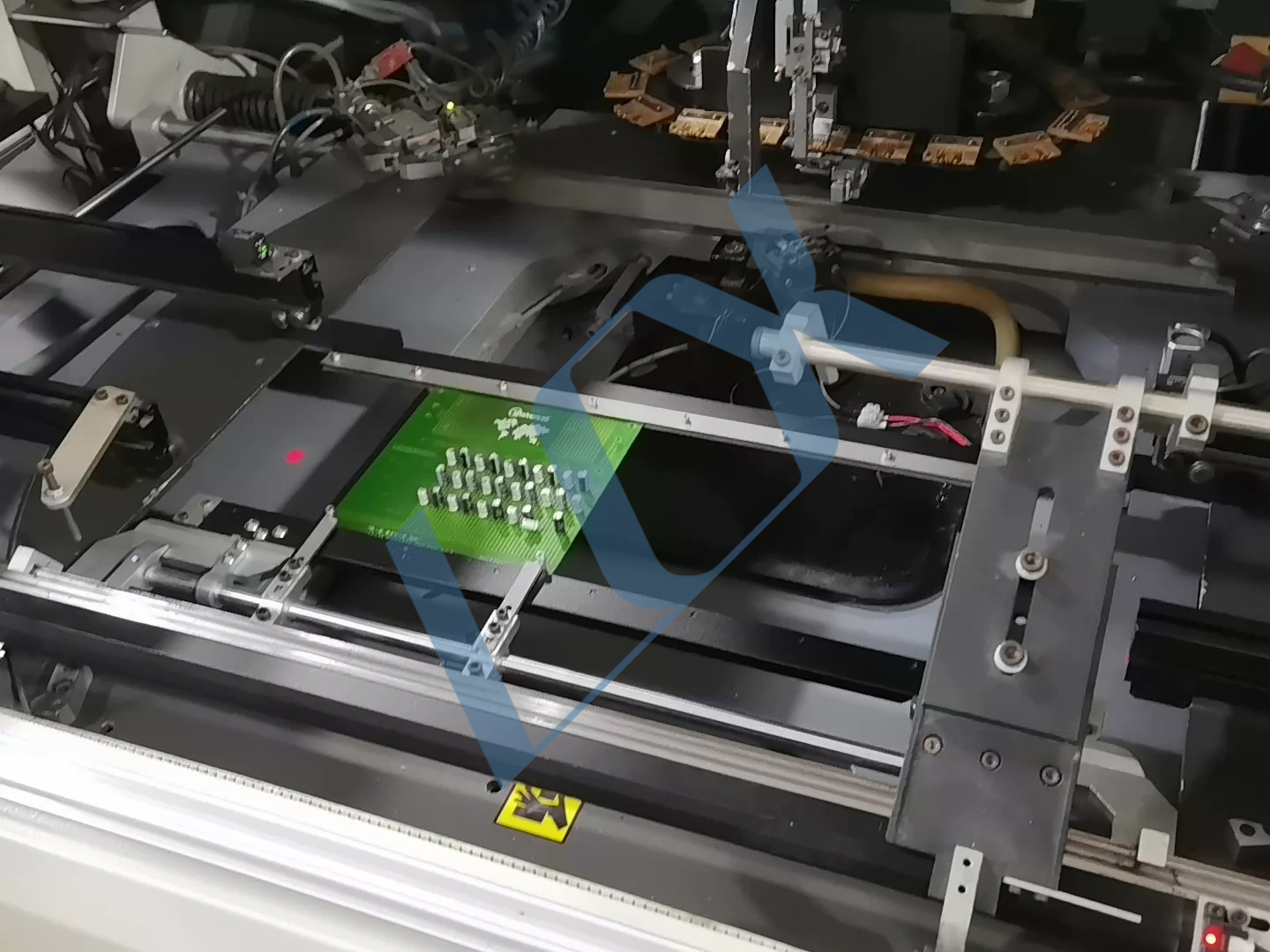

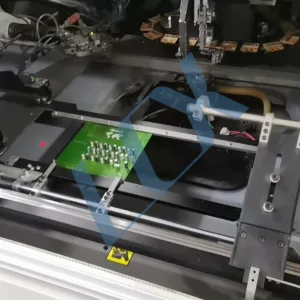

PCB conveying: Standard automatic transfer track, transfer time 2.5 seconds
PCB Thickness: 0.8–3.2mm
IV. Electrical and Gas Supply
Power Supply: 220V AC ±10%, 50/60Hz, Single Phase
Power: 2.7–3.4KW
Operating Air Pressure: 0.6MPa (6kg/cm², 90PSI)
Air Consumption: 3.0CFM (85L/min)
Ambient Temperature: 22–26°C
Ambient Humidity: 40–70% RH (Non-condensing)
V. Equipment Specifications
Control System: IMUPS 3.1.4 or later
Dimensions: Approx. L2800 × W1200 × H1600mm
Weight: Approx. 1200–1500kg
Safety Certification: CE Certification
