Precision Z-Axis Ball Screw Assembly (PN 46692902) – Universal 6380 Radial Inserter Insertion Head Drive
🛠️ Universal 46692902 Insert Head Ball Screw (Radial Insertion Machine)

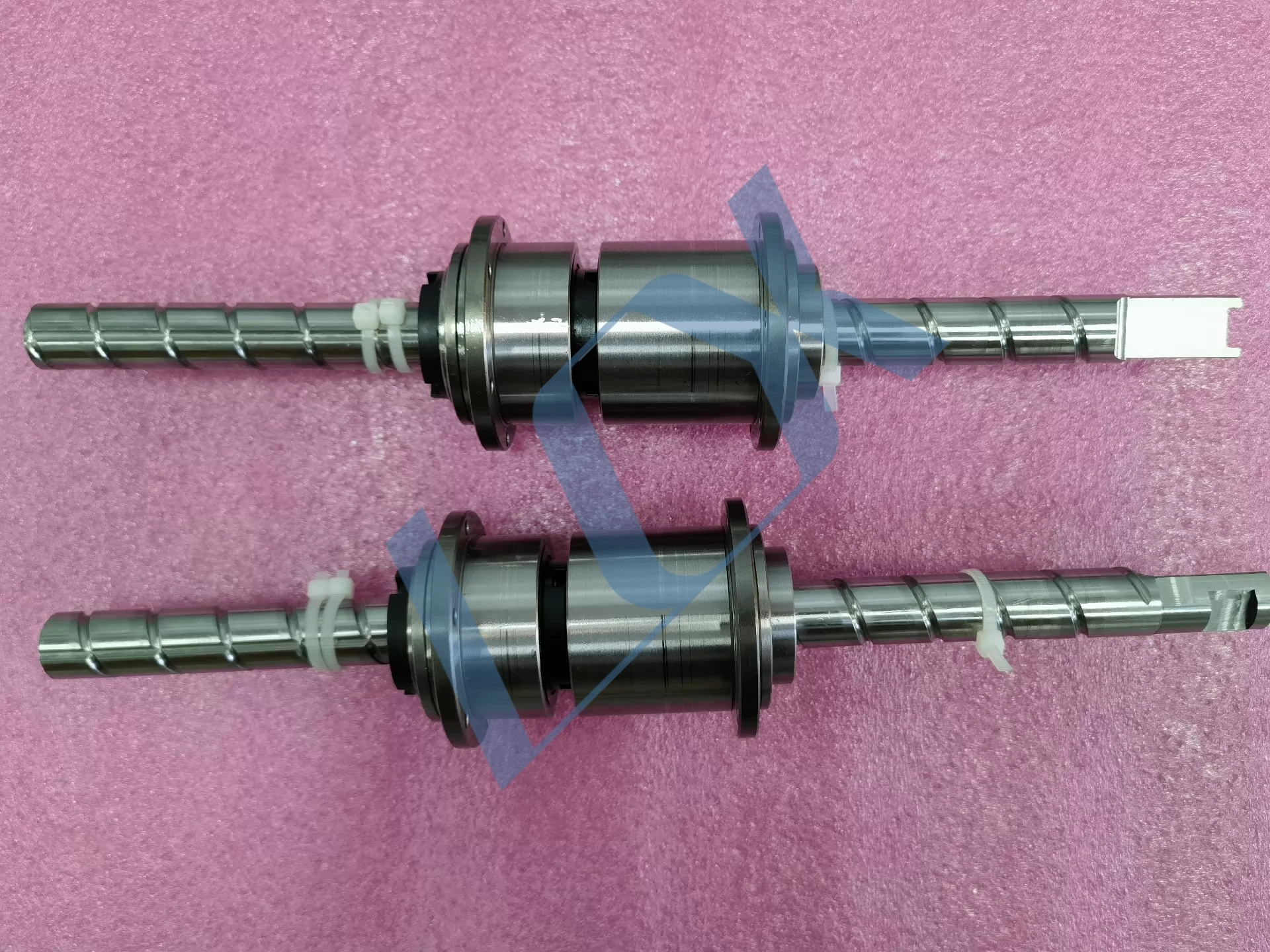

This is the original ball screw assembly (part number 46692902) for the insert head drive of the Universal 6380B/6380 series radial (vertical) component inserter. It is a critical precision component that converts rotary motion into the linear motion required for precise component insertion.
46692902 Ball Screw Assembly – Universal 6380 Radial Insertion Machine Drive Unit
Universal 6380/6380B Radial Insertion Machine Plug Drive Ball Screw (Part No.: 46692902) This is an OEM replacement ball screw assembly (part number: 46692902) for the universal 6380/6380B radial (insertion machine Z-axis plug drive unit). It converts the rotary motion of the servo motor into the precise linear motion of the plug, ensuring accurate part positioning and reliable operation.
Part Number: 46692902
Compatibility: Universal 6380/6380B Series Radial Insertion Machines
Type: Precision ground ball screw assembly with ball nut
Application: Insertion head Z-axis drive
Condition: New/Refurbished, fully inspected and tested for recoil and performance
Share to:
46692902 Ball Screw – Universal 6380 Vertical Inserter Insertion Head
OEM Replacement Ball Screw Assembly PN 46692902 for Universal 6380/6380B Radial Insertion Machine
Precision Z-Axis Ball Screw Assembly (PN 46692902) – Universal 6380 Radial Inserter Insertion Head Drive
Genuine-Spec Ball Screw 46692902 for Universal 6380B Vertical Component Insertion Machine
✅ Product Core Information
Product Specifications
Original Part Number: 46692902
Application: Universal Instruments 6380/6380B Radial (Vertical) Component Insertion Machine (Insertion Head Z-Axis)
Function: The ball screw drives the vertical (Z-axis) movement of the insert head, ensuring accurate and repeatable positioning for high-speed component insertion.
Type: Precision-ground ball screw assembly with integrated ball nut and circulating ball bearing.
Material: High-grade bearing steel, precision-machined threaded grooves, low backlash, long service life.
📌 Technical and Functional Highlights
High Precision: Utilizing a ground ball screw with minimal backlash, it ensures micron-level positioning accuracy for the insert head.
Low Friction and High Efficiency: The circulating ball design reduces wear and heat buildup, supporting continuous production around the clock.
Wear-Resistant Construction: Heat-treated steel shaft and precision-ground raceways ensure a long service life, even under heavy loads.
Direct Replacement: Meets OEM 46692902 component specifications, ensuring plug-and-play compatibility with universal inserter drive systems.
