Panasonic SMT Spare Parts MTNM000004AA / R2GA02D20FXSP1 20W DC24V/48V Servo Motor for NPM/CM402/CM602 Pick and Place Machine
tem Name: Servo Motor

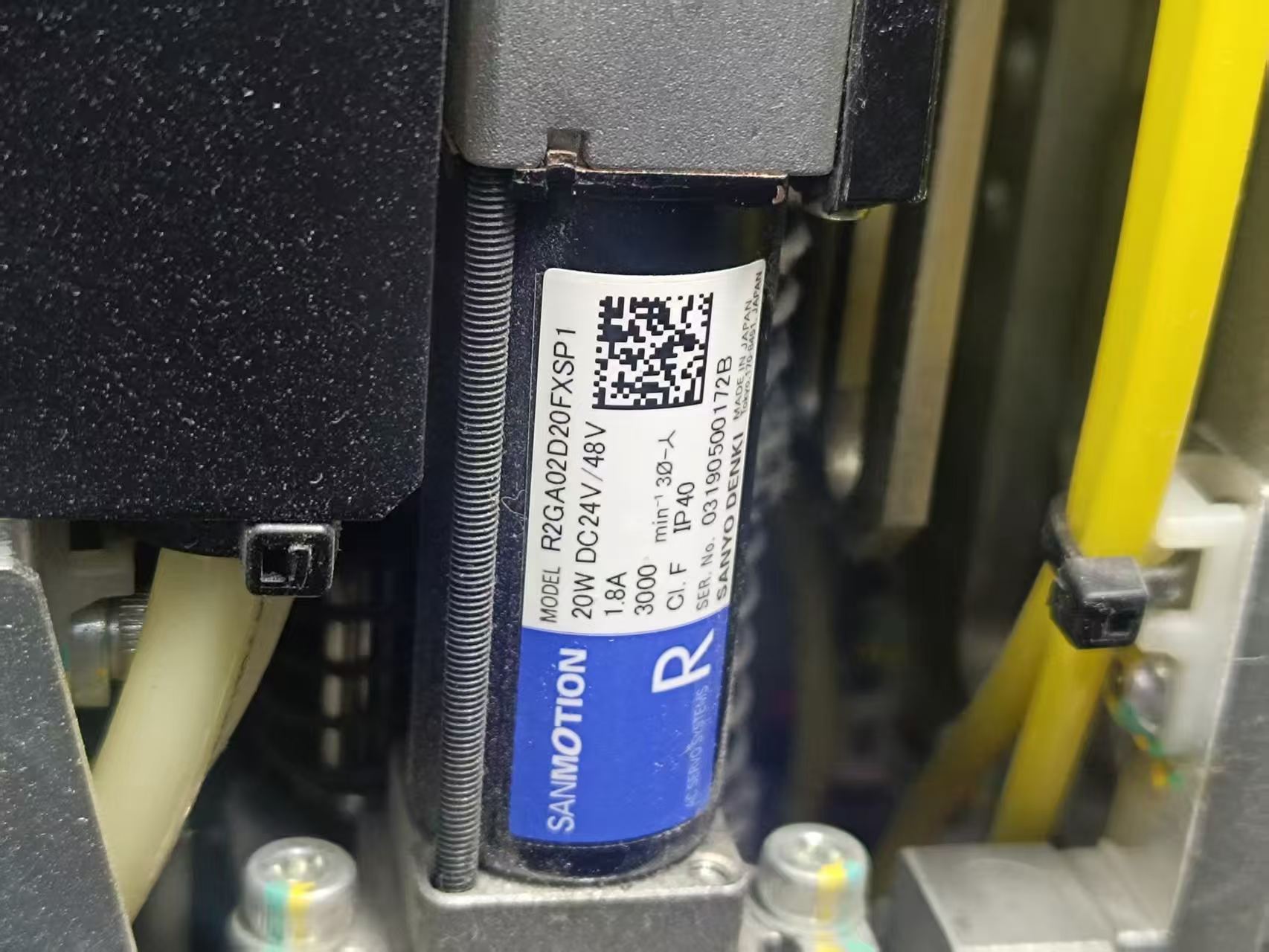

Part No.: MTNM000004AA (Model: R2GA02D20FXSP1)
Description: 20W DC24V/48V Z-axis Servo Motor, 3000rpm, for Panasonic NPM/CM series SMT Pick and Place MachineBrand: Panasonic (OEM: Sanyo Denki)
Origin: JapanApplication: SMT machine Z-axis motion control, replacement part
Share to:
This is a core motion control component for Panasonic’s NPM/CM series pick-and-place machines, manufactured by Sanyo Denki (SANMOTION R series).
I. Core Parameters and Specifications
Table Item Specifications Original Model R2GA02D20FXSP1 (Sanyo Denki) Panasonic Part Number MTNM000004AA Rated Power 20W Rated Voltage DC24V / 48V Rated Current 1.8A Rated Speed 3000 r/min Protection Rating IP40 Place of Origin Japan Compatible Models Panasonic NPM / CM402 / CM602 / DT401 Series Pick and Place Machines Installation Position Placement Head Z-axis (Nozzle Up and Down Movement Drive)
II. Functions and Applications
Core Function: Drives the vertical movement of the Z-axis of the pick and place machine head, controlling the downward and upward movements of the nozzle for picking up/placing materials, directly affecting placement accuracy and stability.
Vulnerability: High-frequency start/stop and high-load operation easily lead to encoder failure, bearing wear, coil aging, and other problems, making it a frequently replaced spare part for production line maintenance.
Original replacement: Standard maintenance parts for Panasonic pick-and-place machines. Must be compatible with the corresponding driver board. Z-axis motion parameters must be recalibrated after replacement.
