PANASONIC CM402 CM602 Anti-static magnetic soft top supportplatform PIN

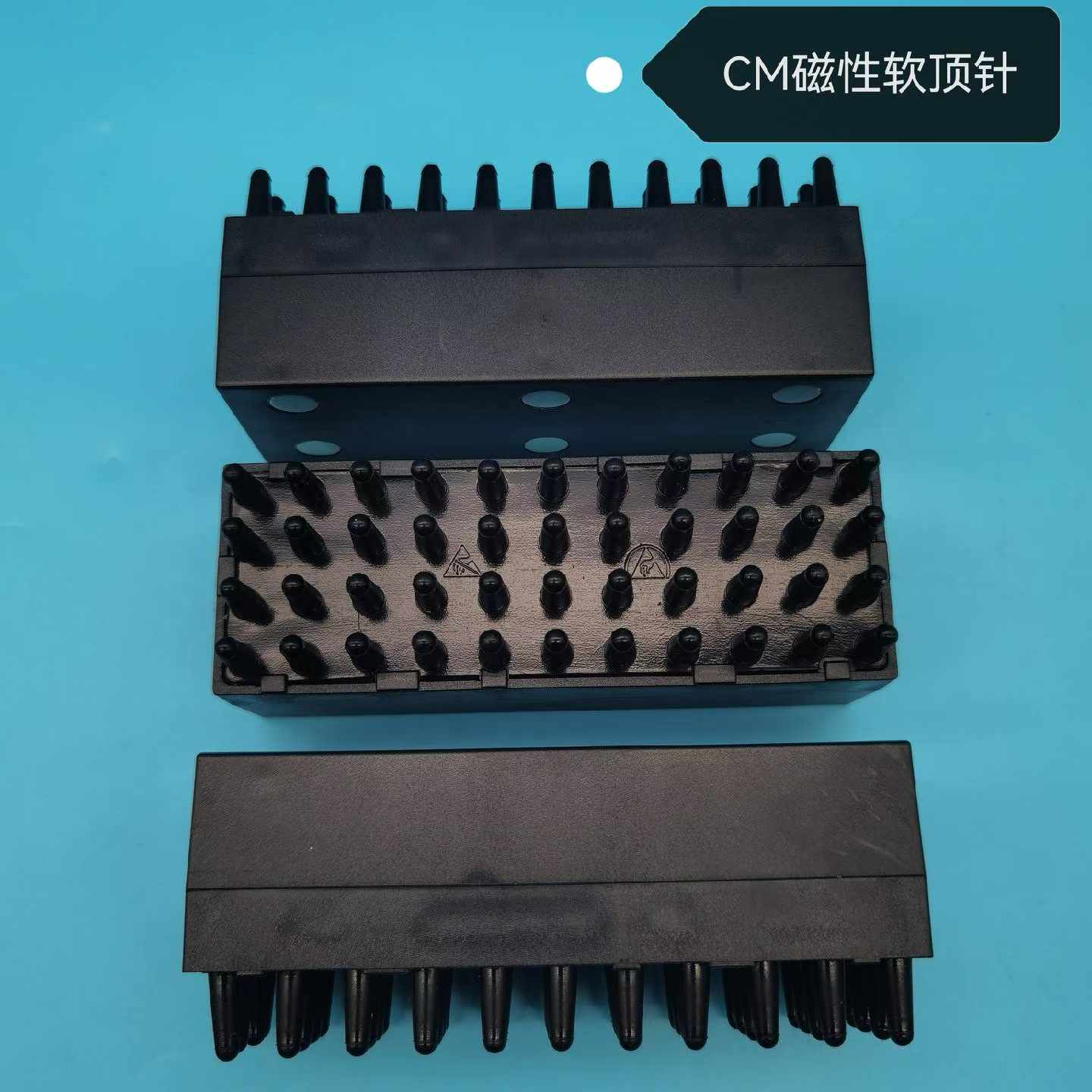

CM Series Magnetic Soft Pins
Compatible Models: Panasonic CM202/CM402/CM602 and other pick-and-place machines
Key Function: Provides uniform, flexible support from the back of the PCB during placement operations, preventing bending and deformation of thin PCBs and avoiding component damage.
Features: Built-in magnets allow direct attachment to the machine platform for quick installation; anti-static soft pins prevent scratching the PCB and components.

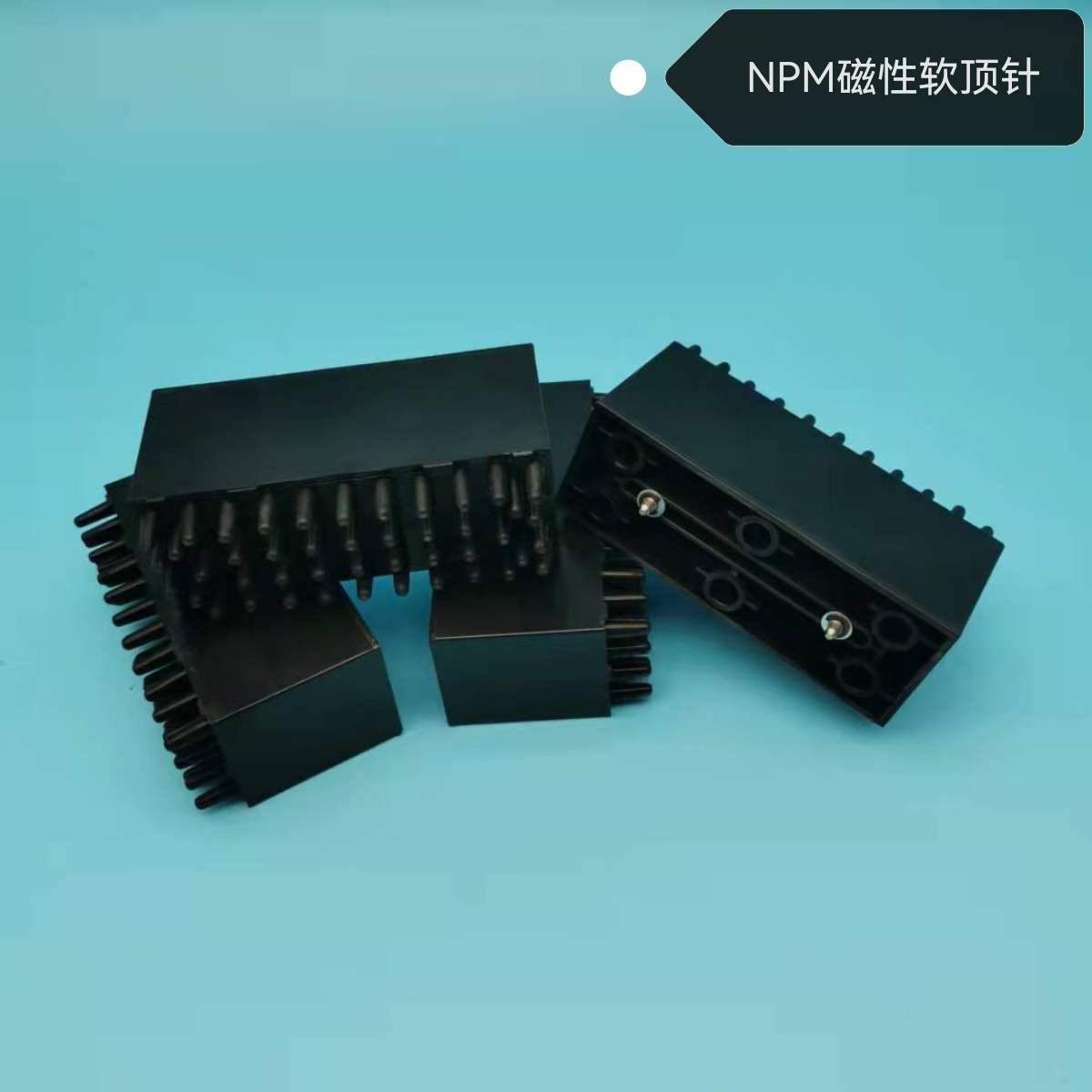

NPM Series Magnetic Soft Pins
Compatible Models: Panasonic NPM series high-speed modular pick-and-place machines
Key Function: Optimized for the production cycle and PCB size of NPM models, with support density and height better suited to their high-speed placement requirements, reducing placement misalignment caused by board deformation during production.
Features: Base with positioning holes and magnets for double fixation, compatible with the platform structure of NPM equipment; pin material is more wear-resistant, supporting long-term continuous production.
Share to:
Anti-static design: Surface resistance is controlled at 10⁶-10⁹Ω to prevent electrostatic damage to precision electronic components.
Flexible cushioning: The soft ejector pins adapt to the space on the back of the PCB, avoiding components and traces and preventing hard contact damage.
Quick installation: The magnetic base requires no additional screws, making adjustments highly efficient when changing PCB models, suitable for multi-variety, small-batch production.
High durability: The ejector pin material can withstand production environments up to 100℃, with a service life of thousands of hours.
📌 Selection and maintenance recommendations
Model matching: CM and NPM series ejector pins have different base dimensions, heights, and pin arrangements and cannot be used interchangeably. The appropriate specification must be selected according to the pick-and-place machine model and PCB size.
Regular inspection: During use, regularly check the ejector pins for wear and deformation to prevent uneven PCB support due to pin failure, leading to poor placement.
Cleaning and maintenance: Regularly clean the solder residue and dust from the base and ejector pins to avoid affecting the magnetic attraction and ejector pin rebound performance.
