Panasonic PANADAC-919 Photoelectric Sensor (for Universal Insertion Machines)

This is a reflective photoelectric sensor manufactured by Panasonic. It is a core detection component of Universal’s automatic insertion machines, used for component detection, positioning, and feeding control.

I. Core Part Numbers and Specifications

1. Key Part Number Information

Part Number Type | Number Details | Description

Original Model: PANADAC-919 | Panasonic official product model, reflective photoelectric switch

Equipment OEM Part Number: N310P919 | Universal/Panasonic insertion machine part number, directly corresponding to this sensor

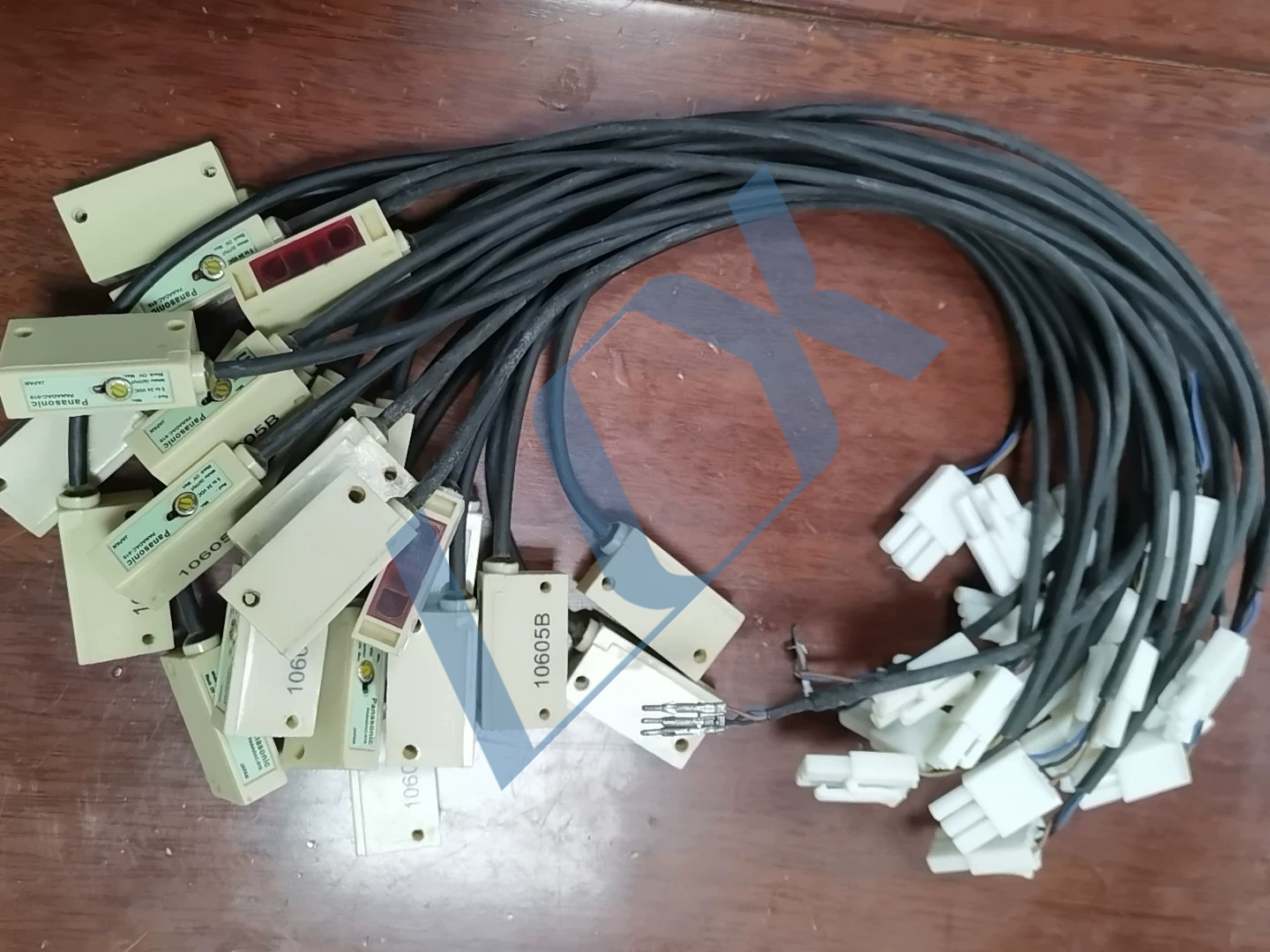

Equipment Identification Number: 10605B | Internal part number of the insertion machine system, printed on the cable housing

2. Technical Parameters

Parameter Item | Specification Details

Operating Voltage: 5 ~ 24 VDC

Output Type: NPN Open Collector Output (Black: OV / White: OUTPUT)

Adjustment Method: With sensitivity adjustment knob (yellow adjustment screw)

Installation Method: Screw fixing (housing has mounting holes)

Origin: Japan

Typical Application: Universal/Panasonic automatic insertion machine (AI equipment) for component detection, feeding positioning, and arrival detection

II. Model and Identification Analysis

Original Model: PANADAC-919 | Belongs to Panasonic’s early industrial-grade photoelectric sensor series, specifically designed for SMT Equipment Design

Utilizes a reflective detection principle, capable of detecting component pins and carriers of different colors/materials.

Features sensitivity adjustment to adapt to different detection distances and scenarios of insertion machines.

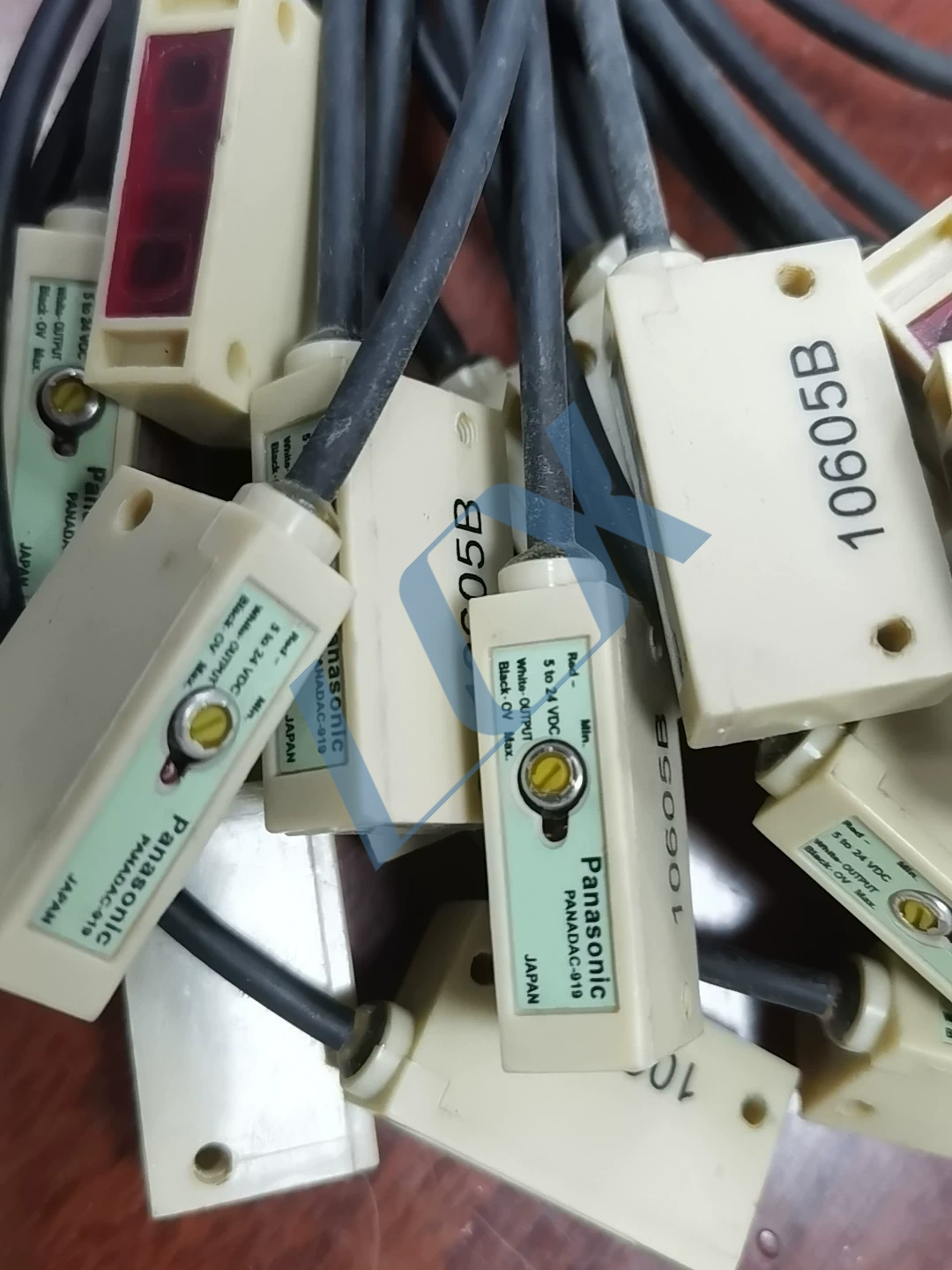

Equipment Identification Number 10605B

This is the part number within the Universal/Panasonic insertion machine system, printed on the protective sleeve of the sensor cable.

Used for equipment maintenance, spare parts management, and fault location, corresponding one-to-one with the original model PANADAC-919.

III. Insertion Machine Application Scenarios

1. Core Uses

Component Detection: Detects whether components on the feeder are in place, missing, or incorrect.

Positioning Detection: Provides position feedback for the insertion head, cutter/forming mechanism, ensuring insertion accuracy.

Action Feedback: Provides position signals for the cylinder and feeding mechanism, controlling the equipment cycle time.

2. Adaptability Advantages

Wide voltage design (5~24VDC), compatible with various control circuits of insertion machines.

Industrial-grade anti-interference performance, able to withstand electromagnetic interference and vibration in factory environments.

Features sensitivity adjustment to adapt to different component/carrier conditions. Scene adjustment detection threshold, highly adaptable

IV. Usage and Maintenance Points

Wiring Requirements
Red Wire: Connect to the positive power supply (5~24VDC)
Black Wire: Connect to the negative power supply (0V)
White Wire: NPN output signal terminal (equipment PLC/IO card)

Common Troubleshooting

Fault Phenomenon 1: Equipment reports missing parts / component detection error

Troubleshooting: Check if the sensor lens is contaminated with dust/solder residue; adjust the sensitivity knob; confirm that the power supply and wiring are normal.

Fault Phenomenon 2: No signal output / unstable output

Troubleshooting: Check if the wiring terminals are oxidized/loose; measure the output signal with a multimeter; replace the sensor for testing.

Fault Phenomenon 3: False detection / frequent errors

Troubleshooting: Clean the lens; adjust the installation angle to avoid reflection; lower the sensitivity threshold to avoid ambient light interference.
