🛠️ MAC 52A-11-30A-DM-DFEE-1BA Solenoid Valve (Universal PN 46312401)
This is the OEM MAC solenoid valve (Universal PN 46312401) for Universal Instruments AI/SMT insertion machines, designed for high-speed pneumatic control in demanding production environments.

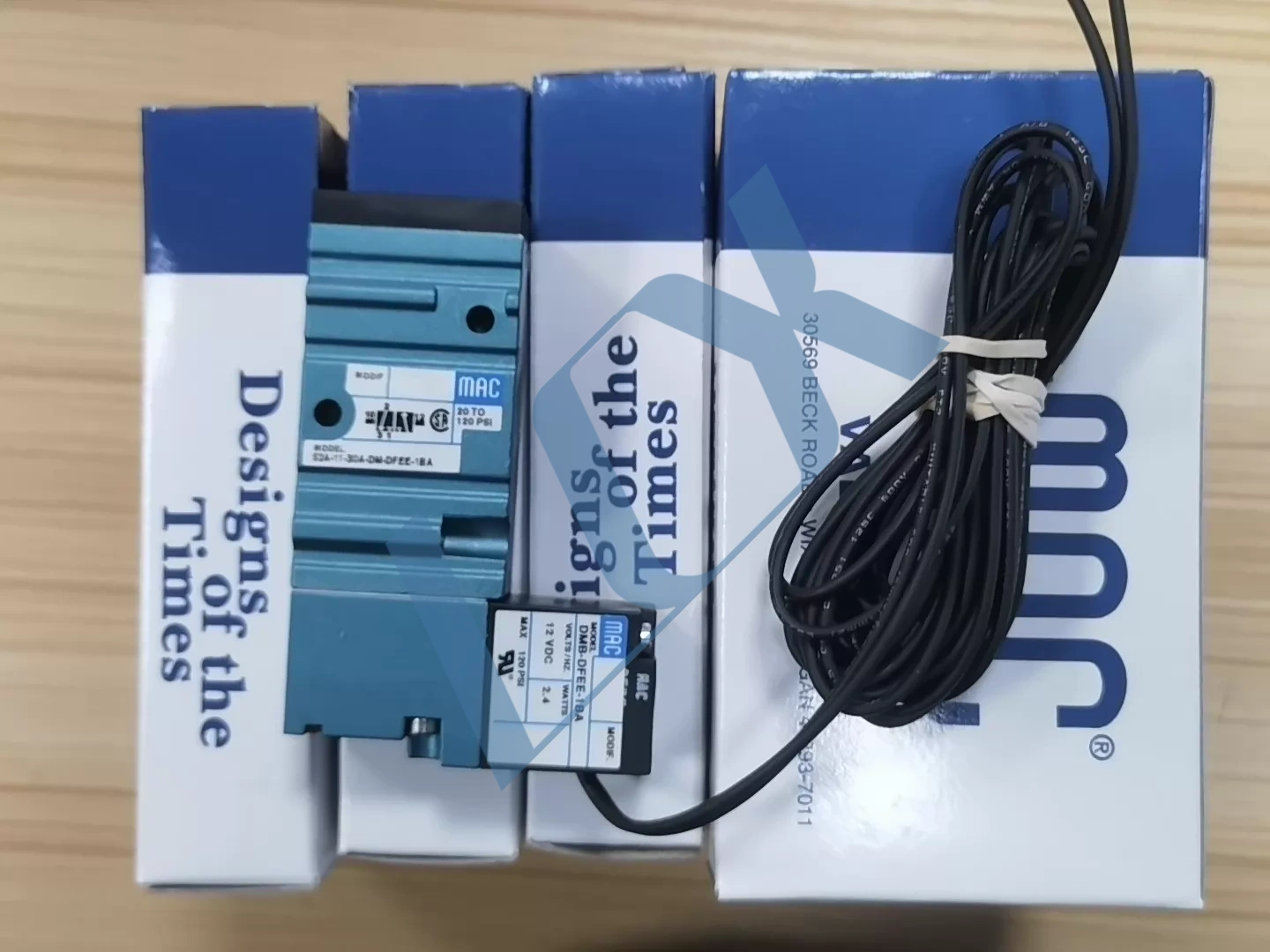

MAC 52A-11-30A-DM-DFEE-1BA Solenoid Valve, 12VDC, for Universal 46312401This is the OEM-style replacement MAC solenoid valve (model 52A-11-30A-DM-DFEE-1BA) with a 12VDC coil, matching Universal Instruments part number 46312401. Designed for use in Universal SMT insertion machines, it provides fast, reliable pneumatic control with a 20–120 PSI operating range. The valve features MAC’s balanced poppet design for consistent performance and long service life in high-volume production environments.

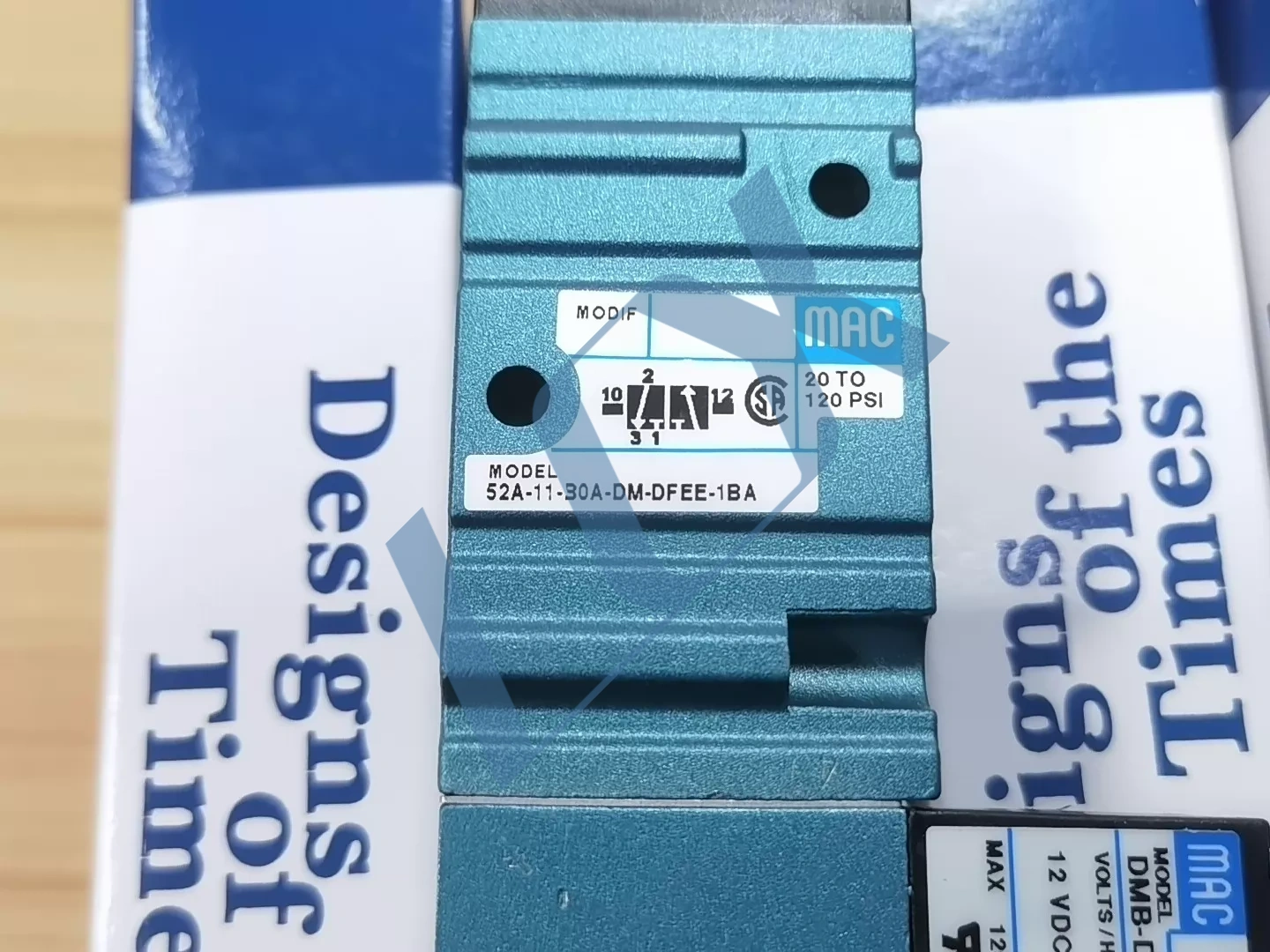

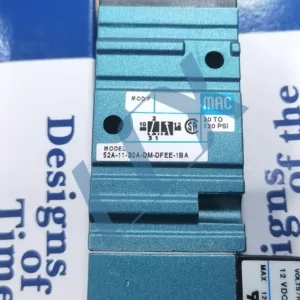

Model: MAC 52A-11-30A-DM-DFEE-1BA

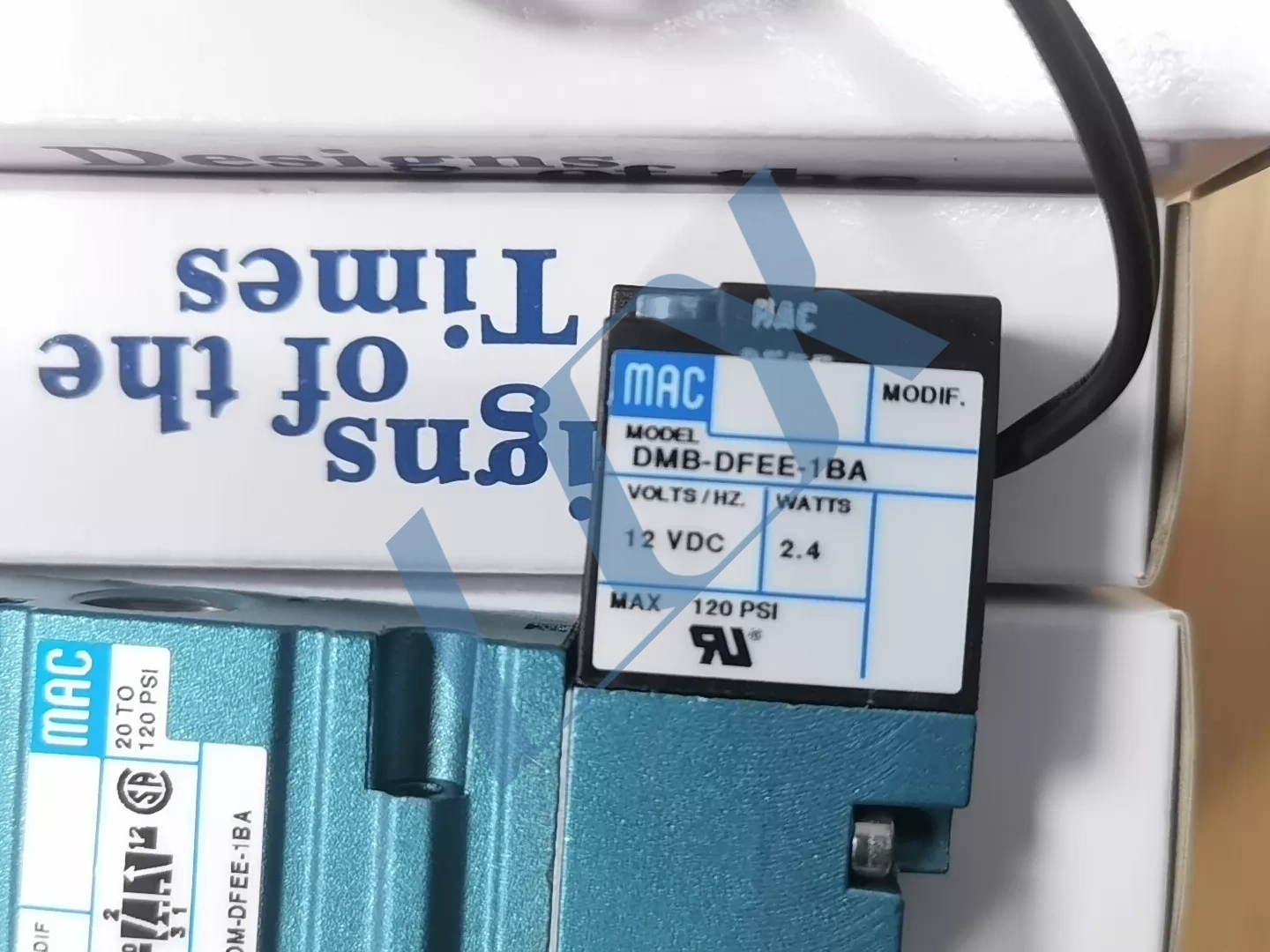

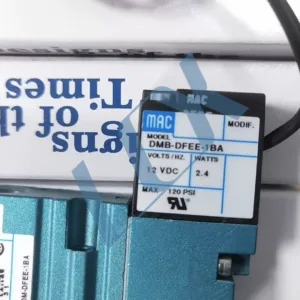

Coil: DMB-DFEE-1BA (12 VDC, 2.4W)
OEM Compatibility: Universal Instruments PN 46312401
Application: Universal axial/radial insertion machines (6241/6380 series)
Pressure Range: 20–120 PSI
Share to:
✅ Core Specifications
Item Specification
Full Model 52A-11-30A-DM-DFEE-1BA
Coil Model DMB-DFEE-1BA
OEM Part Number 46312401 (Universal Instruments)
Operating Voltage 12 VDC
Power Consumption 2.4 Watts
Pressure Range 20–120 PSI
Valve Type 3/2-way single solenoid poppet valve (balanced design)
Features Fast response, high flow rate, long cycle life, UL-certified
📌 Key Application & Features
AI/SMT machine Use: OEM replacement for Universal Axial/Radial insertion machines (e.g., 6241/6380 series), controlling pneumatic actuators for insertion heads or feeders.
MAC 52-Series Advantages:
Balanced poppet design for consistent performance across pressure ranges.
Fast, repeatable response times (ideal for high-speed insertion cycles).
Durable construction for continuous industrial use.
Direct Fit: Matches Universal PN 46312401, ensuring plug-and-play compatibility with the machine’s pneumatic system.
