LAEG AD10-0R7G-S2-B-N 0.75KW Variable Frequency Drive 1PH 220V Input 3PH 220V Output VFD Inverter
The AD10-0R7G-S2-B-N can directly replace the Mitsubishi FR-D720-0.75K. Their power ratings, electrical specifications, and functions are highly compatible, allowing for seamless replacement.
Key Matching and Differences
Table Comparison Items: Mitsubishi FR-D720-0.75K, Lange AD10-0R7G-S2-B-N Matching Conclusion
Rated Power: 0.75kW, 0.75kW, Completely Identical
Input Specifications: Single-phase 200–240V AC, 50/60Hz; Single-phase 220V AC, 50/60Hz; Voltage range compatible, can be directly connected
Output Specifications: Three-phase 200–240V AC, 4.2A; Three-phase 220V AC, 4.0A; Current slightly lower, sufficient load margin
Overload Capacity: 150%/60s; 200%/0.5s; 150%/60s; 200%/3s; AD10: Stronger and more stable short-term overload
Control Method: V/F, Flux Vector Control; High-performance vector control (supports asynchronous/permanent magnet); Control performance no less than the original unit
Built-in Functions Features include PID control, torque boost, stall prevention, built-in PID control, braking unit, speed tracking, and more. It offers comprehensive functionality, with the addition of a braking unit.
Protection/Size: IP20, approximately 1kg; IP20, approximately 1.5kg. Installation space compatible; slight weight increase is acceptable.
Replacement Recommendations:
Wiring can be directly reused: Single-phase 220V input connects to L and N terminals; three-phase output connects to U/V/W, no modification required.
Quick parameter adaptation: Restores motor parameter self-learning; overload level set to 150%/60s; carrier frequency as per original operating conditions (1–16kHz adjustable).
Functional supplement: The AD10 has a built-in braking unit; if the original unit has an external braking resistor, it can be directly used without additional cost.
Communication and Panel: Both have local operation panels. If communication is required, ensure the MODBUS address and baud rate are consistent beforehand.
Applicable Scenarios and Precautions: Suitable for light to medium load scenarios such as fans, water pumps, and small conveyor lines; it can completely replace the original unit.
If the original machine has special process parameters (such as specific torque increase, multi-speed), it needs to be readjusted after replacement to match the load characteristics.
Share to:
I. Basic Product Information

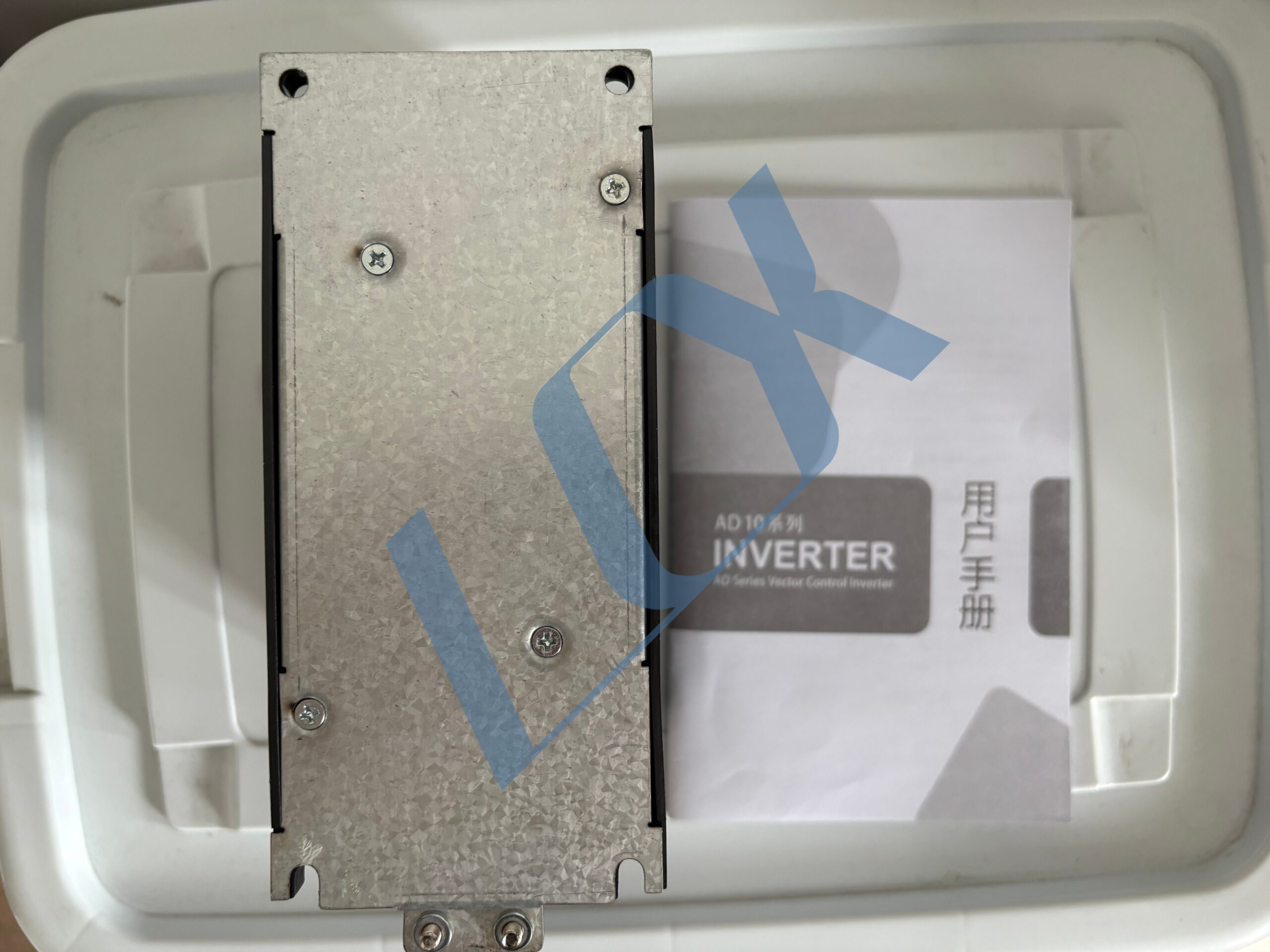

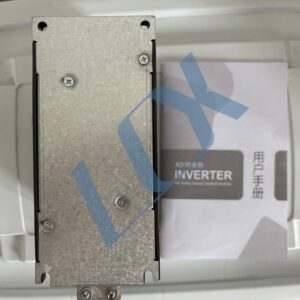

This is LAEG’s AD10 series compact vector frequency converter, model AD10-0R7G-S2-B-N

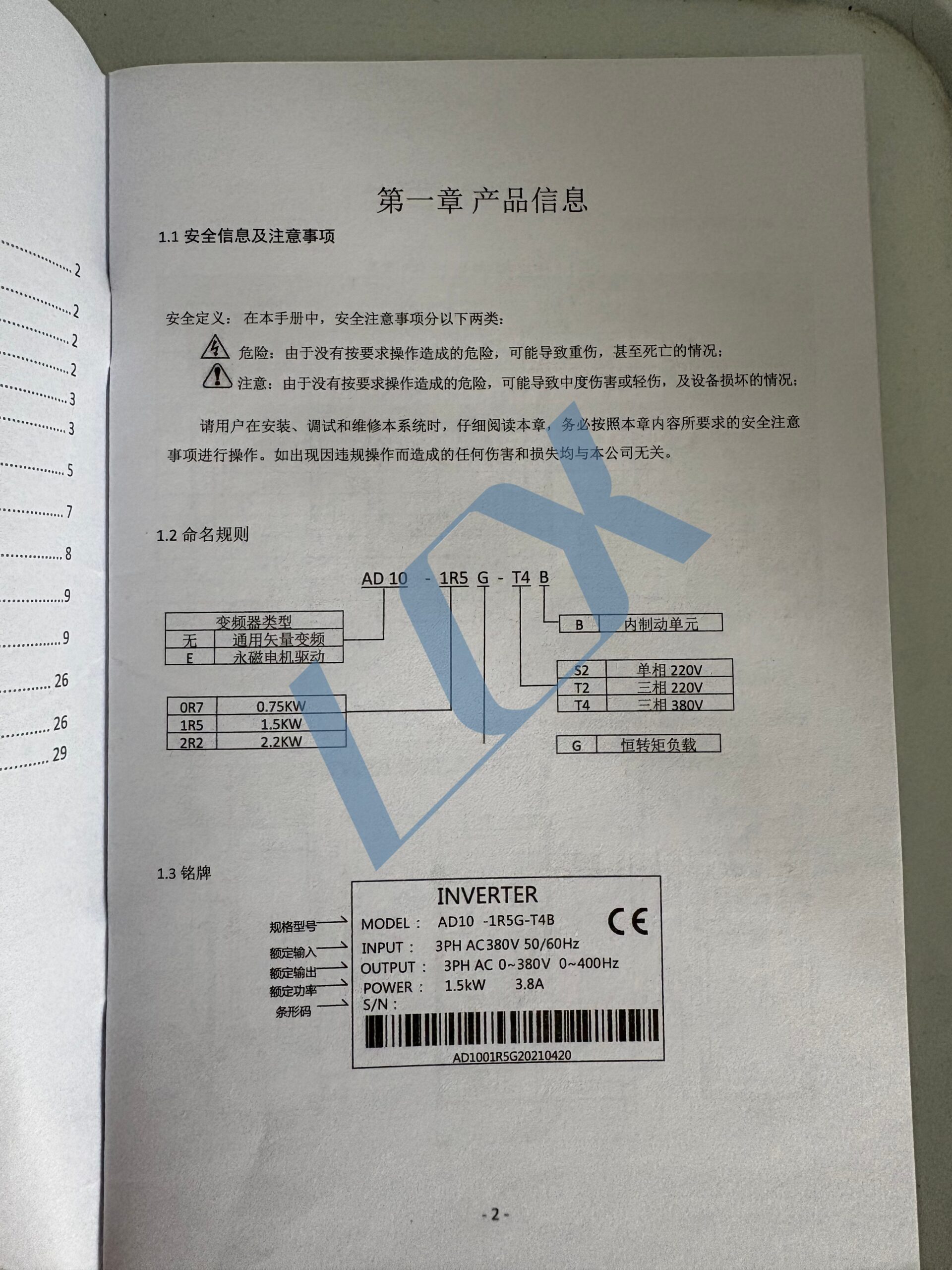

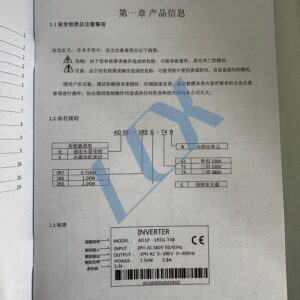

II. Model Naming Explanation
Model Segment Meaning
AD10 Product Series Number
0R7 Rated Power 0.75kW
G Constant Torque Load Model
S2 Single Phase 220V Input
B Built-in Braking Unit
N Built-in Standard Version

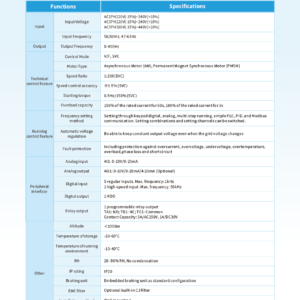

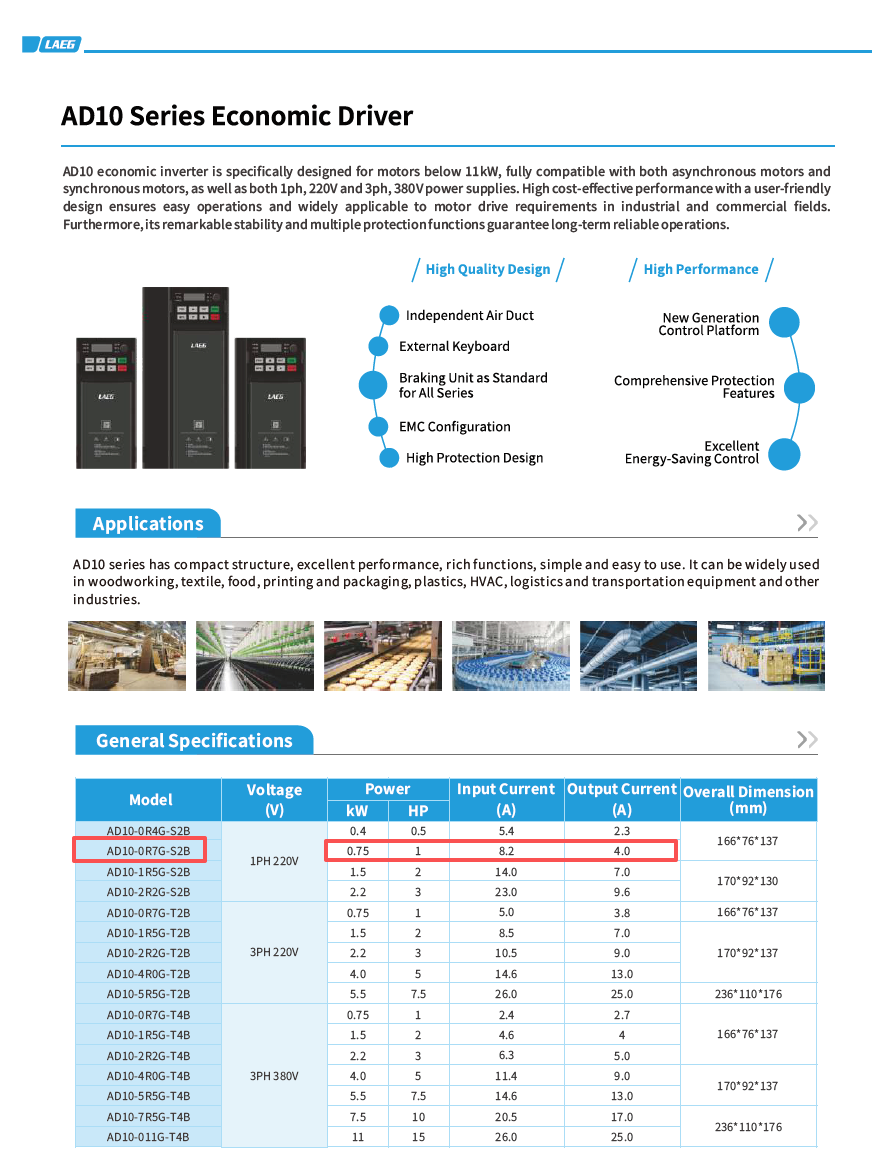

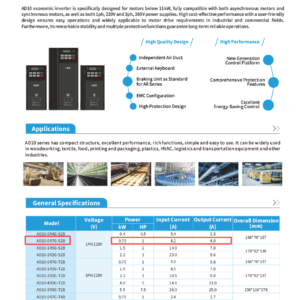

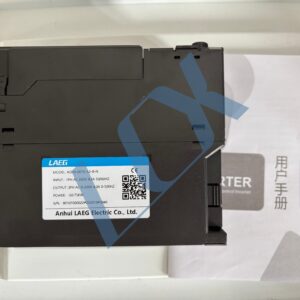

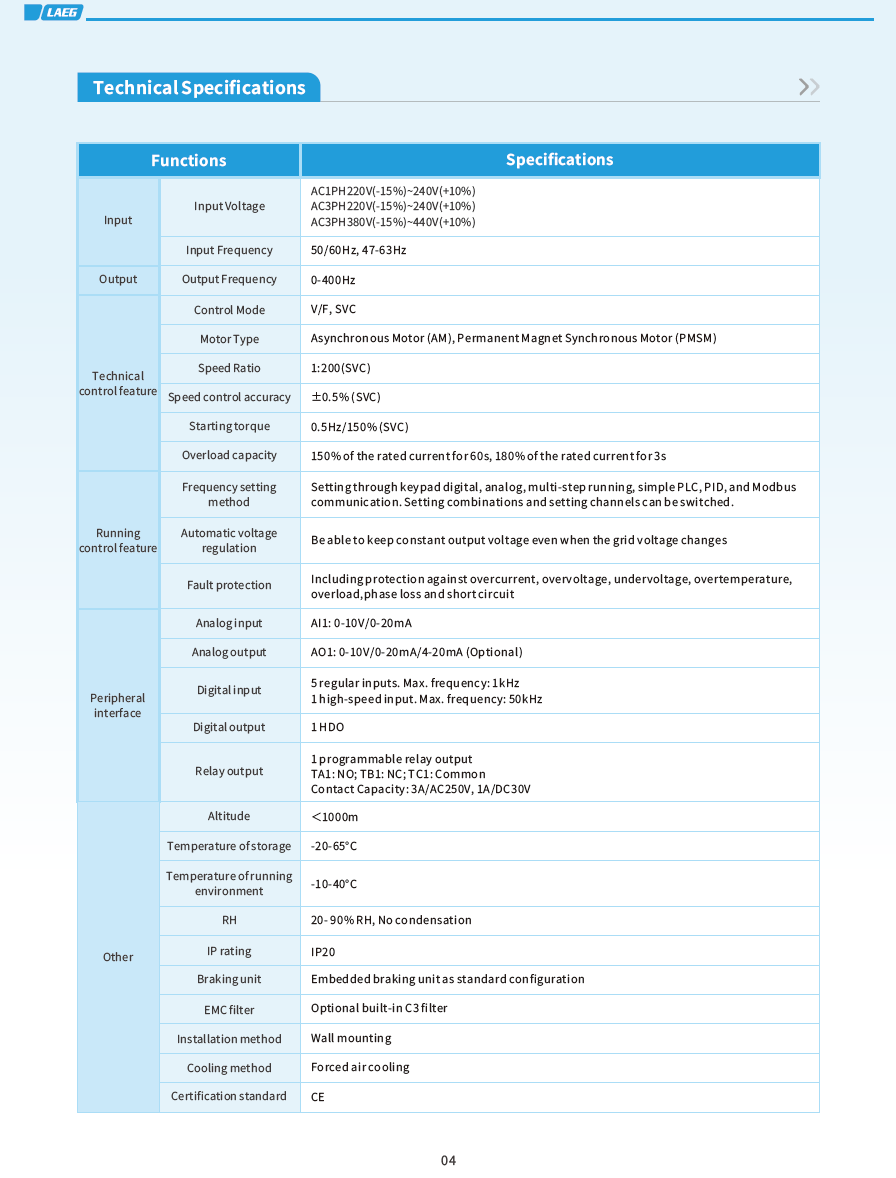

III. Core Electrical Parameters

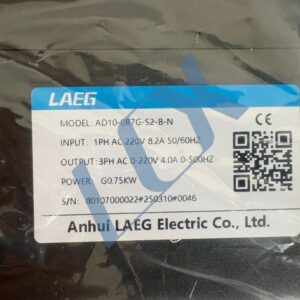

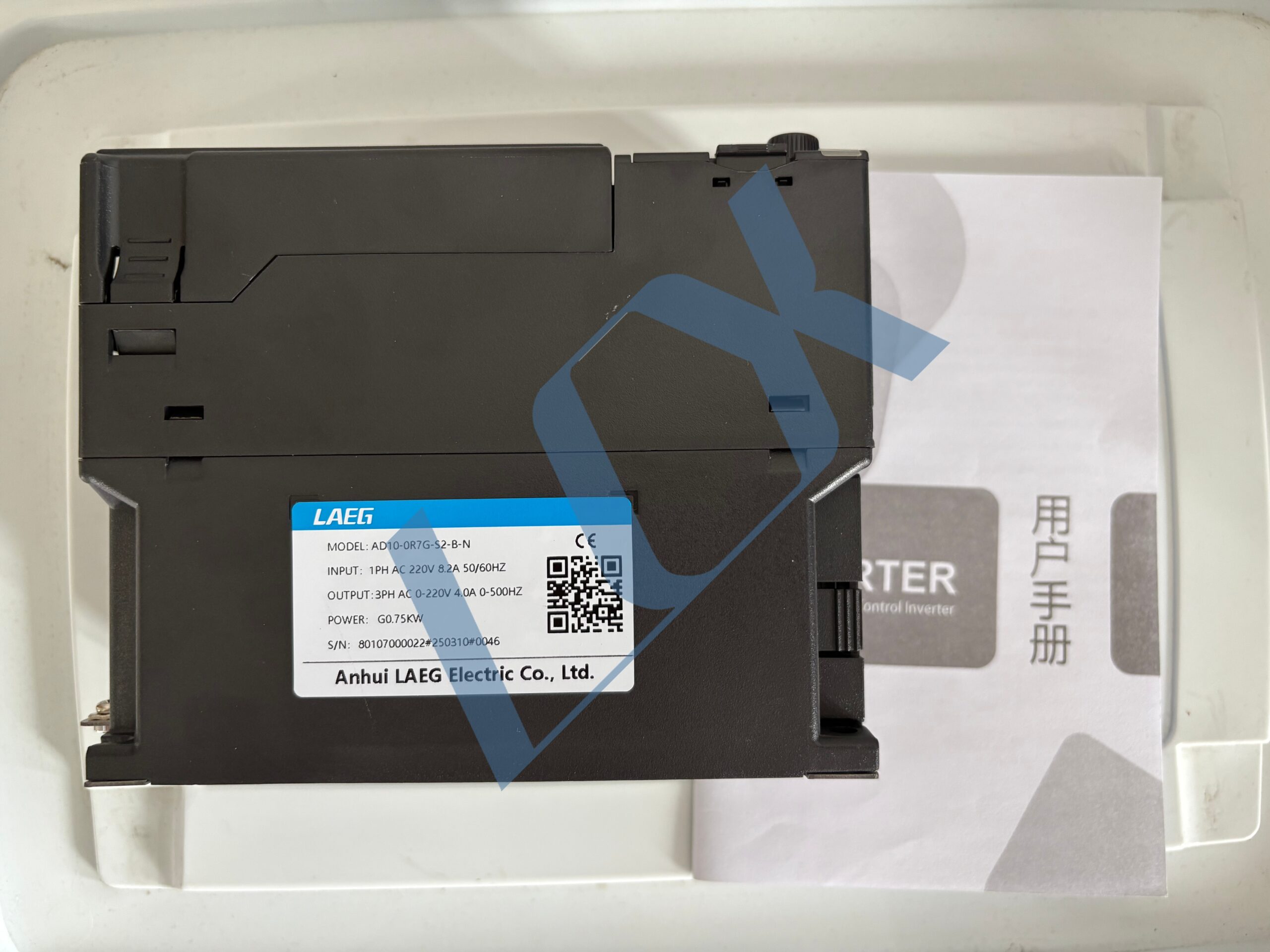

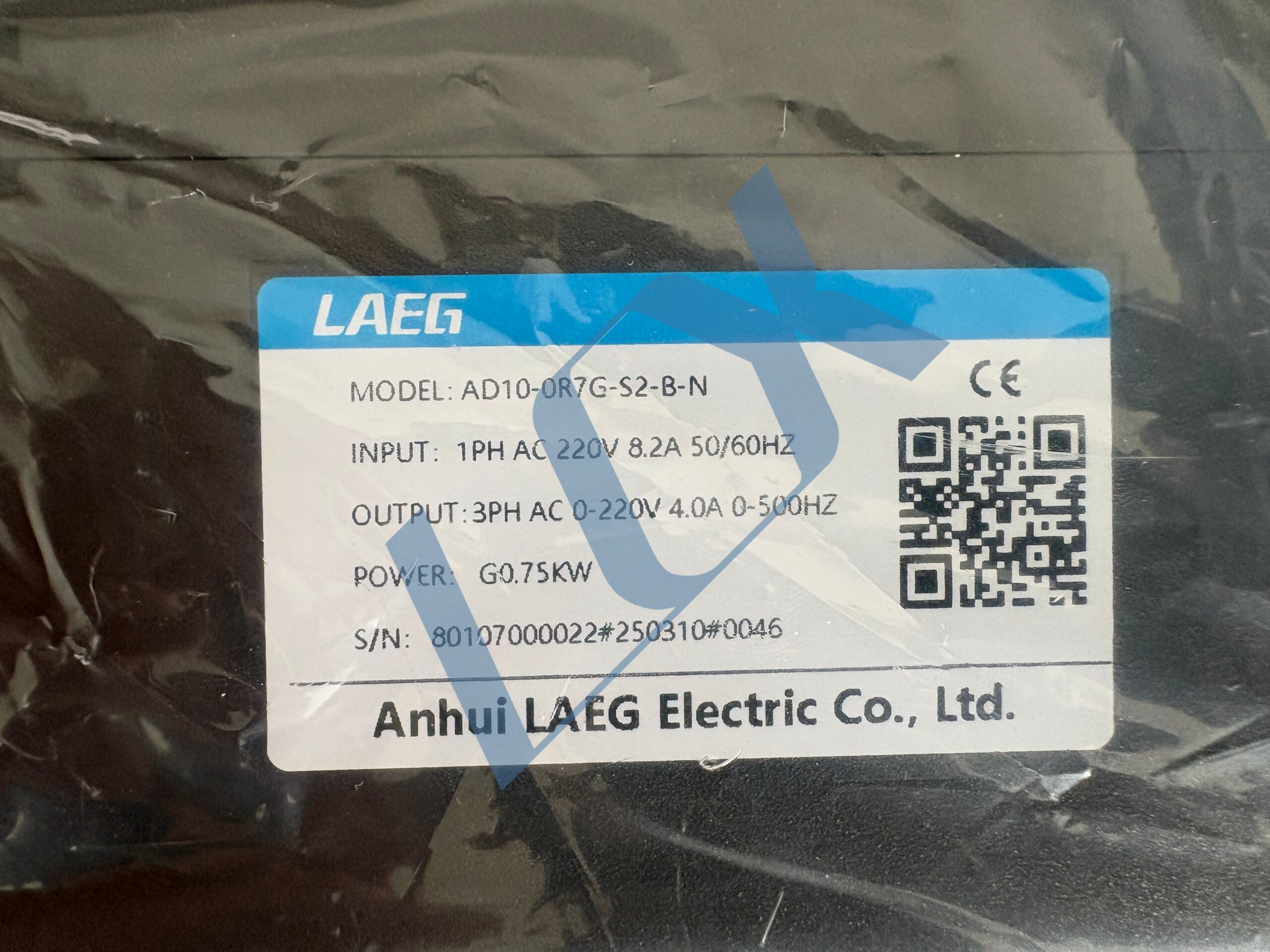

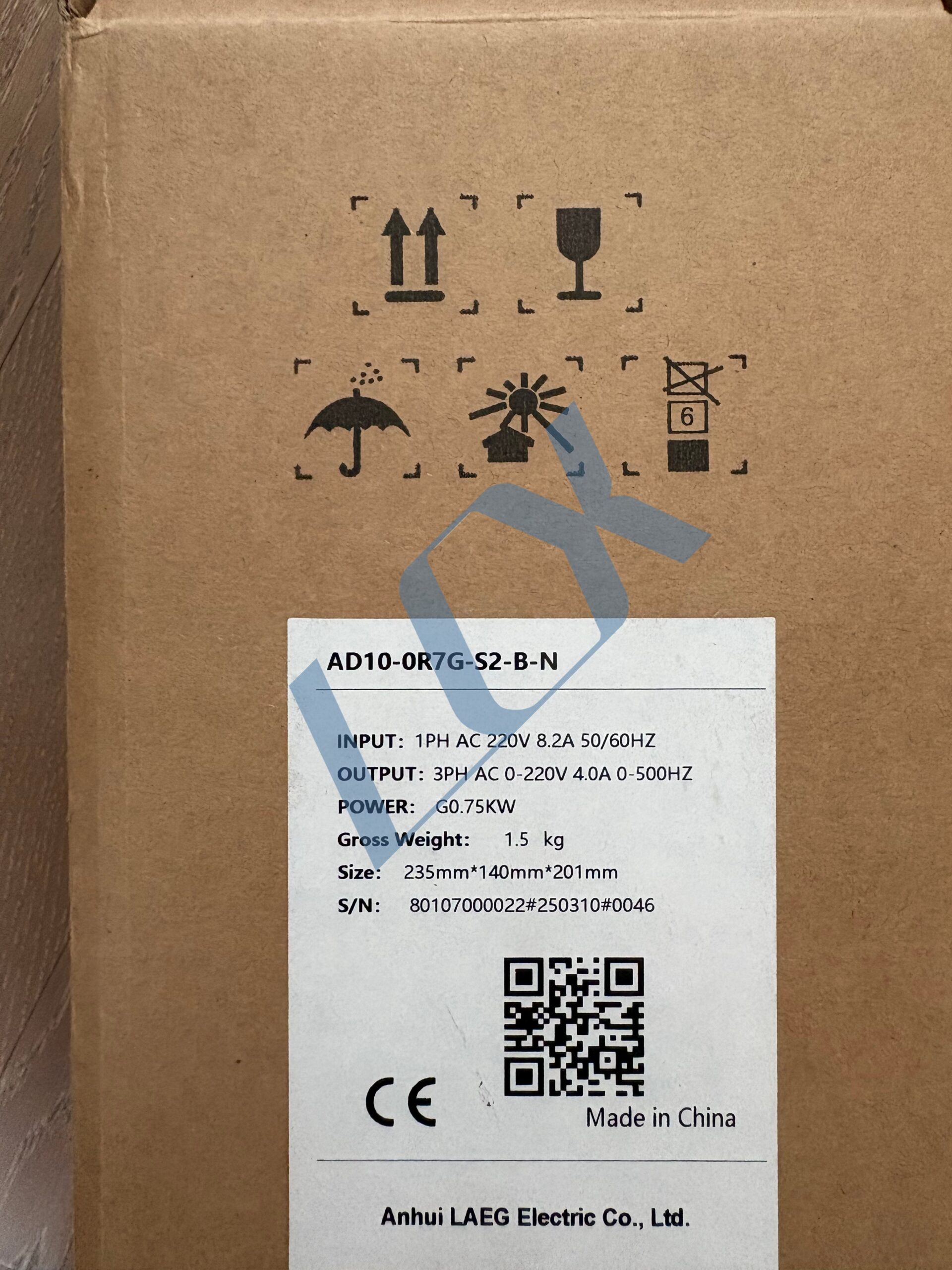

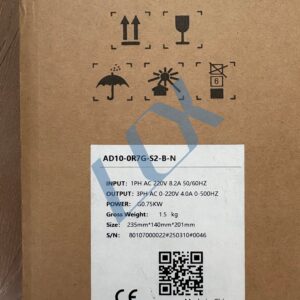

✅ Input Specifications: Single Phase 220V AC, 8.2A, 50/60Hz ✅ Output Specifications: Three Phase 0~220V AC, 4.0A, 0~500Hz ✅ Rated Power: 0.75kW ✅ Overall Dimensions: 235×140×201mm ✅ Gross Weight: 1.5kg ✅ Certifications: CE Certification, Domestic Manufacturing
IV. Product Functions and Features
Control Performance
Equipped with a high-performance vector control algorithm, supporting universal asynchronous motors and permanent magnet synchronous motor drives.
150% Rated current withstands 60 seconds of overload capacity.
Carrier frequency range 1~16kHz, suppresses motor noise and adapts to different operating conditions for heat dissipation.
Built-in practical functions: Automatic torque boost, stall prevention, oscillation suppression, speed tracking restart.
Built-in PID regulation, automatic voltage stabilization, intelligent carrier frequency adjustment. Built-in braking unit; can be directly connected to an external braking resistor for rapid stopping.

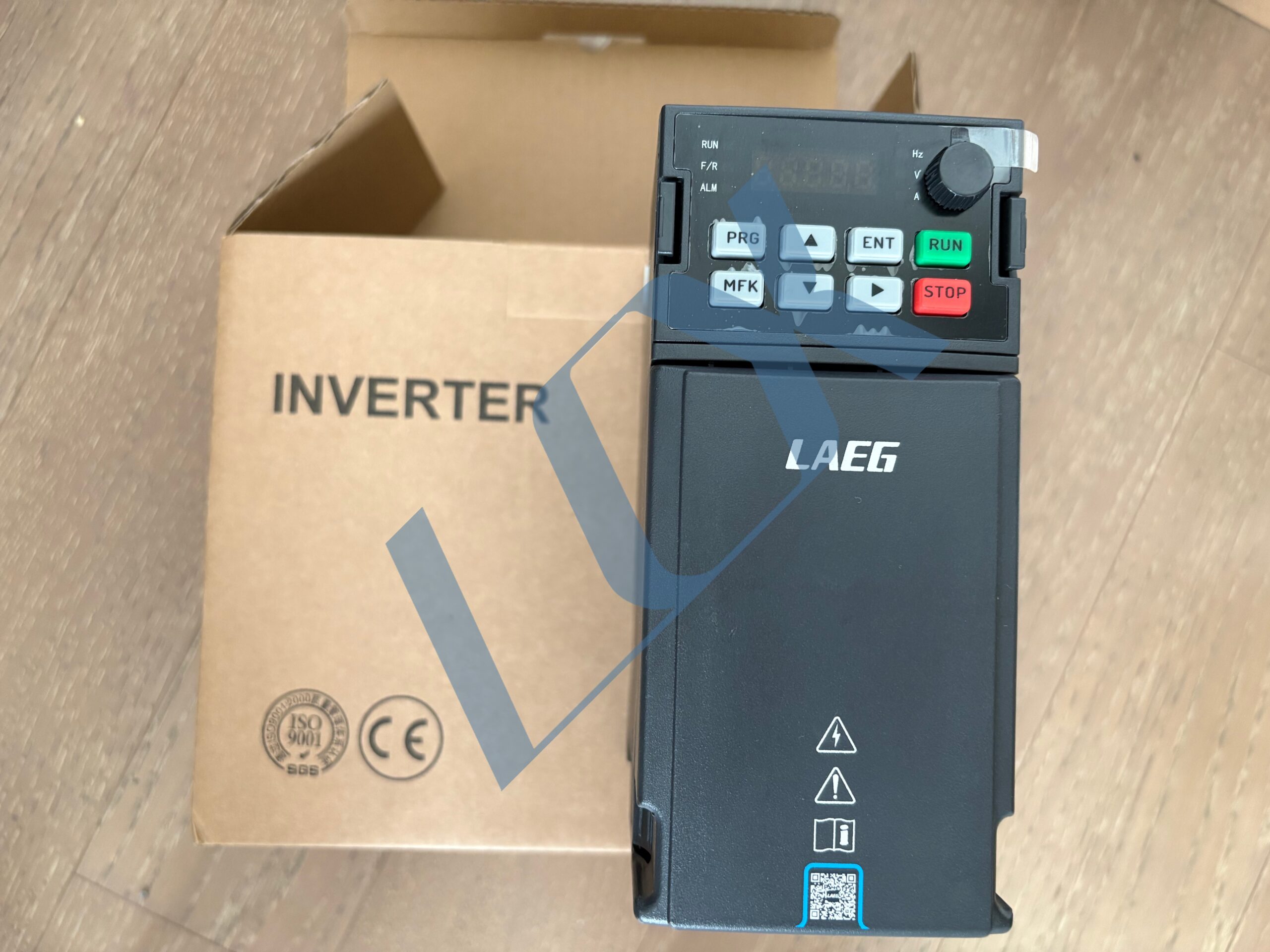

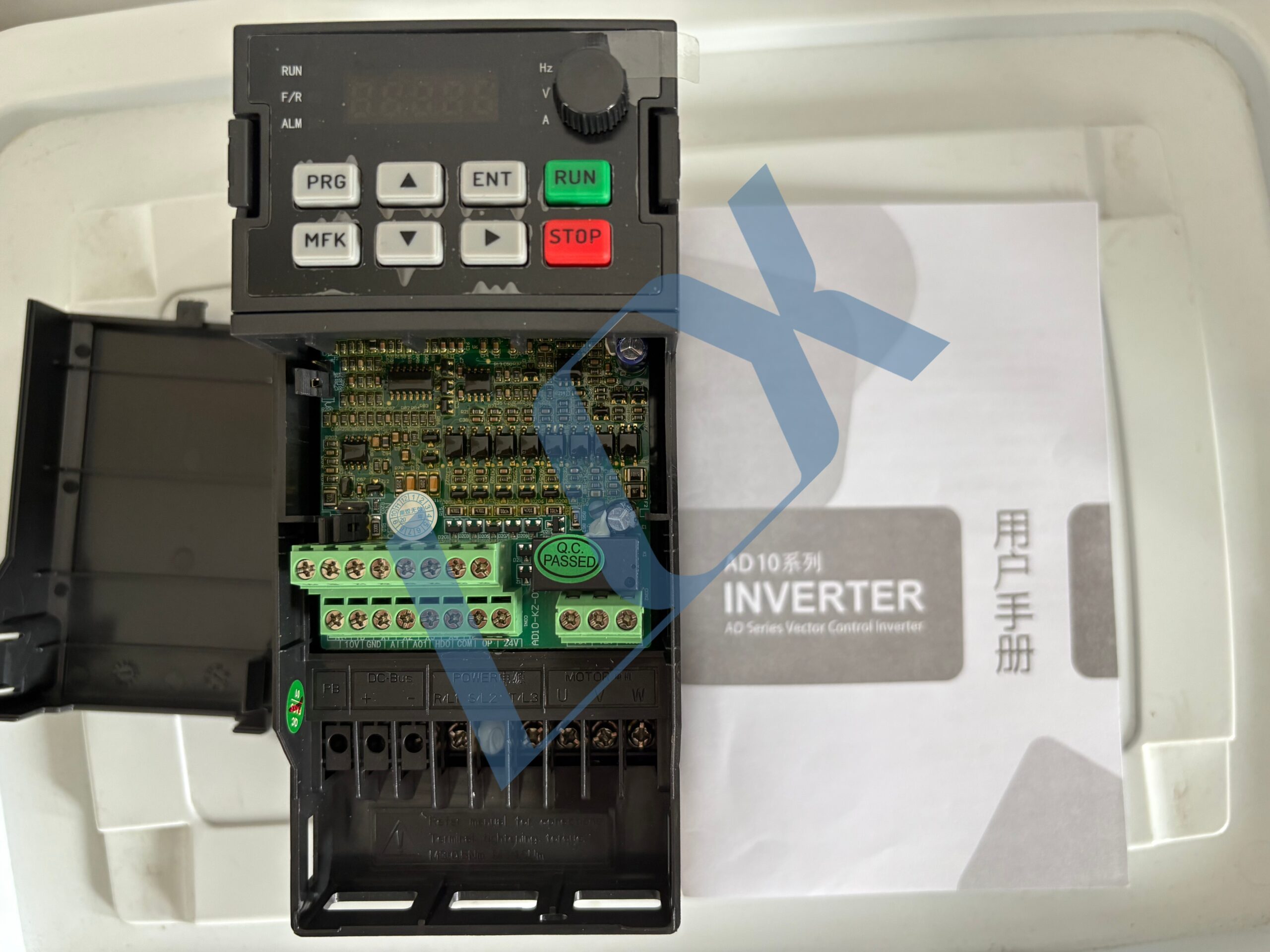

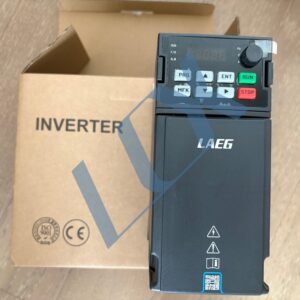

Hardware design: Compact and small body, saving cabinet installation space. Built-in standard operation panel (RUN/STOP/PRG/ENT buttons + digital display). Clear terminal layout; main circuit + control circuit separated for convenient wiring and maintenance.
V. Typical application scenarios: Suitable for speed regulation of small and medium-sized motors below 0.75kW:
Fans, pumps, constant pressure energy-saving control
Small conveyors, assembly line drives
Woodworking machinery, textile equipment, light industrial processing equipment
General industrial automation speed regulation applications
VI. Safety and operation tips ⚠️ Installation, wiring, and debugging must be performed with the power off. Improper operation while the power is on carries the risk of electric shock and equipment burnout.
For first-time use, it is recommended to perform motor parameter self-learning to ensure vector control accuracy.
For long-term operation, ensure proper ventilation and heat dissipation of the cabinet, avoiding dusty and humid environments.
In case of overload, overcurrent, or overheating faults, the inverter’s ALM alarm light will illuminate, requiring shutdown and investigation of load and environmental issues.
