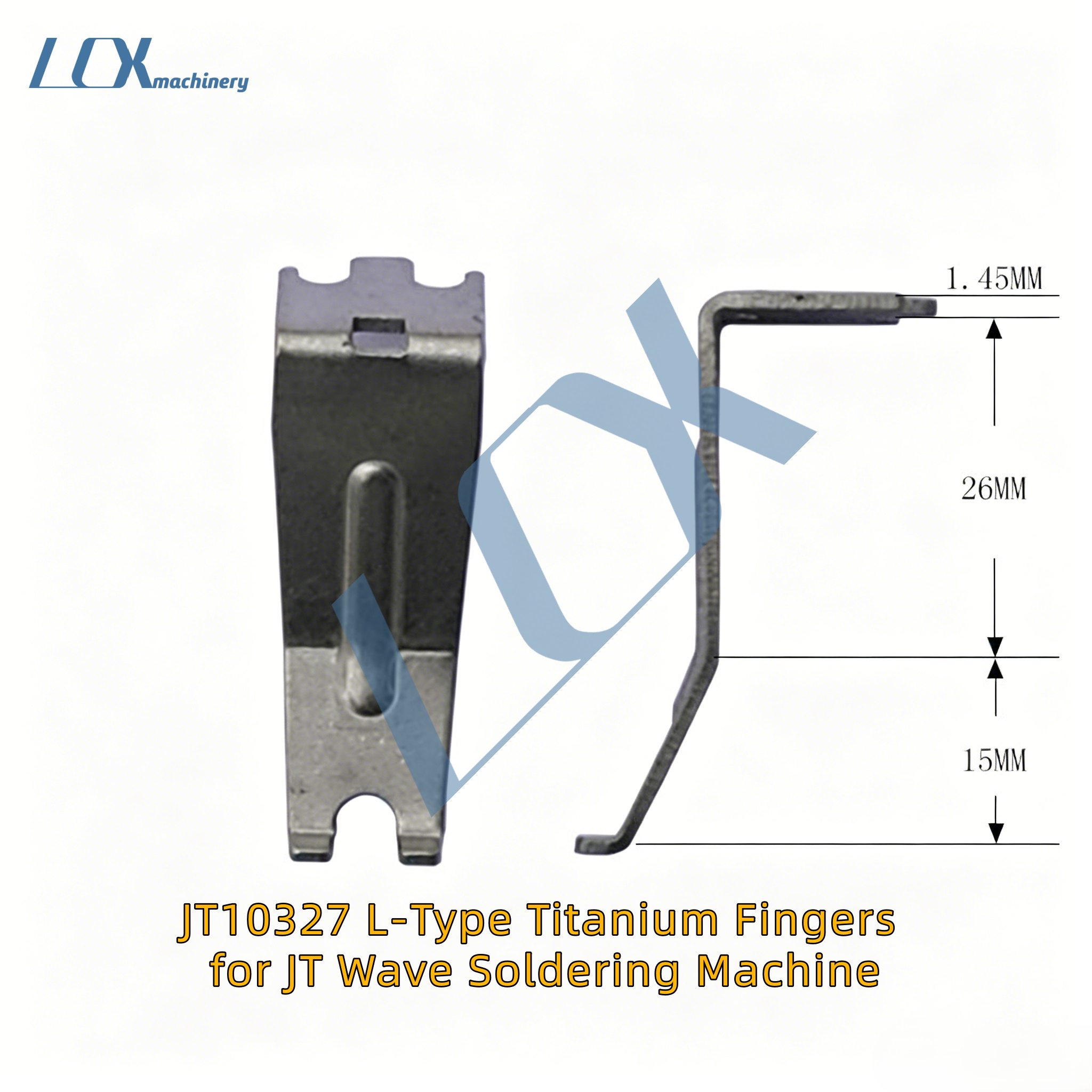

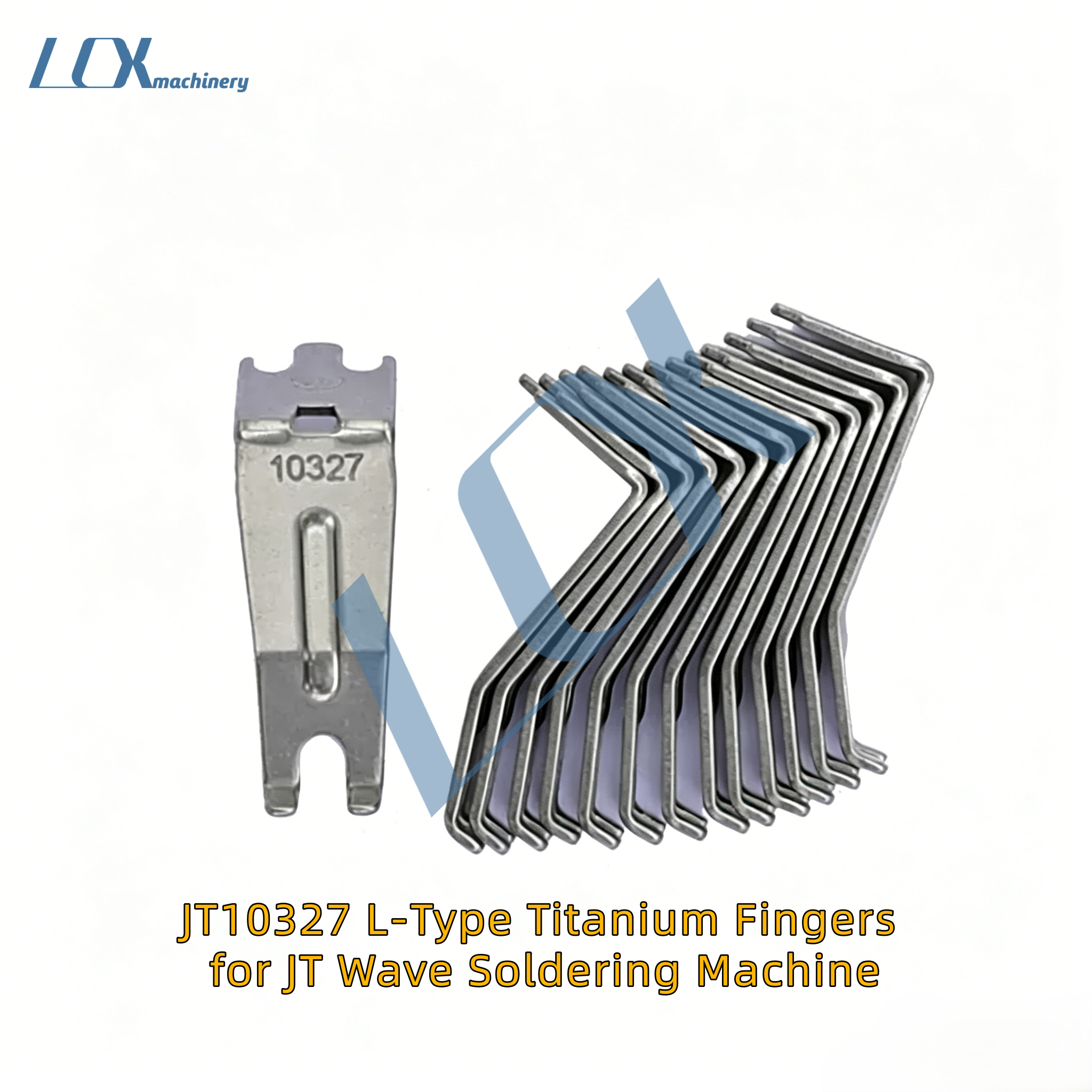

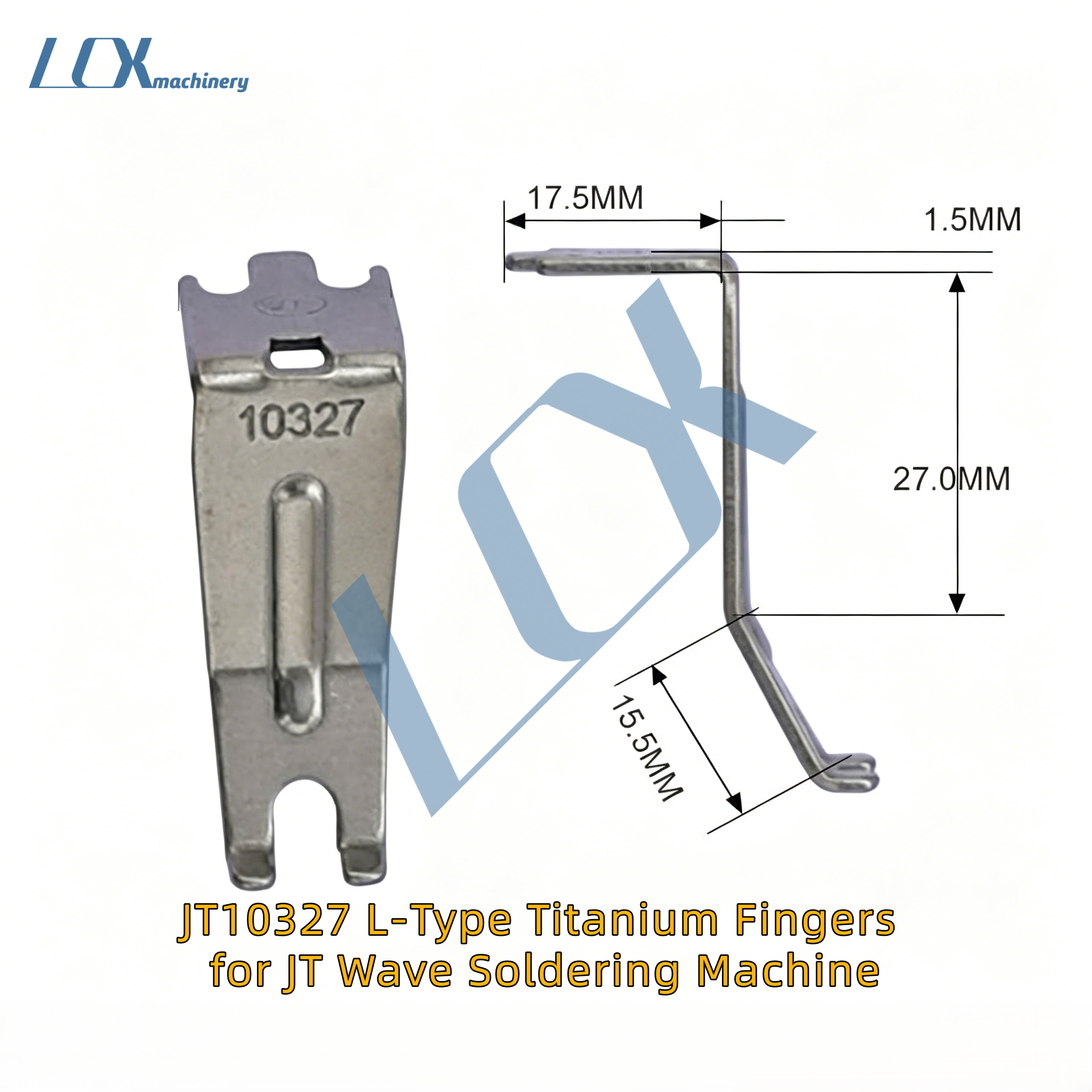

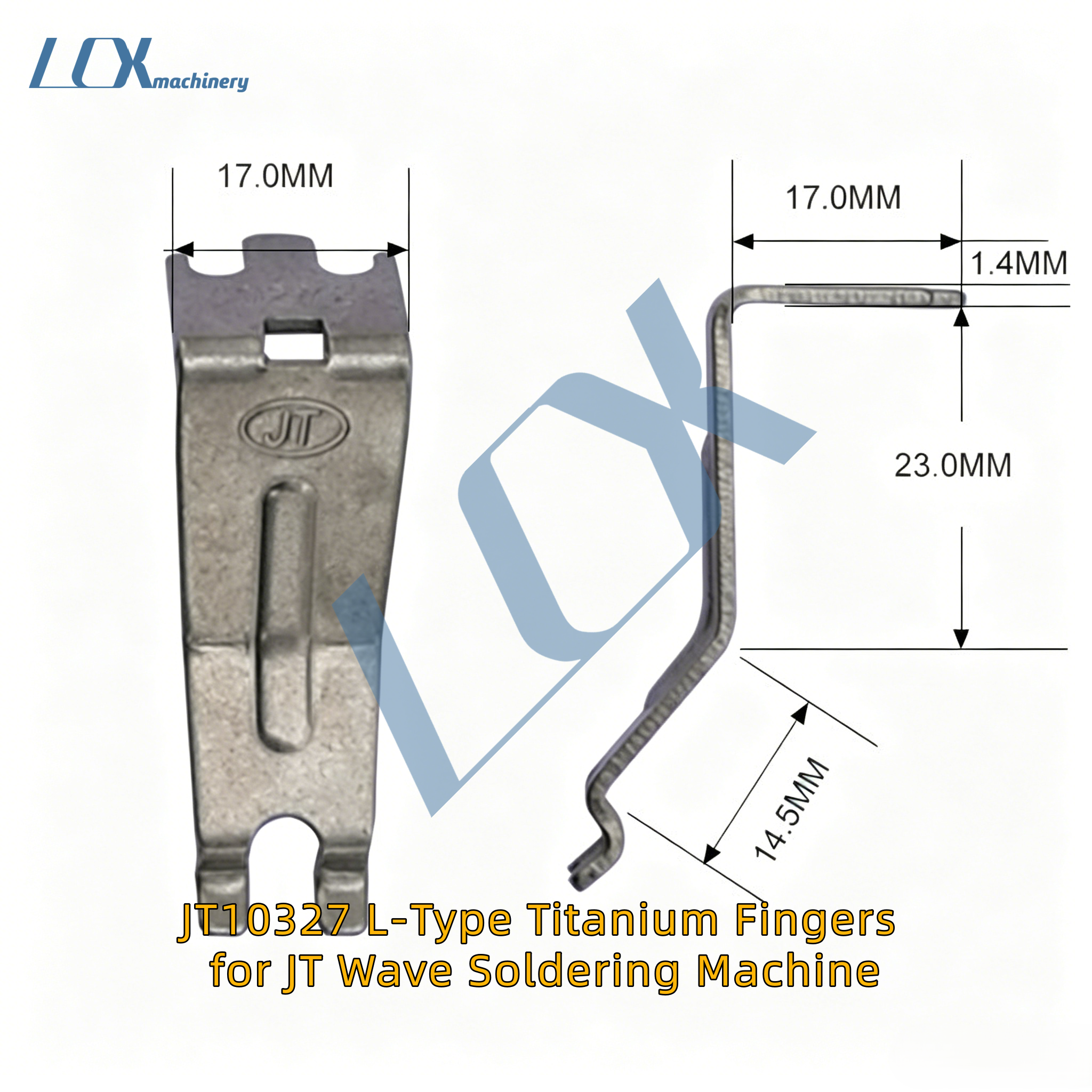

JT10327 L-Type Titanium Fingers for JT Wave Soldering Machine
JT L-type Titanium Fingers JT10273 / JT10327 (Wave Soldering Chain Claws)
Material: Titanium (High temperature resistance, tin corrosion resistance, lightweight)
Compatible Models: Jintuo WS-350PC-B / WS-450PC wave soldering machines, etc.
Model Differentiation:
JT10273: L-type, with rivets, thin (approx. 1.5 mm)
JT10327: L-type, with rivets, thickened (approx. 2.0 mm)
Share to:
Dimensions (Reference):
Overall Height: 45 mm
Width: 18 mm
Mounting Hole Spacing: 14 mm
Claw Length: 7.4 m
SUNEAST SMT Wave Soldering Titanium Claws (L/V Type Chain Claws)
Material: Titanium (interchangeable with JT of the same specification)
Compatible Models: NSI-350, SA-3, etc. wave soldering machines
Common Models:
SA-3 L-type: Standard L-type, approximately… 46.5×26.5 mm
V-type claw: Double hook/Single hook, for transporting narrow-edge PCBs
General Features (SMT Wave Soldering Titanium Claws)
High Temperature Resistance: Can withstand 260–300℃ solder pot temperatures for extended periods
Corrosion Resistance: Resistant to lead-free solder molten metal corrosion, longer lifespan than steel claws
Lightweight: Reduces chain load, lowers energy consumption and wear
Interchangeability: L/V type claws of the same type are interchangeable on Jintuo/Nitto equipment
Purchase Recommendations
Jintuo Equipment: Prioritize JT10273 (thin)/JT10327 (thick)
Nitto Equipment: Prioritize SA-3 L type or NSI-350 V type
Bulk Replacement: It is recommended to use the same model within the same batch to avoid board drop due to height differences.
