Insertion Chuck / Component Chuck for Panasonic AI Radial Insertion Machine RL131 RL132 / NOBE NB168

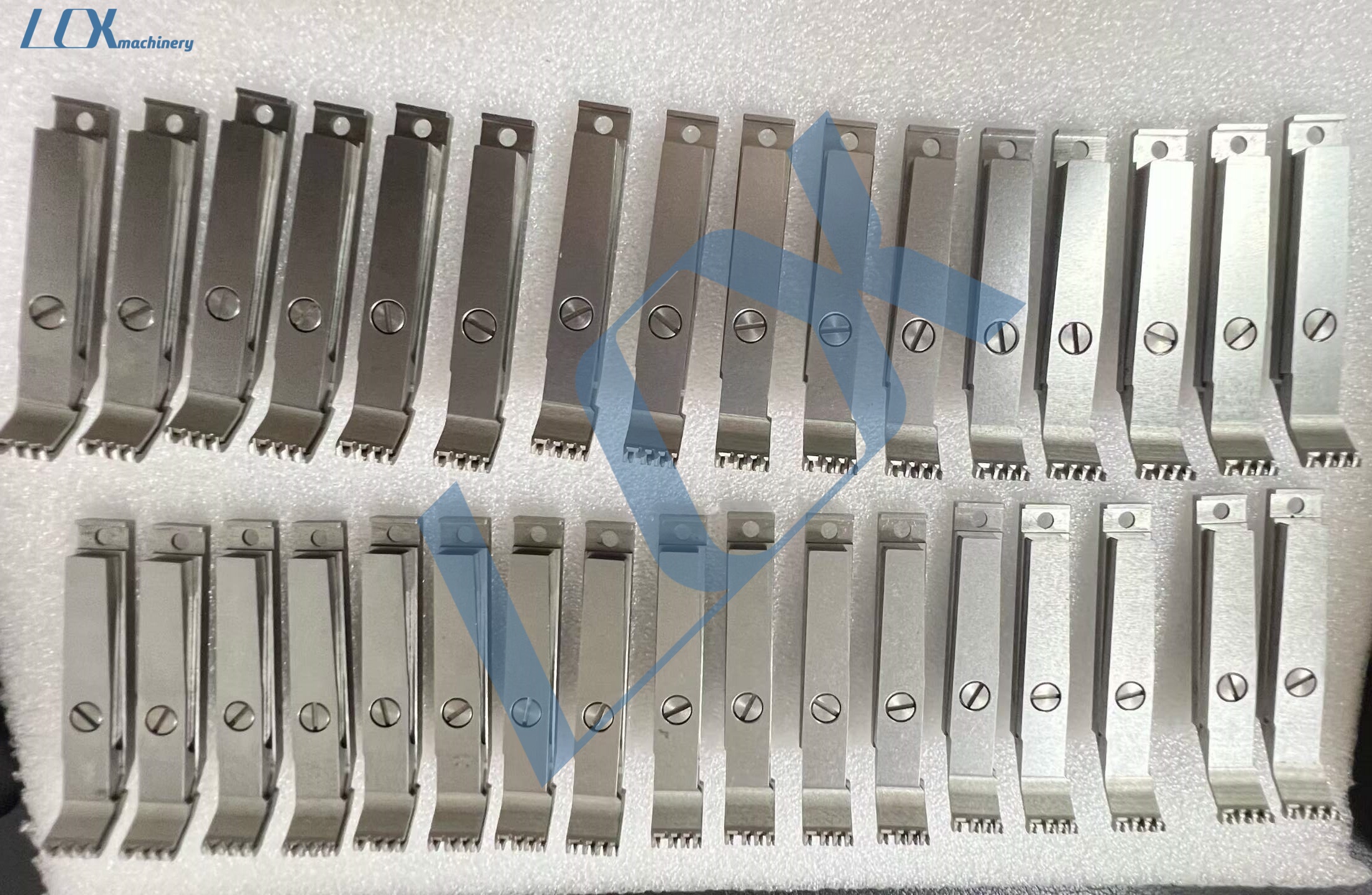

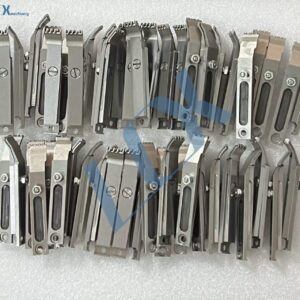

This is the insertion chuck (also called insertion clip or insertion claw) of the Panasonic AI radial insertion machine (RL131/RL132/NB168 series), which is a core precision component of the THT automatic insertion machine.
Share to:
✅ Part Numbers
1. NB168 Series (Nobel/ZHX compatible): NB16808124PAA, NB16808134PAA
2. RL132 Panasonic Original Part Numbers: N210140533AC, N210140534AB (10.0 specification insertion clamp)
✅ Applications
Used in automatic radial component (resistors, capacitors, diodes, etc.) insertion machines, gripping component leads to complete automatic PCB insertion; the head has serrated teeth to engage the leads, and the body is made of high-hardness alloy steel, wear-resistant and high-precision, making it a key clamping component on the AI insertion machine head.
Compatible Models: Panasonic RL131 / RL132, NB168, ZHX K8, and other domestic radial insertion machines.
✅ Product Features
– Material: Special tool steel, precision-ground head teeth, wear-resistant and not prone to chipping;

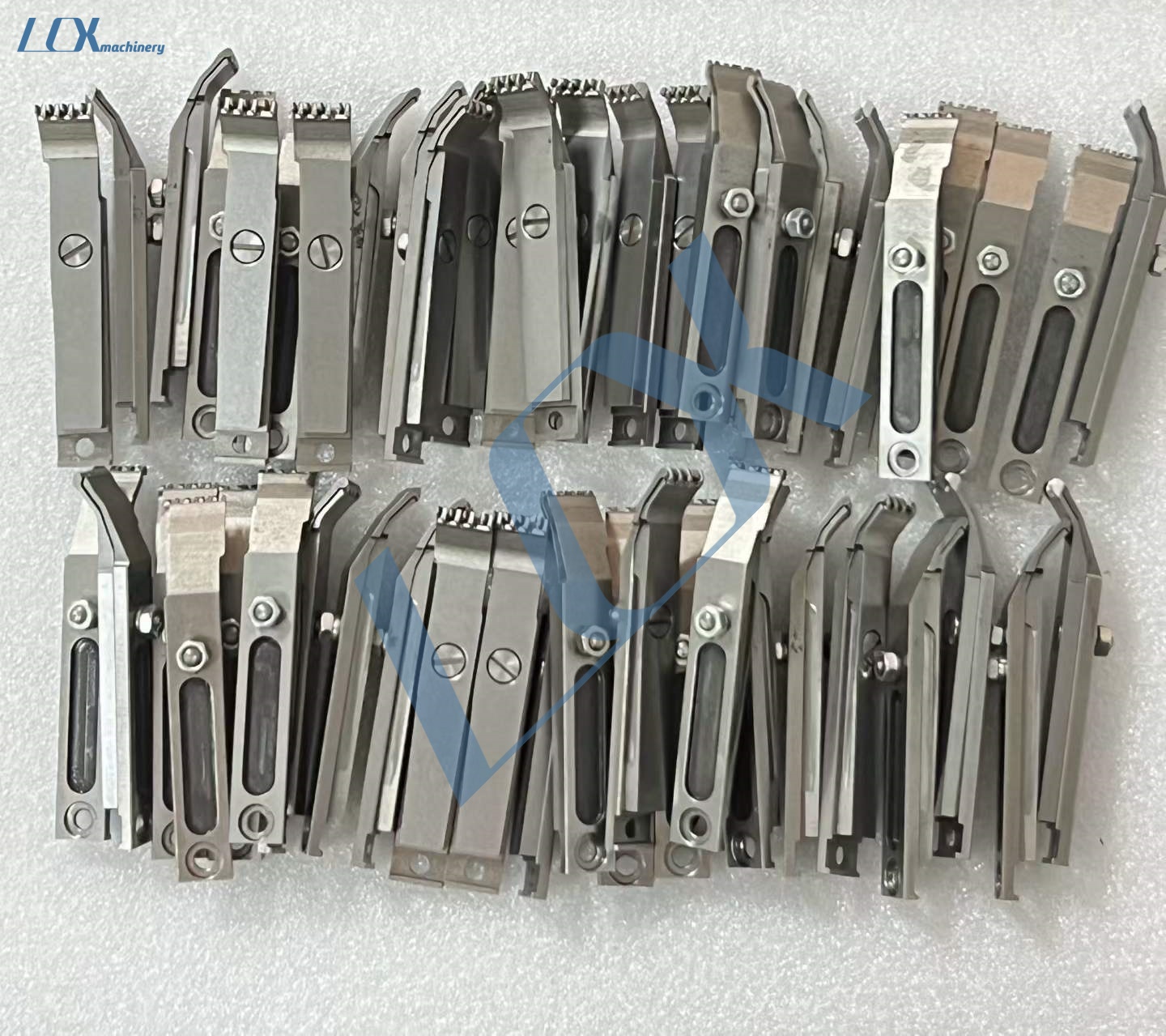

– Structure: Split-type grippers, with a central adjusting screw for fine-tuning the clamping gap;
– Function: No need to adjust centering, stable clamping, reducing component misalignment and component drop failures;
– Application Scenarios: Replacement consumables for THT component insertion production lines in electronics factories.
