Full Set Spare Parts for Universal VCD/Sequencer 8 Insertion Machine (Bearings/Chains/ Clips Assembly)
These are all original maintenance replacement parts for the Universal VCD/Sequencer 8 axial component insertion machine, which are core consumable parts of the through-hole insertion automation (AI insertion machine).
Share to:

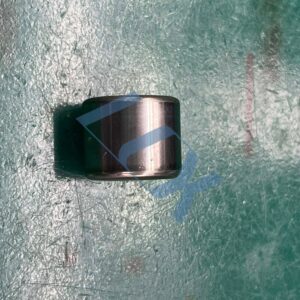

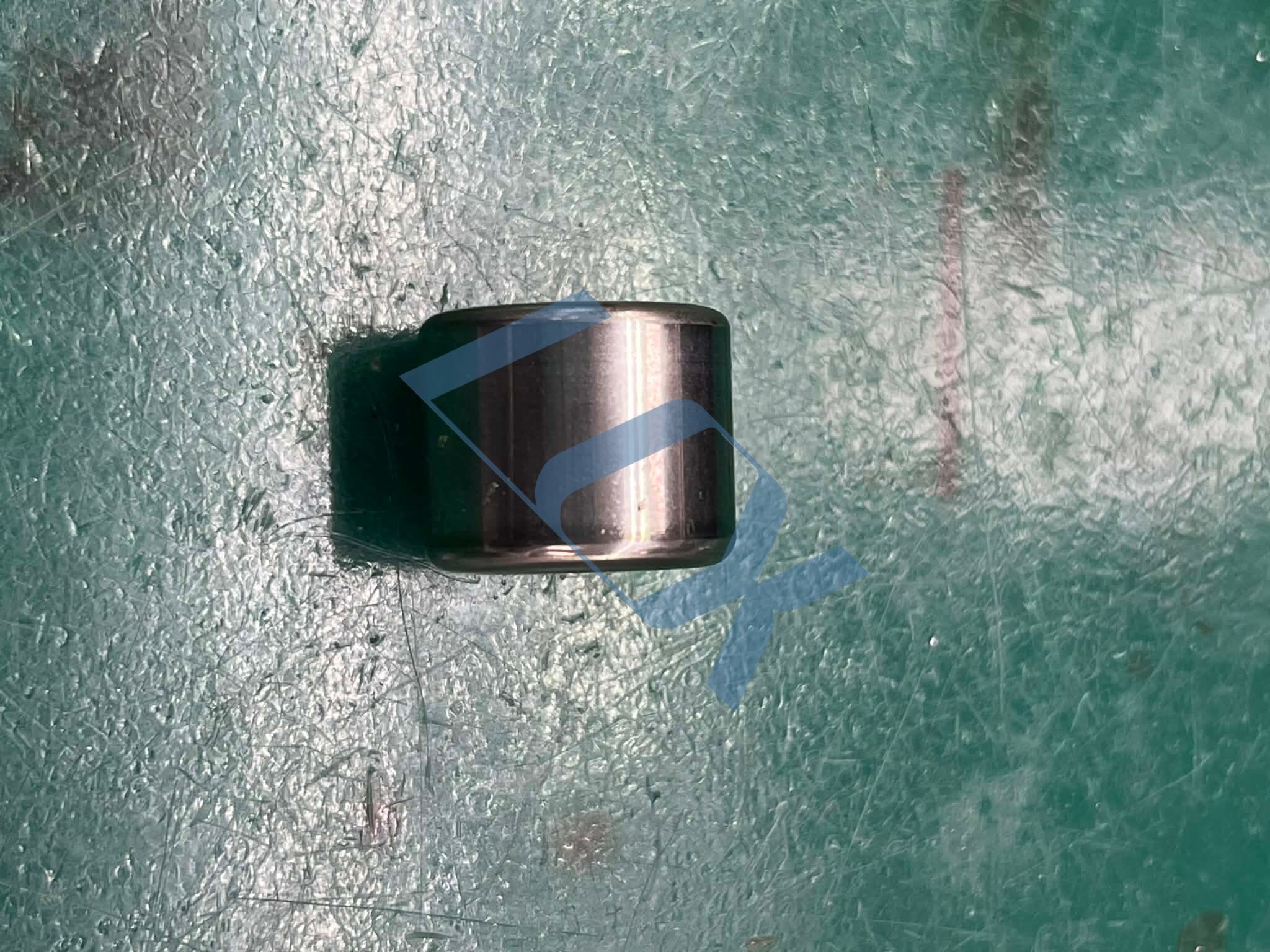

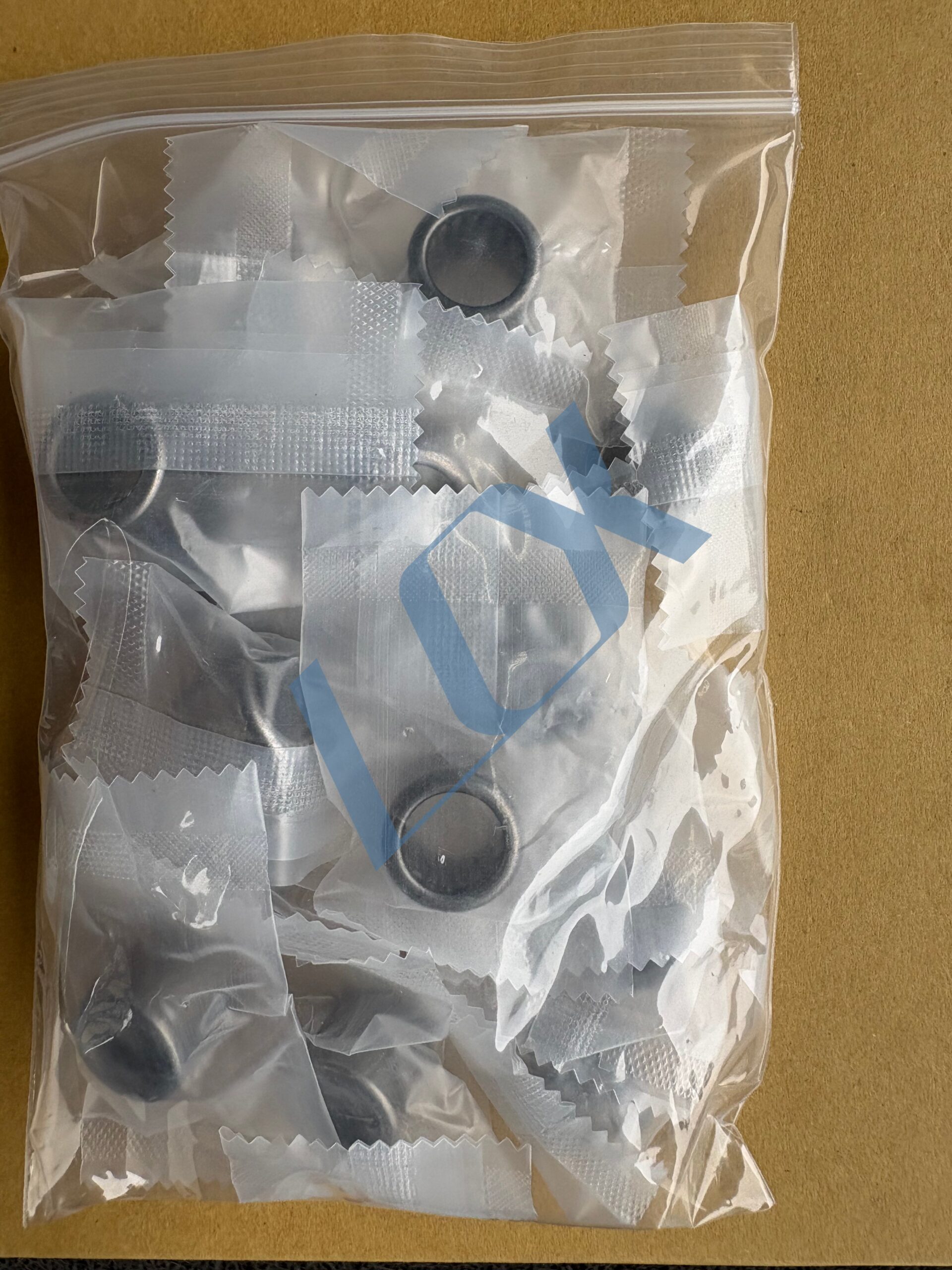

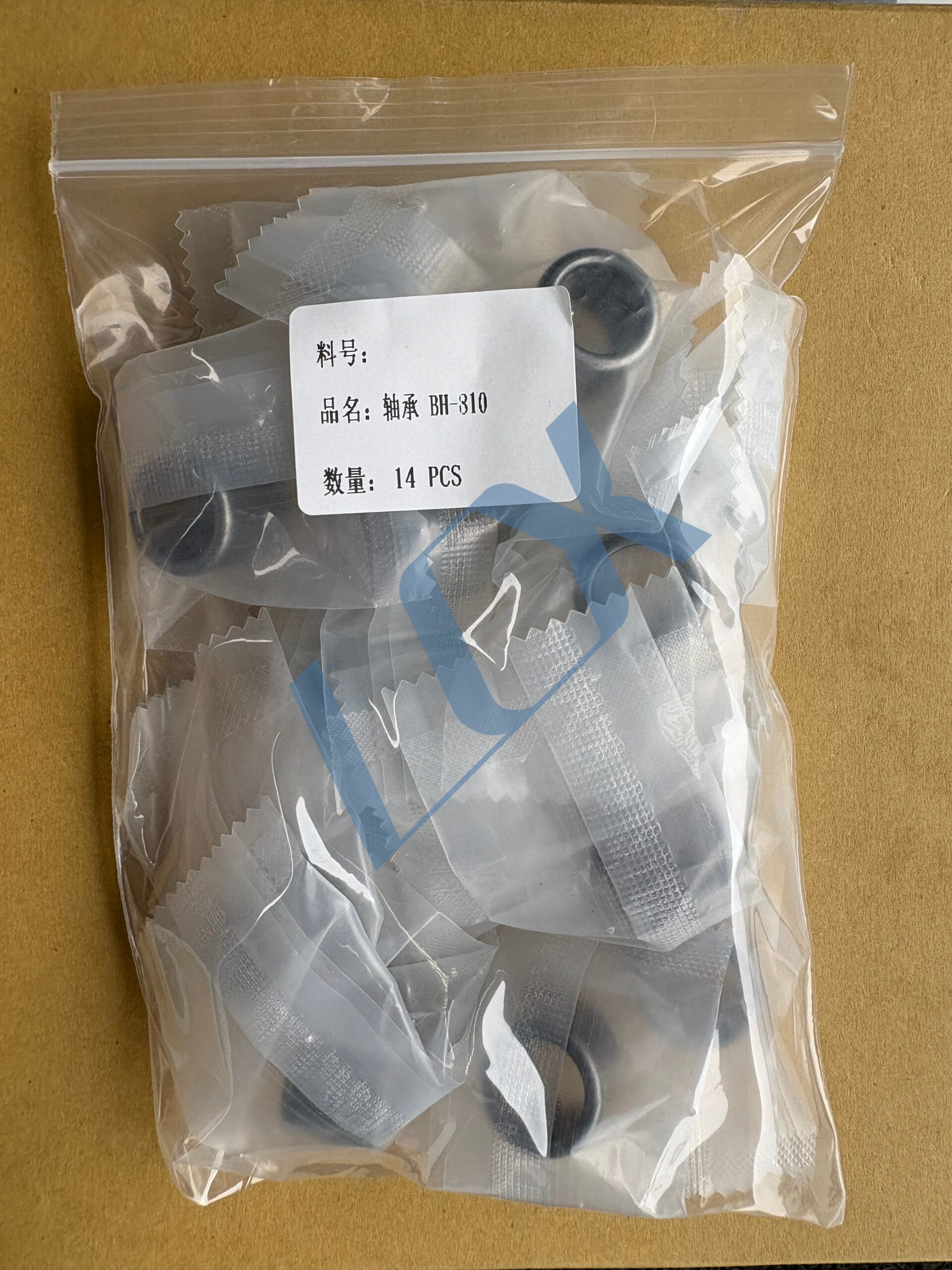

1. Needle Roller Bearings (BH/BM Series)

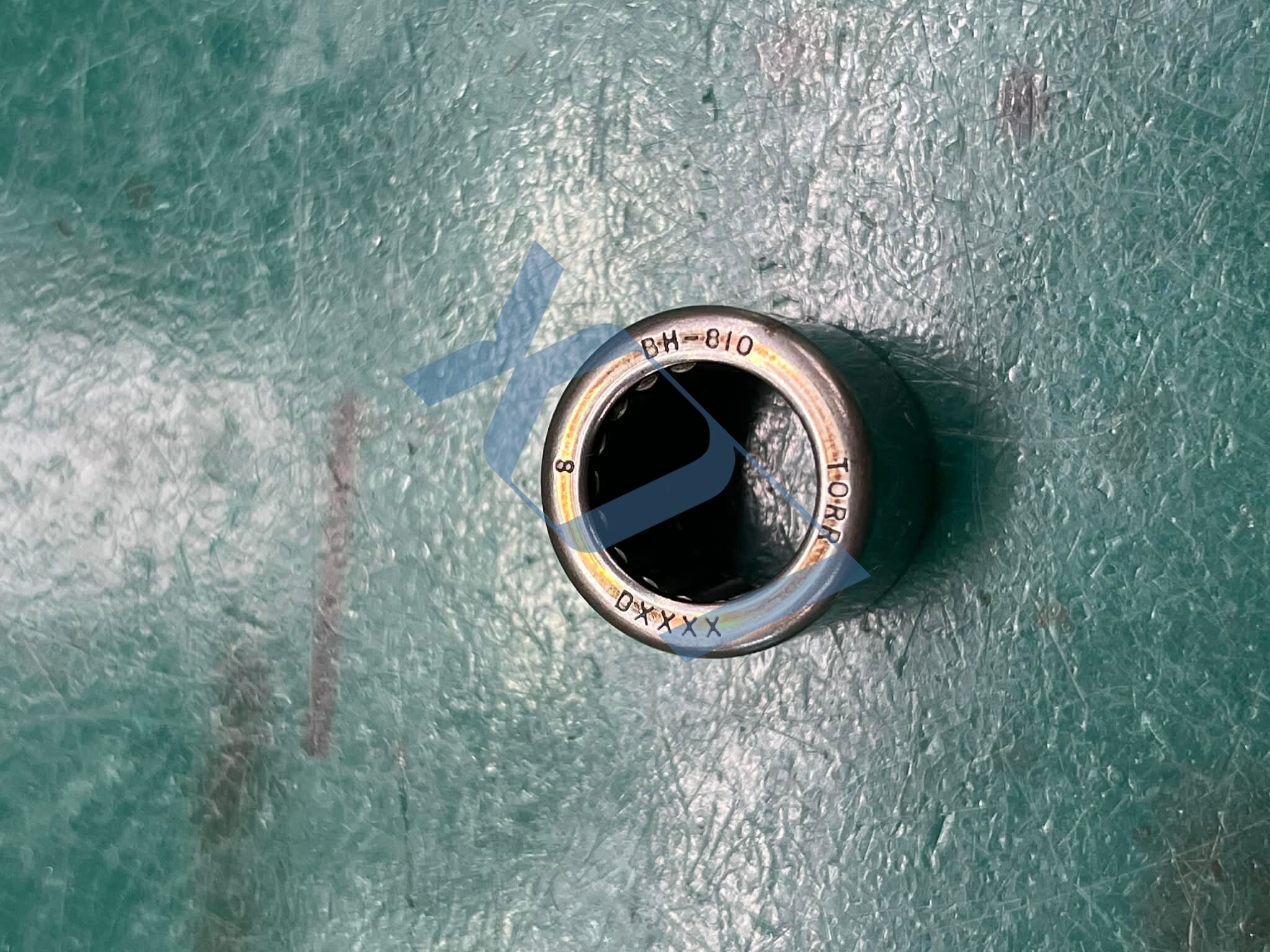

Model: BH-810 / BM-810 / BH-310, TORR brand stamped outer ring full complement inch needle roller bearings
Features: High load capacity, high speed resistance, compact thin-walled structure
Applications: Rotating joints, guide rods, and shafts in insertion machines; reduces wear and ensures insertion accuracy.

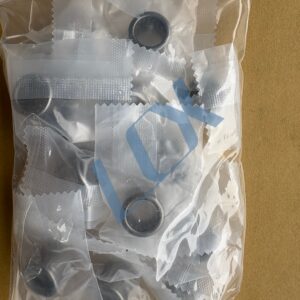

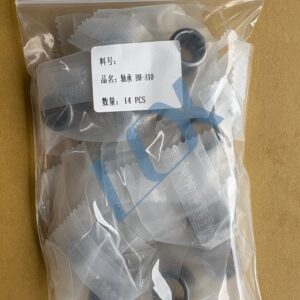

Specifications: BH-810 has a 0.5-inch inner diameter (inch). 14 pieces are shown in the picture.

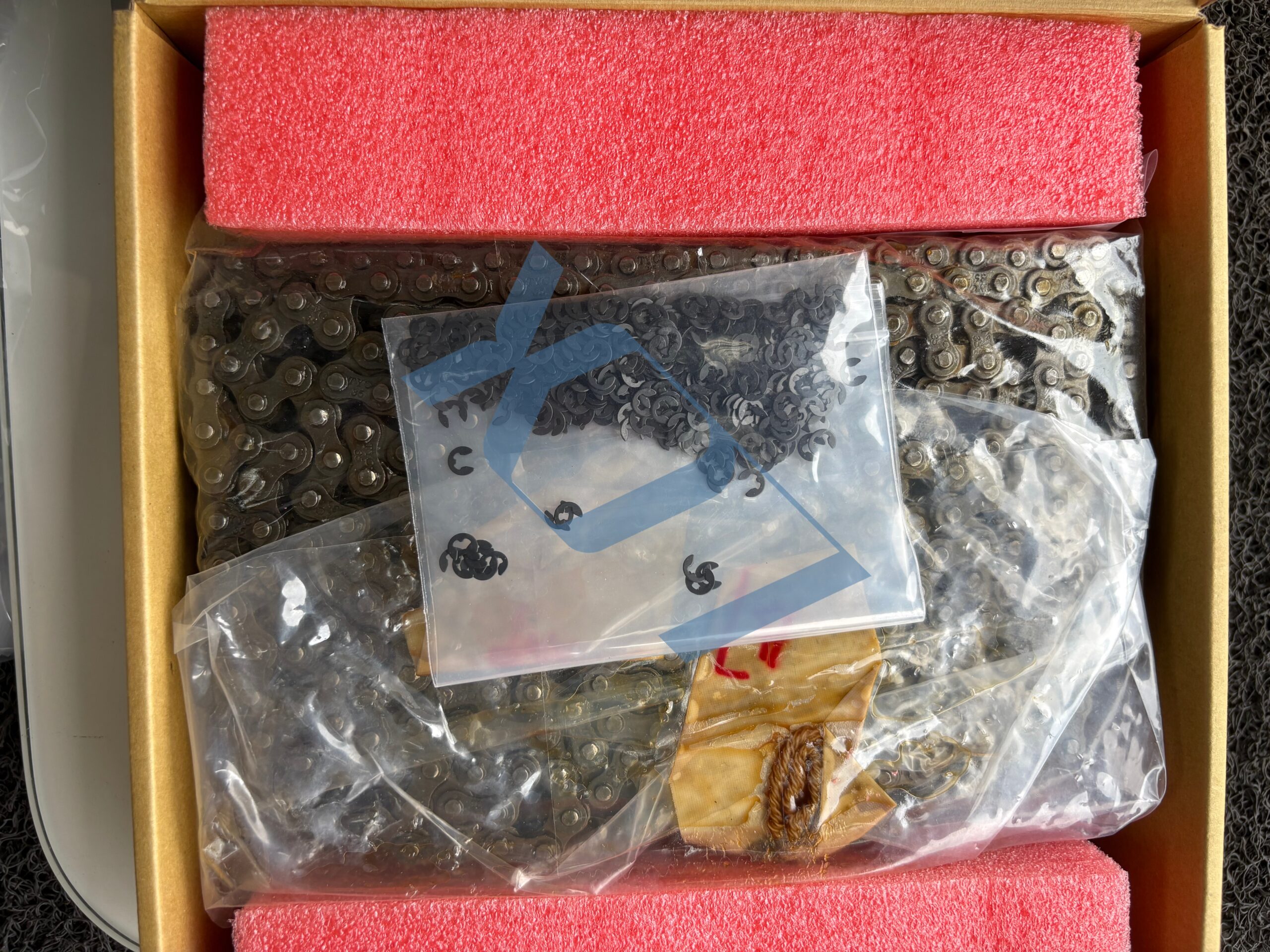

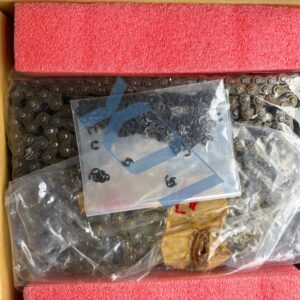

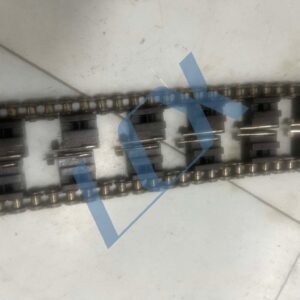

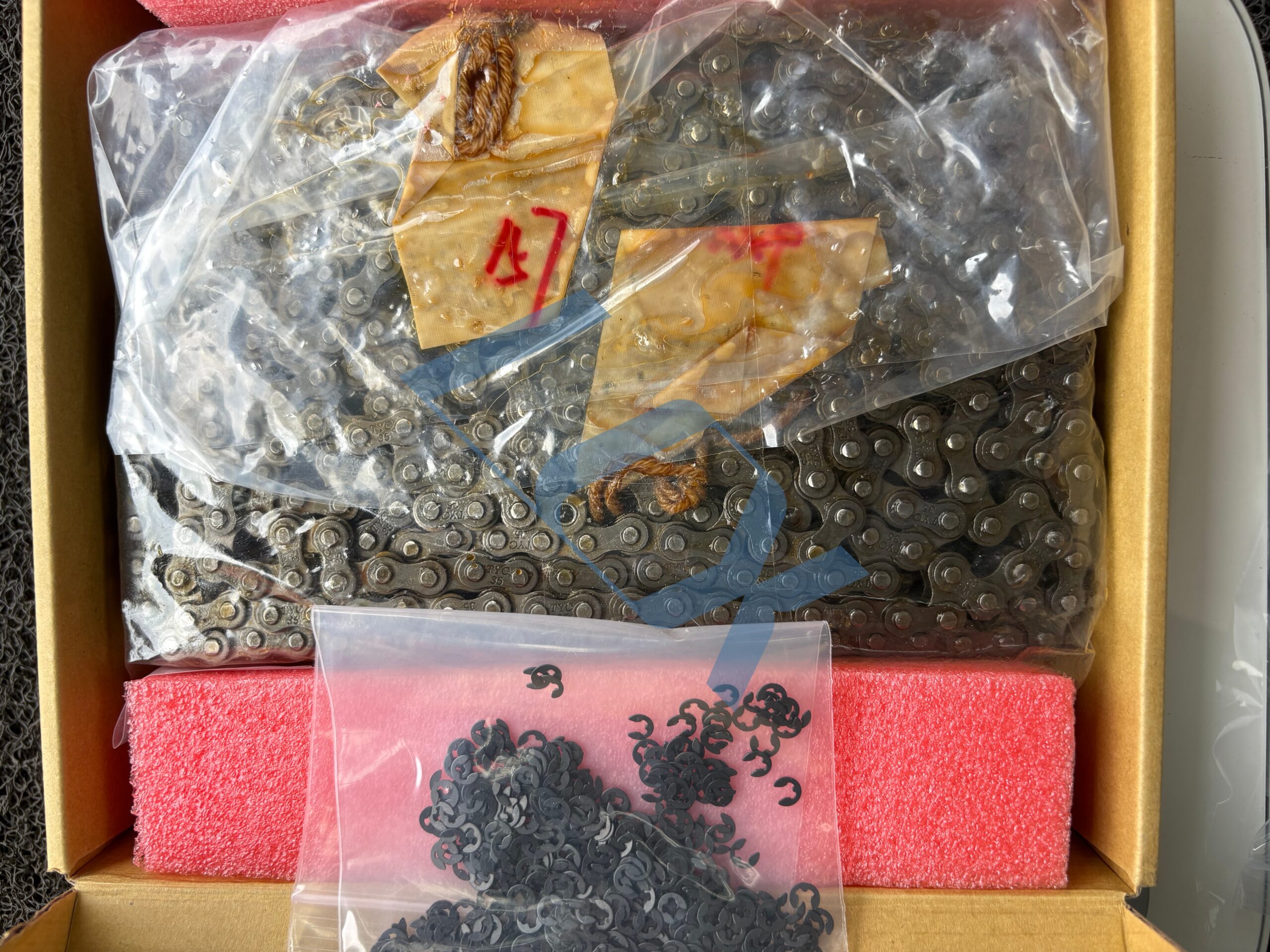

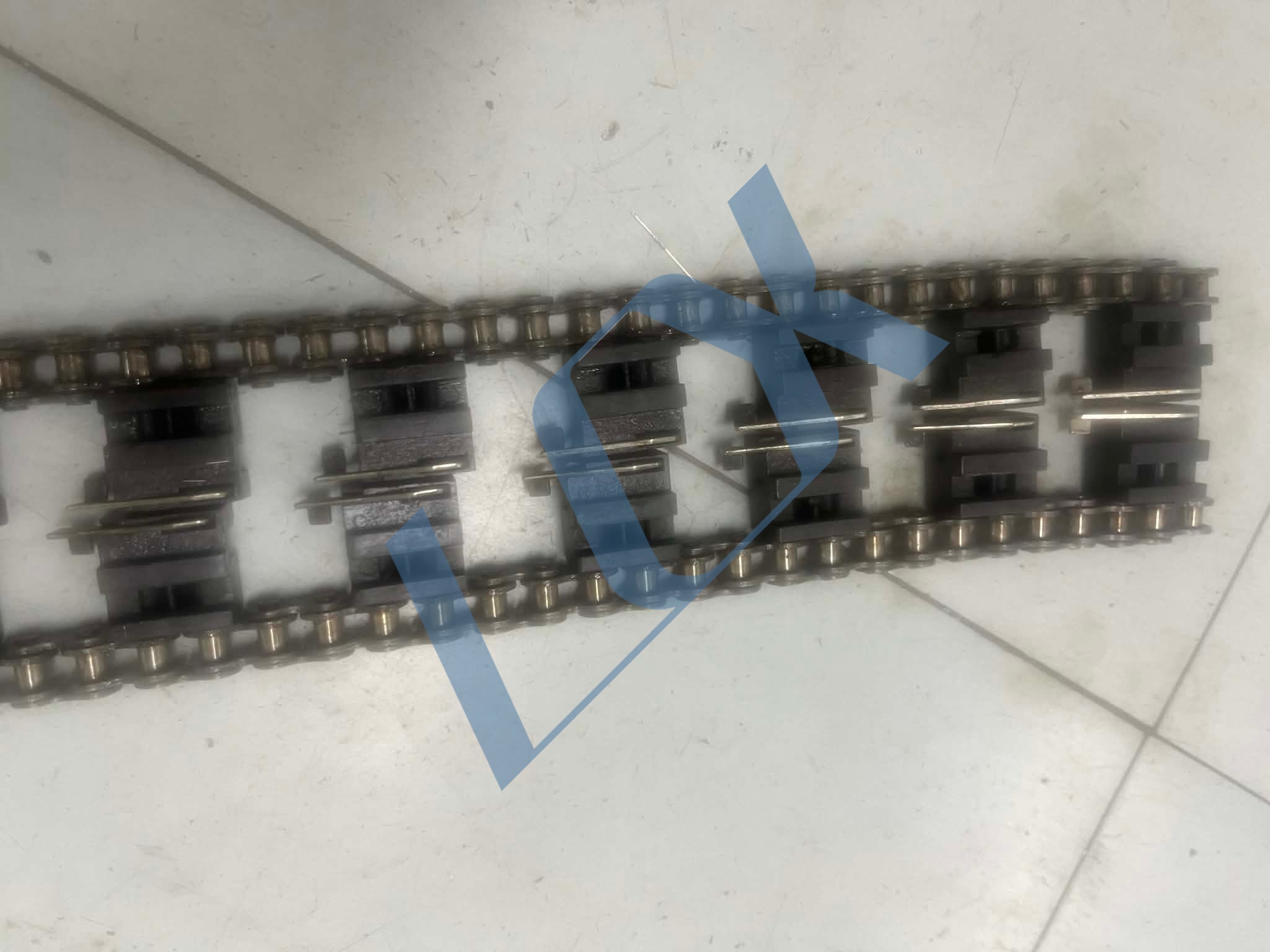

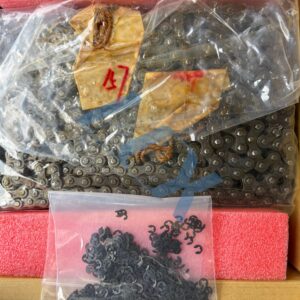

2. Industrial Conveyor Chain Assembly
Part Number: 40223802
Dedicated engineering conveyor chain with C-type and E-type retaining clips.
Applications: Material conveying in insertion machines; chain drive mechanism; responsible for precise transport of PCB boards and component carriers.
Packaging includes a rust-proof, oil-sealed chain + matching retaining ring for easy replacement and maintenance.

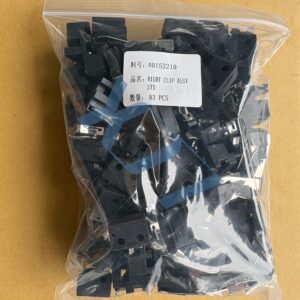

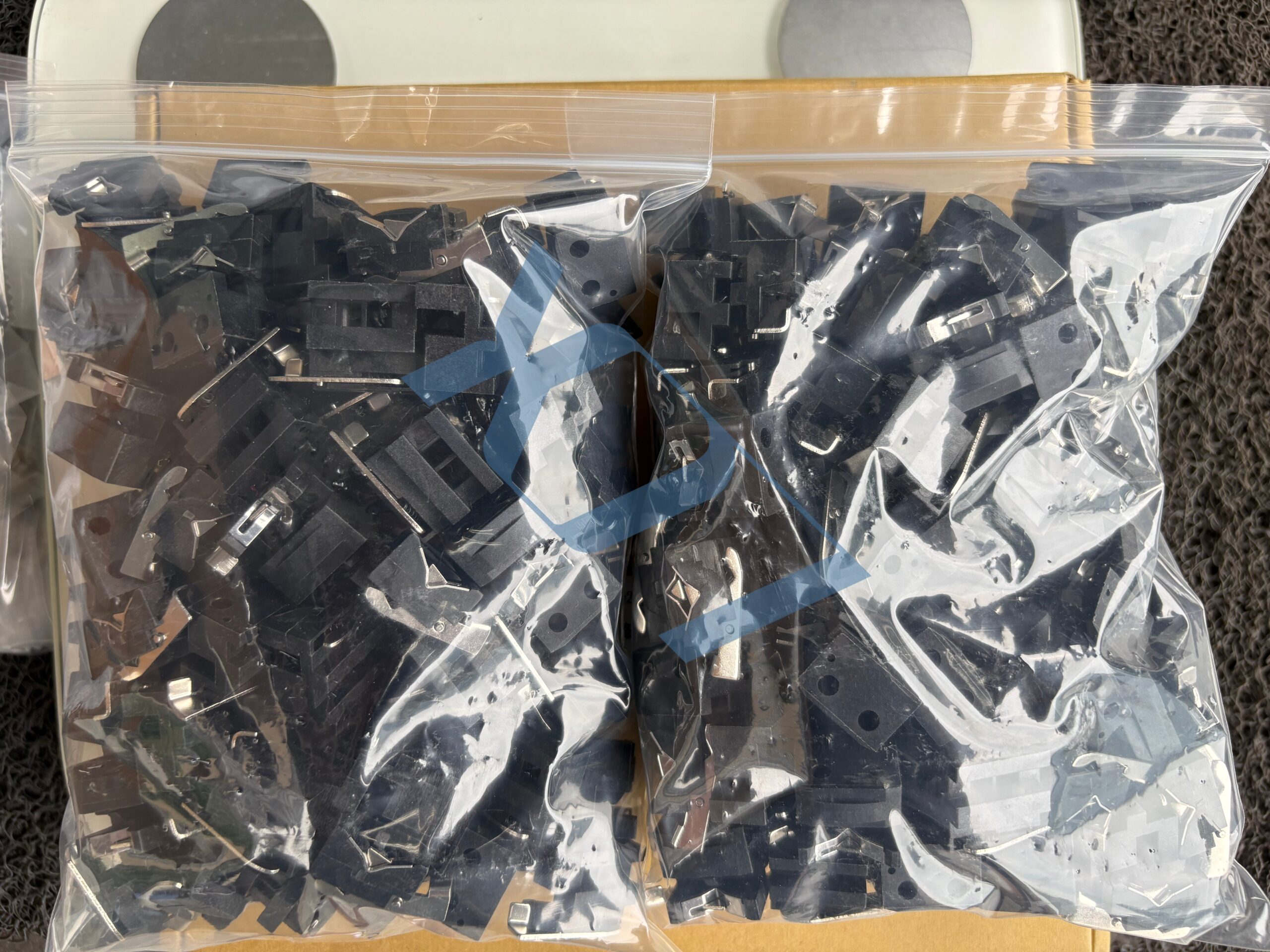

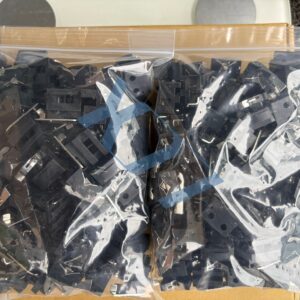

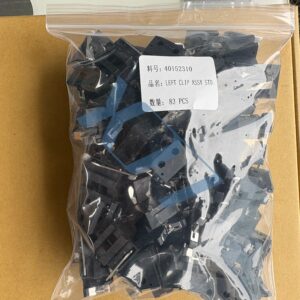

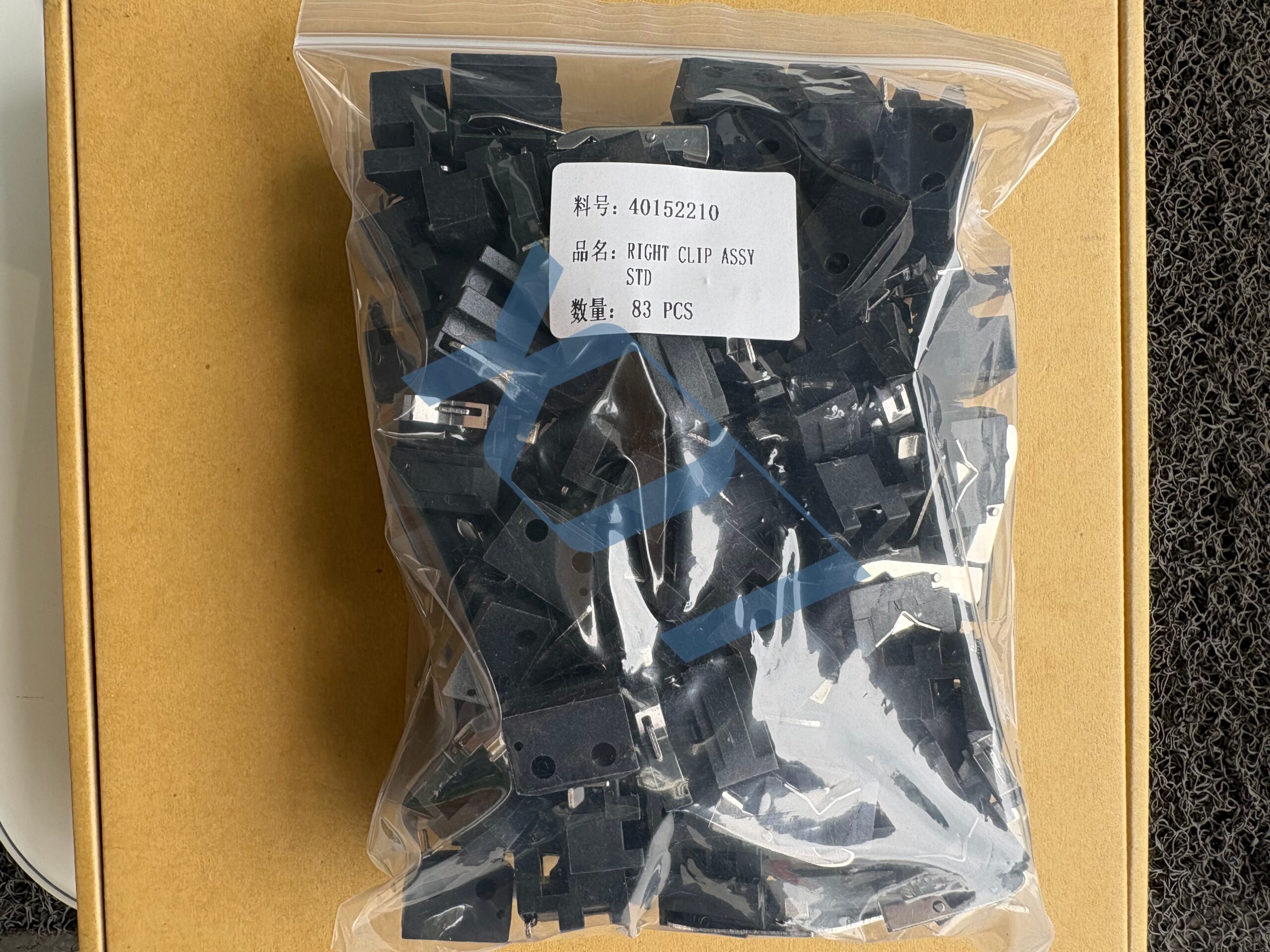

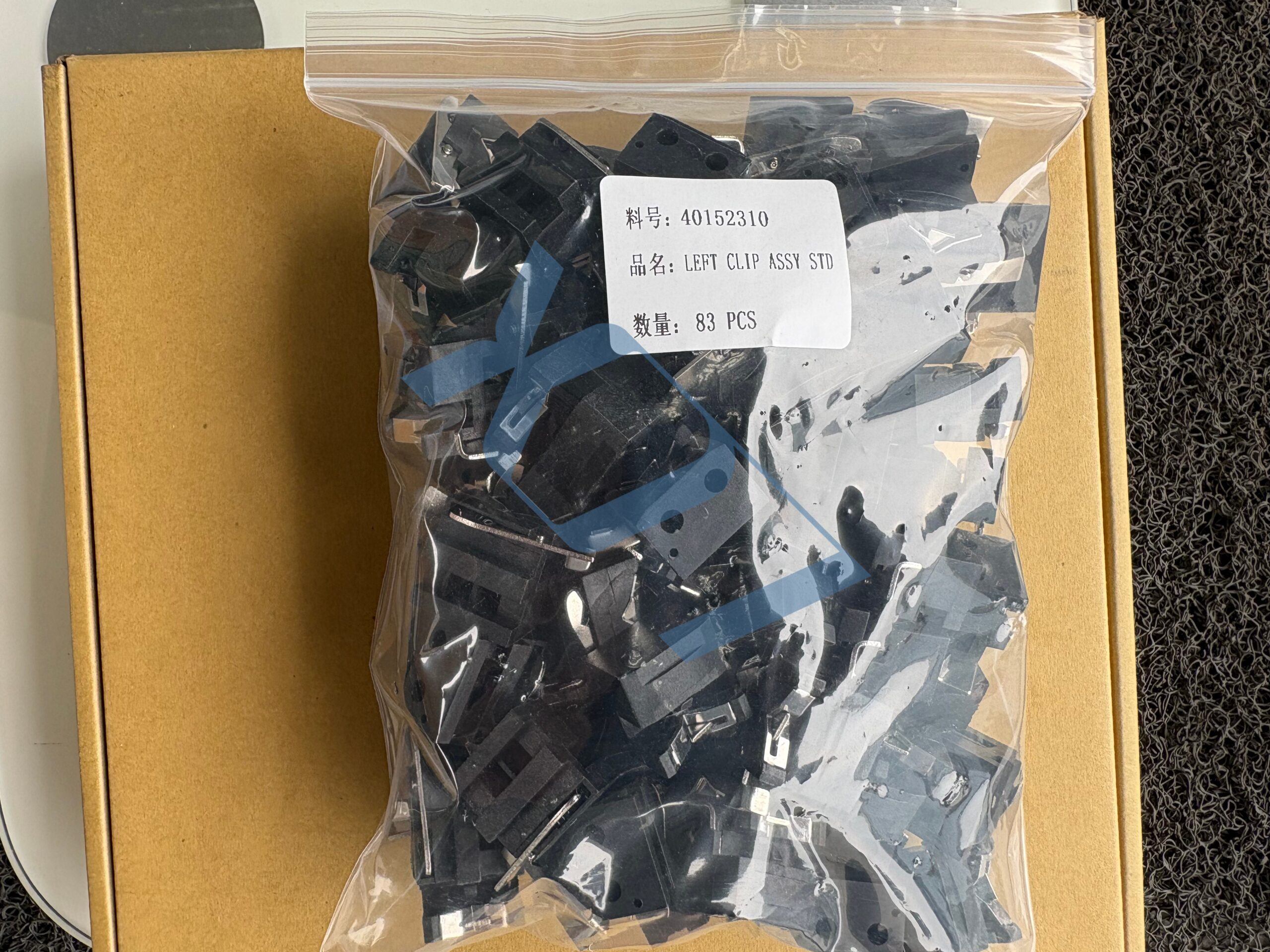

3. RIGHT CLIP ASSY STD Right Clamp AssemblyPart Number: 40152210,40152310, Quantity: 83PCS
Application: Components for clamping and positioning mechanisms in insertion machines, responsible for gripping, positioning, and cutting electronic components at the forming station.
Black engineering plastic + metal spring combination structure, wear-resistant and ensuring consistent clamping.

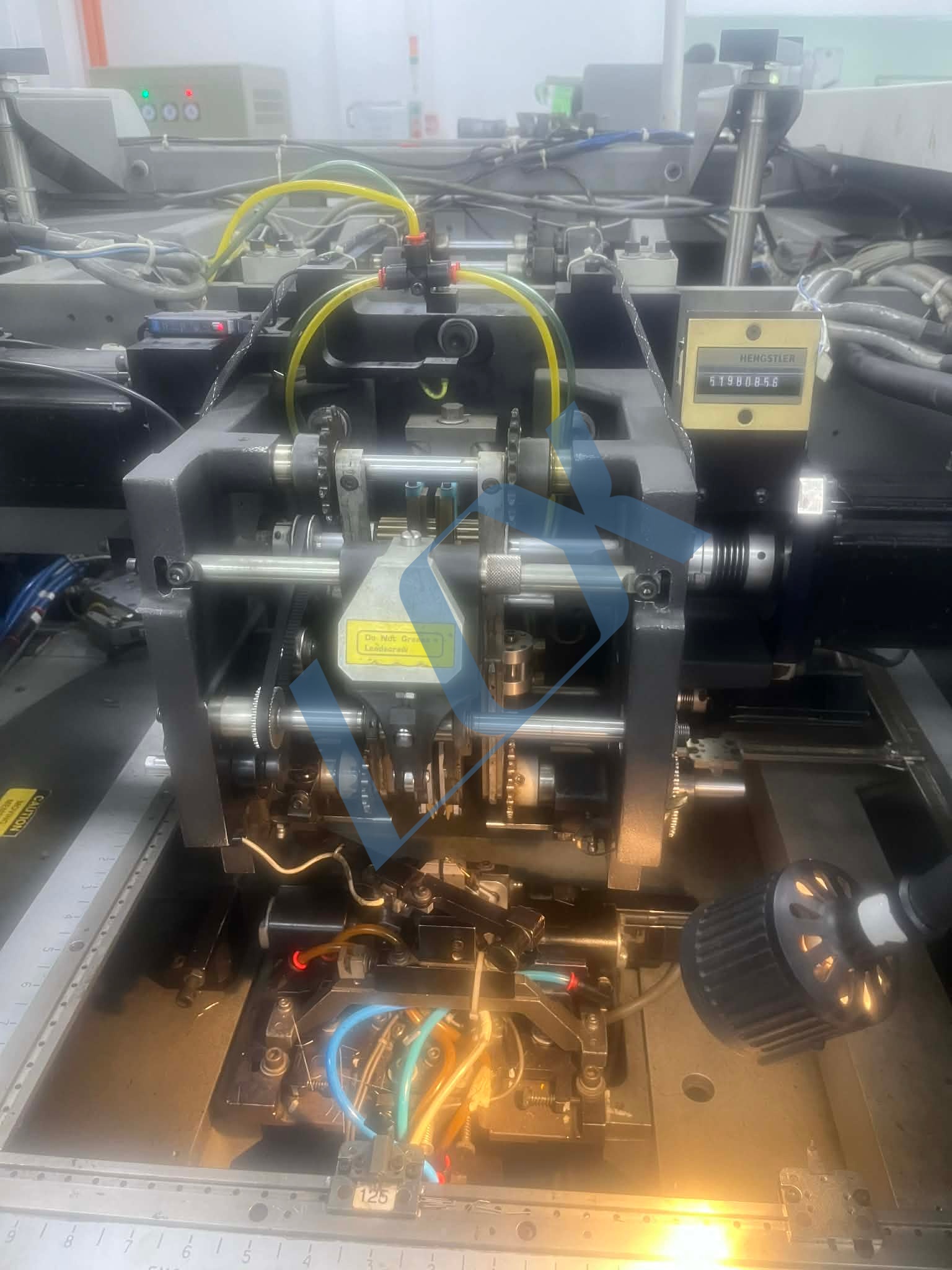

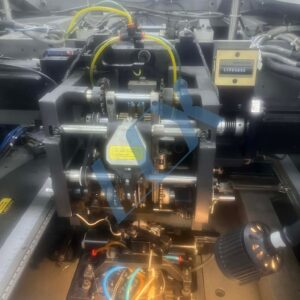

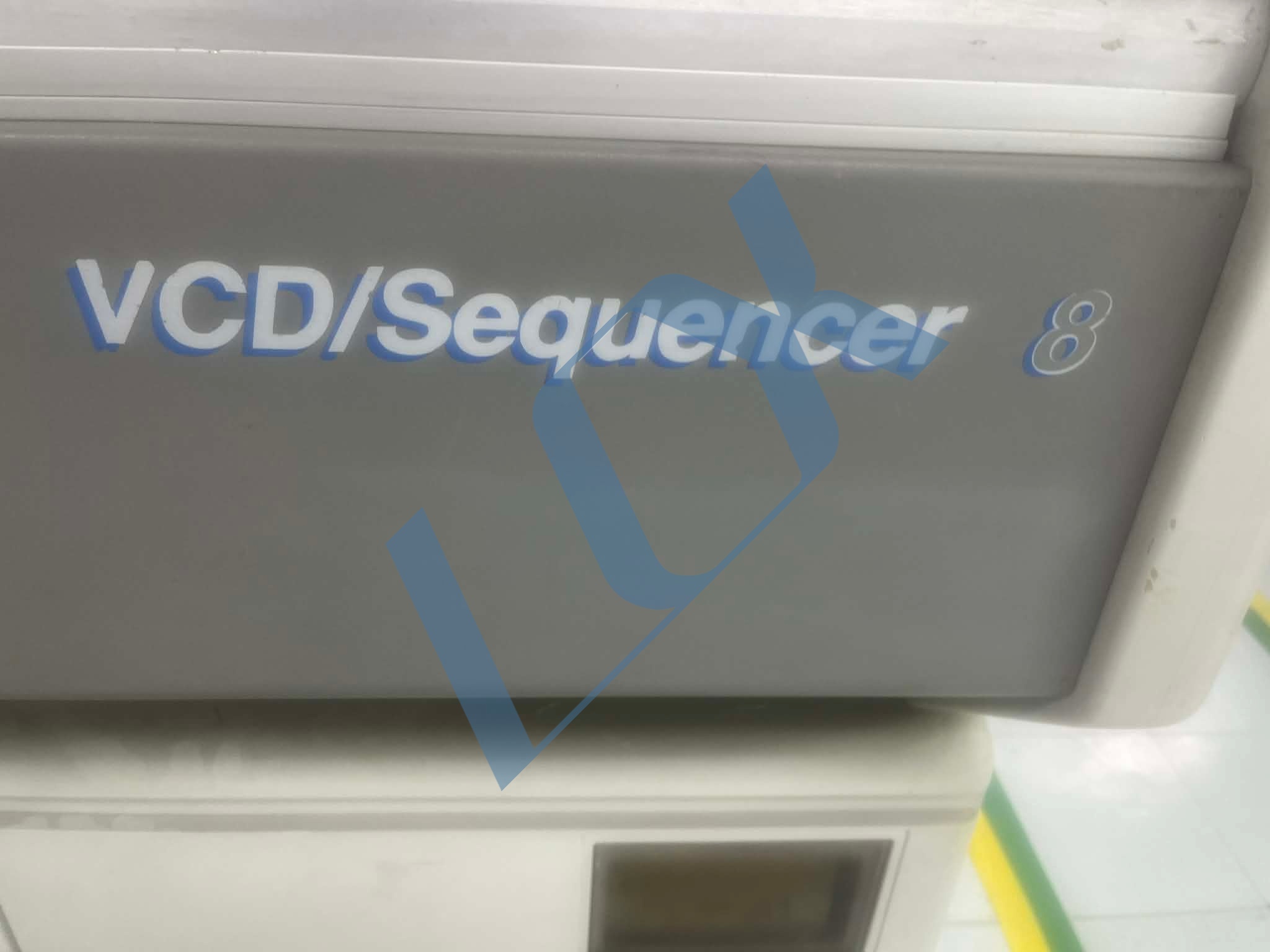

4. Main Equipment: VCD/Sequencer 8
Model: Universal VCD/Sequencer 8 Axial Component Sorting and Insertion Machine
Equipment Positioning: High-end AI axial insertion equipment, capable of fully automated sorting, bending, and PCB insertion of axial components such as resistors and diodes.
Capacity: Up to 26,000 pieces/hour; a mainstay model for traditional home appliance and power board PCB production lines.
💡 Maintenance and Compatibility Instructions
These parts are all high-consumption moving parts for this model of insertion machine. Regular batch replacement can significantly reduce equipment jamming, insertion misalignment, and material jamming.
Bearings, chains, and grippers are part of the synchronized maintenance kit; it is recommended to replace the entire set during a major machine overhaul or annual maintenance.
All parts are standard industrial specifications and support interchangeability with original parts and domestically produced high-precision replacement parts.
