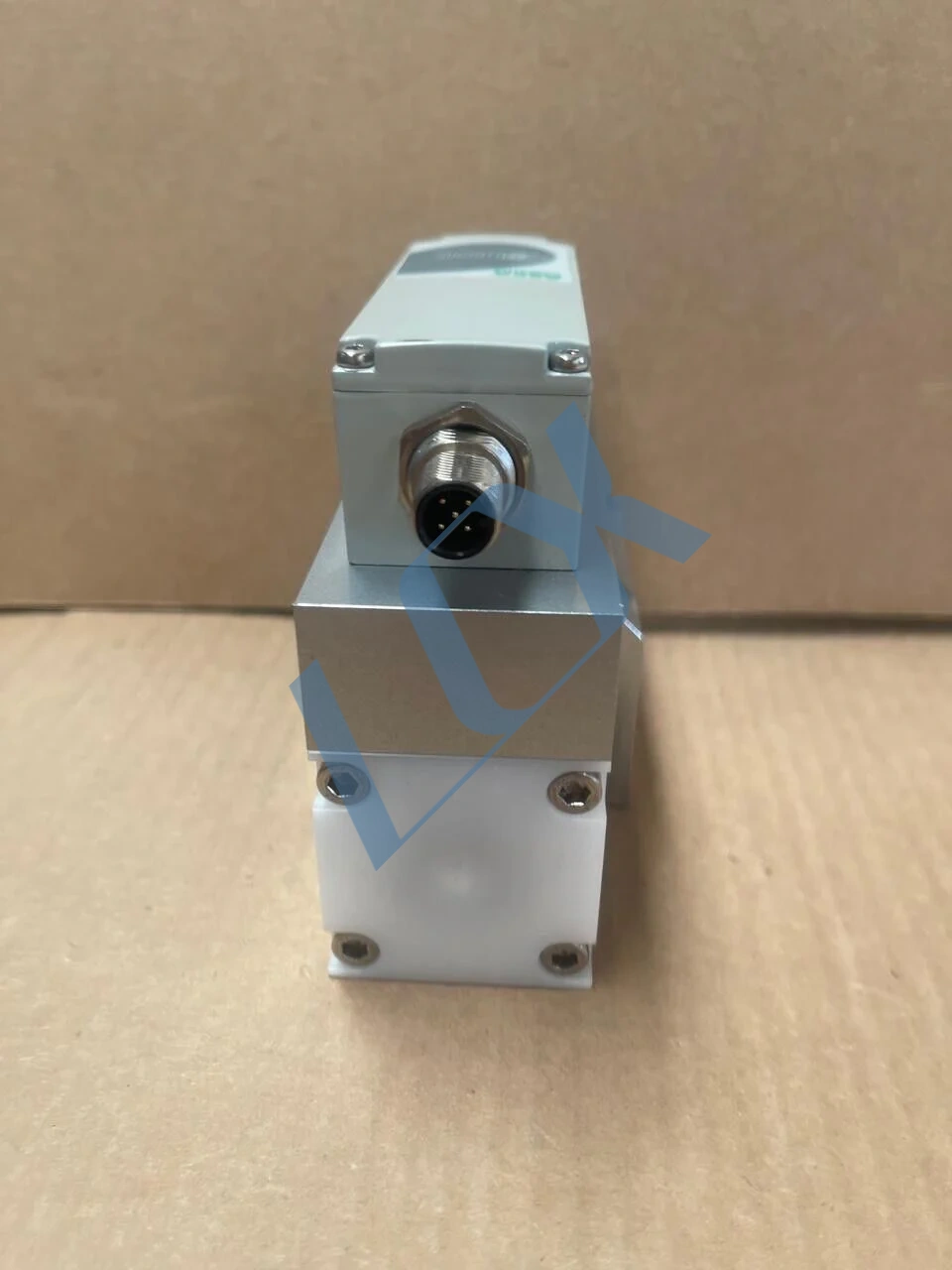

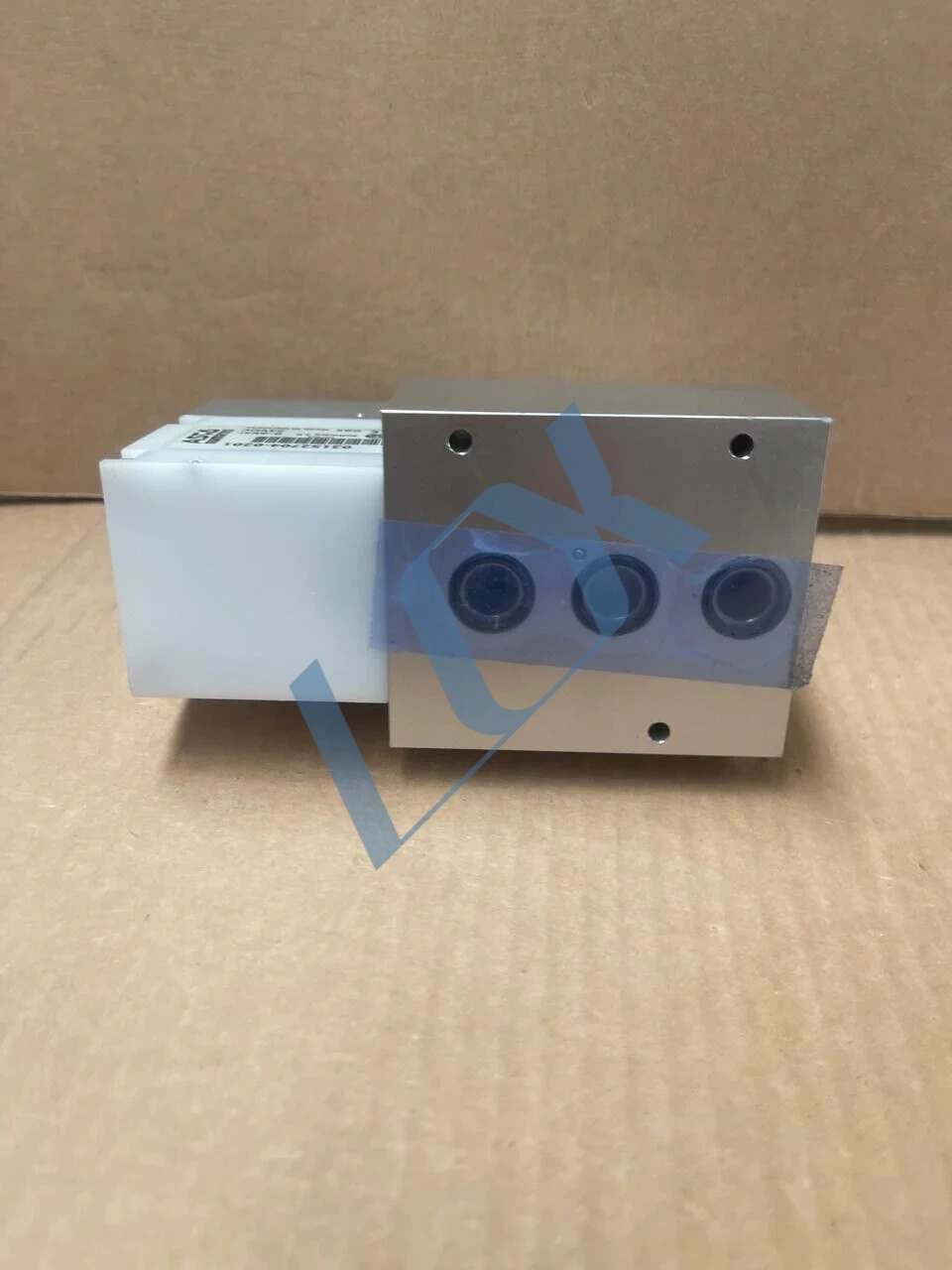

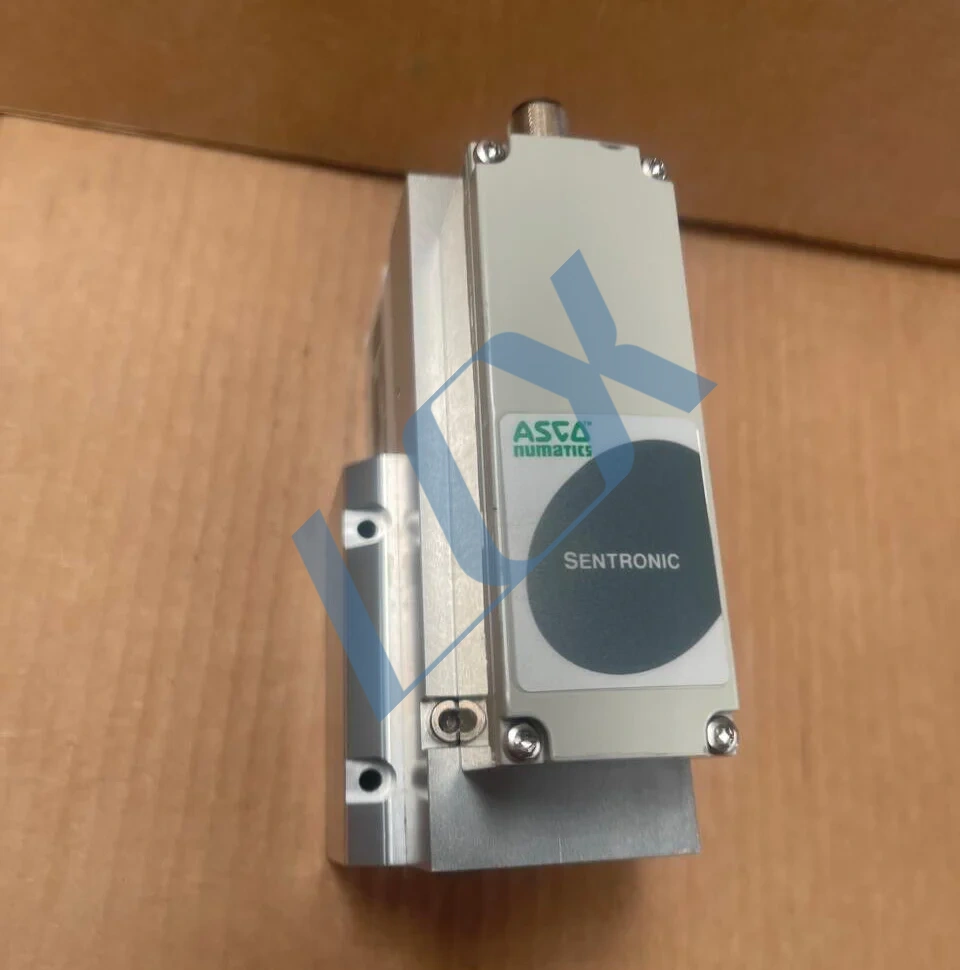

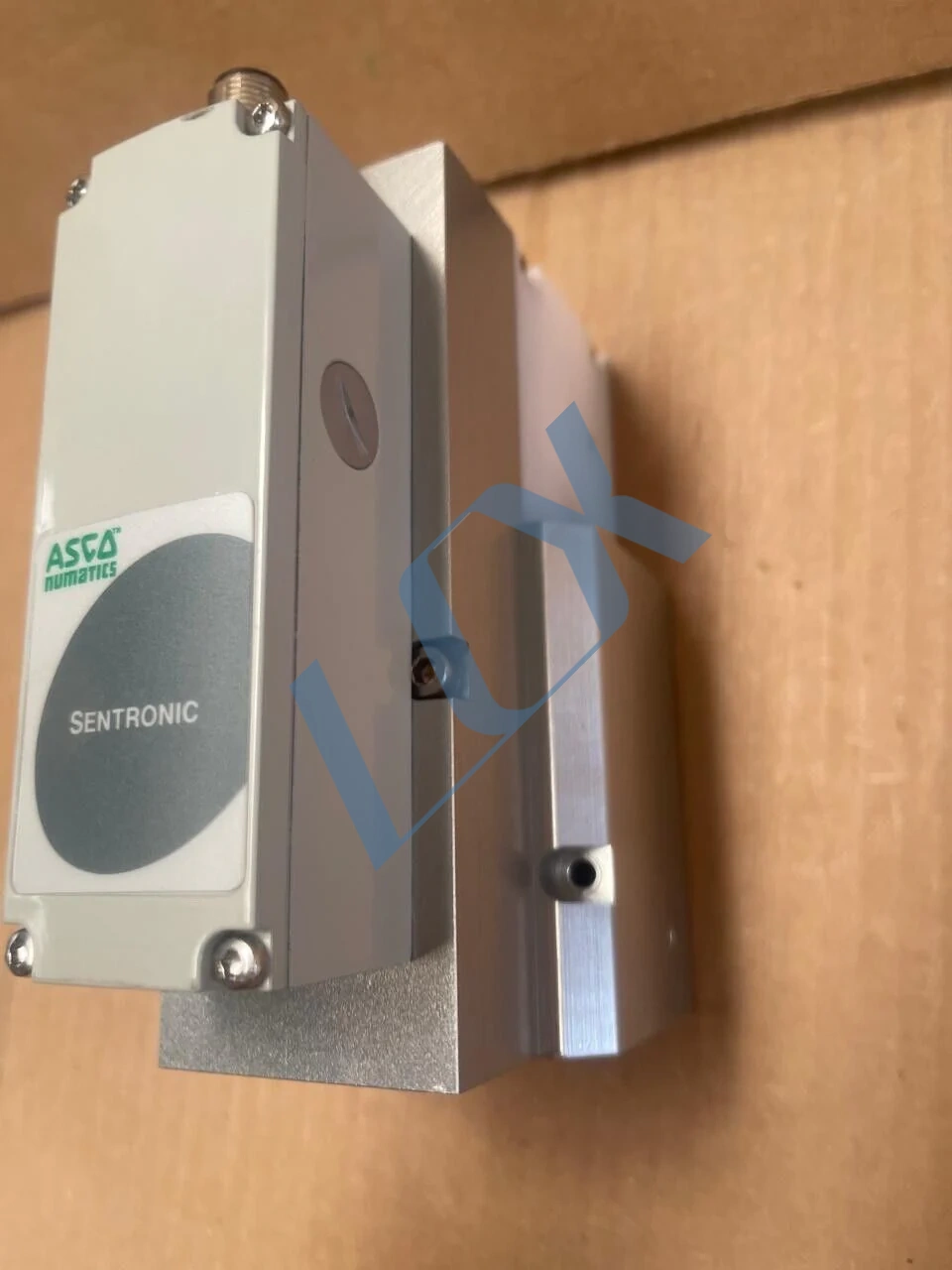

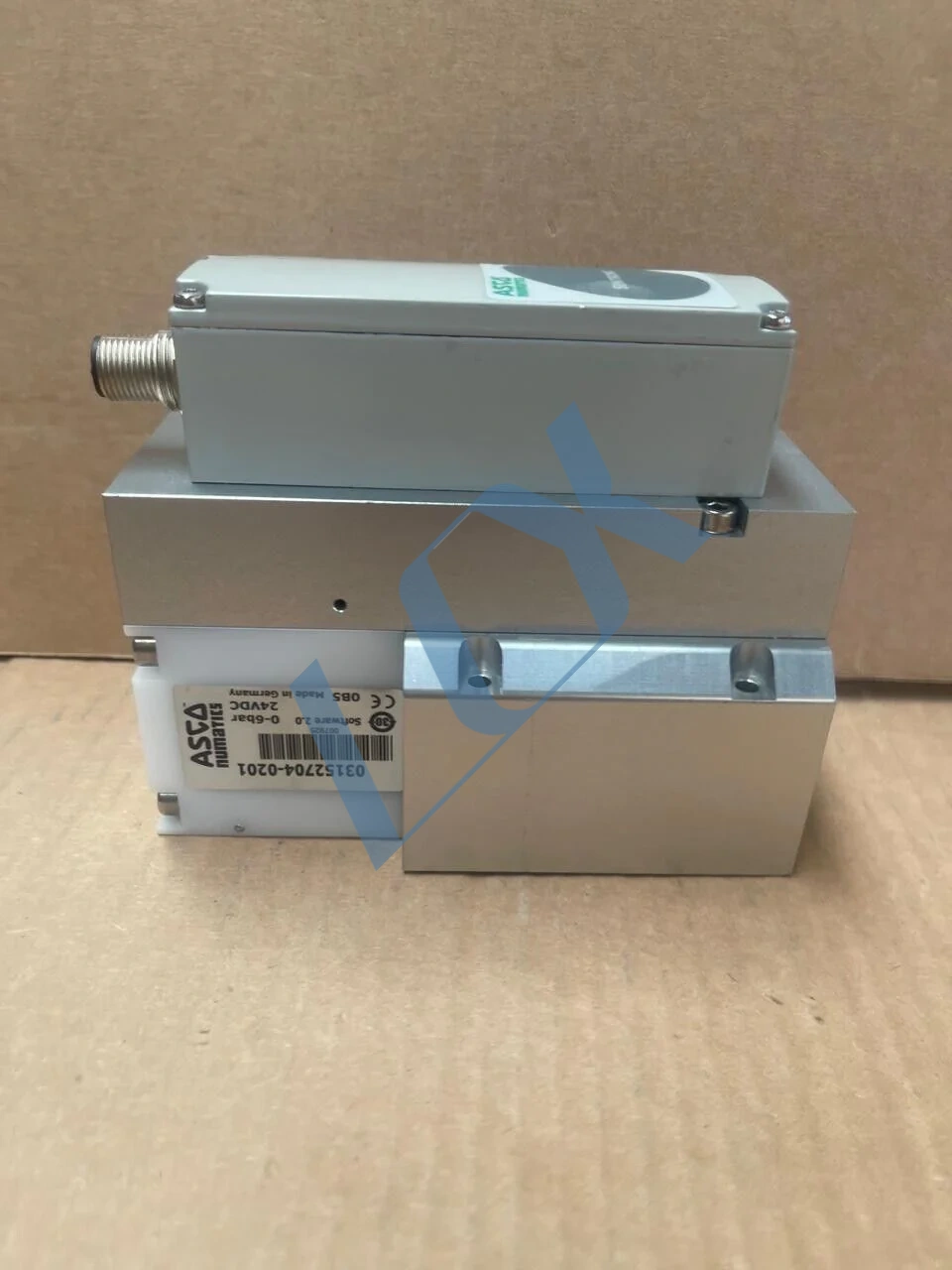

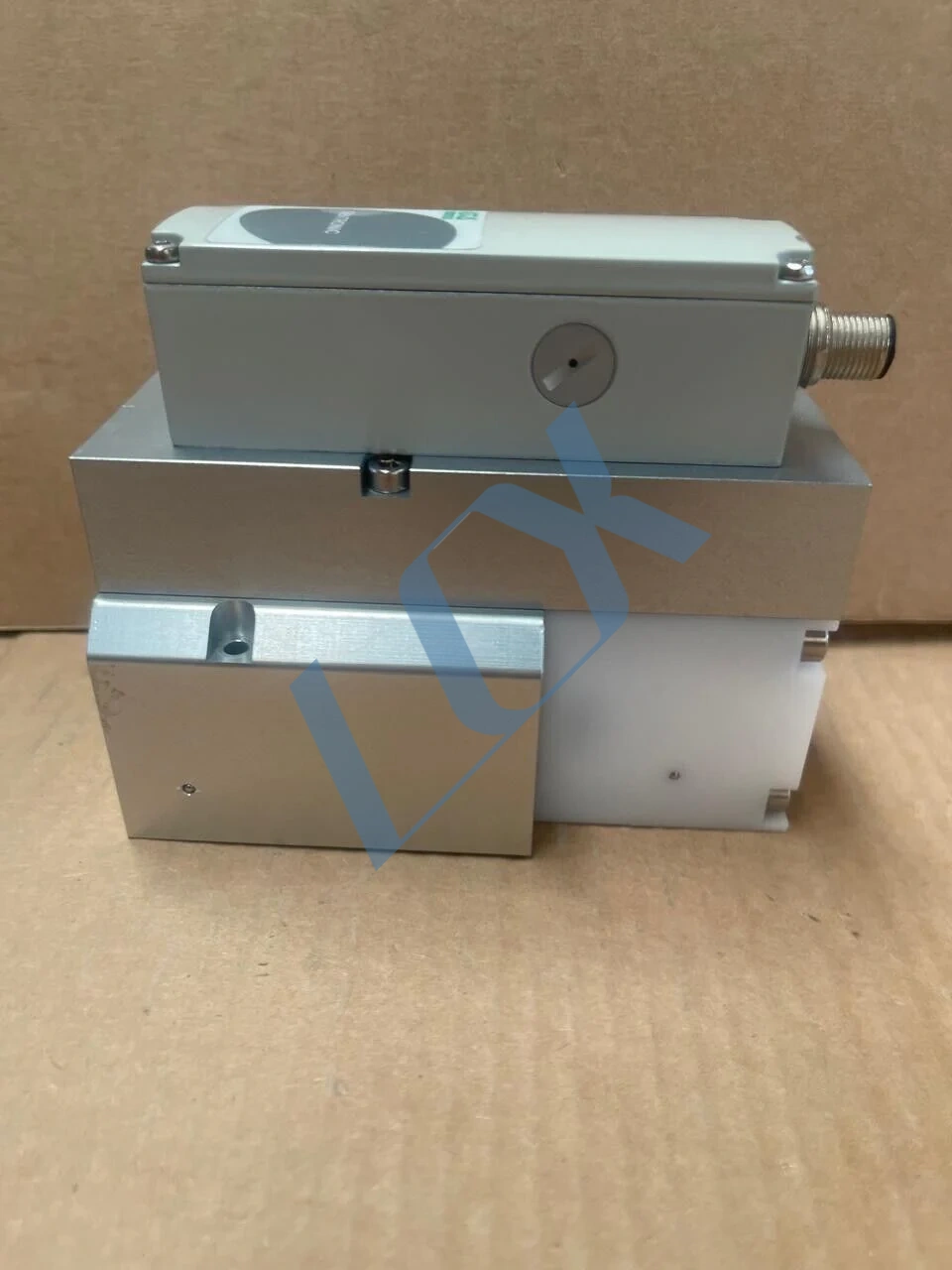

ASCO Numatics Sentronic Valve 03152704 For SMT Machine

ASCO Numatics Sentronic 03152704-0201 (ASM Specific) Proportional Valve

1. Core Specifications
Item Details
Model 03152704-0201 (ASM Part Number: 03152704)
Brand/Series ASCO Numatics Sentronic Digital Proportional Valve
Media Compressed air or neutral gases
Pressure Range 0–6 bar
Supply Voltage 24 VDC
Origin Made in Germany
Software Version Software 2.0
Connector Type M12 industrial circular connector

2. Function & Application
High-Precision Closed-Loop Pressure Control: Equipped with an integrated pressure sensor, digital controller, and proportional solenoid valve, this unit achieves precise pressure regulation with ±0.1%FS accuracy via closed-loop feedback. It is specifically designed for ASM SMT placement machines, dynamically controlling vacuum/blow pressure for the placement head.
Sentronic Series Advantages: Supports parameter configuration, diagnostics, and control loop optimization via dedicated software (DaS), allowing adaptation to pressure requirements for different assembly processes and improving placement yield.
Industrial-Grade Reliability: Features an aluminum body and corrosion-resistant flow path, built to withstand high dust, vibration, and continuous 24/7 operation in factory environments.

3. Installation & Maintenance Guidelines
Air Supply Preparation: Must use compressed air filtered to ≤5μm, free of oil and moisture, to prevent contamination and damage to internal components.
Mounting Orientation: Recommended to install horizontally to avoid affecting control accuracy due to fluid flow direction errors.
Parameter Calibration: After initial installation, perform zero and full-scale calibration using ASCO DaS software to ensure the control signal matches the output pressure.
Electrical Connection: 24 VDC power supply; observe correct polarity to avoid damaging the control module.

ASCO Numatics Sentronic Proportional Valve 03152704-0201 (ASM Part No. 03152704, 0-6bar 24VDC)
ASM 03152704 ASCO Digital Pressure Control Valve for SMT Placement Machine
Original ASCO Sentronic 03152704-0201 Proportional Solenoid Valve (Made in Germany)

1. Troubleshooting Checklist: ASCO 03152704 Proportional Valve
Symptom Possible Causes Troubleshooting Steps
No pressure output / No response 1. No 24VDC power supply
2. Incorrect wiring or polarity reversed
3. M12 connector loose or damaged
4. Internal solenoid failure 1. Verify power at the valve terminals with a multimeter.
2. Check wiring polarity and re-connect if reversed.
3. Inspect the M12 connector for bent pins or corrosion.
4. Test the solenoid resistance (refer to datasheet) to confirm failure.
Pressure unstable / fluctuating 1. Dirty or wet compressed air supply
2. Air leak in the valve or fittings
3. Filter element clogged
4. Control signal noisy or unstable 1. Check air supply quality (dry, filtered ≤5μm).
2. Apply leak test solution to fittings and valve body.
3. Clean or replace the upstream air filter.
4. Check the control signal (0-10V / 4-20mA) for noise.
Pressure not reaching setpoint 1. Maximum pressure set too low in software
2. Flow rate demand exceeds valve capacity
3. Internal pilot valve or spool stuck
4. Control signal not reaching full scale 1. Connect via ASCO DaS software and verify pressure limits.
2. Check if downstream consumption exceeds valve specs.
3. Disassemble and clean the valve spool (or replace the valve).
4. Confirm the PLC/controller is sending the correct full-scale signal.
Valve not responding to control signal 1. Wrong signal type configured (analog vs. digital)
2. Control wire open or shorted
3. Software communication error
4. Internal electronics fault 1. Verify the signal type matches the valve configuration (e.g., 0-10V vs. 4-20mA).
2. Test continuity of control wires.
3. Reconnect via DaS software and check for error codes.
4. If all else passes, the valve’s control board is likely faulty.
Excessive heat / abnormal noise 1. Continuous overloading of the solenoid
2. Air flow passing through a partially blocked spool
3. Power supply voltage out of range 1. Check if the valve is being driven at 100% duty cycle continuously.
2. Inspect the valve body for signs of debris or contamination.
3. Verify the power supply is stable at 24VDC ±10%.
2. Compatible ASM SMT Machine Models
This valve (ASM part number 03152704) is primarily used for vacuum and blow pressure control on the placement head of these ASM/Siplace series machines:
ASM SIPLACE HS Series: HS50, HS60, HS20
ASM SIPLACE SX Series: SX1, SX2, SX3, SX4
ASM SIPLACE X Series: X4, X4i, X2, X1
ASM DEK Screen Printers (for certain pressure-regulated functions)
Note: Always cross-verify the part number against your machine’s specific configuration, as some older revisions may require different valve versions.
