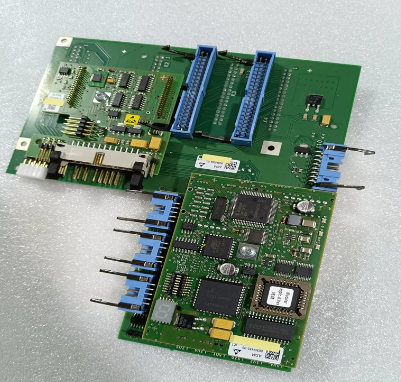

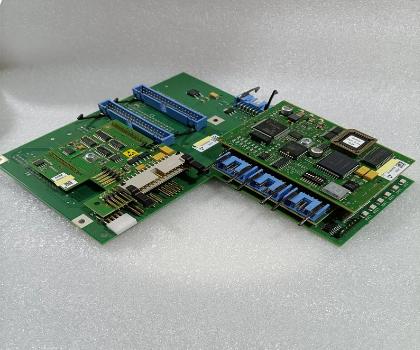

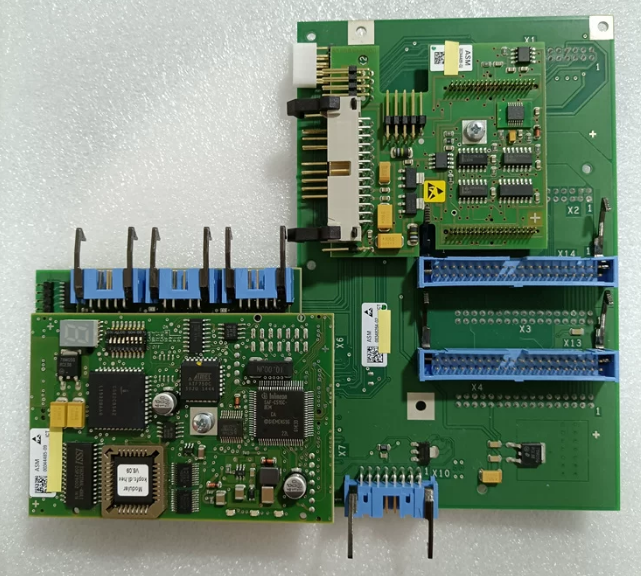

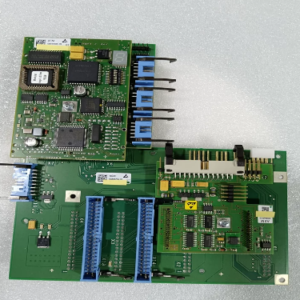

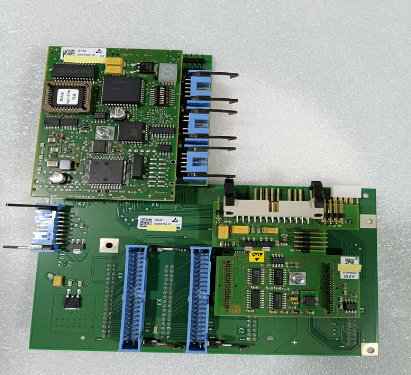

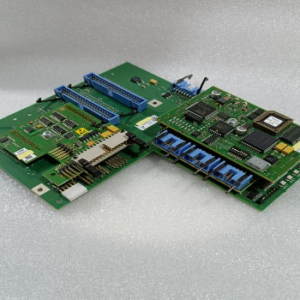

00348264-02 HS50 Head Control Board for ASM SMT Machine

ASM 00348264-02 HS50 Head Control Board

00348264-02 HS50 Head Control Board for ASM SMT Machine

1. Basic Specifications
Item Details
Part Number 00348264-02 (00348264)
Product Name Head CPL Board / Head Control Board
Application ASM / Siemens Siplace HS50 SMT Placement Machine
Type Multi-layer PCB assembly with control & communication modules
Condition Original new / used tested (100% functional)

2. Core Function
Placement Head Control: Manages the motion, vacuum, and pickup/placement logic of the HS50 high-speed placement head.
Real-time Signal Processing: Processes sensor data and position feedback to ensure ±0.01mm placement accuracy.
System Communication: Acts as the interface between the machine’s main CPU and the placement head, transmitting commands and operational status.

3. Key Features
Industrial-grade design for continuous 24/7 production line operation
Integrated control modules (driver, I/O, communication) on a single assembly
Plug-and-play compatibility with HS50 machines, requiring minimal configuration after replacement
Tested for stability under factory conditions (vibration, temperature fluctuations)

4. Maintenance & Replacement Notes
ESD Protection: Use anti-static wristbands and mats during handling to avoid damaging sensitive components.
Backup Configuration: Record machine parameters and head calibration data before replacement.
Post-Installation Test: Perform a dry run and verify placement accuracy after installation to ensure proper functionality.
