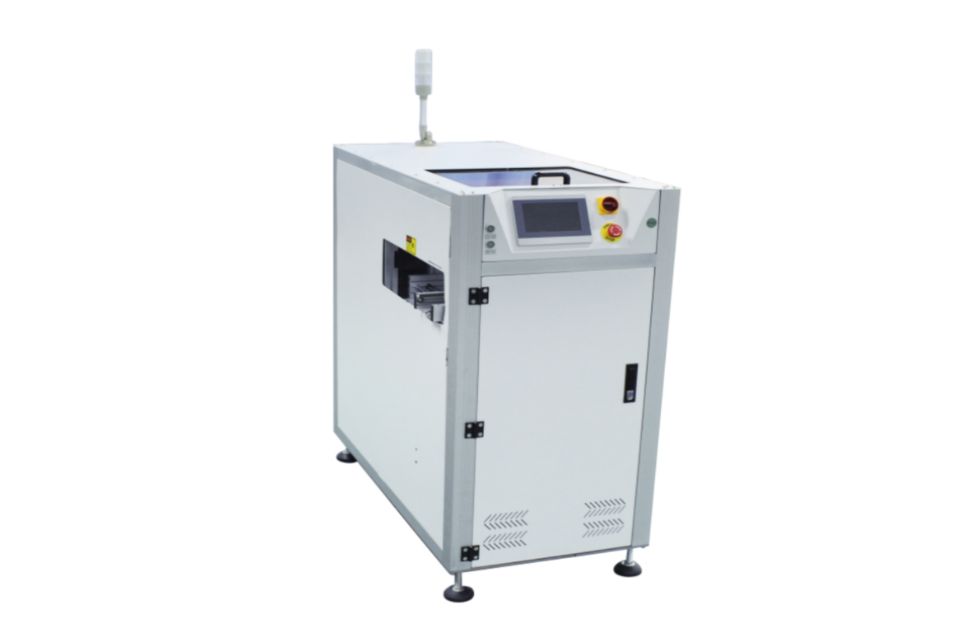

YV-460 PCB Vacuum Loader

The YV-460 PCB Vacuum Loader, also known as the LV-460W-TN, is a highly efficient solution designed for the precise and automated loading of PCBs into production lines. It offers flexibility, speed, and reliability, making it ideal for electronics manufacturing industries that require seamless integration with existing production workflows.

Categories:

Share to:

Facebook
X
LinkedIn
WhatsApp
Key Features:
  1. Versatile PCB Handling: Capable of handling PCB sizes ranging from 50x50mm to 530x460mm.
  2. Compact Design: Features a machine dimension of 600(L)*1002(W)*1300(H)mm for space efficiency.
  3. Lightweight: Weighs approximately 150 kg for easy maneuverability and installation.
  4. Fast Cycle Time: Completes the loading cycle in approximately 12 seconds, enhancing production speed.
  5. Dual Voltage Compatibility: Operates on both AC1P110V and 220V for global adaptability.
  6. Adjustable Transport Height: Transport height of 900±20mm, with customization options available.
  7. Bidirectional Transport: Supports transport from left to right or right to left for flexible production layouts.
  8. Reliable Power and Air Supply: Requires a power supply of 150V max and an air pressure of 4-6 bar, 30 ltr/min max.
Technical Datasheet:
General:
Model: YV-460
Machine Name: PCB VACUUM LOADER
Model Number: LV-460W-TN
Mechanical:
Applicable PCB Size: 50*50-530-460mm
Machine Dimensions: 600(L)*1002(W)*1300(H)mm
Estimated Machine Weight: Approx. 150 kg
Transport Height: 900±20mm (or customized)
Transport Direction: From left to right or right to left
Electrical:
Power Supply: AC1P110V/220V
Power: 150V max
Operational:
Cycle Time: Approx. 12 seconds or specify
Air Pressure: 4-6bar, 30ltr/min max
