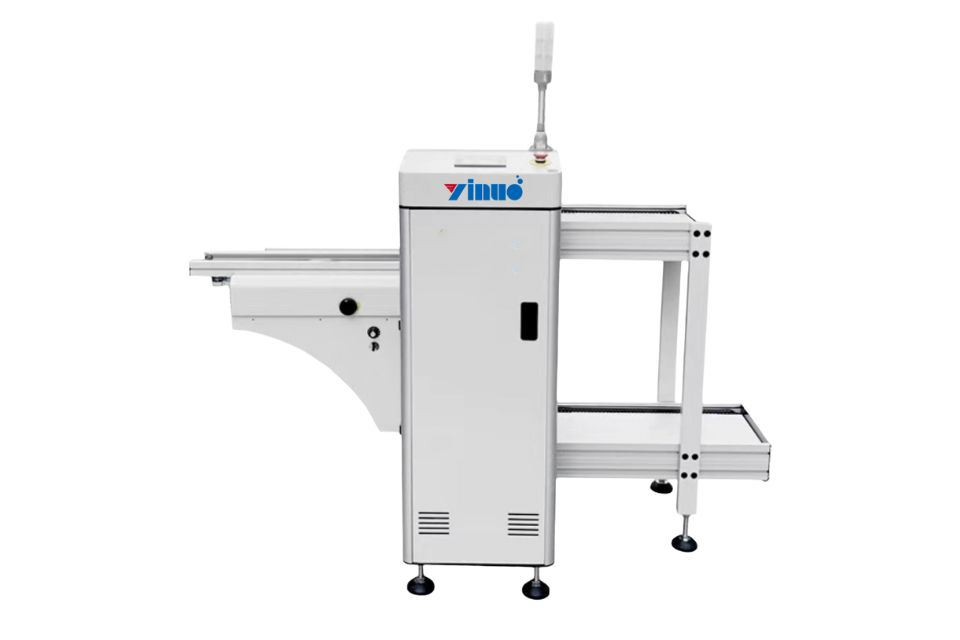

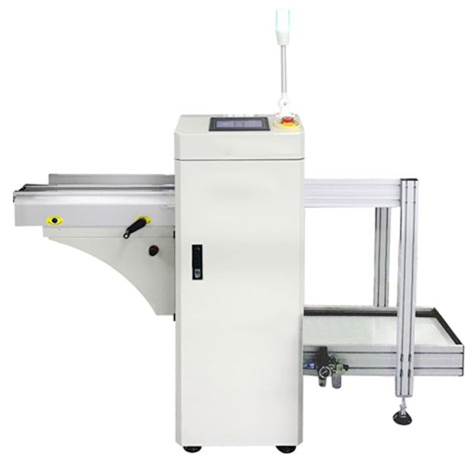

YUL330 Magazine Unloader
The YUL330 Magazine Unloader is an advanced piece of machinery designed for the efficient unloading of PCBs from production lines. It is engineered to handle a wide range of PCB sizes with precision and reliability, making it a valuable asset for electronics manufacturing industries that prioritize streamlined operations and high productivity.
Share to:
Facebook
X
LinkedIn
WhatsApp
Key Features:
-
Versatile PCB Handling: Capable of unloading PCBs ranging in size from 50x80mm to 445x330mm (LxW).
-
Adjustable Conveyor Height: The conveyor height can be adjusted between 900±20mm to accommodate various production setups.
-
Bidirectional PCB Movement: Supports PCB movement from left to right (L→R) for flexible production processes.
-
Pitch Selectivity: Allows for pitch selection of 10, 20, 30, and 40mm to meet diverse PCB spacing requirements.
-
Reliable Power Supply: Operates on a single-phase 220VAC, 50/60Hz power supply for consistent performance.
Technical Datasheet:
General:
Model: YUL330
Description: Magazine Unloader with rack size 320355563mm
General:
Model: YUL330
Description: Magazine Unloader with rack size 320355563mm
Mechanical:
Dimension (LWH): 135013501205mm
PCB Size: 5080~445330mm (LWH)
Conveyor Height: 900±20mm
PCB Direction: L → R
Dimension (LWH): 135013501205mm
PCB Size: 5080~445330mm (LWH)
Conveyor Height: 900±20mm
PCB Direction: L → R
Electrical:
Power Supply: Single Phase 220VAC, 50/60Hz
Power: 0.2KW
Power Supply: Single Phase 220VAC, 50/60Hz
Power: 0.2KW
Operational:
Air Supply: 4-6KG/c㎡
Communication Plug: SMEMA Signal
Net Weight: 320KG
Air Supply: 4-6KG/c㎡
Communication Plug: SMEMA Signal
Net Weight: 320KG
