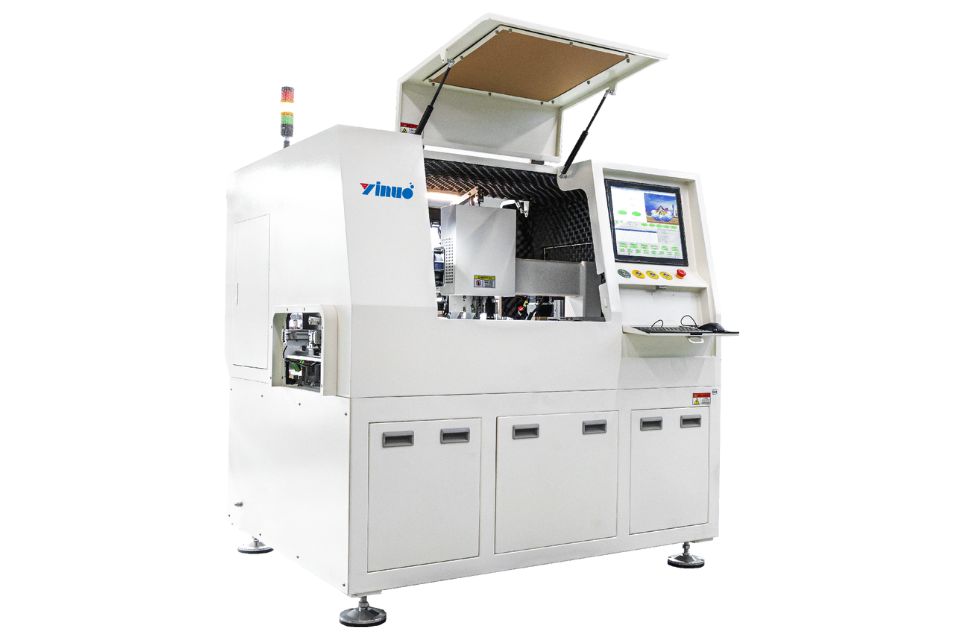

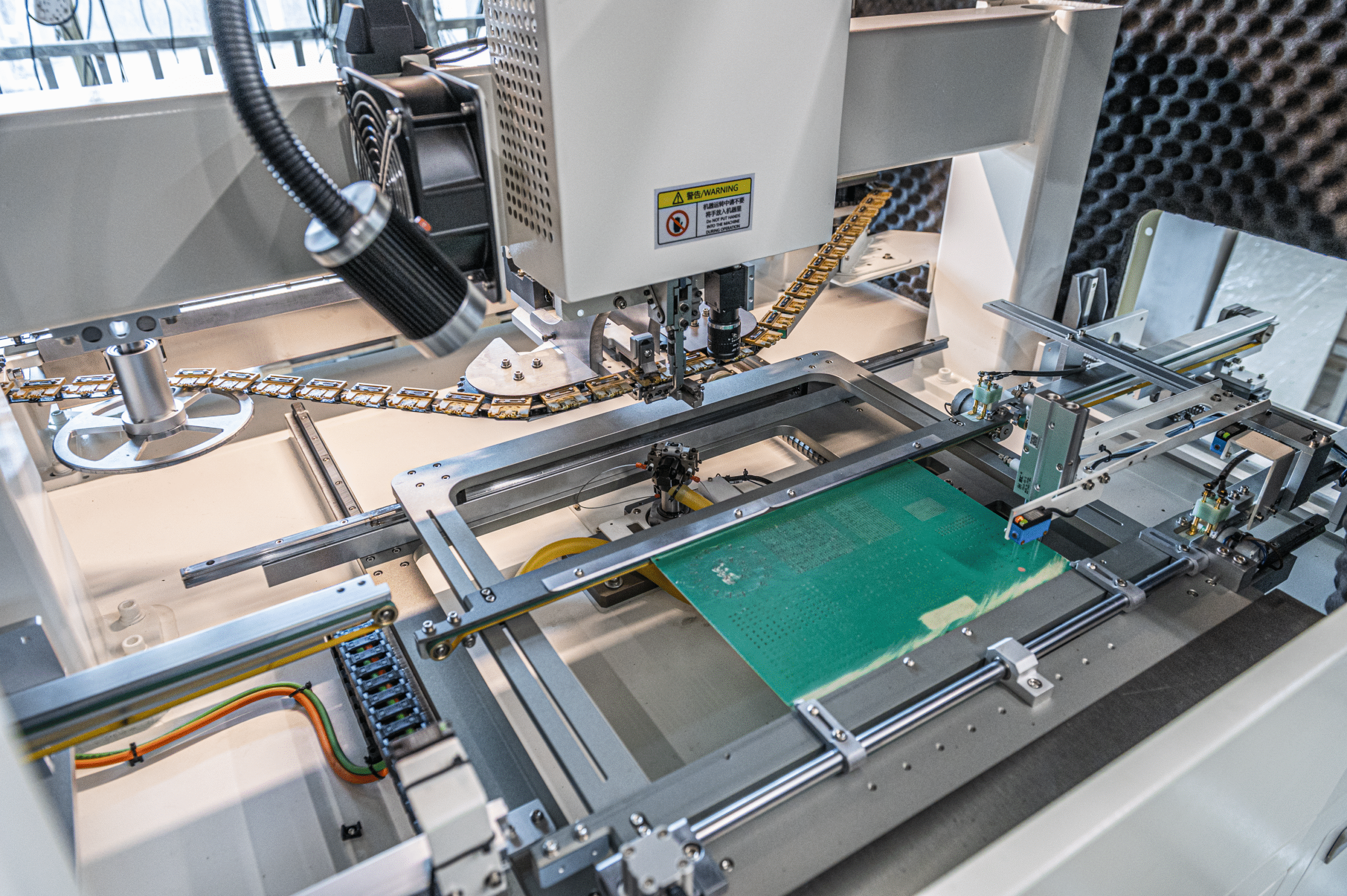

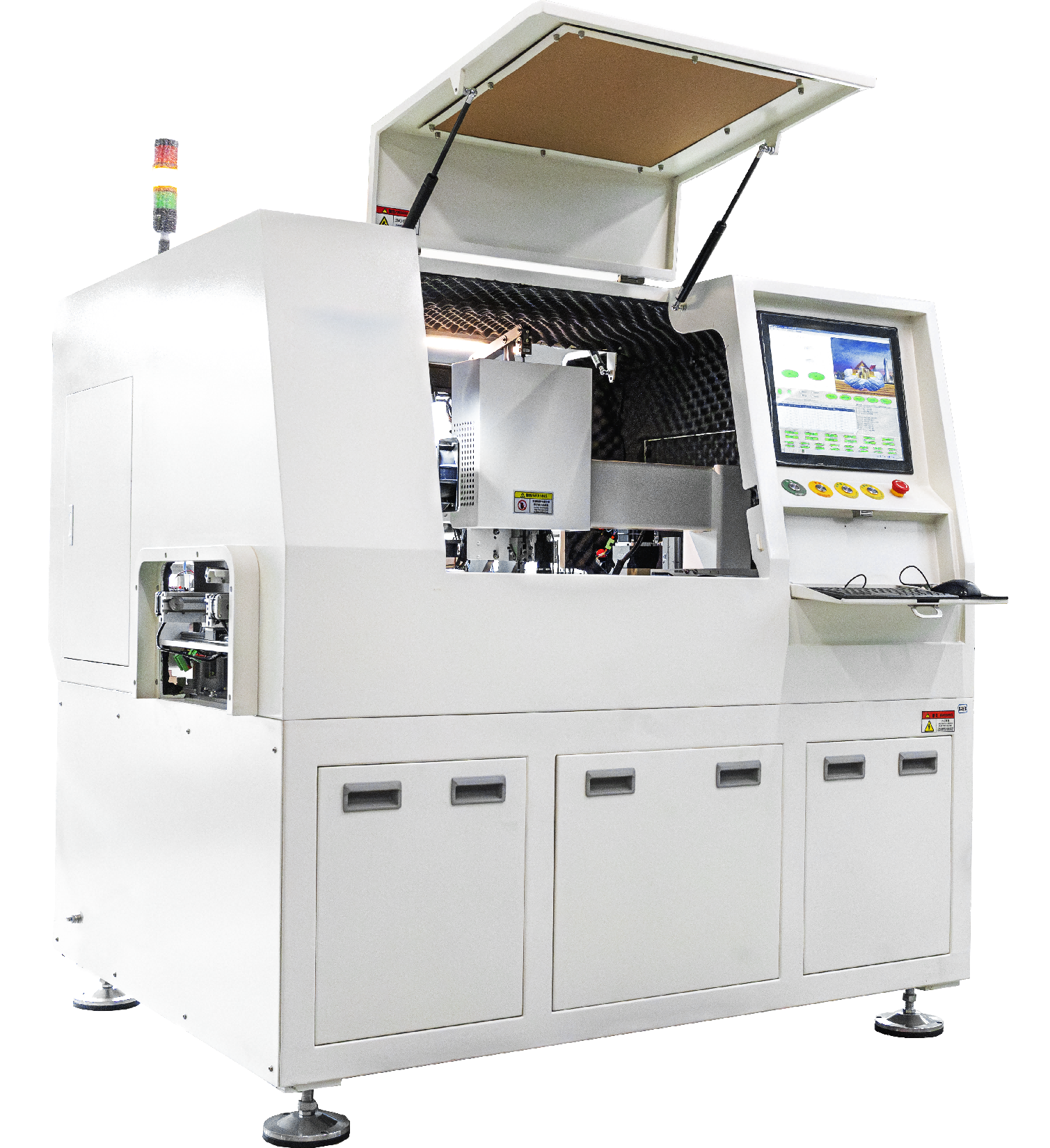

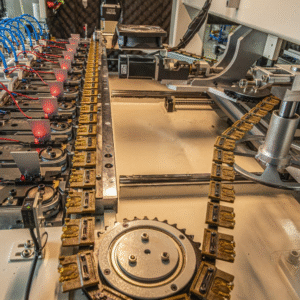

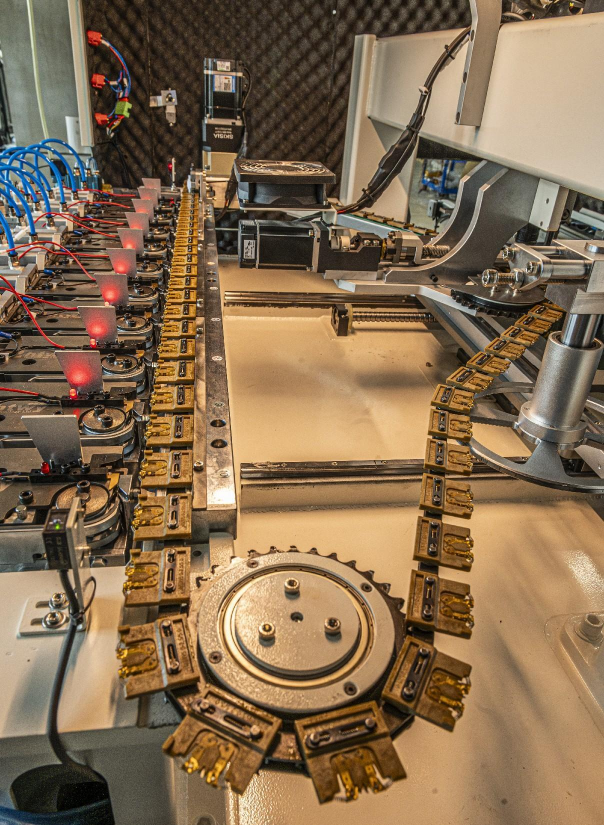

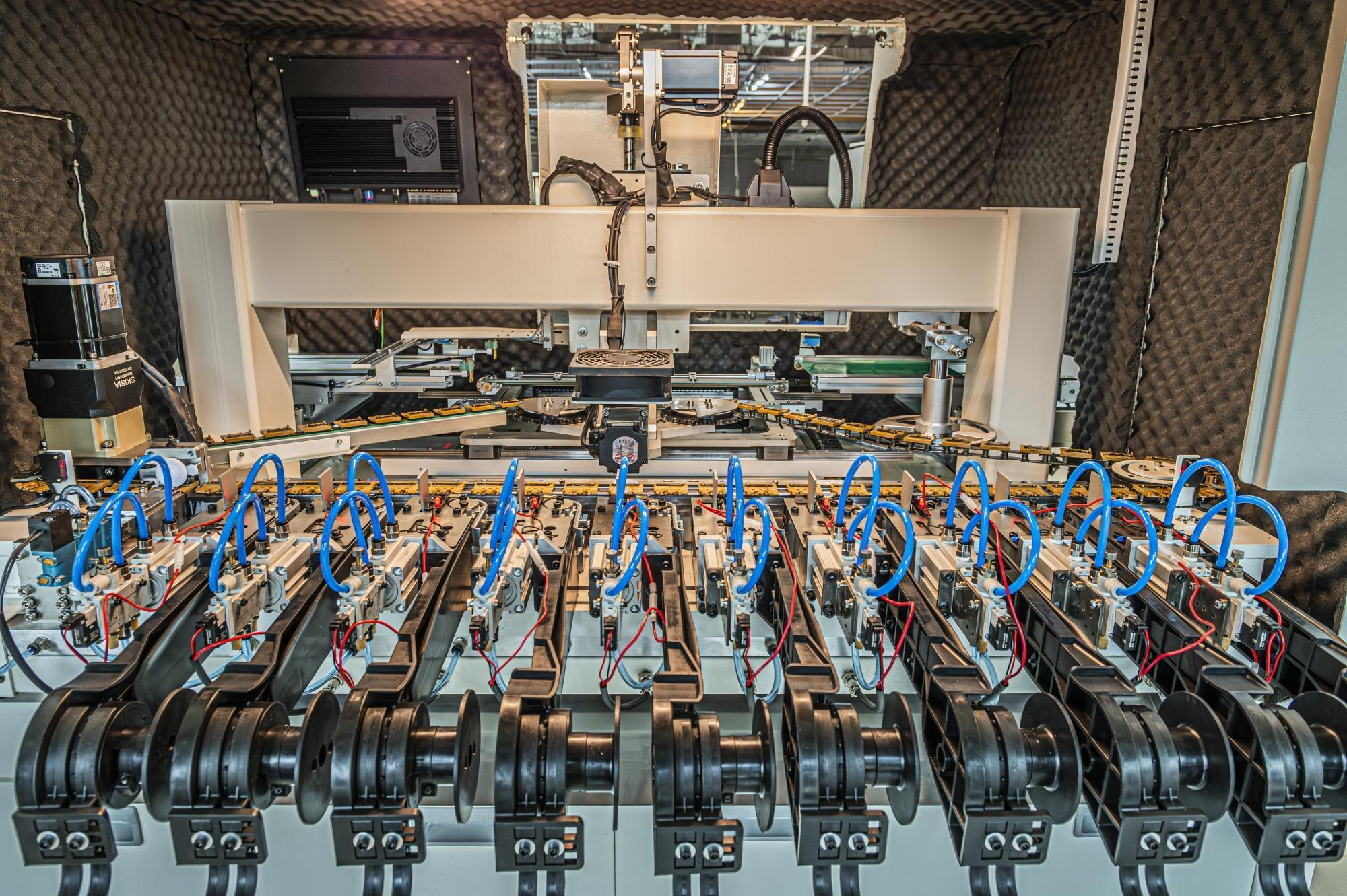

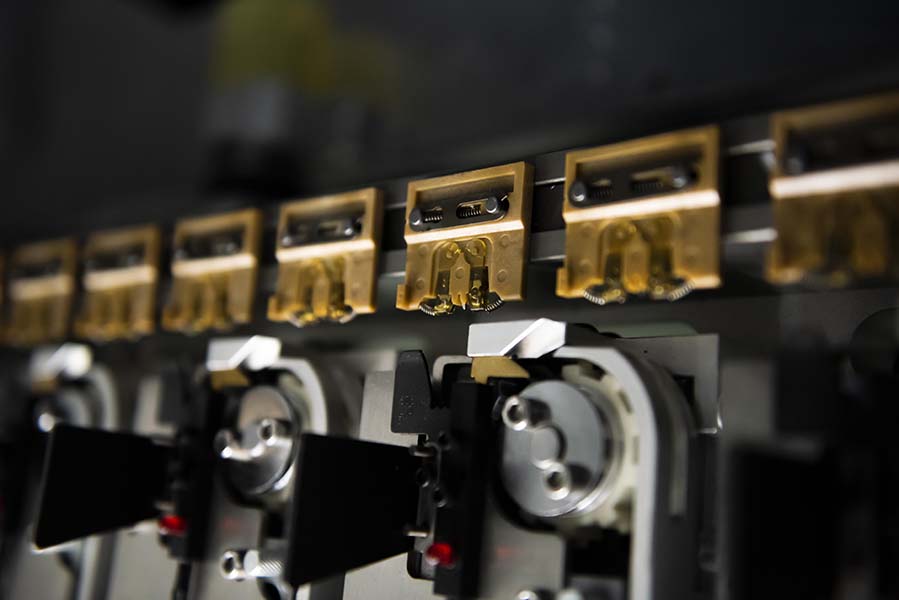

LCX-8800 Radial insertion machine
-
High-Speed Insertion: Capable of 18,000 pieces per hour for rapid production.
-
Versatile Insertion Angles: Supports 0°-360° with 1° increments for precise placement.
-
Triple Span Capability: Handles components with spans of 2.5mm, 5.0mm, and 7.5mm.
-

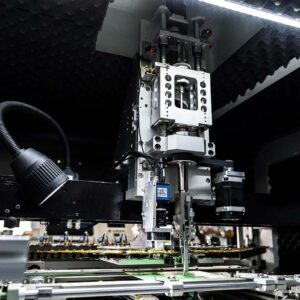

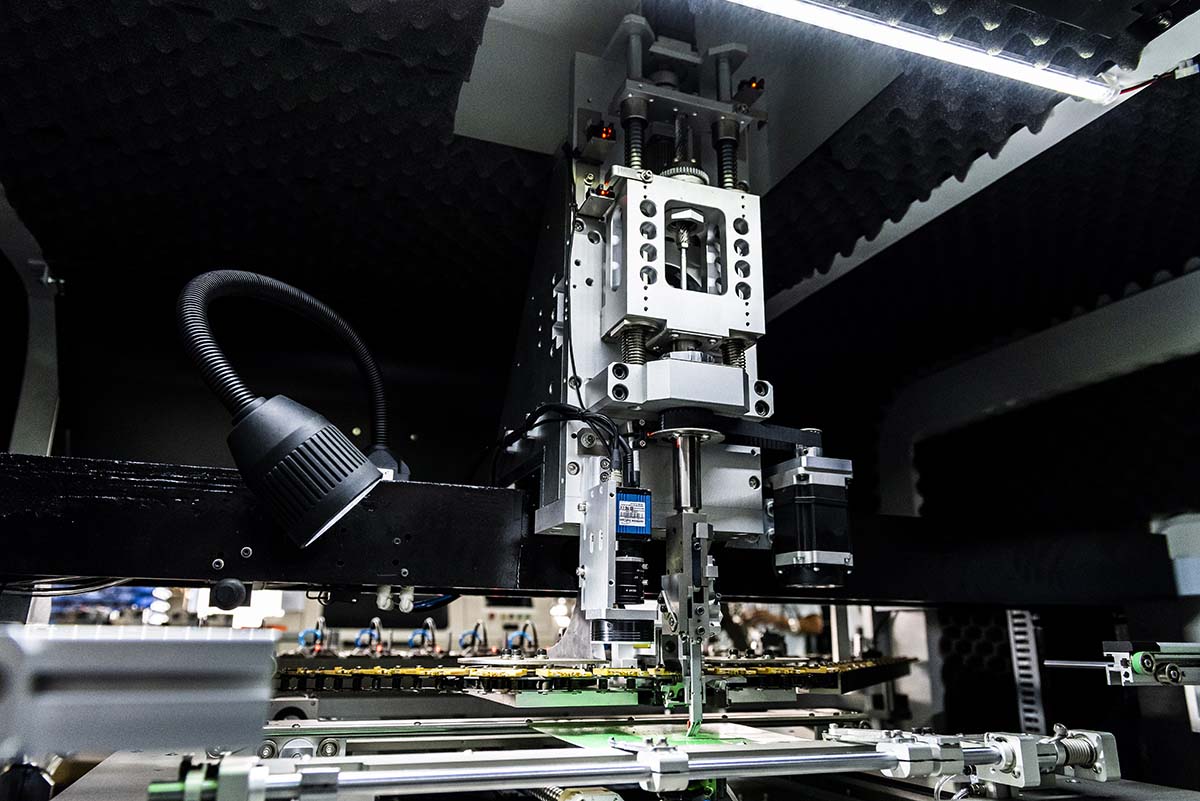

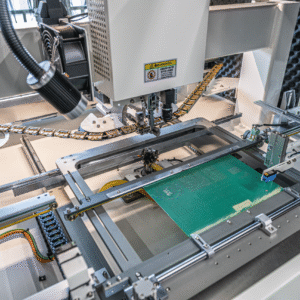

Servo Motor Driven: Ensures precise and stable insertion with a 13.0mm insertion head.
-

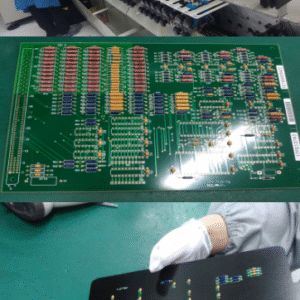

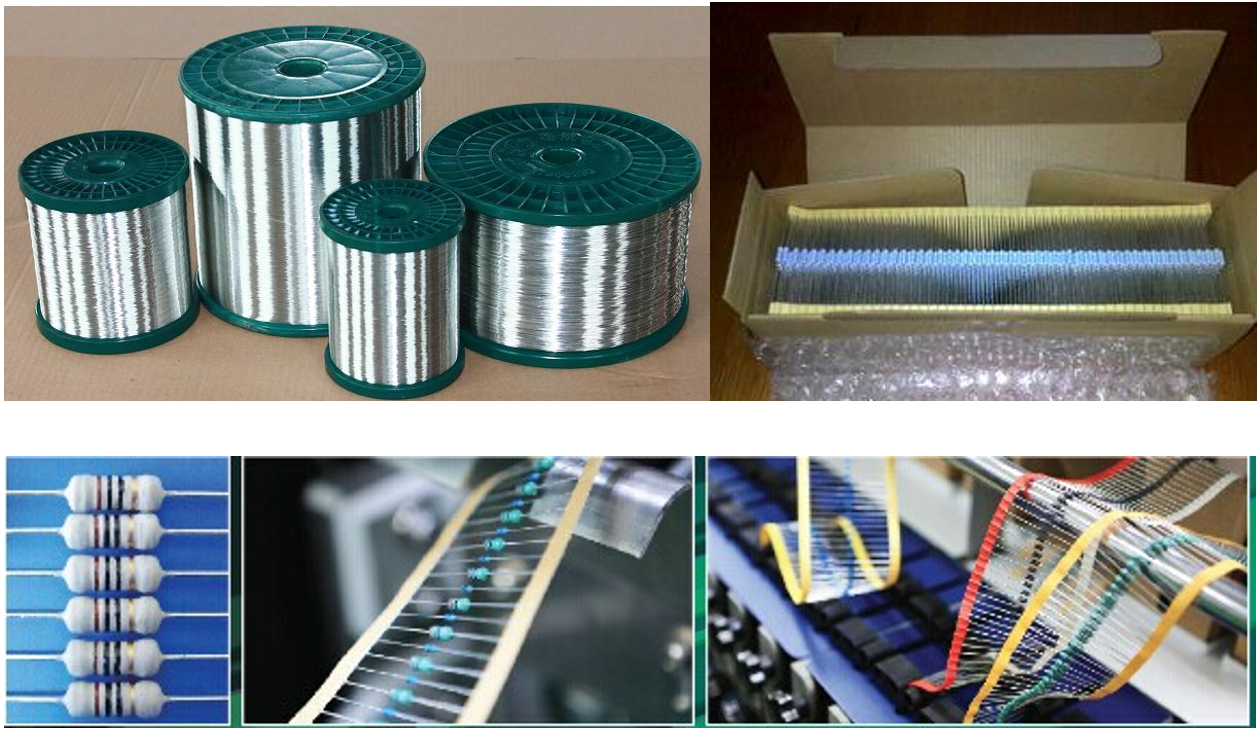

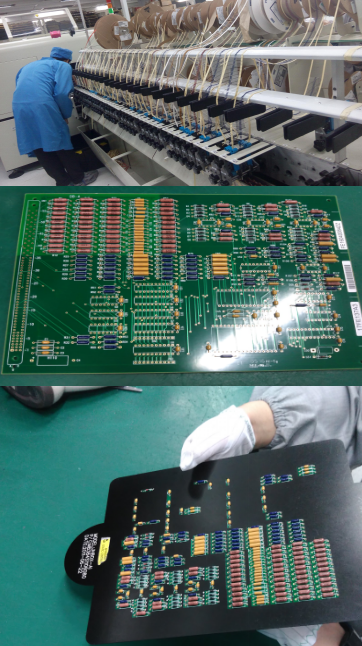

Wide Range of Components: Suitable for capacitors, transistors, LEDs, key switches, resistors, connectors, fuse blocks, and other vertical tape-packed materials.
-
User-Friendly Interface: Offers both English and Chinese versions for easy operation.
-
Advanced Vision System: Includes machine vision systems for coordinate correction and calibration.
-
Energy Efficiency: Operates with a power supply of 220V, AC (single phase) 50/60 HZ.
Share to:
Facebook
X
LinkedIn
WhatsApp
Key Features:
-
High-Speed Insertion: Capable of 18,000 pieces per hour for rapid production.
-
Versatile Insertion Angles: Supports 0°-360° with 1° increments for precise placement.
-
Triple Span Capability: Handles components with spans of 2.5mm, 5.0mm, and 7.5mm.
-

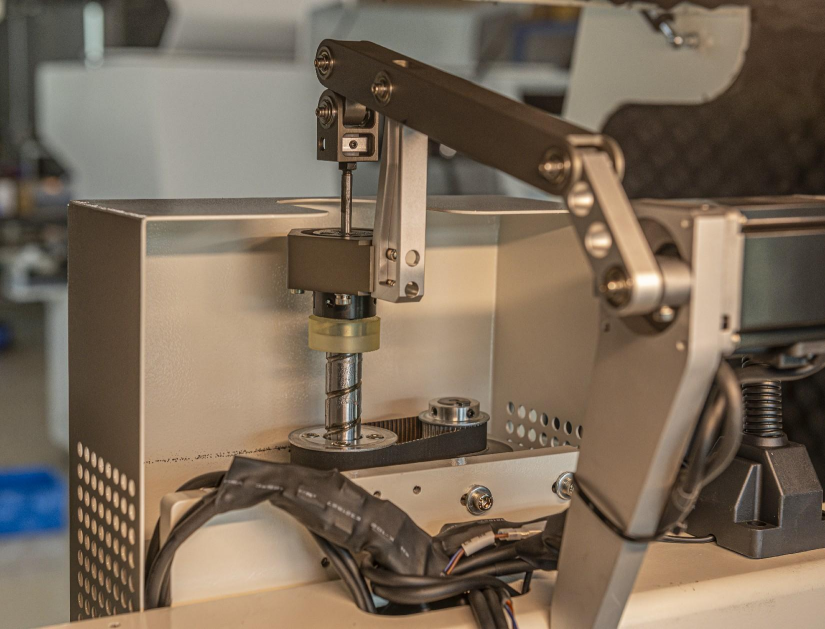

Servo Motor Driven: Ensures precise and stable insertion with a 13.0mm insertion head.
-

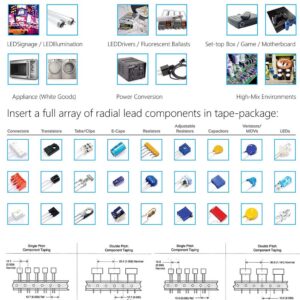

Wide Range of Components: Suitable for capacitors, transistors, LEDs, key switches, resistors, connectors, fuse blocks, and other vertical tape-packed materials.
-
User-Friendly Interface: Offers both English and Chinese versions for easy operation.
-
Advanced Vision System: Includes machine vision systems for coordinate correction and calibration.
-
Energy Efficiency: Operates with a power supply of 220V, AC (single phase) 50/60 HZ.
Technical Datasheet:
General:
Model: LCX-8800A

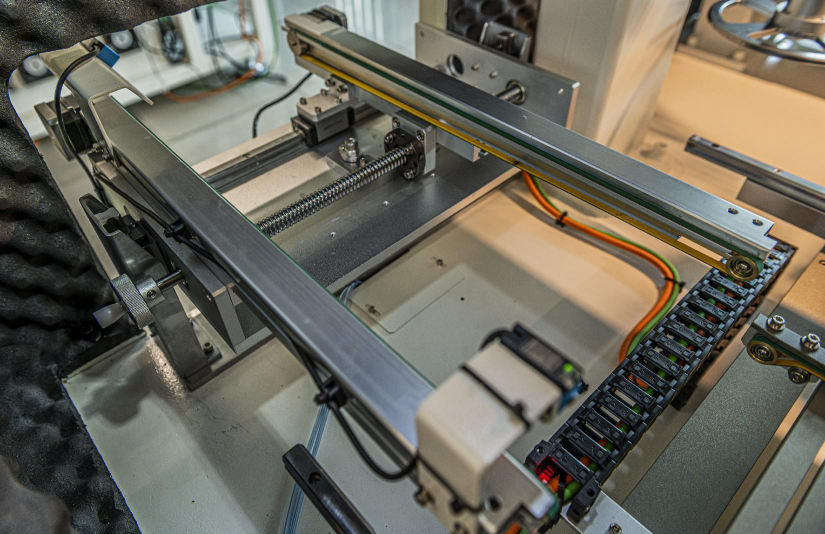

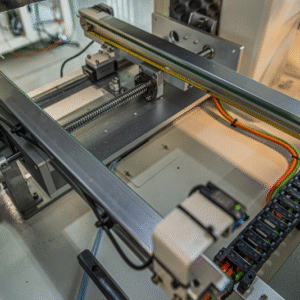

Description: Radial insertion machine (10 stations, online) with board handling system
Model: LCX-8800A
Description: Radial insertion machine (10 stations, online) with board handling system

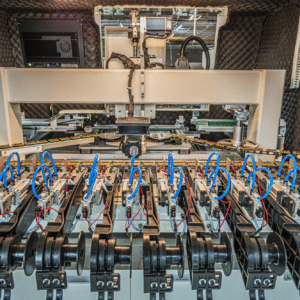

Model: LCX-8800B
Description: Radial insertion machine (20 stations, online) with board handling system
Description: Radial insertion machine (20 stations, online) with board handling system
Mechanical:
Triple Span: 2.5mm/5.0mm/7.5mm/10.0mm
Insert Direction: 0°-360°, 1° increment
Components Available: Capacitor, Transistor, LED lights, Key Switch, Resistor, Connectors, Fuse Block
PCB Size: (Min) 50mm x 50mm, (Max) 400mm x 450mm
PCB Thickness: 0.79-2.36mm
Clinch Length: 1.5-2.2mm (adjustable)
Clinch Degree: 10º-35º (adjustable)
Core Machine Size (LxWxH): 1800x1600x1800mm
Core Machine Weight: 1500KG
Triple Span: 2.5mm/5.0mm/7.5mm/10.0mm
Insert Direction: 0°-360°, 1° increment
Components Available: Capacitor, Transistor, LED lights, Key Switch, Resistor, Connectors, Fuse Block
PCB Size: (Min) 50mm x 50mm, (Max) 400mm x 450mm
PCB Thickness: 0.79-2.36mm
Clinch Length: 1.5-2.2mm (adjustable)
Clinch Degree: 10º-35º (adjustable)
Core Machine Size (LxWxH): 1800x1600x1800mm
Core Machine Weight: 1500KG

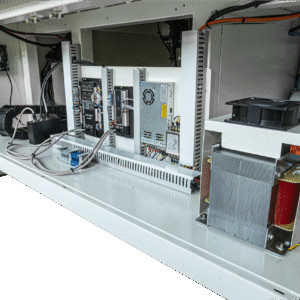

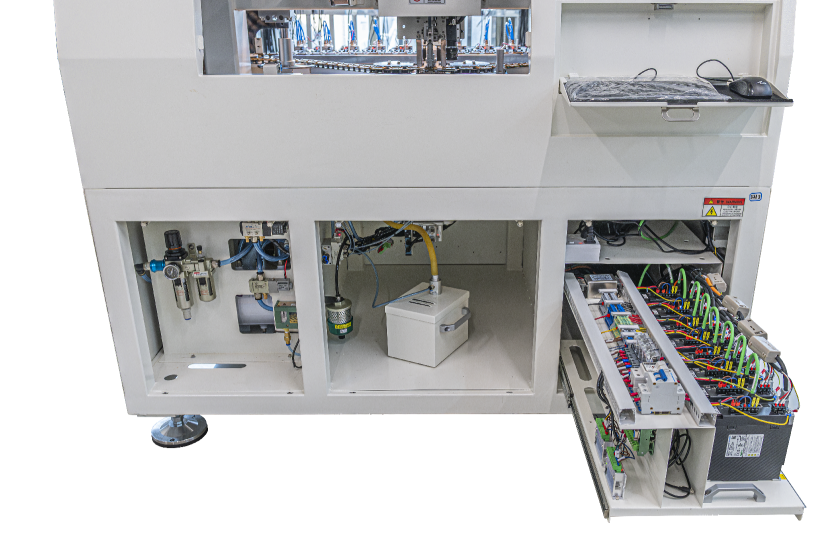

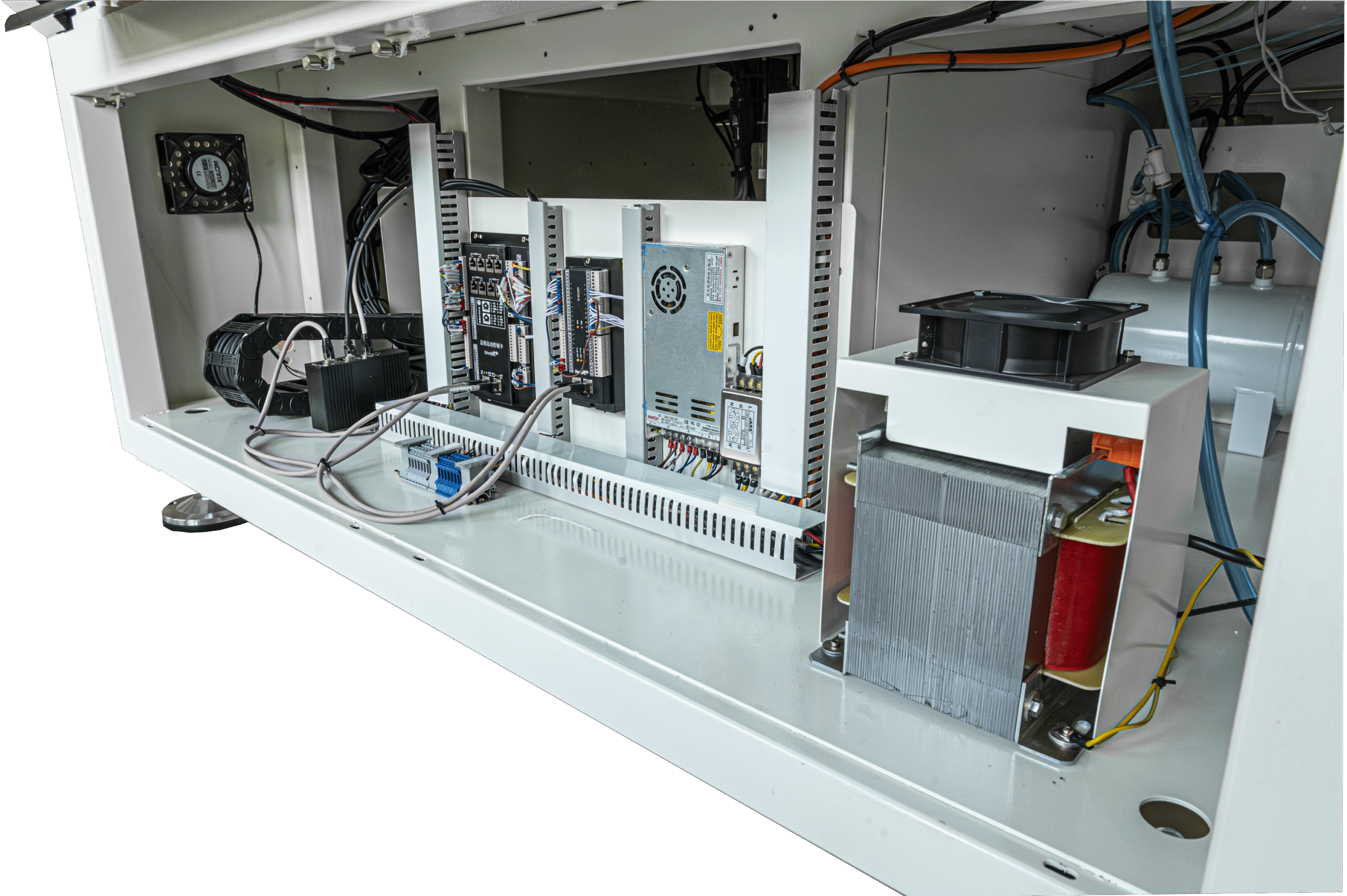

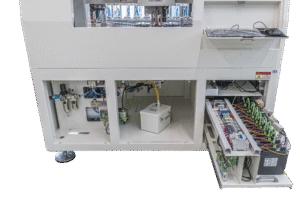

Electrical:
Power Supply: 220V, AC (single phase) 50/60 HZ
Air Pressure: 0.6MPA
Air Consumption: 0.3m³/minute
Power Supply: 220V, AC (single phase) 50/60 HZ
Air Pressure: 0.6MPA
Air Consumption: 0.3m³/minute
Operational:
Circumstance Temperature: 10°C to 35°C
PCB Transfer Mode: Manual, machine non-stop
Control System: English or Chinese version interface
Platform Software: Yinuo Machinery platform software
Circumstance Temperature: 10°C to 35°C
PCB Transfer Mode: Manual, machine non-stop
Control System: English or Chinese version interface
Platform Software: Yinuo Machinery platform software
Vision System:
Coordinate Correction: Machine vision systems
Non-Rotary Table
Machine Vision Calibration Systems
Coordinate Correction: Machine vision systems
Non-Rotary Table
Machine Vision Calibration Systems
| 1)Triple span 2.5mm/5.0mm /7.5mm/10.0mm |
| 2)The theory of speed:18000PCS/H |
| 3)Insert direction:0°-360°, 1°increasment |

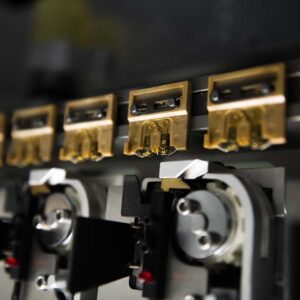

| 4）servo motor drived insertion head（13.0mm）and clinch base “N” type. |

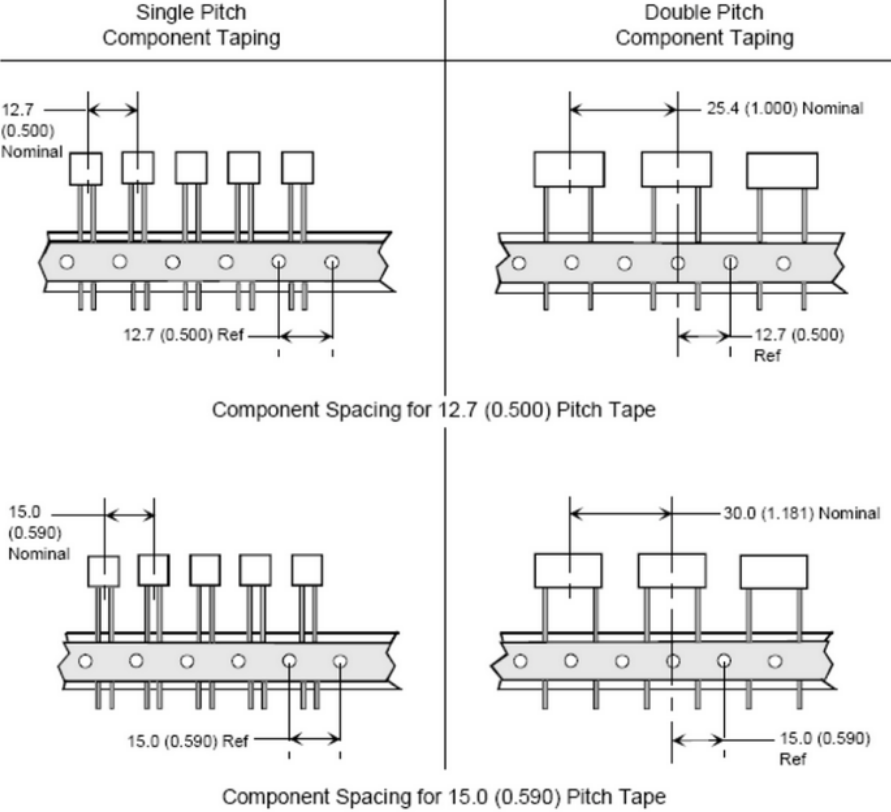

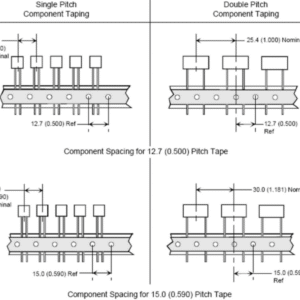

| 5)components require:standard tape packed radial leads components |
| 6)Components available:Capacitor, Transistor, LED lights, Key Switch, |
| Resistor, Connectors, Fuse Block and other vertical tape packed materials |
| 7)Core Machine Size (LxWxH)1800x1600x1800mm, |
| 8)Core Machine Weight:1500KG |
| 9)Power supply:220V, AC (single phase) 50/60 HZ |
| 10)Air pressure: 0.6MPA, 0.3m3/minutes |
| 11)Circumstance temperature: 10° C. to 35° C. |
| 12)PCB transfer mode:Manual, machine non stop. |
| 13)PCB Size:(Min)50 mm x50mm、(Max)400mm x 450mm |
| 14)PCB thickness:0.79-2.36MM |
| 15)Clinch Length: 1.5-2.2mm(adjustable) |
| 16)Clinch degree: 10º-35º(adjustable) |
| 17)Coordinate correction:Machine vision systems. |
| 18)Non-Rotary table |
| 19)Machine vision caliberation systems |
| 20)Control System:English or Chinese version interface |
| 21)LCX Machinery platform software |
