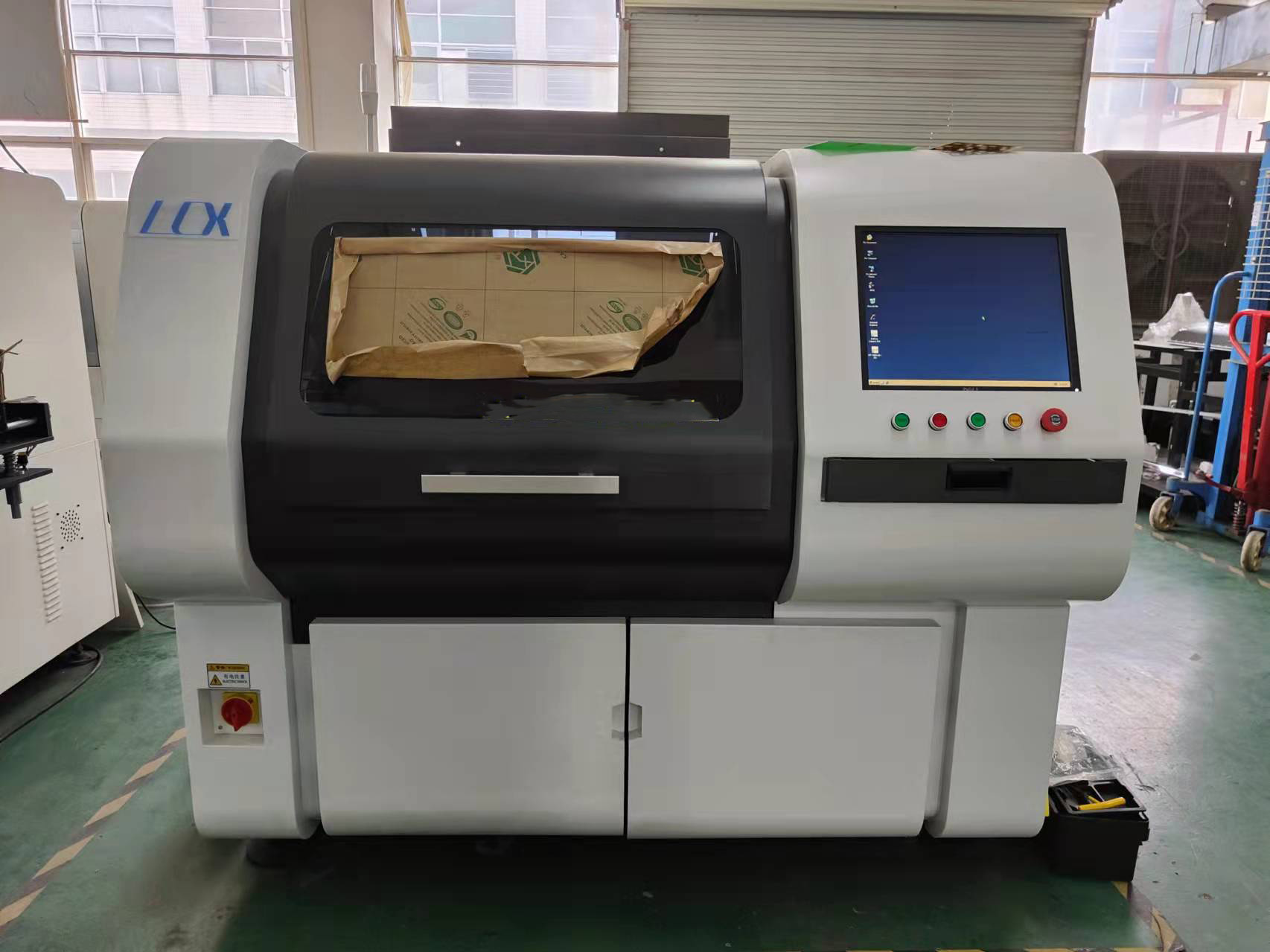

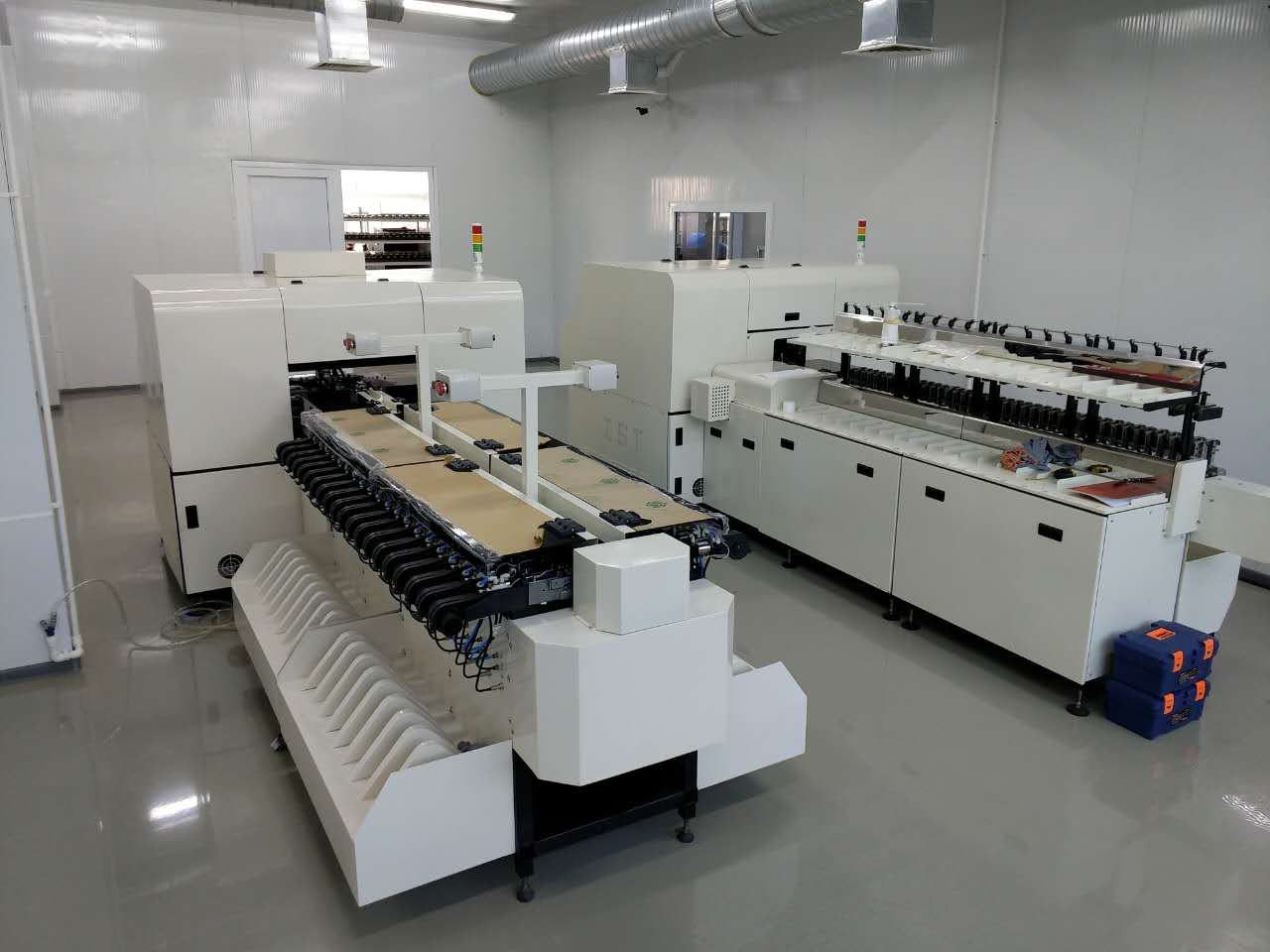

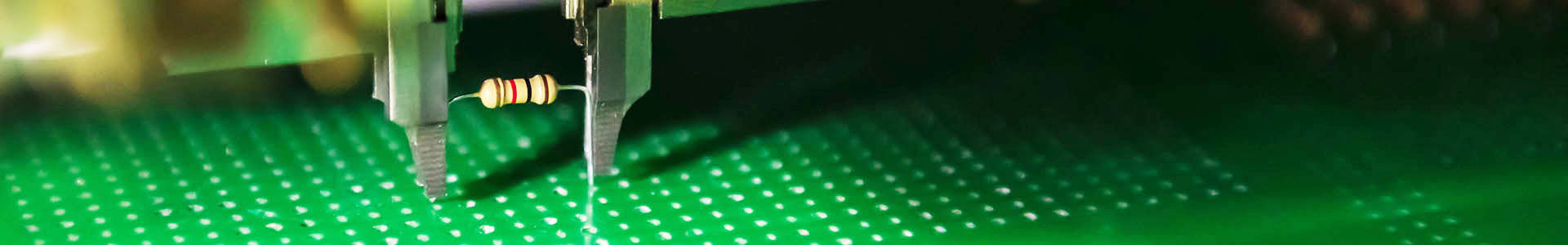

LCX-7700 Axial insertion machine
-
High Insertion Rate: Capable of 24,000 pieces per hour for rapid production.
-
Low Non-Performing Rate: Less than 1000 PPM ensures high-quality output.
-
Versatile Insertion Angles: Supports 0°, 90°, 180°, and 270° insertion angles.
-
Wide Component Span: Dual span of 5.0mm to 23mm accommodates various components.
-
Adjustable Clinch Length: From 1.2mm to 2.2mm for precise component securing.
-
Adjustable Clinch Degree: From 0° to 35° for customized component placement.
-
Advanced Vision System: Features coordinate calibration and MARK vision correction.
-
Energy Efficiency: Operates with a working power of 1.6KW, contributing to energy savings.
Share to:
Facebook
X
LinkedIn
WhatsApp
Key Features:
-
High Insertion Rate: Capable of 24,000 pieces per hour for rapid production.
-
Low Non-Performing Rate: Less than 1000 PPM ensures high-quality output.
-
Versatile Insertion Angles: Supports 0°, 90°, 180°, and 270° insertion angles.
-
Wide Component Span: Dual span of 5.0mm to 23mm accommodates various components.
-
Adjustable Clinch Length: From 1.2mm to 2.2mm for precise component securing.
-
Adjustable Clinch Degree: From 0° to 35° for customized component placement.
-
Advanced Vision System: Features coordinate calibration and MARK vision correction.
-
Energy Efficiency: Operates with a working power of 1.6KW, contributing to energy savings.
Technical Datasheet:
General:
Model: LCX-7700B Axial insertion machine (20 stations，online)
Model: LCX-7700B Axial insertion machine (20 stations，online)
Model: LCX-7700A Axial insertion machine (10 stations，online)
Description: Axial insertion machine with board handling system
Insertion Rate: Up to 24000 pcs/hr
Non Performing Rate: Less than 1000 PPM
Description: Axial insertion machine with board handling system
Insertion Rate: Up to 24000 pcs/hr
Non Performing Rate: Less than 1000 PPM
Mechanical:
Insert Theta Parallel: 0°, 90°, 180°, 270°
Component Span: Dual span 5.0mm-23mm
PCB Size: Min-50mm50mm, Max-450mm450mm
Clinch Length: 1.2-2.2mm (adjustable)
Clinch Degree: 0-35° (adjustable)
Machine Size (length×width×height): Main unit 1700mm×1300mm×1600mm
Main Unit Weight: 1800KG
Insert Theta Parallel: 0°, 90°, 180°, 270°
Component Span: Dual span 5.0mm-23mm
PCB Size: Min-50mm50mm, Max-450mm450mm
Clinch Length: 1.2-2.2mm (adjustable)
Clinch Degree: 0-35° (adjustable)
Machine Size (length×width×height): Main unit 1700mm×1300mm×1600mm
Main Unit Weight: 1800KG
Electrical:
Power Supply: 220V, AC (single phase), 50/60HZ, 2.0KVA
Working Power: 1.6KW (Energy Saving)
Power Supply: 220V, AC (single phase), 50/60HZ, 2.0KVA
Working Power: 1.6KW (Energy Saving)
Operational:
PCB Thickness: 0.79-2.36mm
Component Types: Axial tape packed material, such as capacitor, transistor, diode, resistor, blown fuse
Coordinate Calibration: Machine visual system, MARK vision correction with multi-points
PCB Thickness: 0.79-2.36mm
Component Types: Axial tape packed material, such as capacitor, transistor, diode, resistor, blown fuse
Coordinate Calibration: Machine visual system, MARK vision correction with multi-points
Environmental:
Air Pressure: 0.6–0.8MPA
Air Consumption: 0.3m³/minute
Air Pressure: 0.6–0.8MPA
Air Consumption: 0.3m³/minute
| Axial Insertion Machine(20 stations) | ||
| Insertion Rate: 24000 pcs/hr | ||
| Non Performing Rate: Less than 1000PPM | ||
| Insert Theta Parallel: 0°,90°,180°, 270° | ||
| Component Span: Dual span 5.0mm-23mm | ||
| PCB size: Min-50mm*50mm,Max-450mm*450mm | ||
| Coordinate calibration Machine visual system, MARK vision correction with multi-points | ||
| PCB thickness: 0.79-2.36mm | ||
| Component types: Axial tape packed material, such as capacitor, transistor, diode, resistor, blown fuse | ||
| Clinch length: 1.2-2.2mm(adjustable) | ||
| Clinch degree: 0-35°(adjustable) | ||
| Machine size (length×width×height): Main unit 1700mm×1300mm×1600mm | ||
| Main unit weight: 1800KG | ||
| Power supply: 220V,AC (single phase), 50/60HZ,2.0KVA | ||
| Working power 1.6KW (Energy Saving) | ||
| Air pressure 0.6–0.8MPA | ||
| Air consumption 0.3m³/minute |
