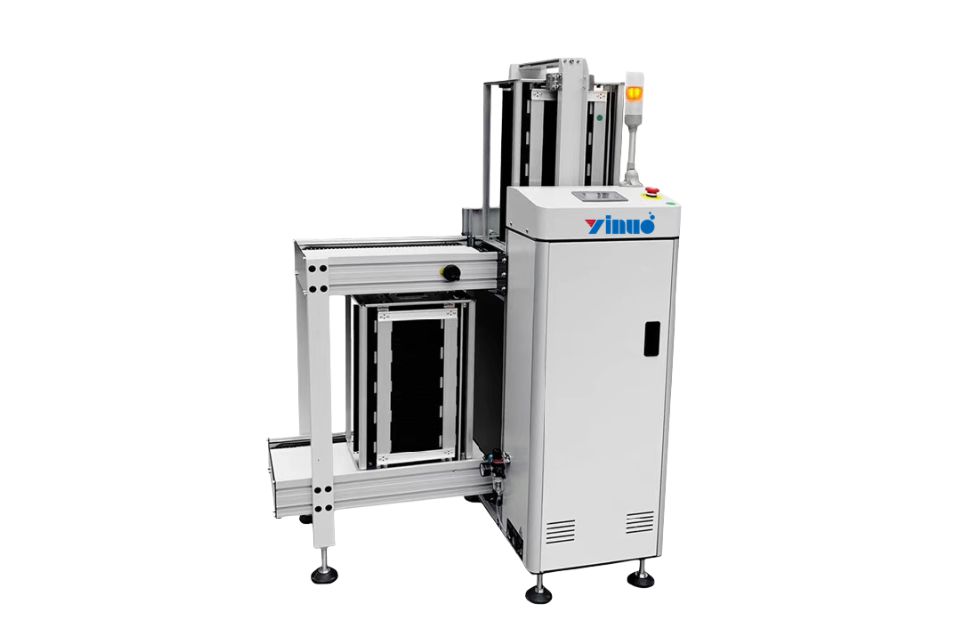

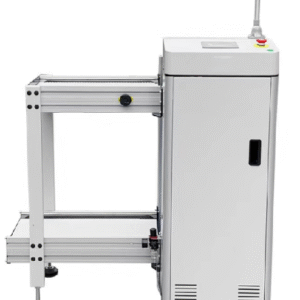

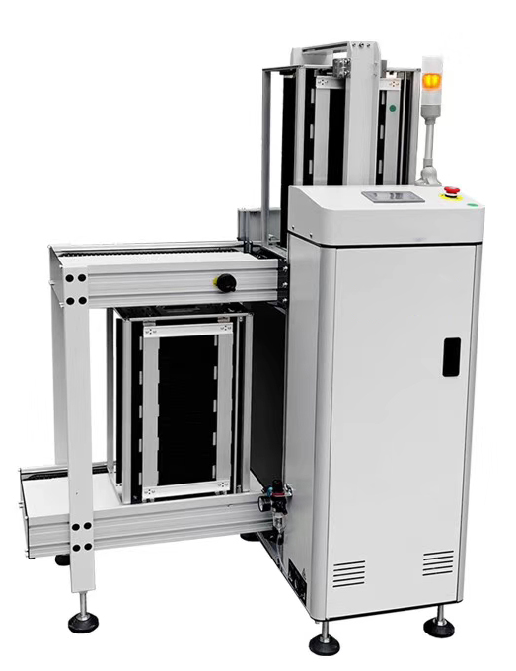

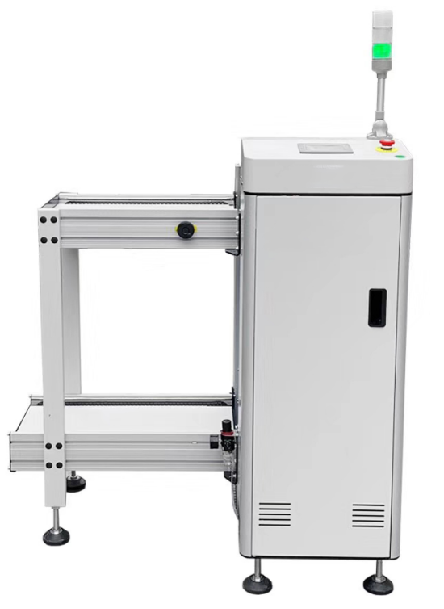

YLD330 Magazine Loader
The YLD330 Magazine Loader is a sophisticated piece of equipment designed for the efficient and precise loading of PCBs into production lines. It is tailored to meet the demands of electronics manufacturing industries that require high-speed and accurate PCB handling. With its user-friendly features and robust design, the YLD330 ensures smooth and reliable operation in various production environments.
Share to:
Facebook
X
LinkedIn
WhatsApp
Key Features:
-
Versatile PCB Handling: Capable of loading PCBs ranging in size from 50x80mm to 445x330mm (LxW).
-
Adjustable Conveyor Height: The conveyor height is adjustable between 900±20mm to fit different production setups.
-
Bidirectional PCB Movement: Supports PCB movement from left to right (L→R) for flexible production processes.
-
Pitch Selectivity: Allows for pitch selection of 10, 20, 30, and 40mm for diverse PCB spacing requirements.
-
Reliable Power Supply: Operates on a single-phase 220VAC, 50/60Hz power supply for consistent performance.
Technical Datasheet:
General:
Model: YLD330
Description: Magazine Loader with rack size 460400563mm
General:
Model: YLD330
Description: Magazine Loader with rack size 460400563mm
Mechanical:
Dimension (LWH): 11708451250mm
PCB Size: 5080~445330mm (LWH)
Conveyor Height: 900±20mm
PCB Direction: L → R
Dimension (LWH): 11708451250mm
PCB Size: 5080~445330mm (LWH)
Conveyor Height: 900±20mm
PCB Direction: L → R
Electrical:
Power Supply: Single Phase 220VAC, 50/60Hz
Power: 0.2KW
Power Supply: Single Phase 220VAC, 50/60Hz
Power: 0.2KW
Operational:
Air Supply: 4-6KG/c㎡
Communication Plug: SMEMA Signal
Net Weight: 300KG
Air Supply: 4-6KG/c㎡
Communication Plug: SMEMA Signal
Net Weight: 300KG
Environmental:
Circumstance Temperature: 10°C to 35°C
Circumstance Temperature: 10°C to 35°C
