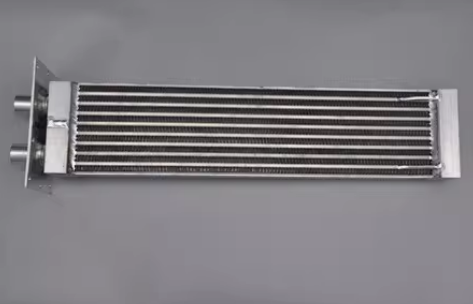

Vitronics Soltec Heat exchanger C200081

The Vitronics Soltec (ITW) C200081 is a dedicated heat exchanger (radiator) for wave soldering equipment, not a reflow soldering accessory.

Core Parameters
Part Number: C200081 (also known as 7-C200081)
Name: Heat Exchanger
Material: Aluminum Alloy (AL)
Dimensions: 122 (W) × 208 (H) × 735 (L) mm
Applicable Models:
Vitronics Soltec Wave Soldering Equipment: 6622CC, Delta 3, Delta 5, Delta X series, etc.
Function: Used in the flux management system or preheating/cooling zone of wave soldering equipment for exhaust gas cooling, heat recovery, or flux condensation.

Selection and Replacement Points
Confirm Equipment Type: The C200081 is specifically designed for wave soldering and is not suitable for MR/XPM series reflow soldering.

Verify dimensions: 122×208×735mm, ensuring a suitable installation space.

Interfaces and Connections: Note the dimensions of the air inlet/outlet/water pipe interfaces and flange hole positions.

Material Requirements: Aluminum alloy or stainless steel is preferred, resistant to flux corrosion.

IV. Common Alternatives/Universal Models
C200080, C200082 (different sizes within the same series)
7-C200081 (Complete original part numbers)
