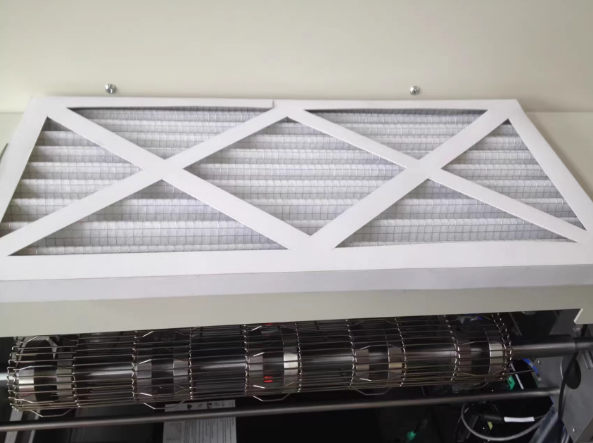

Vitronics Soltec C00821 Filter

Core Specifications (Original Manufacturer Standard)

Type: Panel Filter, G4 Grade, Fiberglass/Synthetic Fiber Filter Media, Metal Mesh Reinforcement

Filtration Efficiency: G4 (EN779) / MERV 8, intercepts flux droplets, dust, and rosin particles (≥5μm)

Material: High-temperature resistant fiberglass filter media + galvanized steel/stainless steel frame + double-sided metal mesh, temperature resistant up to 120℃ (wave soldering exhaust conditions)

Sealing: Foam sealing strips around the perimeter to prevent side leakage

Installation: Drawer-type / slot-type, directly push-in wave soldering exhaust filter box

Applicable Media: Exhaust air containing flux, rosin, and high-temperature waste gas; non-washable, disposable consumables

Compatible Models (Wave Soldering Series)

Delta 3 / Delta 5 / Delta X / Delta 6622 CC Wave Soldering (Fluorescence Spraying Area / Preheating Area Exhaust Filter Box)

mySelective Selective Wave Soldering (Exhaust Primary Filter)

Installation Location: Top/Rear Exhaust Filter Chamber, typically 1–2 pieces per unit

Size Check (To Avoid Buying the Wrong Size)

Nominal: 596 × 239 × 25 mm (Actual Tolerance ±1mm)

Common Alternatives: 595×240×25mm, 242×596×25mm (Length and width interchangeable), both compatible with C00821 mounting location

Purchase and Alternatives

Original Manufacturer (ITW EAE/Vitronics Soltec): C00821

Maintenance and Replacement Cycle

Replacement Criteria: Pressure drop > 150Pa, surface blackening/clogging, smoke overflow from the spraying area

Cycle: 2–4 weeks (depending on flux type, production volume, exhaust airflow), single use only, cannot be washed and reused

Quick Check List
Part Number: C00821 (Do not use with C00822/C00823) (Confusing)
Dimensions: 596×239×25mm (Panel, Thin 25mm)
Grade: G4/MERV8, Fiberglass, High Temperature Resistance 120℃
Model: Delta Series / 6622 CC Wave Soldering Exhaust Filter
