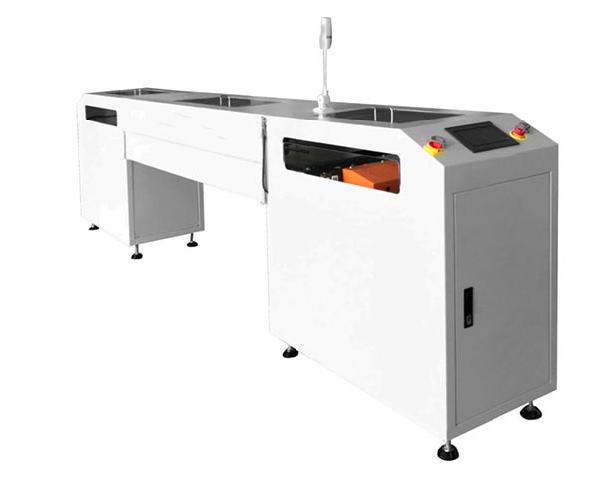

Translation conveyor/shuttle conveyor
Translation conveyor/shuttle conveyor
Board handing system conveyor serial
Description
This unit is used to redirect flow of PCBs into different channels in a production line.
Features
User friendly ‘soft touch’ LED membrane control panel Surrounded with covers to provide highest level of safety Minimize transmission clearance between conveyor Swift, smooth and precise operations (frequency inverter controller) PCB traffic flows can be customised Smooth and parallel width adjustment SMEMA compatible Optional two modes: 1 in 2 out, 2 in 1 out
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size |
Weight(KG) |
Remark |
|
LPD330 |
500*W*1050 | 50*50-330*250 |
140KG |
Machine width depens on traversing distance |
|
LCN330 |
600*W*1050 | 50*50-460*330 |
200KG |

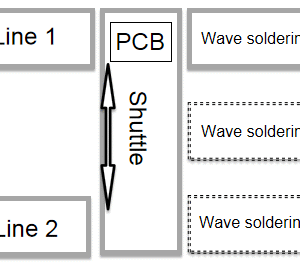

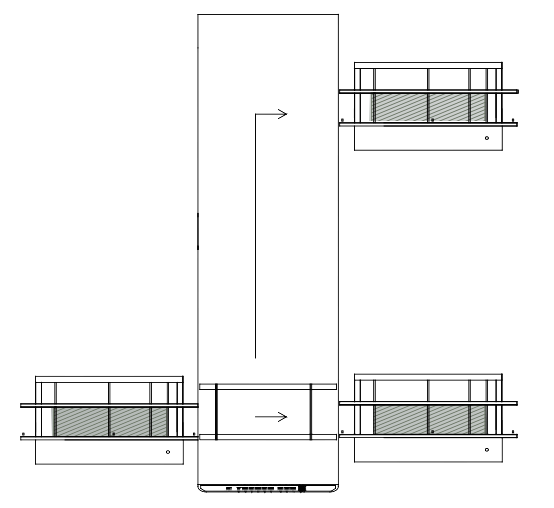

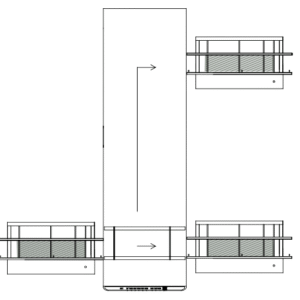

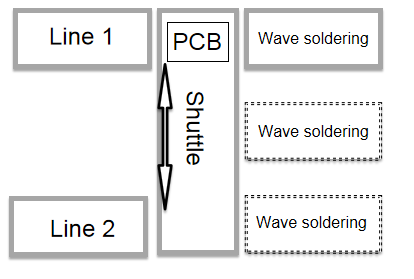

Schematic
