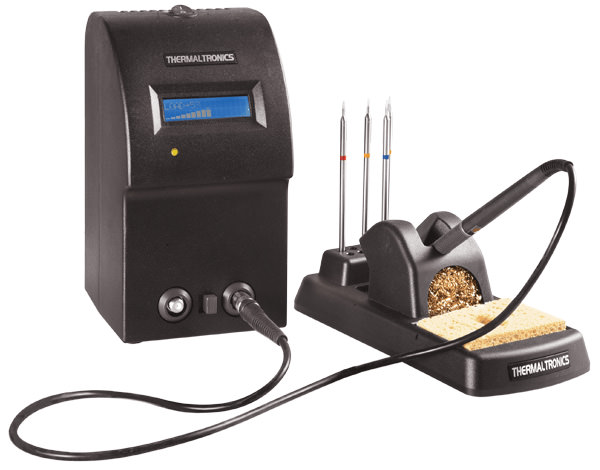

TMT-9000S Soldering & Rework System
The TMT-9000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by automatically adjusting the power output instantaneously, providing instant power regulation to prevent overheating or underheating of components during soldering.
High thermal recovery & performance.
13.56MHz power supply with built-in LCD display.
Dual switchable soldering ports.
No calibration or operator training required.
No additional coil assembly costs.
Share to:
Facebook
X
LinkedIn
WhatsApp
TMT-9000S SPECIFICATIONS
| Input Line Voltage: | TMT-9000PS-1 | 100-110 VAC |
| TMT-9000PS-2 | 220-240 VAC | |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz | |
| Tip to Ground Resistance: | <2 Ohms DC | |
| Idle Temperature Stability: | +/- 1.1°C (2°F) | |
| Ambient Operating Temperature: | 10-40°C (50°F -104°F) | |
| Maximum Enclosure Temperature: | 50°C (122°F) | |
| Fuse: | TMT-9000PS-1 | 125V 1A |
| TMT-9000PS-2 | 250V 0.5A | |
| Output Power (Maximum): | 40 Watts RF | |
| Output Frequency: | 13.56 MHz | |
| Size (W x H x D): | 212.4mm x 118mm x 132mm | |
| Weight: | 3.47 KG | |
| LCD display: | 60.0mm x 16.0mm | |
| Input Line Frequency: | 50/60 Hz | |
PACKING LIST
| TMT-9000PS | Power Supply |
| SHH-1 | Sleep Workstand |
| SHP-1 | Soldering Handpiece |
| RMP-1 | Tip Removal Pad |
| SG-1-HRB | Heat Resistant Grip |
| SG-1-GR | Handpiece Grip Green |
| SG-1-GY | Handpiece Grip Gray |
| BC-1 | Brass Curls |
| SPG-1 | Sulphide Free Sponge |

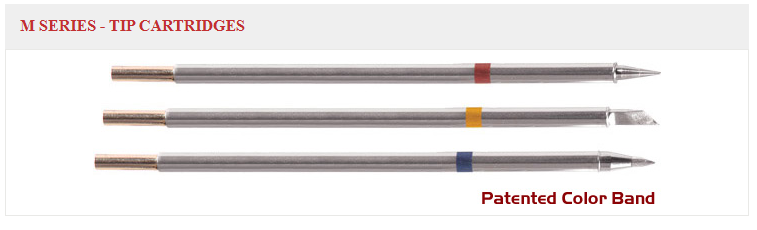

| M7CH176 | Soldering Tip Cartridge |
