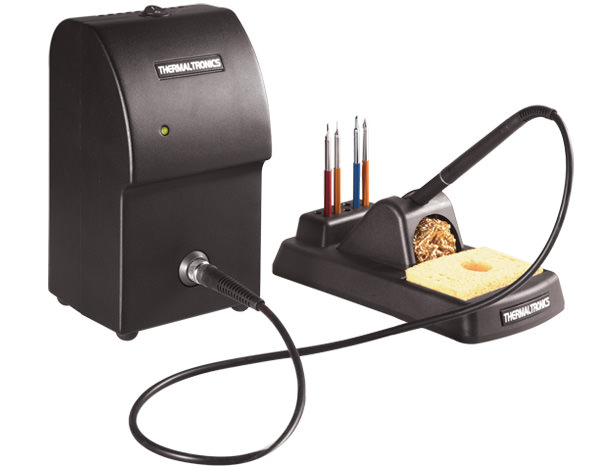

TMT-5000S Soldering & Rework System
The TMT-5000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by automatically adjusting the power output instantaneously, providing instant power regulation to prevent overheating or underheating of components during soldering.
Curie Heat Technology operating at 13.56MHz.
Features our unique T Series line of tip cartridges.
Lightweight and compact, takes up minimal table space.
No calibration or operator training required.
No additional coil assembly costs.
Share to:
Facebook
X
LinkedIn
WhatsApp
TMT-5000S SPECIFICATIONS
| Input Line Voltage: | TMT-5000PS-1 | 100-110 VAC |
| TMT-5000PS-2 | 220-240 VAC | |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz | |
| Tip to Ground Resistance: | <2 Ohms DC | |
| Idle Temperature Stability: | +/- 1.1°C (2°F) | |
| Ambient Operating Temperature: | 10-40°C (50°F -104°F) | |
| Maximum Enclosure Temperature: | 50°C (122°F) | |
| Fuse: | TMT-5000PS-1 | 125V 1A |
| TMT-5000PS-2 | 250V 0.5A | |
| Output Power (Maximum): | 30 Watts RF | |
| Output Frequency: | 13.56 MHz | |
| Size (W x H x D): | 112mm x 205mm x 117mm | |
| Weight: | 2.58 KG | |
| Input Line Frequency: | 50/60 Hz | |
CERTIFICATION MARKS
   |
PACKING LIST
| TMT-5000PS | Power Supply |
| SHH-2 | Sleep Workstand |
| SHP-T | Soldering Handpiece |
| RMP-1 | Tip Removal Pad |
| SG-1-BK | Handpiece Grip Black |
| SG-1-GR | Handpiece Grip Green |
| CC-1 | Connection Cable |
| BC-1 | Brass Curls |
| SPG-1 | Sulphide Free Sponge |

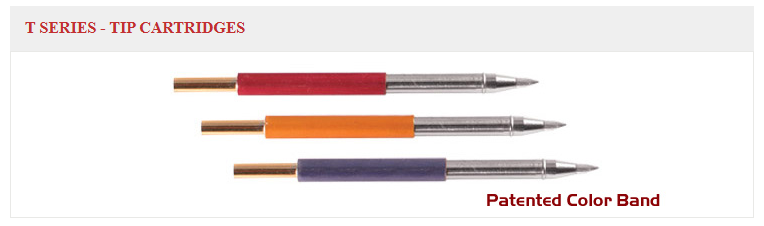

T Series Tip Cartridges
=
=
=
