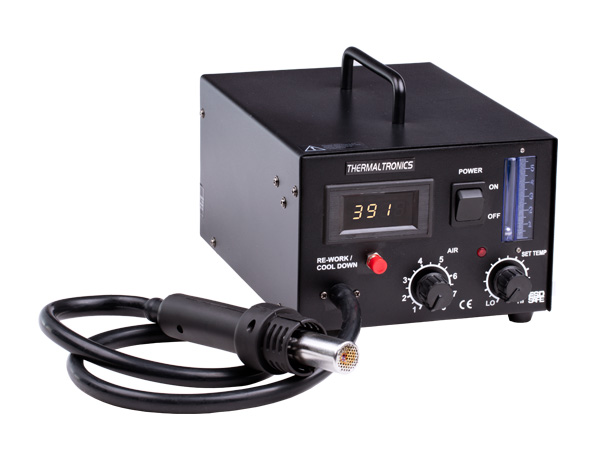

Thermaltronics TMT-HA300 Hot Air Rework Tool
The TMT-HA300 hot air tool uses a large diaphragm pump and can be used for surface mount component removal and reflow on components such as SOIC, CHIP, QFP, PLCC and others.
Digital display shows temperature and status.
Airflow meter provides visual feedback of air flow.
Large selection of high quality nozzles.
Adjustable, easy to use temperature and air control knobs
Share to:
Facebook
X
LinkedIn
WhatsApp
TMT-HA300 SPECIFICATIONS
| Input Line Voltage: | TMT-HA300-1 | 100-110 VAC |
| TMT-HA300 | 220-240 VAC | |
| Power: | 500 Watts | |
| Temperature Range: | 100°C – 480°C | |
| Pump: | Diaphragm | |
| Airflow (Max) | 23L / min | |
| Fuse: | TMT-HA300-1 | 250V 5A |
| TMT-HA300 | 250V 3A | |
| Size (W x H x D): | 188mm x 127mm x 246mm | |
| Weight: | 4.0 KG | |
CERTIFICATION MARKS
  |
PACKING LIST
| TMT-HA300 | Hot Air Tool |
| HTN-D30 | Nozzle 3.0mm (0.12″) |
| HTN-D50 | Nozzle 5.0mm (0.20″) |
| HTN-D80 | Nozzle 8.0mm (0.31″) |
| HTN-D10 | Nozzle 10.0mm (0.39″) |
| HA-HE300 | Heating Element |
