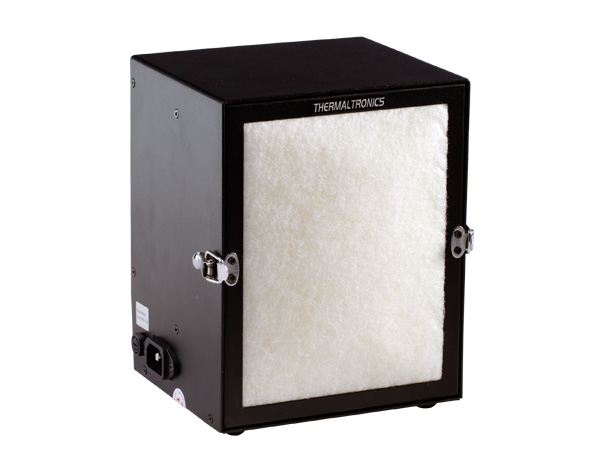

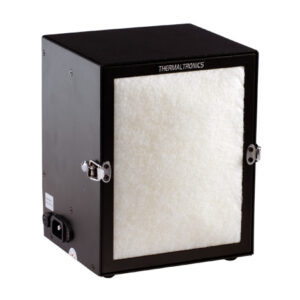

Thermaltronics TMT-FE100S Fume Extractor
The Thermaltronics TMT-FE100S fume extraction unit, takes up minimal benchtop space but is inclusive of a prefilter and a separate HEPA filter, to ensure operator safety. Fan speed can also be adjusted, based on the proximity of the soldering operation or the amount of fumes being generated.
HEPA filtration ensuring operator safety
Light & compact, takes up minimal benchtop space
Adjustable, easy to use fan speed control
Share to:
Facebook
X
LinkedIn
WhatsApp
TMT-FE100S SPECIFICATIONS
| Input Line Voltage: | TMT-FE100PS-1 | 100-110 VAC |
| TMT-FE100PS-2 | 220-240 VAC | |
| HEPA Efficiency | FE-MF100 | 90% at 0.3 micron |
| FE-MF199 | 99% at 0.3 micron (optional) | |
| Fan Capacity: | 5.0 m³ / min | |
| Air Flow: | 50 CFM | |
| Noise Level: | <55 dBA | |
| Fuse: | TMT-FE100PS-1 | 250V 1A |
| TMT-FE100PS-2 | 250V 0.5A | |
| Size (W x H x D): | 166mm x 205mm x 142mm | |
| Weight: | 2.0 KG | |
CERTIFICATION MARKS
  |
PACKING LIST
| TMT-FE100PS | Fume Extractor |
| FE-PF100 | Pre-filter (1 PC) |
| FE-MF100 | Main filter (1 PC) |
