Thermaltronics TMT-1000S Soldering & Rework System
The TMT-1000S is based on Curie Heat Technology which responds to the thermal demands of each solder joint by automatically adjusting the power output instantaneously, providing instant power regulation to prevent overheating or underheating of components during soldering.
Rapid RF induction heating with no temperature overshoot.
Precise temperature control within a range of ±1.1°C (±2°F).
No calibration or operator training required.
No additional coil assembly costs.
Tip automatically powers down when handpiece is placed in sleep workstand
Share to:
Facebook
X
LinkedIn
WhatsApp
SYSTEM CONFIGURATIONS
TMT-1000S-K with K Series Tip
TMT-1000S-P with P Series Tip
TMT-1000S-S with S Series Tip
TMT-1000S SPECIFICATIONS
| Input Line Voltage: | 12VDC, 5A |
| Tip to Ground Potential: | 2mV, true RMS 50-500Hz |
| Tip to Ground Resistance: | <2 Ohms DC |
| Idle Temperature Stability: | +/- 1.1°C (2°F) |
| Maximum Enclosure Temperature: | 50°C (122°F) |
| Output Power (Maximum): | 50 Watts RF |
| Output Frequency: | 470 Khz |
| Size (W x H x D): | 90mm x 118mm x 101mm (3.5″ x 4.65″ x 4″) |
| Weight: | 0.67 KG (1.5 LBS) |
| Input Line Frequency: | 50-60 Hz |
CERTIFICATION MARKS:
   |

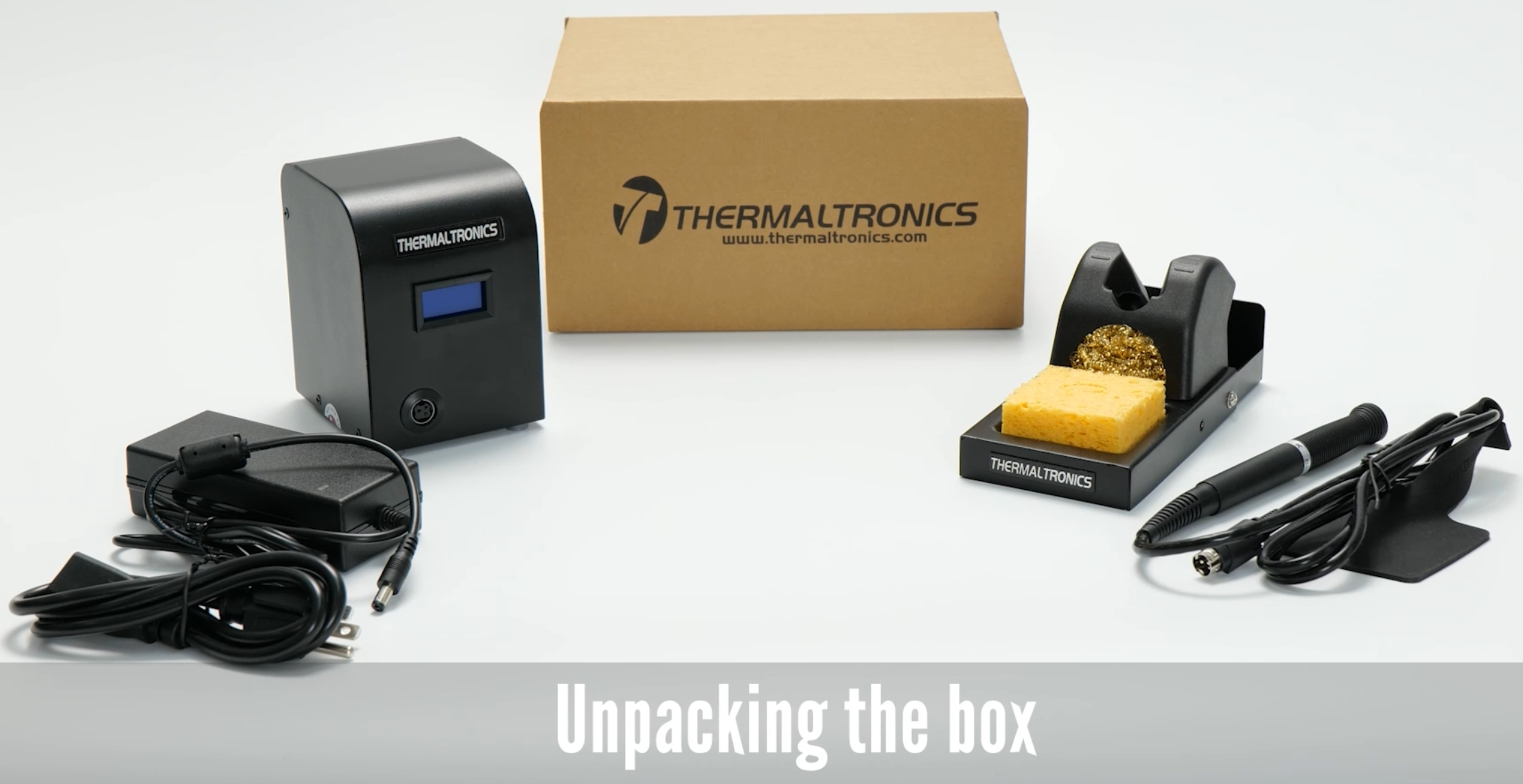

PACKING LIST
| TMT-1000PS | Power Supply |
| SHH-6 | Sleep Workstand |
| SHP-K1 | Soldering Handpiece for K Series Tips |
| RMP-1 | Tip Removal Pad |
| K75CH0181 | Soldering Tip Cartridge |
| BC-1 | Brass Curls |
| SPG-1 | Sulphide Free Sponge |
| S-POWER-1 | 12VDC Power Adapater |
| 1The handpiece & soldering tip cartridge will vary based on system configuration. | |

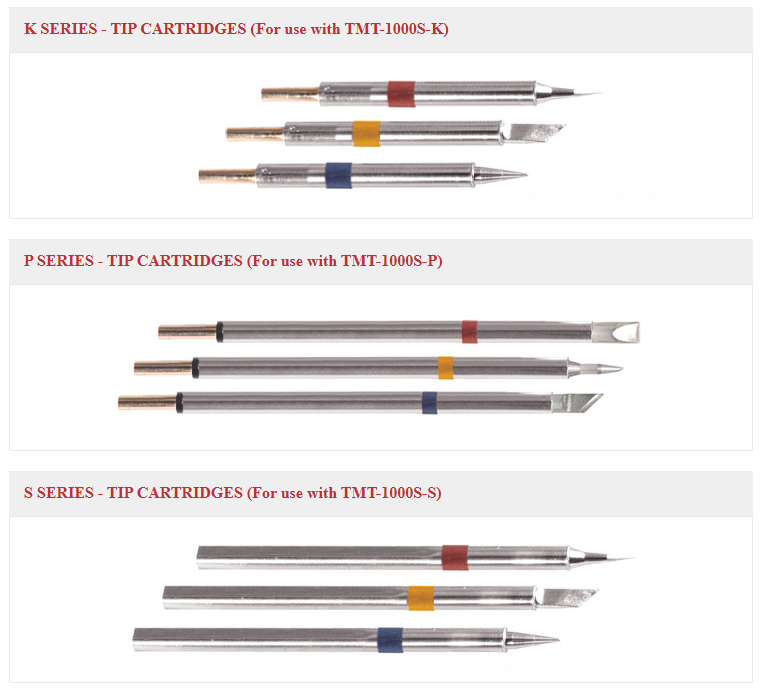

K Series Tip Cartridges
=
=
=
P Series Tip Cartridges
=
=
=
S Series Tip Cartridges
=
=
=
