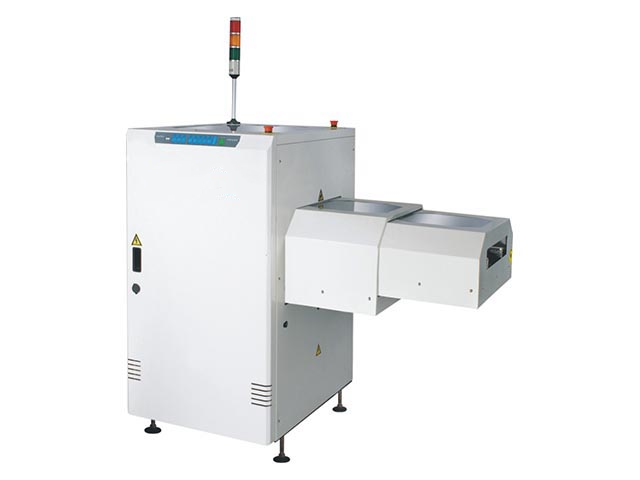

Telescopic gate conveyor
Telescopic gate conveyor
Board handing system conveyor serial
Description
This unit is used when a passage way is required in a production line (fully automatic).
Features
The Telescopic Gate Conveyor from Electro Design is a fully automated pass through conveyor that allows people and vehicles to go through, rather than round a complete line. Since the retracted position of the telescopic conveyor is its idle position there is no need to press any buttons to pass through the line. Each side and section of the conveyor has its own motor drives and belts.
Working height (mm):900±20(std)
Transport Speed:1-15meters per minute or as your specified
Power supply:100V, 220v,230V (single-phase AC)
Power Maximum:100 W
Belt type: flat belt
Telescopic Length(mm) 850mm
Stretch out / retract 6 sec
Specifications
|
Model |
Dimension (L*W*H.MM) | Effection PCB size | Weight(KG) | Remark |
| LAC330 | 1500*850*1300 | 50*50-445*330 | 200KG |

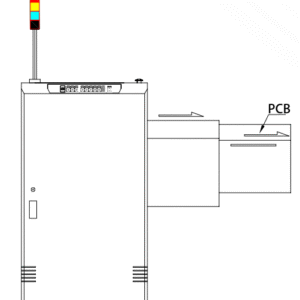

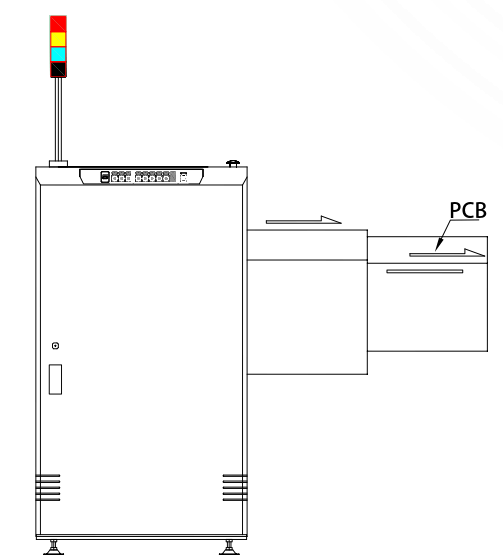

Schematic
