SMT Splice Cart
Applications
Specifically designed for SMT (Surface Mount Technology) assembly workshops, enabling online component feeding. During component changes at the pick-and-place machine, carrier tape splicing is completed on this cart. The matching splicing pliers and copper clips/splitting tapes connect the old and new carrier tapes, eliminating long downtime and improving line OEE (Output Effectiveness).
Core Configuration & Features

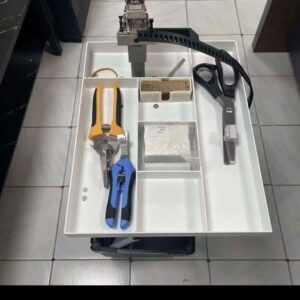

1. Tabletop: Anti-static compartmentalized material tray, with separate areas for splicing pliers, copper clips, splicing tape, scissors, and spare auxiliary materials; tabletop can rotate 360°.
2. Upright: Hand-cranked lifting mechanism, height adjustable from 80–90cm, adaptable to different production line workbench heights.
3. Splicing Pliers: Stapler-style SMT splicing pliers (purple handle), one-time press-fit copper clips for efficient splicing of electronic component carrier tapes.
4. Base: Equipped with silent universal wheels (with brakes) for easy movement within the workshop; includes a magnetic folding trash can for storing waste carrier tape and scraps, which can be folded away to save space when not in use.
5. Material: Main body metal with anti-static paint, anti-static tabletop, meeting ESD requirements for electronic workshops.

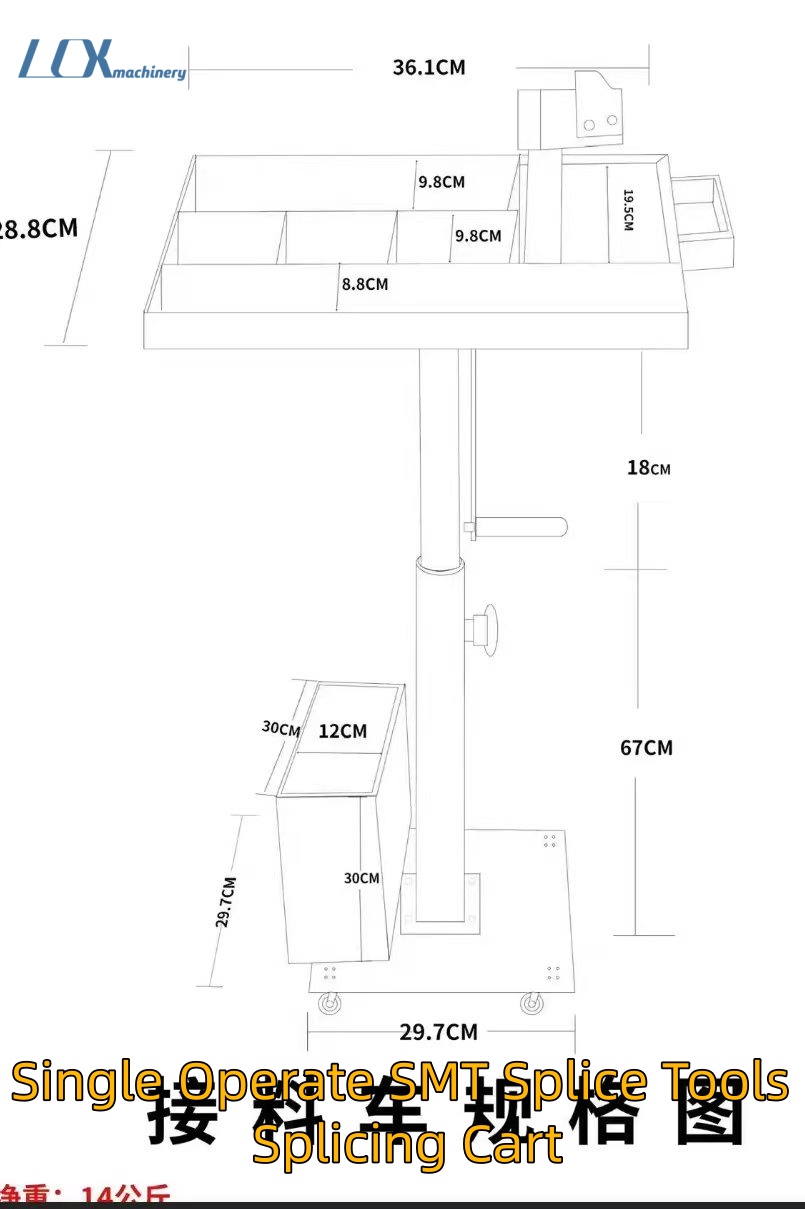

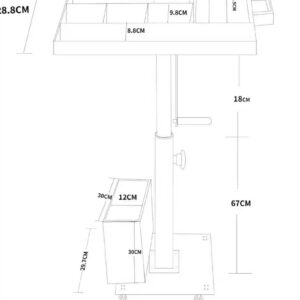

Dimensions Reference
– Tray: 350×250mm
– Base: 280×280mm
– Lifting Range: 800–900mm
Share to:
ESD SMT Splice Cart, Height Adjustable 360° Rotating Work Station with SMT Splicing Tool, Mobile SMT Material Splicing Trolley for SMT Production Line

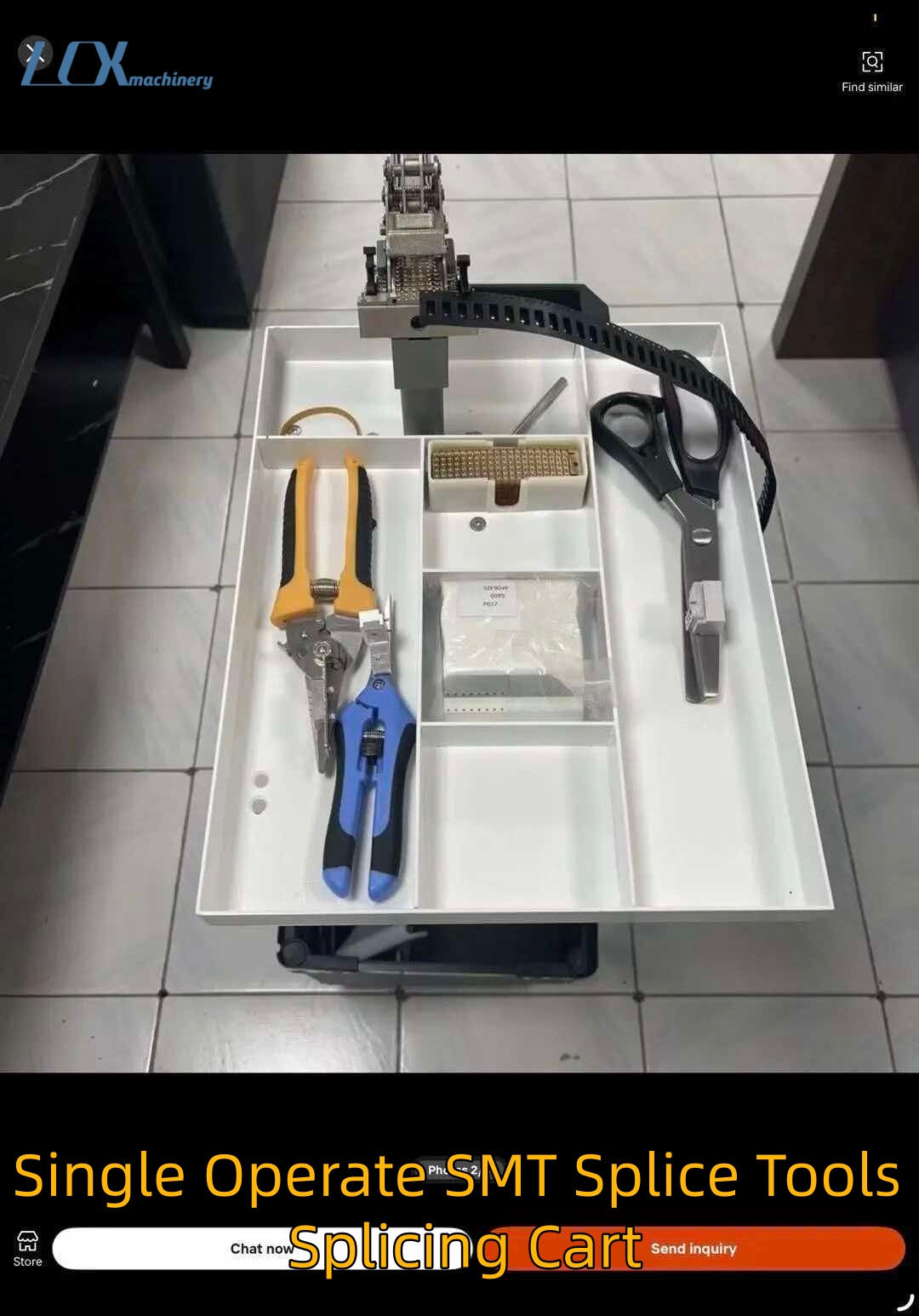

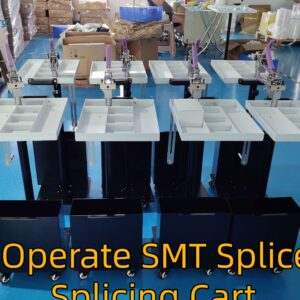

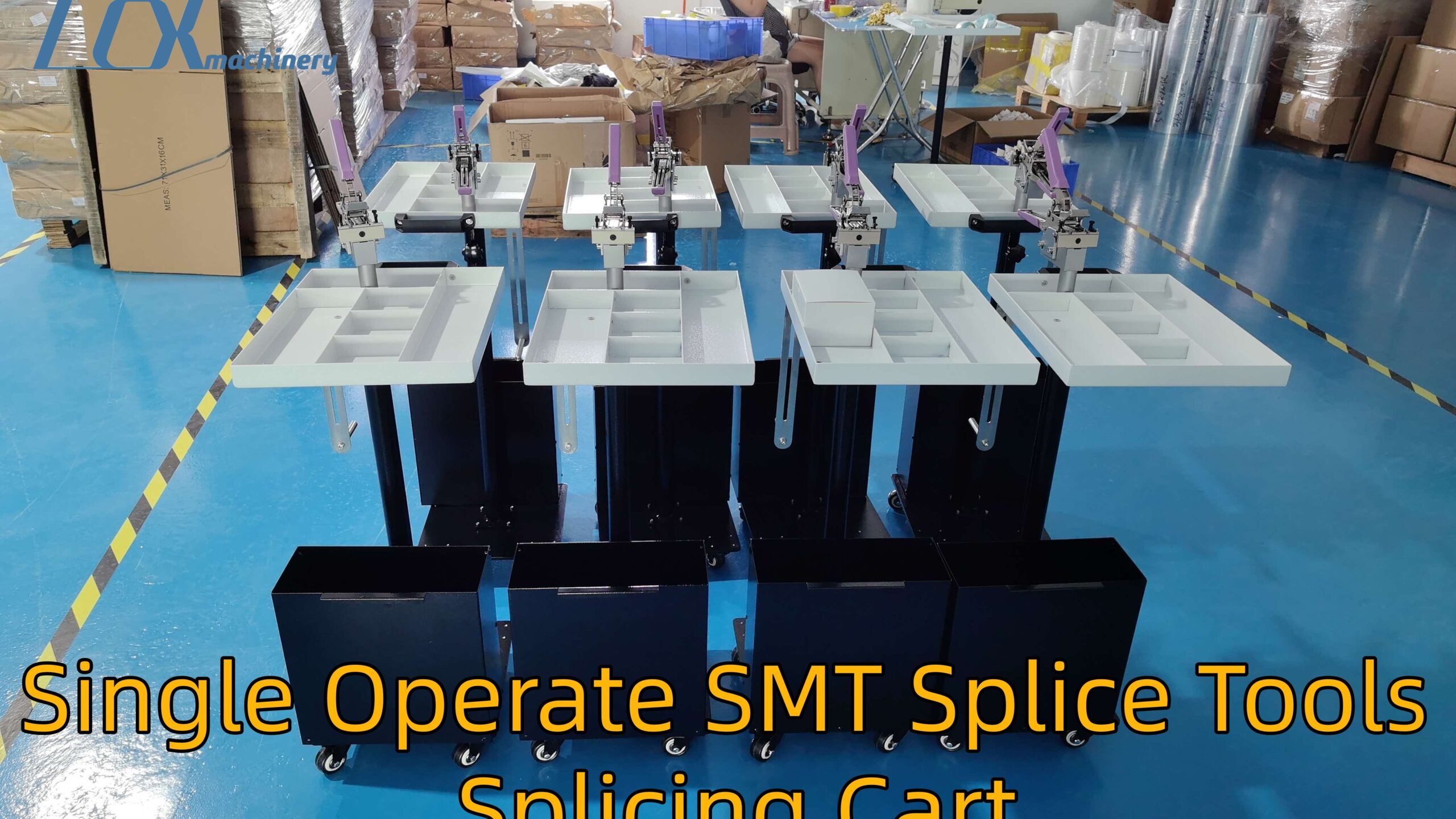

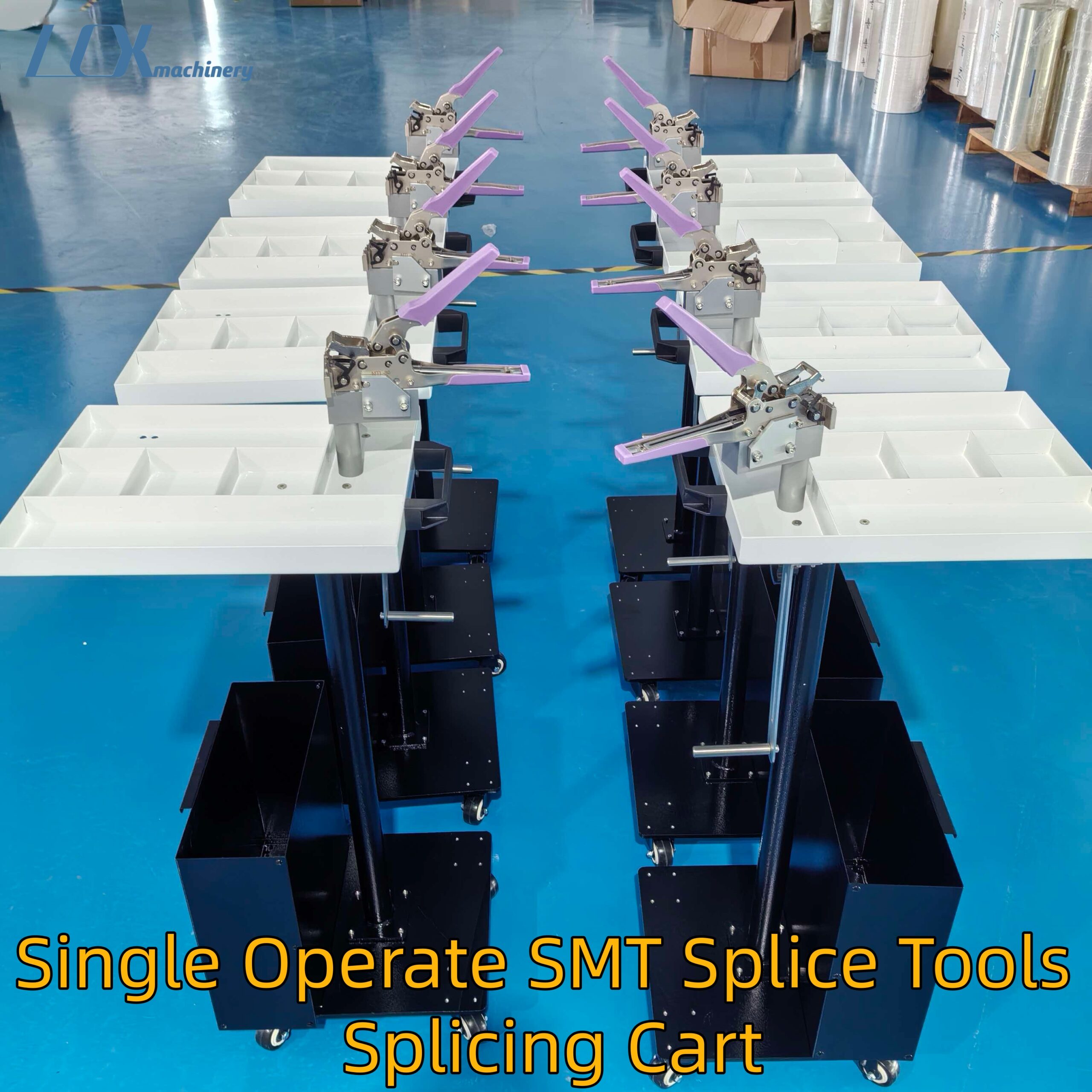

Single Operate SMT Splice Tools Splicing Cart
MTL-100，Includes 200 copper buckles
Name: SMT Receiving Cart (Complete Set)
Model: MTL-100
Dimensions: Cart 300*300*1010 mm, Carton 710*310*160 mm
Package Details: SMT Receiving Cart * 1, Scrap Box * 1, Connecting Receiving Clamps * 1
Weight: 13-14 kg
Warranty: One year for the cart, six months for the SMT receiving clamps.
Product Features:
1. Height Adjustable: Overall height adjustable range: 80cm-110cm.
2. Universal Casters for easy movement.
3. Made of anti-static material; bottom can be grounded via a chain.
4. The receiving clamps are fully movable and feature an enlarged material tray for easy placement of consumables such as splicing tape, copper clips, and scissors.
SMT Splicing Cart
The SMT splicing cart represents a significant leap forward in SMT splicing, enabling seamless, jam-free splicing without machine downtime. Constructed from high-wear-resistant, high-hardness tool steel, it guarantees 500,000 trouble-free pressing cycles. Its row-type, high-precision phosphor bronze buckles offer strong penetration and are suitable for any material strip on the SMT production line. The continuous design eliminates the need for operators to install buckles after each splice, simplifying and increasing efficiency. The splicing success rate is over 99.7%.
Product Features:
1. Adjustable height;
2. Swivel wheels for easy movement;
3. Constructed with anti-static materials and a grounding chain at the bottom;
4. Fully rotatable splicing clamps;
5. Includes a holder for splicing tape, buckles, and cutting pliers.
