Sanyo Denki Sanmotion Q Servo Motor Q2GA04006VXS5U

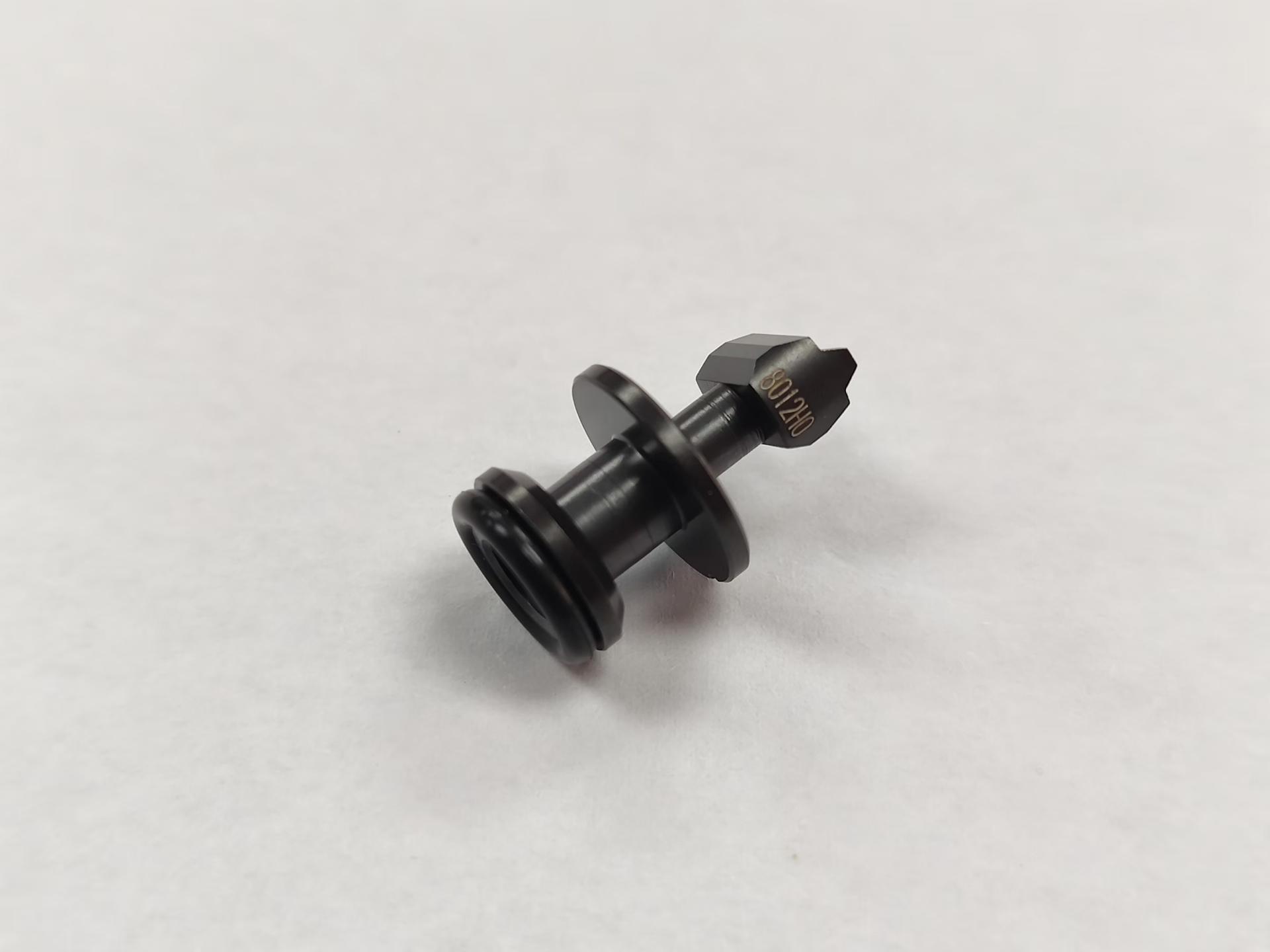

8012H0 Nozzle
Material: Precision ceramic/tungsten steel, highly wear-resistant and non-stick, designed specifically for micro-component placement.
Used in high-end high-speed placement equipment such as YAMAHA, compatible with micro-materials such as 0402 and 0201.

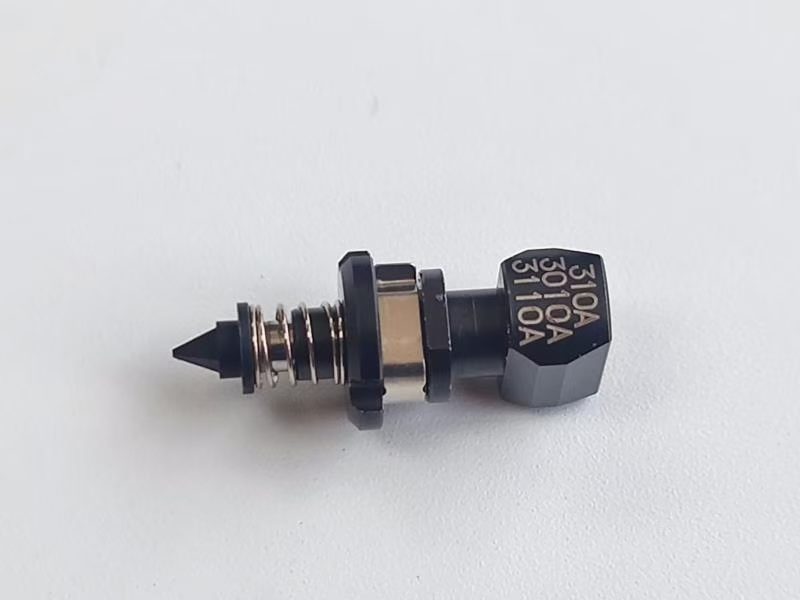

310A Nozzle
Model Standard: Original Yamaha specification (part number KHY-M77A0-A0)
Features spring-loaded cushioning for shock absorption and anti-offset placement.
Compatible with YS/YSM series pick-and-place machines, suitable for general placement of medium-sized ICs and resistors/capacitors.
Share to:

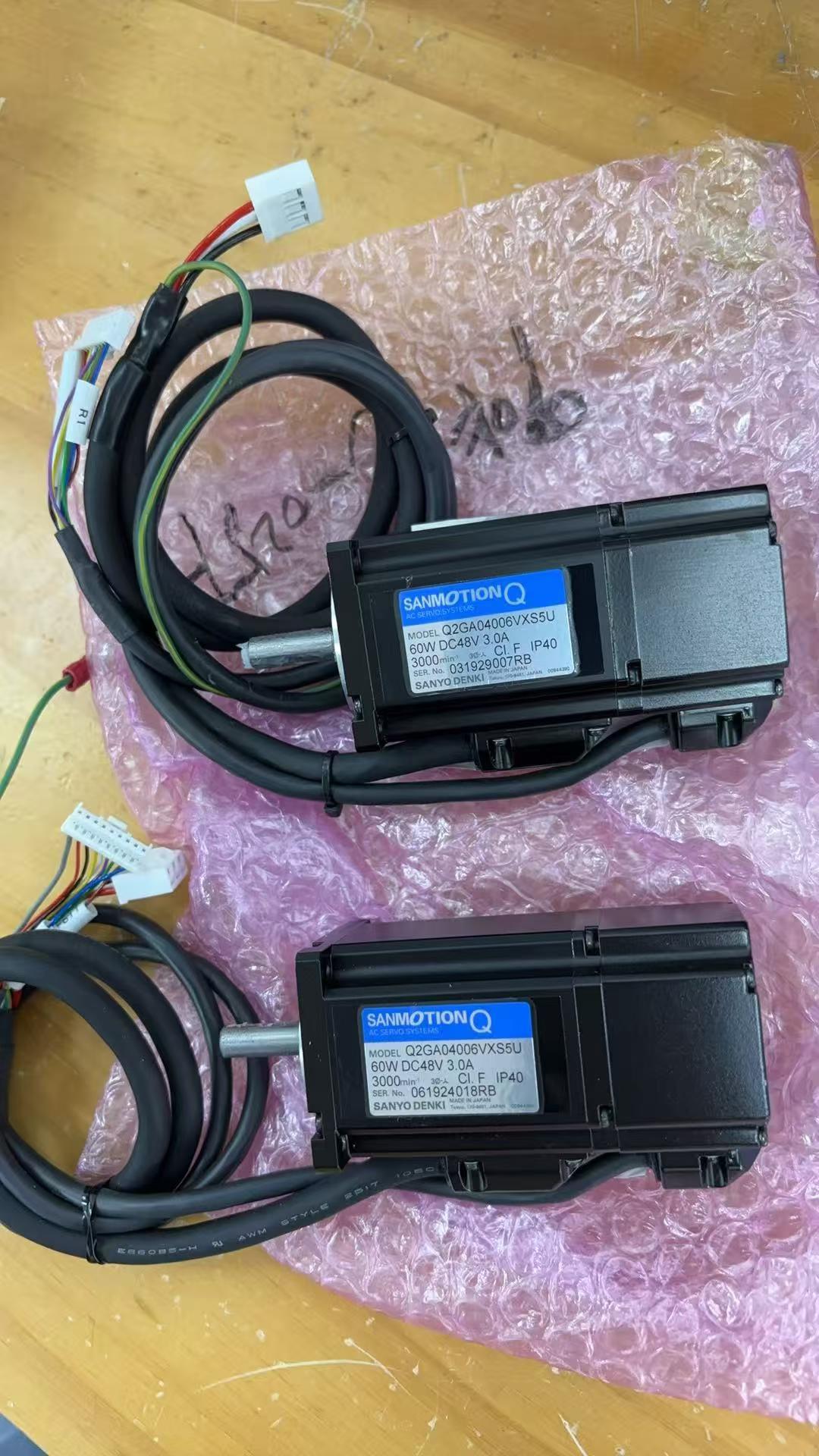

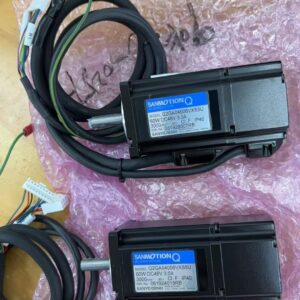

Model: Q2GA04006VXS5U
Core Parameters:
Power: 60W | Rated Voltage: DC48V | Rated Current: 3.0A
Rated Speed: 3000r/min | Protection Class: IP40
Product Positioning: A low-voltage DC servo motor from Sanyo Electric, Japan, belonging to the SANMOTION Q series. It features a compact size, fast response speed, and extremely high positioning accuracy.
Typical Applications: Widely used in high-speed, high-precision motion scenarios such as SMT pick-and-place machines, automated precision platforms, small robotic arms, and electronic manufacturing equipment. It is a commonly used drive motor for the Z-axis and R-axis of pick-and-place machines.
The servo motor is responsible for the precise rotation and lifting motion control of the placement head. The nozzle is responsible for vacuum pickup and precise placement of PCB electronic components. Together, they ensure high-speed, high-precision, and highly stable mass production operations for the placement machine.
