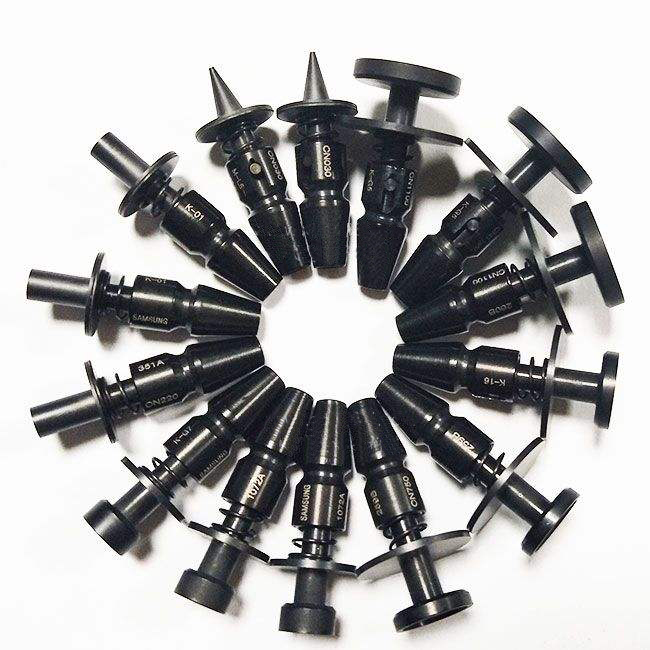

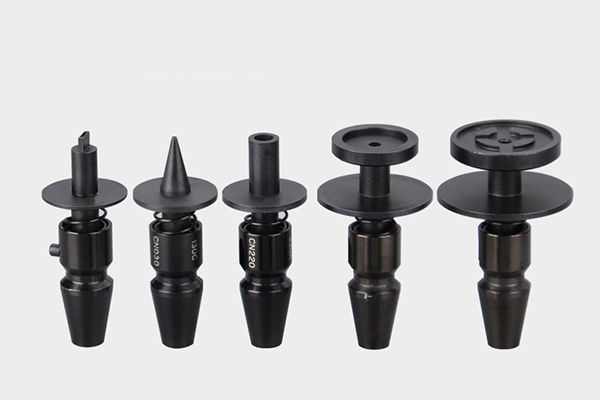

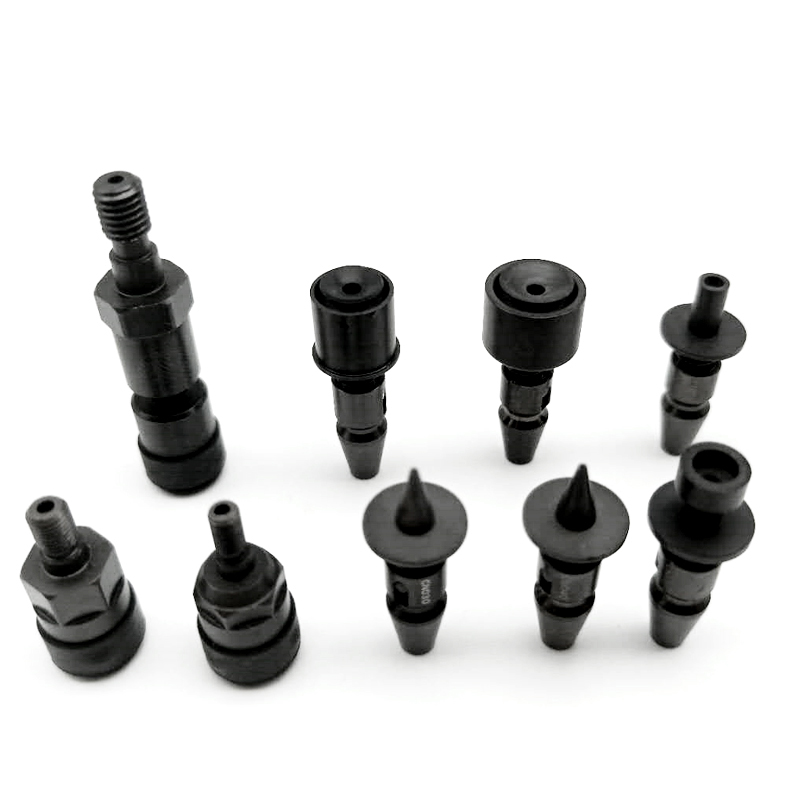

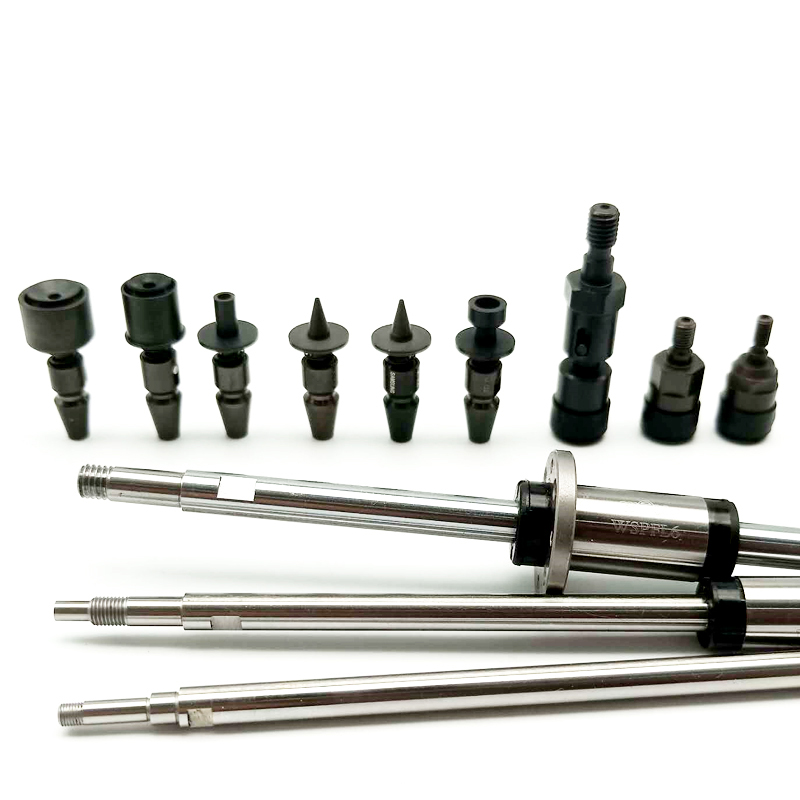

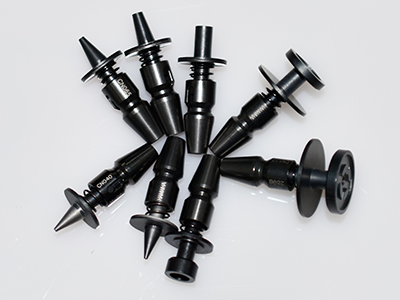

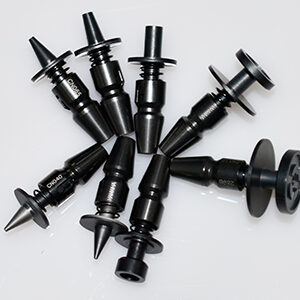

Samsung Hanwha HM520 VN030 VN040 NOZZLE
Following the business integration in 2015, nozzles for these SMT placement machines are now manufactured and supplied by Hanwha Precision Machinery. The part numbers have largely remained consistent, with new “HN” series nozzles being introduced.
Understanding the Nozzle Part Number System
-
H- / HN- Prefix: “H” stands for Hanwha. “HN” typically denotes a newer or specialized series.
-
Number: The number generally corresponds to the nozzle tip’s outer diameter (OD) in millimeters (e.g., H01 is ~0.25mm, H10 is ~1.0mm).
-
Suffix: Letters indicate special types (e.g.,
Cfor Cylindrical,Sfor Square,Jfor JEDEC,ESDfor Anti-Static).
Complete Nozzle Part Number List
Here is the list categorized by function and size.
1. Standard Chip Nozzles (For Resistors, Capacitors, etc.)
These are the most common nozzles for rectangular and square chip components.
| Part Number | Nozzle Type | Typical Component Usage | Description |
|---|---|---|---|
| H01 | 01005 | 01005, 008004 | Ultra-miniature components |
| H02 / HN02 | 0201 | 0201, 01005 | Micro miniature components |
| H04 / HN04 | 0402 | 0402 | Small chip components |
| H06 / HN06 | 0603 | 0603 | Standard small chip components |
| H08 / HN08 | 0805 | 0805, 1206 | Medium chip components |
| H10 / HN10 | 1005 | 1005, 1608 | Larger chip components |
2. General Purpose & Small Component Nozzles
These nozzles have round tips and are used for a wider range of small components.
| Part Number | Nozzle Type | Typical Component Usage | Description |
|---|---|---|---|
| H12 | 1.3mm | Diodes, SOT-23 | Small transistors & diodes |
| H14 | 1.5mm | SOD-123, SOT-23 | Small outline diodes & transistors |
| H16 | 1.8mm | SOT-323, Tantalum Caps | |
| H18 | 2.2mm | SOT-23, LEDs, Small Electrolytics | |
| H20 | 2.7mm | Electrolytic Caps, Connectors | |
| H25 | 3.7mm | Electrolytic Caps, SOIC ICs | Small Integrated Circuits |
| H32 | 5.3mm | QFP, PLCC, Connectors | Quad Flat Packages |
| H40 | 7.0mm | QFP, PLCC, Large Connectors | |
| H50 | 9.0mm | BGA, QFP, Connectors | Ball Grid Arrays |
| H60 | 11.0mm | Large BGA, Connectors, Shields |
3. Special Shape Nozzles
These are designed for specific component shapes to ensure stable picking and placement.
| Part Number | Nozzle Type | Typical Component Usage | Description |
|---|---|---|---|
| HN-C0 | Cylindrical (Small) | MELF Diodes, Resistors | Round tip for cylindrical components |
| HN-C1 | Cylindrical (Large) | MELF Diodes, Resistors | Larger round tip |
| HN-S0 | Square (Small) | SOP, QFP ICs | Square tip for IC leads |
| HN-S1 | Square (Large) | SOP, QFP, PLCC ICs | Larger square tip |
| HN-J0 | JEDEC (Small) | SOJ, PLCC ICs | For JEDEC-style IC packages |
| HN-J1 | JEDEC (Large) | SOJ, PLCC ICs | Larger JEDEC tip |
| HN-L0 | Long | Resistor Arrays, Connectors | Rectangular tip for long components |
| HN-L1 | Long | Resistor Arrays, Connectors | Larger rectangular tip |
4. High-Precision & Anti-Static Nozzles
Used for advanced, high-speed applications and for sensitive components.
| Part Number | Nozzle Type | Typical Component Usage | Description |
|---|---|---|---|
| HN-U0 | Ultra Precision | 01005, microBGAs | For the smallest, most precise components |
| HN-U1 | Ultra Precision | 0201, 0.3mm pitch CSP | |
| HN-MC0 | Micro Cylindrical | Miniature MELF | High-precision cylindrical |
| HN-ESD | Anti-Static | ICs, Sensitive Components | Made from carbon-fiber composite to prevent ESD damage |
| H-ESD | Anti-Static | ICs, Sensitive Components | Older generation ESD-safe nozzle |
How to Find the Correct Part Number
-
Machine Programming Software (HSP): The easiest method. When you assign a component in the software, it recommends compatible nozzles from the database.
-
Equipment Manual: Your Hanwha machine’s manual contains a detailed nozzle selection guide.
-
Component Datasheet: Cross-reference the component’s dimensions (length, width, height) with the nozzle’s specifications.
-
Contact Your Supplier: Provide your machine model (e.g., SM471, HM520) and the component part number you need to place. They will give you the exact nozzle recommendation.
This list covers the vast majority of common Samsung/Hanwha nozzles. For the most accurate and up-to-date information, always refer to official Hanwha documentation or your authorized supplier.
