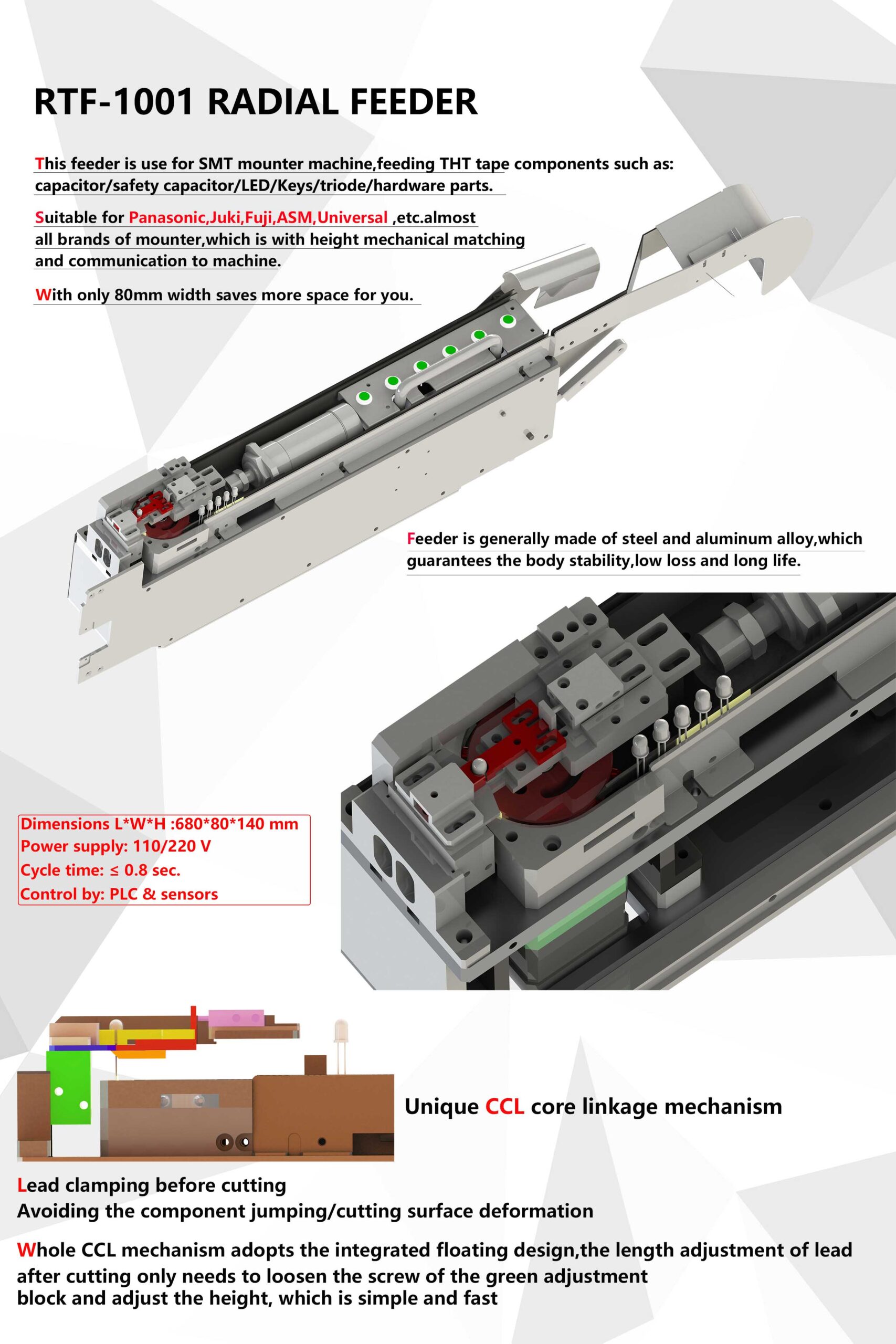

RTF-1001 RADIAL FEEDER

RTF-1001 Radial Feeder

The RTF-1001 RADIAL FEEDER is a specialized solution designed for feeding THT tape components such as capacitors, safety capacitors, LEDs, keys, triodes, and hardware parts into SMT mounter machines. It is suitable for a wide range of mounter brands, ensuring seamless integration and operation. This feeder is ideal for electronics manufacturing, offering a space-saving design with high precision and reliability.

Categories:

Share to:

Facebook
X
LinkedIn
WhatsApp
Key Features:
  1. Space-Saving Design: Only 80mm width for efficient use of production space.
  2. Steel and Aluminum Alloy Construction: Ensures stability, low loss, and long life.
  3. Compatible with Major Mounters: Works with Panasonic, Juki, Fuji, ASM, Universal, etc.
  4. PLC & Sensors Control: Ensures precise and reliable component feeding.
  5. Fast Cycle Time: ≤ 0.8 seconds for high-speed operation.
  6. Power Supply Flexibility: Operates on 110/220 V.
  7. Unique CCL Core Linkage Mechanism: Simplifies lead adjustment and cutting.
  8. Lead Clamping Before Cutting: Avoids component jumping and surface deformation.
Technical Datasheet:
General:
Dimensions (LWH): 68080140 mm
Power Supply: 110/220 V
Cycle Time: ≤ 0.8 sec.
Control: PLC & Sensors
Compatibility:
Compatible with: Panasonic, Juki, Fuji, ASM, Universal, etc.
Mechanical:
Material: Steel and Aluminum Alloy
Design: Space-saving width of 80mm
Stabilization: Ensures low loss and long life
Operational:

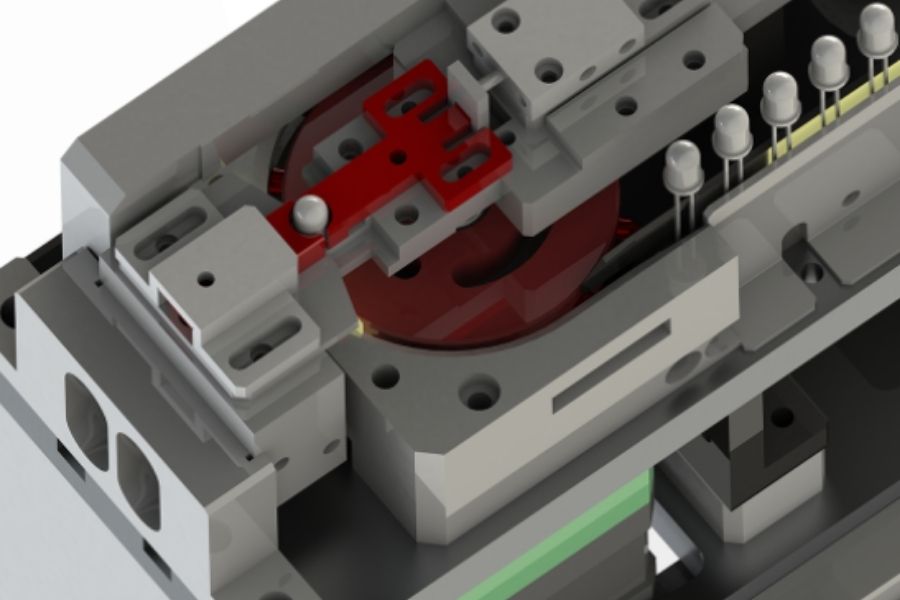

Unique CCL Core Linkage Mechanism: Facilitates simple and fast lead adjustment
Lead Clamping Before Cutting: Prevents component jumping and cutting surface deformation
