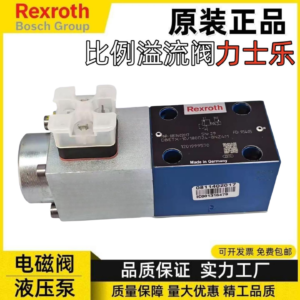

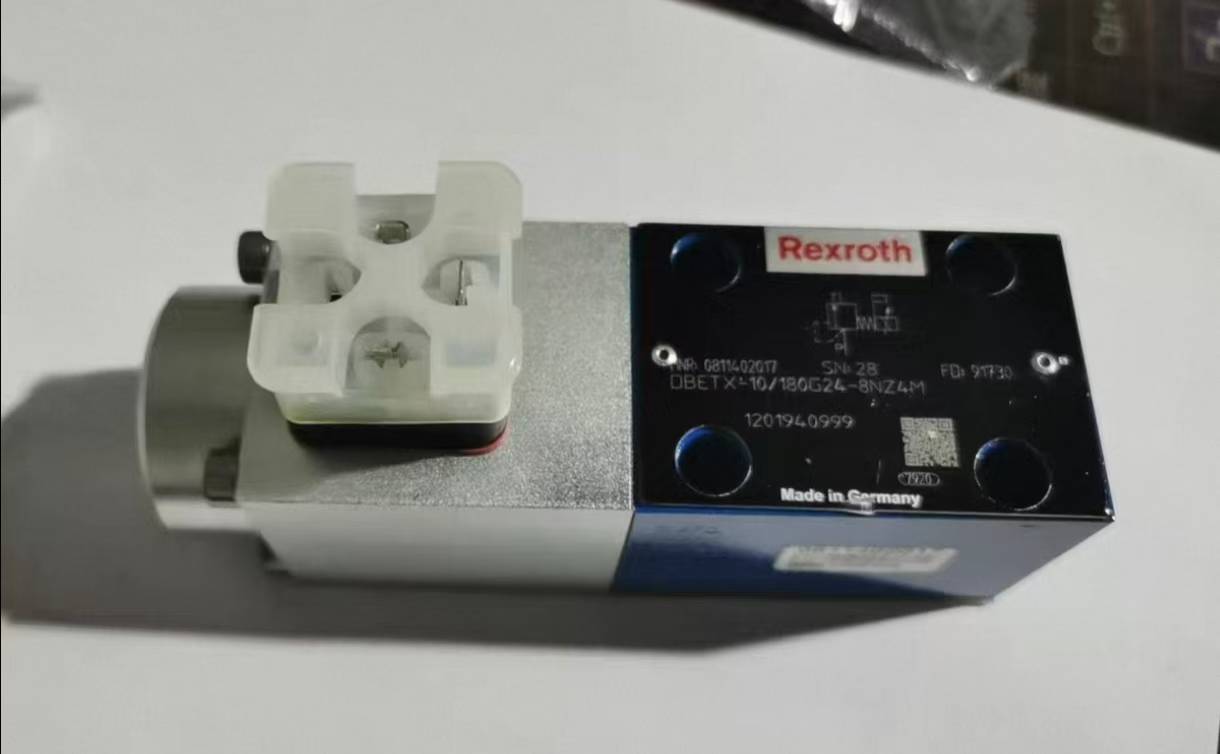

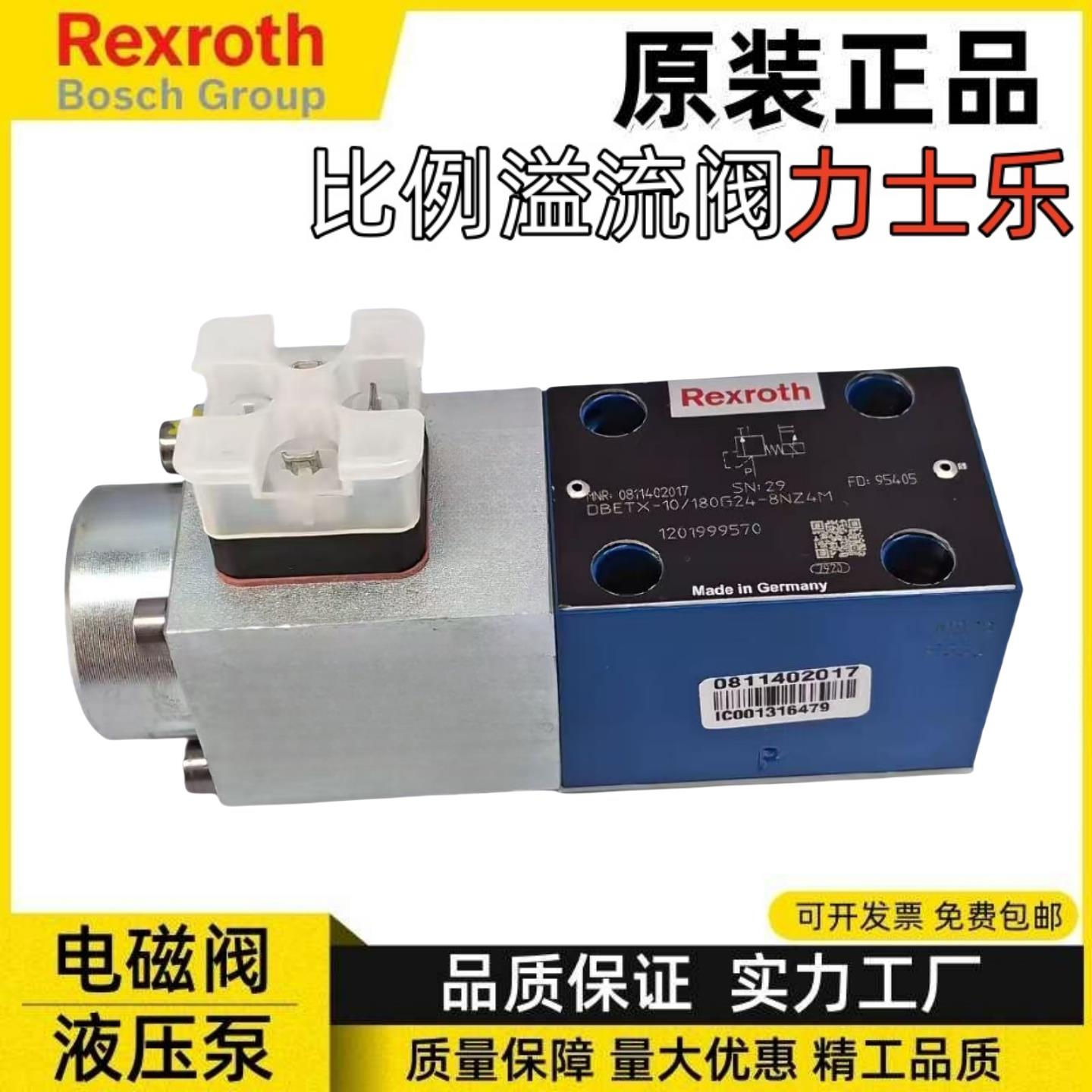

Rexroth DBETX-10/180G24-8NZ4M Proportional Pressure Relief Valve 0811402017
Rexroth DBETX-10/180G24-8NZ4M (part number 0811402017), a German-made direct-acting proportional relief valve, does not have a built-in amplifier board and requires an external proportional amplifier for drive.
Driven by a DC24V proportional solenoid, it has a maximum pressure adjustment of 180 bar and is suitable for small flow rates. It allows for continuous stepless adjustment of hydraulic pressure based on an electrical signal and is primarily used for pilot pressure control. It is widely used in injection molding machines, hydraulic testing machines, and servo hydraulic systems to achieve precise closed-loop pressure control.
Rexroth DBETX-10/180G24-8NZ4M Proportional Pressure Relief Valve 0811402017
Rexroth DBETX-10/180G24-8NZ4M Proportional Relief Valve
Rexroth DBETX-10/180G24-8NZ4M Direct Acting Proportional Pressure Relief Valve, Material No.0811402017
Share to:
Rexroth DBETX-10/180G24-8NZ4M Direct-Acting Proportional Relief Valve
Part Number: 0811402017, Original Import from Germany
✅ Basic Information
Type: Direct-acting electro-hydraulic proportional relief valve (DBETX series, no built-in amplifier board, requires external proportional amplifier drive)
– Model Explanation:
– DBETX: Direct-acting proportional relief valve series
– 10: Series version (1X)
– 180: Maximum set pressure 180 bar
– G24: Electromagnet power supply DC24V
– 8NZ4M: Electrical plug specification, seal, and mounting type code
– Installation Standard: ISO 4401-03 (nominal diameter 6, base plate mounting)
📌 Core Technical Parameters
1. Maximum set pressure: 180 bar
2. Maximum pressure withstand of P port: 315 bar
3. Rated flow rate: 1 L/min (Maximum 1.5 L/min, a small flow valve, mostly used for pilot pressure control)
4. Power Supply: DC24V, proportional electromagnet
5. Weight: Approx. 2kg
6. Seal: Standard NBR rubber, optional fluororubber
🛠️ Applications
– Continuous, stepless electrical signal regulation of hydraulic system pressure, used for closed-loop pressure control
– Typical scenarios: Injection molding machines, die-casting machines, hydraulic testing machines, servo hydraulic stations, pilot pressure control in material testing equipment
>
> ⚠️ Note: DBETX does not have a built-in amplifier board; an external proportional amplifier must be connected, with an input ±10V or 4-20mA command signal to achieve linear pressure adjustment according to the electrical signal.
🔍 Differences within the same series
– DBETX: No integrated electronic board (your model), external amplifier required
– DBETE: Built-in integrated amplifier board, directly connects to control signal, simpler wiring
