PCB Rack Magazines – M Size – easy Rack Series from allSMT

PCB Rack Magazines – M Size – easy Rack Series from allSMT

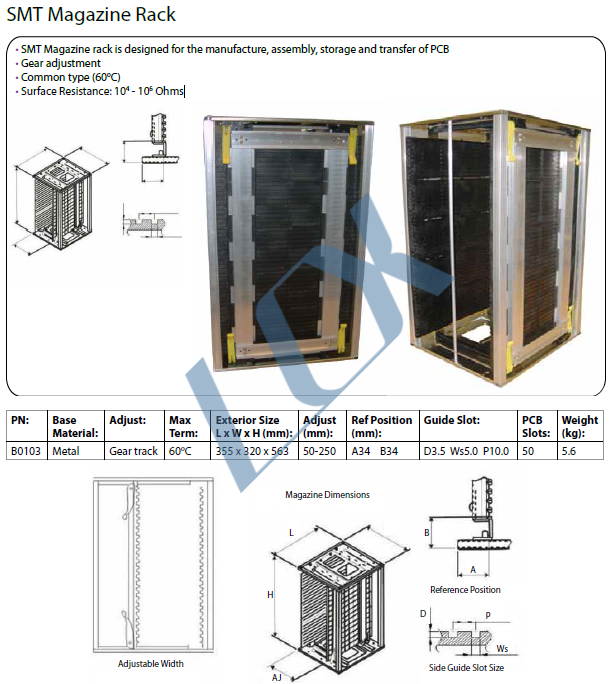

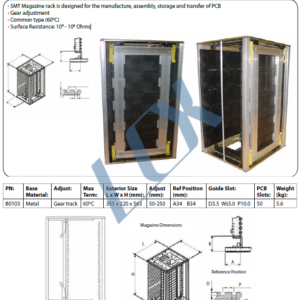

PCB width can be adjusted quickly and precisely by means of a quick release fastener.

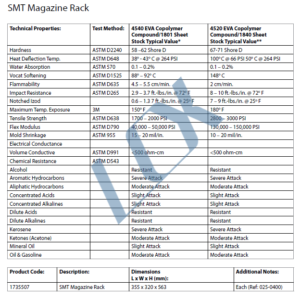

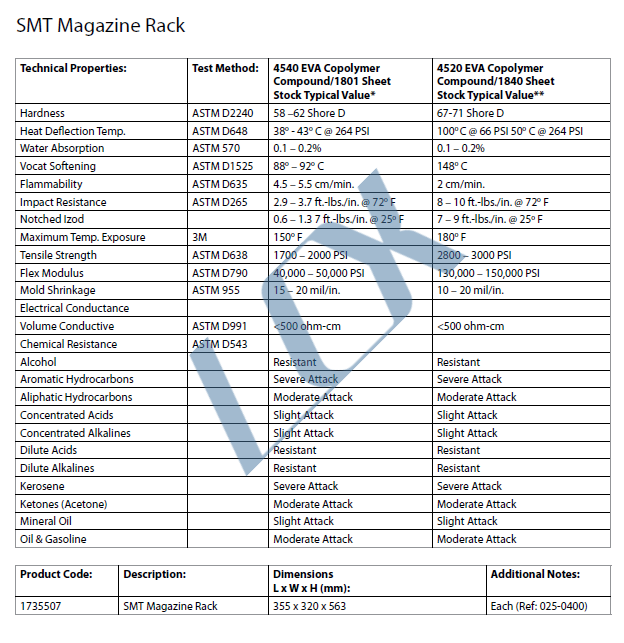

Magazines with different heat resistances available.

• available heat resistances : 85°C, 125°C, 200°C

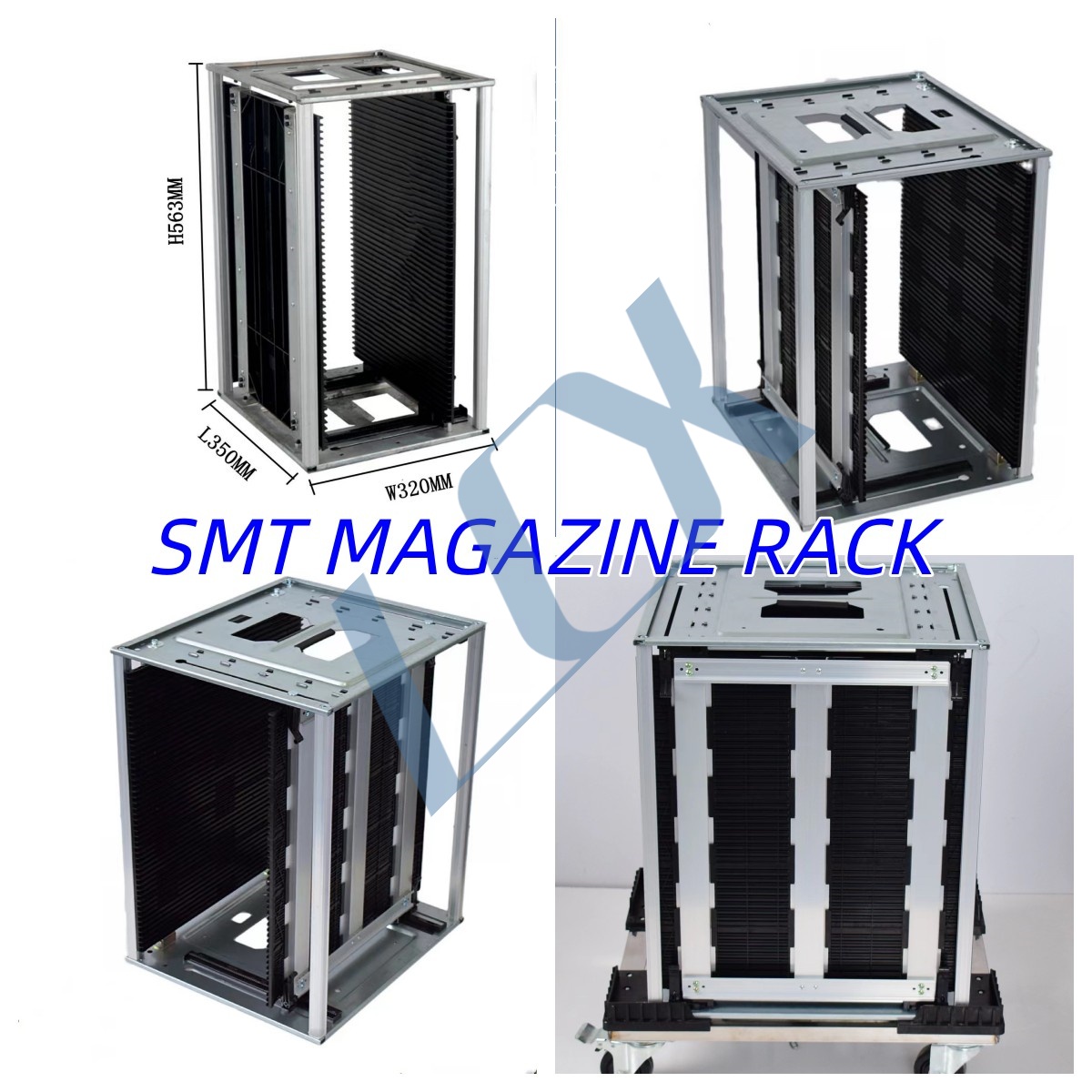

• Magazine length : 355mm
• Magazine width : 320mm
• Magazine height : 563mm
• Magazine weight : 5,7 Kg
• PCB capacity : 50
• Maximum LP width : 250mm
• Fixation moveable Side: Clamping LeverScrews
  Heat resistance: 85°125°200°
  PCB Capacity: 50
  Delivery as: disassembled
  Magazin width: 320mm
  Magazin weight: 5,7 Kg
  Magazin height: 563mm
  Magazin lenght: 355mm
  Maximum PCB width: 250mm
