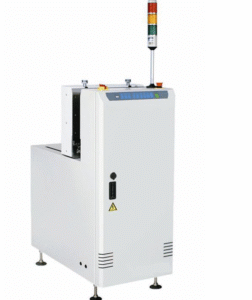

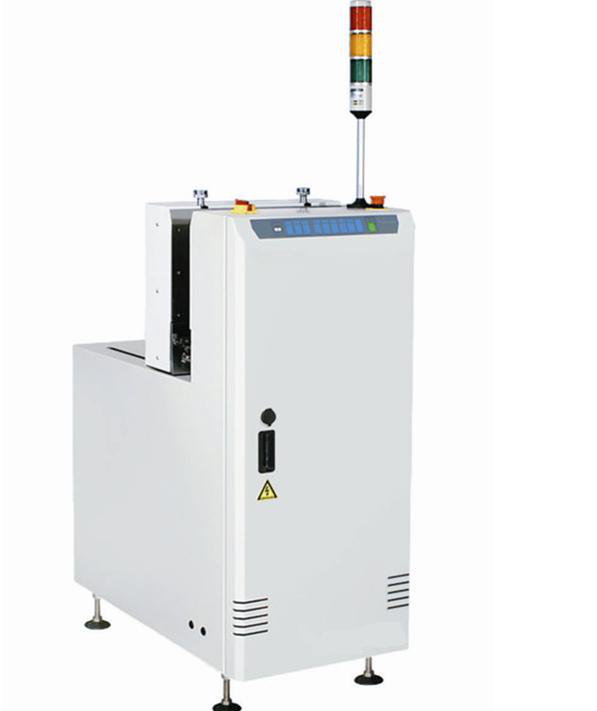

PCB destacker LCX-460

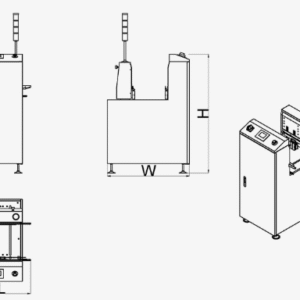

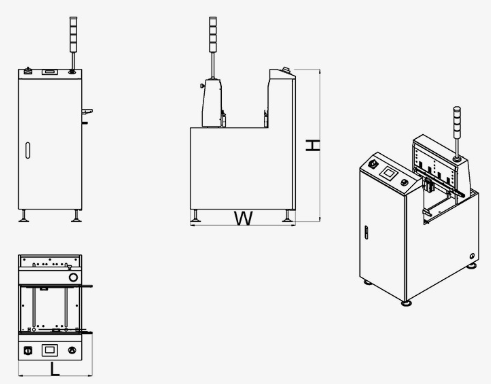

Schematic&Structure
PCB destacker Board handing system loader serial
Description
This unit is used for loading of bare PCBs to the production line.
Features
200 board stack capability with 0.4 mm board thickness Variable speed in/speed out and PLC control System Board unload or pass-through mode Variable thickness adjust dial and Slide-width adjust SMC Cylinder and Fixed front rail Adjustable transfer height Interface mounting brackets SMEMA compatible
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | PCB storage |
| LCX-460 | 550*890*1200 | 50*50-460*460 | 200KG |
200PCS/0.4mm |
