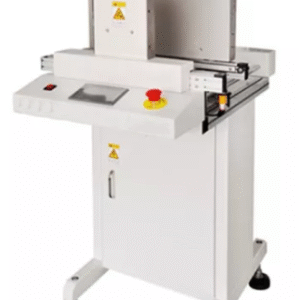

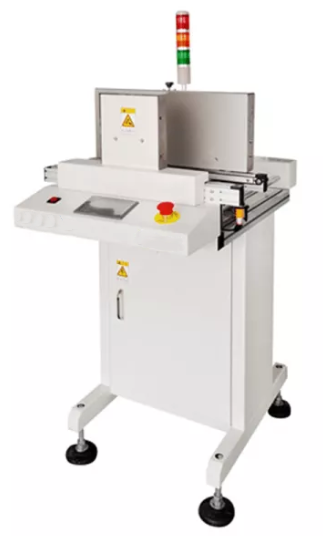

PCB destacker
PCB destacker
Board handing system loader serial
Description
This unit is used for loading of bare PCBs to the production line.
Features
200 board stack capability with 0.4 mm board thickness
Variable speed in/speed out and PLC control System
Board unload or pass-through mode
Variable thickness adjust dial and Slide-width adjust
SMC Cylinder and Fixed front rail
Adjustable transfer height
Interface mounting brackets
SMEMA compatible
Specifications
|
Model |
Dimension (L*W*H.MM) | PCB size(MM) | Weight(KG) | PCB storage |
|
LLC330W-B |
550*650*1200 | 50*50-330*250 | 150KG |
200PCS/0.4mm |
| LLC460W-B | 550*890*1200 | 50*50-460*460 | 200KG |
200PCS/0.4mm |

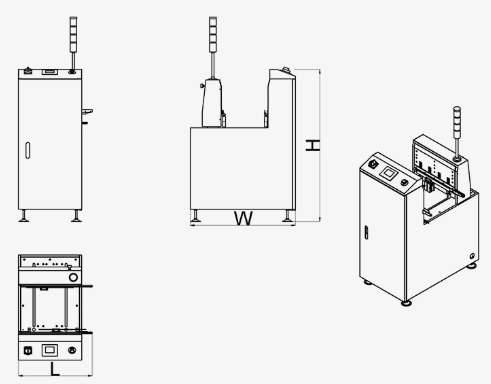

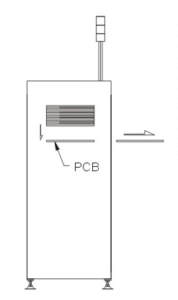

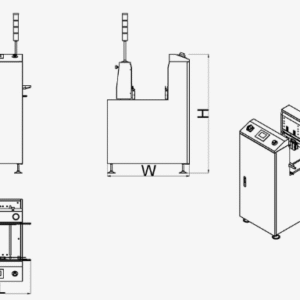

Schematic&Structure
