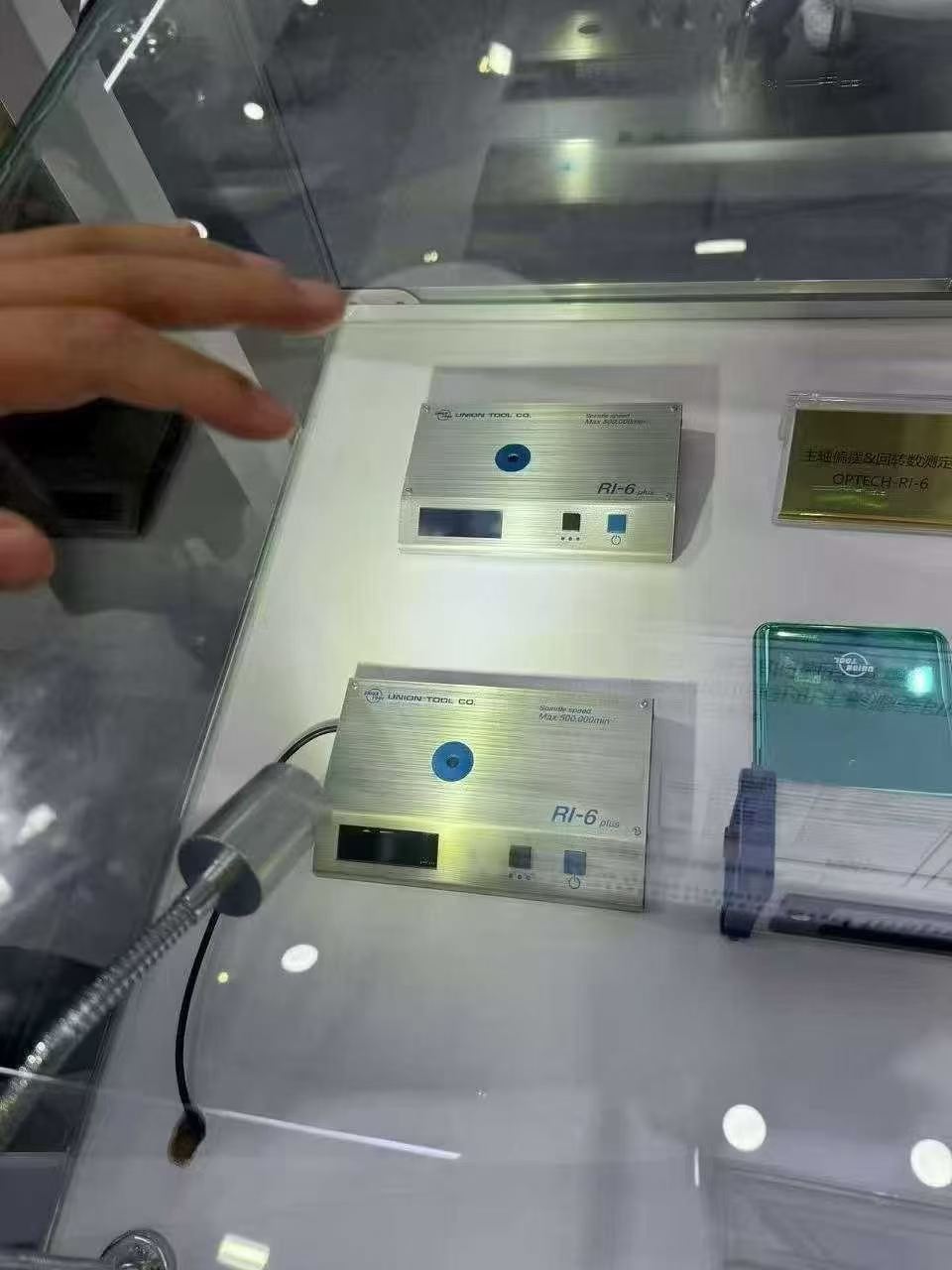

OPTECH-RI-6 plus
Spindle Runout & Speed Indicator
OPTECH-RI-6 plus
Spindle runout & speed indicator
Specification
Measuring range
0~99.9um
Measurement accuracy (20°C)
Spindle speed
100-500,000rpm
Spindle speed
High: 10,000~499,000rpm
N: 1,000~99,000rpm
Spindle speed
High: ±1,000rpm
Resolution accuracy (20°C)
High: ±1,000rpm
Pre-order for February 2026
Low: ±100rpm
Share to:
Facebook
X
LinkedIn
WhatsApp
~New specification~
Upgraded OLED screen display
Standard rod detection function
USB type The C interface allows for connection to a PC.
The recessed design at the bottom of the main unit is compatible with Schmoll drilling machines and does not interfere with pin clamping.
It can be used with an external RI-D display and features a 2.8-inch touchscreen.
